Installation Instructions

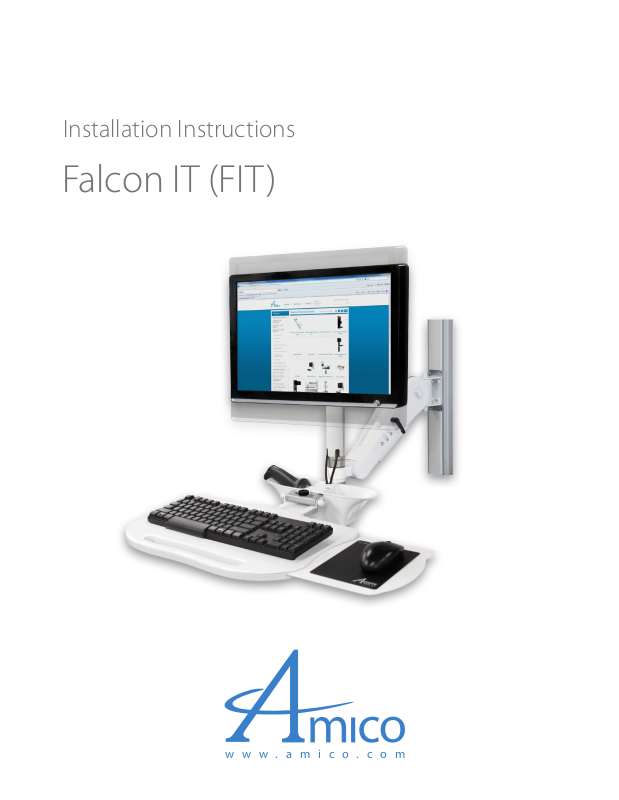

Falcon IT (FIT)
Preface
IMPORTANT, PLEASE READ CAREFULLY
Thank you for your purchase with Amico Accessories Inc.
This unit is designed for long lasting performance, providing the end user complies with assembly and maintenance
procedures. This Instruction Manual is your guide to ensure that you get the best performance out of the equipment.
Amico Accessories is not responsible for any damage as a result of (but not limited to) abuse and other problems that
may be a direct or indirect result of failure to comply with the instructions provided in this manual.
Please note these key words and symbols:
WARNING Steps where extra care should be taken to prevent injuries and damage.
NOTE Steps that point out helpful information.
Medical Facility Responsibilities
Preventive maintenance checks must be performed regularly to maintain the quality and performance of this product.
Any parts that may be broken, missing, worn, distorted, or contaminated in any way should not be used and all
aected parts should be replaced immediately. Should the necessity of any repair be suspected; please contact your
local distributor or call 877.264.2697.
2 Amico Accessories Inc.
Contents
Section 1: Installation Preparation
Installation Tools Requirements 4
Pre-Installation Information 5
Typical Installation Reference FIT Station 6
Section 2: Installation on Rail System
Mounting to the MRS Rail 8-9
OSHPD anchor Pre-Approval 9
Mounting to the VRS/OHMEDA Rail 10
Mounting to the ARS Rail 12
Mounting to the G Rail 14
Section 3: Device Installation
Device Mounting
Monitor: VESA 75 / 100 16
Mouse/Scanner Holder 17
Keyboard and Mouse 18
Wristpad and Mousepad 19
Cable Management
Independently mounted CPU 20
All In One/CPU mounted at Monitor 23
Section 4: Adjustments
AHM
Height Locking Lever 26
Counterbalance 27
Installing Extension Arm 28
VESA Head
Portrait Landscape Adjustment 29
Monitor Tilt & Swivel 30
Keyboard Tray
Negative Tilt Knob 31
System
FIT Storage 32
Rotation (Arm side-to-side) 34
Swivel Post 35
Spring Adjustment 36
Section 5: Maintenance, Troubleshooting and Product Classication
Troubleshooting 37
Preventive Maintenance (FIT Station) 38
Part Number Matrix 40
Cleaning 41
Warranty Information 42
www.amico.com 3
SECTION 1: Installation Preparation
Installation Tools Requirements
The following table lists all the tools and parts required for installation
Item Item number Qty
Phillips screw driver #2 A1 1
HEX keys (1/8” (0.3175cm), 3/16”
(0.47625cm), M3, M4)
Socket wrenches (12 mm (1.2cm), ½”
(0.05cm))
Adjustable wrench A4 1
A2 1 each
A3 1 each
NOTE: Amico does not provide any monitor hardware, nor the tools necessary for assembly.
A
1
2
3
4 Amico Accessories Inc.
4
SECTION 1: Installation Preparation
Pre-Installation Information (Please Read Carefully Before Starting)
WARNING VERIFY THAT RAILS HAVE BEEN INSTALLED IN ACCORDANCE WITH AMICO RAIL INSTALLATION IN
STRUCT IONS. RAIL FAILURE WITH DEVICES MOUNTED CAN CAUSE SERIOUS INJURY AND EQUIPMENT DAMAGE
WARNING IT IS DANGEROUS TO USE THE ARM FOR WEIGHTS OUTSIDE OF THE RATED RANGE.
STRUCTURAL FAILURE AND/OR SERIOUS INJURY COULD RESULT
WARNING DO NOT POSITION THE FIT STATION ABOVE A PATIENT.
WARNING The FIT station contains a strong gas spring which is used to counterbalance the weight of the
mounted device. The arm housing should never be disassembled by non-Amico personnel. Failure to follow
these guidelines could result in serious injury.
WARNING It shall be the responsibility of the hospital, its consultants and/or contractors to determine
if the mounting surface is adequate to safely mount the specic instrument. This includes the selection of
appropriate fasteners and the proper installation, REGARDLESS WHAT IS SUPPLIED WITH YOUR IT STATION.
See Rail Instructions for specic wall channel guideline information.
WARNING Verify the weight of the device to be mounted. (FIT Stations are rated at 30 lbs (13.6 kg) total
load. (PLEASE REFER TO WEIGHT RATING LABEL, LOCATED EITHER ON THE TOP OR BOTTOM OF THE ARM
ASSEMBLY, DEPENDING ON THE MODEL). The VESA monitor head is rated for 30 lbs (13.6 kg), the keyboard
tray is rated for 15 lbs (6.8 kg). Check that the device to be mounted does not exceed the weight rating.
Serious injury and damage to the arm can occur as a result of overloading arm assembly.
The FIT weight rating applies to all units with extensions.
For installation on non-Amico rails, ensure the rail is safe for the application.
If you are unsure of your application, please contact an Amico Accessories product Specialist:
1-877-264-2697
Considerable eorts have been made to ensure the safety of your hospital sta and your patients. The installation itself
is beyond the control of Amico Accessories. Accordingly, Amico Accessories will not be responsible for failure related to
the installation of the product.
CONTACT AMICO ACCESSORIES TO DISCUSS SOLUTIONS NOT COVERED IN THIS MANUAL:
1-877-264-2697
www.amico.com 5
SECTION 1: Installation Preparation
Typical Installation Reference
The picture below illustrates the components referenced in relation to one another in the installation of the FIT
STATION. Please follow the instructions outlined herein to ensure proper installation.
FIT Station
1. Swivel Post (Pg.34)
For mounting and positioning of monitor
2. Extension Arm (Pg.27)
extension arm to increase movement range of AHM (if applicable)
3. Mounting Adapter(Pg.7-14)
Dierent mounting adapters will be provided based on the rail system used
4. Cable Management (Pg.19-24)
Manage cables for the FIT Station for a clutter free environment
5. Height Locking Lever (Pg.25) (Not Shown)
Locks arm at desired height,
6. Counter Balance Bolt (Pg.26)
Balance the weight of the monitor on the AHM arm of the FIT station
7. Negative Tilt Knob (Pg.30)
Tilts the keyboard tray’s back downwards for proper ergonomics in certain cases
8. Keyboard Tray (Pg.17-18) (2 x mousepad, 12 x dual lock coins provided; wrist rest if purchased)
Location for Keyboard & Mouse
9. Rail System (Pg.7-14)
For mounting the FIT station, varies depending on user’s selection. Rail is packed separately and must be
installed rst.
10. VESA Head (Pg.28-29)
For mounting the monitor
11. Mouse/Scanner Holder (Pg.16)
For storing mouse and hand-held scanners.
12. CPU Mount (Pg. 7-13) (Not Shown)
For Mounting CPU for FIT station.
9
2
1
6
10
6 Amico Accessories Inc.
3
4
7
11
8
SECTION 2: Installation on Rail Systems
Recommended Installation Heights
NOTE: Drawing is not to scale
NOTE: CPU Mount should be mounted high enough so that when the FIT Station is at the highest position the monitor
will not interfere with the CPU.
115.57 - 16.002 cm
44.45 cm
1.27 cm
88.9 cm
www.amico.com 7
SECTION 2: Installation on Rail Systems
Mounting To The MRS (Monitor Rail System)
FIT Station
WARNING DO NOT attempt to mount/remove the FIT Station from the rail when loaded with any
instrument
WARNING DO NOT mount the FIT Station anywhere near or above a Patient’s head.
WARNING To prevent the Mounting Adapter from sliding down the MRS, ensure the four set screws
are fastened to the tightest possible position, serious injuries could result if the set screws are not properly
fastened. (Figure 1)
WARNING Ensure rail is stable and properly installed before mounting FIT Station.
NOTE The top and bottom stopper are there to prevent the Mounting Adapter from sliding out of the
MRS. The Mounting Adapter must be taken out from the top of the MRS with the top stopper pressed back into
the MRS (Figure 2)
1. Install Height locking Lever (See Page 25)
2. Engage the Height Locking Lever with the AHM in the highest position.
3. Lift up the FIT Station and guide the Mounting Adapter into the top of the MRS Rail (Figure 1).
4. Once the arm is positioned at the desired height in the MRS, tighten all four set screws to the tightest possible
position on the Mounting Adapter using a 1/8’’ HEX key.
Top Stopper
Mounting
Adapter
1/4-20 Set
Screws
8 Amico Accessories Inc.
(Figure 1)
MRS
Bottom
Stopper
MRS Rail: Length for representational use only
(Figure 2)
SECTION 2: Installation on Rail Systems
CPU Mount
WARNING Ensure CPU is within weight and size rating of the CPU mount. If not, please contact Amico
Accessories at (1-877-264-2697)
WARNING The CPU mount can be mounted anywhere at any height on the rail. However, DO NOT mount
anywhere above a patient’s head.
WARNING Ensure rail is stable and properly installed before mounting FIT Station.
1. Determine a suitable location on the MRS for the CPU to make sure it isn’t above a patient’s head.
2. Lower the CPU mount down the MRS to the desired height. Tighten the two set screws in the Mounting Adapter
to the tightest possible position using a 1/8” HEX key. (Figure 1)
3. Mount the CPU and secure it by tightening the two thumb knobs.
CPU slides
into slot
CPU
Mount
Thumb
Knobs
1/4-20 Set Screws on
Mounting Adapter
MRS
(Figure 1)
OSHPD Anchor Pre-Approval OPA-1743
In compliance with standards established for the anchor and installation of instrument support systems by the
California Oce of Statewide Health Planning and Development (OSHPD), Amico Accessories Inc. has obtained preapproval for MRS 19’’ (48.26cm) Wall Channels or longer with extension Arm. For proper installation requirements
please refer to our OPA Document.
www.amico.com 9
SECTION 2: Installation on Rail Systems
Mounting To The VRS(Vertical Rail System) / Ohmeda Rail
FIT Station
WARNING All V-adapters must be sitting in the VRS securely. If not, serious injury could result.
WARNING To prevent the V-adapter from falling down the VRS, ensure that the screws are fastened to the
tightest possible position. After the installation, rotate the AHM arm side to side to verify that no movement
is present between the adapters and the VRS.
WARNING Ensure rail is stable and properly installed before mounting FIT Station.
WARNING The Mounting Adapter for Ohmeda rails dier from the Mounting Adapter for VRS, the
Adapters are not cross-compatible.
NOTE: When the screw is turned clockwise, it causes the side of the V-adapter to slide inward,
locking the V-adapter (Figure 2). When the screw is turned counter-clockwise, it causes the side of the
V-adapter to slide outward, unlocking the V-adapter. (Figure 3)
Ensure the V-Adapter is in the UNLOCKED position, and ensure the AHM is LOCKED in the highest vertical position.
NOTE: See Page 25 for instructions on locking and unlocking the AHM
1. Angle the AHM from the left of the channel and guide the adapters into the groove of the channel. (Figure 4
and 5)
2. Tighten screw with a 3/16’’ HEX key when V-adapter is at the desired height. When tightened, the screw
will protrude from the other side. Fasten the nut to the screw to secure the V-adapter. If the nut cannot be
installed, the adapter is not properly engaged. Check that all nuts and screws are tightened to ensure the
V-Adapter is locked. (Figure 6)
Nut
Opposite side of the
V-adapter
(Figure 1)
Height Locking Lever
Screw
Slide
inwards
Locked
(Figure 2)
Screw
Slide
outwards
Unlocked
(Figure 3)
AHM
(Figure 4)
10 Amico Accessories Inc.
V-Adapter
Screws
(Figure 5)
VRS
Mounted on the VRS
(Figure 6)
SECTION 2: Installation on Rail Systems
CPU Mount
WARNING Ensure CPU is within weight and size rating of the CPU mount. If not, please contact Amico
Accessories at (1-877-264-2697)
WARNING The CPU mount can be mounted anywhere at any height on the rail. However, DO NOT mount
anywhere above a patient’s head.
WARNING Ensure rail is stable and properly installed before mounting FIT Station.
1. Determine a suitable location on the VRS for the CPU, making sure it isn’t above a patient’s head. Also ensure
your CPU mount is compatible with your CPU’s weight and size rating. If not, please contact Amico Accessories.
(1-877-264-2697)
2. Mount the CPU mount to the VRS (refer to mounting of AHM arm to the VRS channel for instructions on how to
install Mounting Adapter to the VRS. (Refer to Page 9 for installation)(Figure 1)
NOTE: Mounting Adapter for CPU mount has a knob instead of a screw, and there is no nut to be tightened on the
other side.
CPU slides
into slot
VRS
CPU
Mount
Thumb
knobs
(Figure 1)
Mounting
Adapter
www.amico.com 11
SECTION 2: Installation on Rail Systems
Mounting To The ARS (Amico Rail System)
FIT Station
WARNING DO NOT attempt to mount/remove the FIT Station from the rail when loaded with any instrument
WARNING DO NOT mount system anywhere near or above a Patient’s head.
WARNING After the Mounting Adapters are installed, ensure that the levers on the Mounting Adapters are
pressed in as far as possible and the adapters are sitting properly inside the rail before mounting devices.
WARNING Ensure rail is stable and properly installed before mounting FIT Station.
Mounting On A Headwall
1. Determine the best location to install the FIT Station. Pop out the cover from the Mounting Adapter Channel to
access the two screws connecting the channel to the Mounting adapter. Remove the two screws and the lock
washers behind them to free one of the Mounting Adapters (Figure 1). Install it into the bottom rail by angling
the upper lip into the inside lip of the ARS, pull the lever back against the Mounting Adapter and push the
adapter into the rail. Once secure, release the lever (Figure 2).
2. Mount the FIT Station by installing the remaining Mounting Adapter into the top ARS the same way as step 1,
ensuring the two holes on the bottom Mounting Adapter can be seen through the Mounting Adapter Channel,
secure the Channel to the bottom Mounting Adapter using the screws and lock washers you removed in step 1.
(Figure 3)
Mounting On A Single ARS
1. Install the FIT Station by installing the Mounting Adapter attached to the Mounting Adapter Channel to the ARS
as shown in step 1. Once it is secure, release the lever, ensure the support block is sitting ush and rmly against
the wall. (Figure 4).
2. Install the Locking bar by placing it on top of the Mounting adapter so it is squeezed by the adapter and ARS.
ARS Adapter
ARS Rail
lever on ARS
(Figure 2)
Mounting on a headwall
Cover
Screw, lock
washers
Mounting
Adapter
Channel
(Figure 1)
Mounting on a single ARS
Mounting
Adapter Channel
ARS
Rail
12 Amico Accessories Inc.
ARS Adapter
installed
(Figure 3)
ARS Rail
Support Block
Mounting Adapter
Channel
(Figure 4)
SECTION 2: Installation on Rail Systems
CPU Mount
WARNING Ensure CPU is within weight and size rating of the CPU mount. If not, please contact Amico
Accessories at (1-877-264-2697)
WARNING After the Mounting Adapters are installed, ensure that the lever on the Mounting Adapters are
pressed in as far as possible.
WARNING The CPU mount can be mounted anywhere at any height on the rail. However, DO NOT mount
anywhere above a patient’s head.
WARNING Ensure rail is stable and properly installed before mounting FIT Station.
1. Determine a suitable location on your ARS for the CPU mount, making sure it isn’t above the patient’s head.
2. Guide the CPU mount into the ARS rail, pull the lever back against the Mounting Adapter and push the CPU
mount into the channel. Release the lever when you reach the desired location. (Figure 2)
CPU slides
into slot
CPU
mount
Thumb
knobs
(Figure 1)
ARS
ARS
Adapter
ARS Adapter
ARS Rail
tab on ARS
(Figure 2)
www.amico.com 13
SECTION 2: Installation on Rail Systems
Mounting To The Hill-Rom Vertical Rail
FIT Station
WARNING To prevent the Mounting Adapter from falling down the channel, ensure that the nuts are secured
to the tightest possible position. After installation, rotate the AHM arm side to side and verify no movement is
present between the adapter and the rail.
WARNING Removal of lock nuts will require a new set for reinstallation. Please contact Amico Accessories for
spare parts, 1-877-264-2697
WARNING Ensure Headwall contains rails compatible with Mounting Adapters.
WARNING Ensure rail is stable and properly installed before mounting FIT Station.
1. With the AHM arm locked in the highest vertical position, support the bottom of the arm and guide the head of
the top GTA pin into the opening of the rail (Figure 1). Ensure the ange on the Mounting Adapter is properly
aligned with the rail. Slide the Mounting Adapter up so that the head of the bottom GTA pin slides into the
opening of the rail.
2. Position the arm to the desired height. Tighten the jam nuts and then the lock nuts on the top and bottom of
the adapter using a 1/2” (3.81cm) wrench (Figure 2). Cover the nuts with the plastic caps provided. (Figure 2)
Head of
the top GTA pin
Head of the
bottom GTA pin
Backside
Flange
(Figure 1)
Opening of
the rail
jam nut, lock nut,
and plastic cap
Hill-Rom
Rail
Front
(Figure 2)
14 Amico Accessories Inc.
SECTION 2: Installation on Rail Systems
CPU Mount
WARNING Ensure CPU is within weight and size rating of the CPU mount. If not, please contact Amico
Accessories at (1-877-264-2697).
WARNING Removal of lock nuts will require a new set for reinstallation. Please contact Amico Accessories for
spare parts at (1-877-264-2697)
WARNING The CPU mount can be mounted anywhere at any height on the rail. However, DO NOT mount
anywhere above a patient’s head.
WARNING Ensure rail is stable and properly installed before mounting FIT Station.
1. Determine a suitable location on your Hill-Rom rail for the CPU mount, making sure it isn’t above the patient’s
head.
2. Loosen the Heads of the Mounting Adapters by turning the wheels (Figure 1). Guide the head of the top GTA pin
on the upper Mounting Adapter into the opening of the rail. Ensure the ange on the GTA is properly aligned
with the rail. Slide the GTA up so that the head of the bottom GTA pin slides into the opening of the rail (Figure
2).
3. Position the CPU Mount to the desired height. Tighten the heads by turning the wheel in the opposition
direction from before. (Figure 3).
Wheel
Head of
the top
GTA pin
Head of the
bottom
GTA pin
Flange
GTA
Hill-Rom
Rail
Opening of
the rail
(Figure 1)
Backside of the GTA
(Figure 2)
(Figure 3)
www.amico.com 15
SECTION 3: Device Installation
Monitor Mounting: VESA 75/100
WARNING Ensure that the AHM is in the highest vertical position and locked before mounting or removing
devices from the FIT Station.
NOTE See page 25 for instructions on locking and unlocking the AHM
NOTE 4 x M4 screws are provided for mounting the monitor to the VESA Head, dierent screws may
be needed if the provided screws are not the right size, standos may be needed depending on the hole pattern
on the monitor.
1. Determine the monitor mounting conguration. VESA 75 (75 mm x 75 mm M4 thread) or VESA 100 (100 mm x
100 mm M4 threads).
2. VESA 100 conguration: Partiall 2screws are partially threaded into the top 2 holes in the back of the monitor.
The monitor can then be hung up on the VESA Head through the two slots at the top. Insert 2 more screws
through the VESA-100 mounting holes at the bottom and tighten all screws (Figure 1).
3. VESA-75 conguration: Rotate the VESA Head so the 2 slots for the VESA-75 conguration are located at the top.
Partially thread two screws into the top 2 holes in the back of the monitor. The monitor can then be hung up on
the VESA Head through the two slots at the top. Insert 2 more screws through the VESA-100 mounting holes at
the bottom and tighten all screws.
4. When removing the Monitor, the monitor arm and the monitor should be placed at the highest position (Figure
2). Remove the 2 bottom screws from the VESA plate, loosen the top 2 screws, and lift the monitor o the VESA
plate.
M4 mounting
hole for VESA-75
M4 mounting
hole for VESA-100
Front of the VESA 75/100
16 Amico Accessories Inc.
(Figure 1) (Figure 2)
SECTION 3: Device Installation
Mouse/Scanner Holder Installation
WARNING Do not rest excessive weight on keyboard tray. It is rated for up to 15 lbs (7 kg) max.
WARNING Ensure that the AHM is in the highest vertical position and locked before mounting or removing
devices from the FIT.
NOTE: See Page 25 for instructions on locking and unlocking the AHM
The Keyboard tray comes with a mouse/scanner holder. The keyboard tray contains a sliding mouse
tray as well as mousepads. Amico Accessories also provides wrist rests and other accessories, however
those must be purchased separately. The Keyboard Tray can rotate side to side and can be folded up. It is
recommended to keep keyboard accessories & other accessories in the mouse/scanner holder.
NOTE: The mouse/scanner holder is a plastic basket. It is placed in between the swivel post and the keyboard tray for
easy access. (Figure 1)
1. Place the mouse/scanner holder on the block between the swivel post and the keyboard tray, the holder should
snap onto the sides of the block as well as into the keyhole in the center (Figure 1).
Swivel
Post
Mouse/Scanner
Holder
Swivel
Block
Keyboard
Tray
(Figure 1)
www.amico.com 17
SECTION 3: Device Installation
Keyboard and Mouse Mounting
1. Place keyboard onto the keyboard tray, place the mouse into the mouse holder, ensure the end with the cable
faces up. Follow cable management procedures to route the cables through the FIT on page 19/22.
NOTE: To secure the keyboard to a magnetic keyboard tray, place the magnetic keyboard onto the part of the
tray with metallic inserts.
2. To secure the keyboard to a regular keyboard tray or as an additional securing method for the magnetic
keyboard, use the dual locking coins provided.
a. Take the strip of dual locking coins (Figure 1) provided, remove backing and place 6 on the keyboard,
spaced evenly (Figure 2).
b. Take the remaining 6, remove backing and place them onto the 6 already attached to the keyboard
(Figure 3).
c. Place it on the keyboard tray and press down hard while supporting the bottom of the keyboard tray, the
keyboard can now be attached and detached from the keyboard tray (Figure 4).
3. Place any other accessories into their respective holders/areas and route cables according to the procedures
provided in the cable management section on page 19/22.
(Figure 1)
Dual Lock
coins
(Figure 3)
18 Amico Accessories Inc.
(Figure 2)
(Figure 4)
SECTION 3: Device Installation
Wrist Rest Mounting
NOTE: Wrist rest is available but not provided with the FIT Station by default.
1. To secure the wrist rest to a keyboard tray, use the dual locking coins provided. Follow the instructions on the
previous page to attach the twelve (12) dual locking coins to the wrist rest.
2. Position the wrist rest on the keyboard tray behind the handle (Figure 1), follow the step 3 on the previous page
to install the wrist rest onto the keyboard tray using the dual-lockig coins.
(Figure 1)
Mousepad Mounting
1. Take a mousepad, peel o the adhesive release (Figure 2).
2. Choose a side of the keyboard tray to use as a mousing surface. Pull out the mousetray from that side and attach
the mousepad to it by sliding it into the side of the keyboard until the inside edge of the mousepad disappears,
and the entire mousepad is resting on the mouse tray, then press it onto the mousetray (Figure 3).
(Figure 2) (Figure 3)
www.amico.com 19
SECTION 3: Device Installation
Cable Management For Independently Mounted CPU
Keyboard Tray Cable Management
WARNING Do not bunch cables together on one tie. It may destroy the cable clips.
Keep your cables in separate cable clips. Two cable clips are provided for use.
NOTE: Ensure keyboard and mouse are both properly positioned as per the manual
before beginning cable management procedures.
1. Take the mouse and keyboard cables, simply push the cable gently into the guide-clip
until it sits inside it’s receptacle. (Figure 1) OR, remove the screw of the cable guide using
a philips head screwdriver, through both holes on the cable guide. Push the Keyboard
tray cable guide into the cable, and then re-align and re-attach the screw with a Philips
screw driver.
2. Ensure the cable can still be moved forward and backwards in the guide.
(Figure 1)
Swivel Post Cable Management
WARNING Do not bunch cables together on one cable guide-channel. Use separate channel for each cable
1. There are 2 FIT cable guide-channels in the Swivel post, which is covered by the Swivel Post Cable Cover.
2. Pop outthe Swivel Post Cable Cover, your monitor cables and place the cable gently into the guide-channels
(Figure 1, 2).
3. Push-t the Swivel Post Cable Cover, so that the cables pass through the Bottom 2-holes and come out from the
top 2 holes (Figure 3).
4. Ensure the cables can still be moved up and down through the guide-channels.
20 Amico Accessories Inc.
Cable guide
channel
(Figure 1)
Cable laid
(Figure 2)
Swivel Post
Cable Cover
(Figure 3)
SECTION 3: Device Installation
AHM Arm Cable Management
NOTE: FIT cable guide is provided to facilitate routing of cables along the bottom of the arm.
NOTE: Longer cable guides are provided for arms with extensions. Guides also snap into grooves on the bottom of
extension arms.
1. Ensure devices are mounted, ensure keyboard tray and swivel post cable management is complete. Take the
cables coming out of the keyboard tray and swivel post and press them between the openings of the cable
cover (Figure 1).
2. Ensure that there are at least 2” (5.08cm) of slack hanging free at the front end of the AHM Arm.
Cable Cover
Cable
Guide
Edge
AHM arm with cables
inserted
MRS Rail Cable Management
NOTE: A MRS cable guide is available to facilitate routing of cables along
the Rails and is not provided by default with the FIT Station.
Cable Guide
Bottom view of the
AHM Arm
(Figure 1)
(Figure 2)
1. Depending on where your CPU is mounted, guide the cables
from the FIT station going to the CPU into the side of the channel
leading to your CPU. (Figure 1)
2. Depending on where your electrical outlets are, guide the power
cables from the FIT station into the side of the channel leading to
your electrical outlets. (Figure 1)
3. Guide the MRS rail cable cover into the channel over the cable.
Ensuring no cable is pinched between the rail and the cover. Safely
trim o any excess MRS cover after installation.
Direction to slide
MRS Rail Cover
(Figure 3)
www.amico.com 21
SECTION 3: Device Installation
ARS Rail Cable Management
NOTE: An ARS cable guide is available to facilitate routing of cables along the Rails and is not provided by default
with the FIT Station.
1. Depending on where your CPU is mounted, guide the cables from the FIT station into the side of the channel
leading to your CPU. (Figure 1)
2. Depending on where your electrical outlets are, guide the power cables from the FIT station into the side of the
channel leading to your electrical outlets. (Figure 1)
3. Guide the ARS rail cable cover into the channel over the cable. Ensuring no cable is pinched between the rail
and the cover. Safely trim o any excess MRS cover after installation.
22 Amico Accessories Inc.
(Figure 1)
SECTION 3: Device Installation
Cable Management For All In One/CPU Mounted At LCD
Keyboard Tray Cable Management
WARNING Do not bunch cables together on one tie. It may destroy the cable clips.
Keep your cables in separate cable clips. Two cable clips are provided for use.
NOTE: Ensure keyboard and mouse are both properly positioned as per the manual before
beginning cable management procedures.
1. Take the mouse and keyboard cables, simply push the cable gently into the guide-clip
until it sits inside it’s receptacle. (Figure 1) OR, remove the screw of the cable guide using a
philips head screwdriver, through both holes on the cable guide. Push the Keyboard tray
cable guide into the cable, and then re-align and re-attach the screw with a Philips screw
driver.
2. Ensure the cable can still be moved forward and backwards in the guide.
(Figure 1)
Swivel Post Cable Management
WARNING Do not bunch cables together on one cable guide-channel. Use separate channel for each cable
1. There are 2 FIT cable guide-channels in the Swivel post, which is covered by the Swivel Post Cable Cover.
2. Pop out the Swivel Post Cable Cover, take your power cable for your All-in-one and place the cable gently into
the guide-channels towards your AHM(Figure 1, 2). Take your cables from the keyboard tray and place the cables
into the guide-channels toward your All-in-one.
3. Push-t the Swivel Post Cable Cover, so that the cables pass through the Bottom 2-holes and come out from the
top 2 holes (Figure 3). Plug the keyboard, mice, and any other accessories’ cables into the All-in-one.
4. Ensure the cables can still be moved up and down through the guide-channels.
Cable guide
channel
(Figure 1)
Cable laid
(Figure 2)
Swivel Post
Cable Cover
(Figure 3)
www.amico.com 23
SECTION 3: Device Installation
AHM Arm Cable Management
NOTE: FIT cable guide is provided to facilitate routing of cables along the bottom of the arm.
NOTE: Longer cable guides are provided for arms with extensions. Guides also snap into grooves on the bottom of
extension arms.
1. After installation of All in one/CPU, take the power cables and press them between the openings of the cable
cover (Figure 1).
2. Ensure that there are at least 2” (5.08cm) of slack cabling hanging free at the front end of the AHM.
Cable Cover
Cable
Guide
Edge
MRS Rail Cable Management
NOTE: A MRS cable guide is provided to facilitate routing of cables
along the Rails.
Cable Guide
Bottom view of the
AHM Arm
AHM arm with cables
inserted
(Figure 1)
(Figure 2)
1. Depending on where your electrical outlet is located, guide the
cables from the FIT station into the side of the channel leading to
the outlet. (Figure 1)
2. Guide the MRS rail cable cover into the channel over the cable.
Ensuring no cable is pinched between the rail and the cover.
Safely trim o any excess MRS cover after installation.
24 Amico Accessories Inc.
Direction to slide
MRS Rail Cover
(Figure 3)
SECTION 3: Device Installation
ARS Rail Cable Management
NOTE: An ARS cable guide is available to facilitate routing of cables along the Rails.
1. Depending on where your electrical outlet is mounted, guide the cables from the FIT station into the side of the
channel leading to your outlet. (Figure 1)
2. Guide the ARS rail cable cover into the channel over the cable. Ensuring no cable is pinched between the rail
and the cover. Safely trim o any excess MRS cover after installation.
(Figure 1)
www.amico.com 25
SECTION 4: Adjustments
Height Locking Lever Adjustments: FIT Station
WARNING The height locking lever must be installed properly before mounting the AHM to the rail or
mounting the monitor to the AHM.
WARNING Never attempt to move the arm vertically without loosening the lever. It will create excessive
force on the AHM and may lead to premature failure.
NOTE: The height locking lever is designed to inhibit all vertical movement of the AHM when it is in
use. Loosen the lever to adjust the AHM vertically, and tighten when nished to lock the AHM in place.
NOTE: Check to make sure the arm is locked in its highest position before mounting the arm into the
channel
1. Insert the height locking lever into the mounting hole on the side of the arm (Figure 1). Turn the lever clockwise
to lock vertical movement, or turn the lever counterclockwise to release the vertical lock. (Figure 2)
Height Locking Lever:
Rotate CounterClockwise to Release
Rotate Clockwise to Lock
(Figure 1) (Figure 2)
26 Amico Accessories Inc.
SECTION 4: Adjustments
Counterbalance: FIT Station
WARNING Do not over-rotate the counterbalance bolt. Once you feel a resistance, stop. Forcing the bolt
will damage the internal of the AHM and void the warranty.
WARNING AHM back cover must be aligned with the counterbalance bolt and must be level.
NOTE: The height locking lever must be engaged while adjusting the counterbalance.
NOTE: Only adjust if necessary. The counterbalance controls the total weight that can be mounted onto the IT
station and not the counterbalance at the VESA Head.
1. Once the monitor is securely installed, release the height locking lever and position the AHM arm to align the
opening in the cover with the counterbalance bolt. Tighten the locking lever again to lock the AHM arm (see
Figure 1).
2. With the height locking lever disengaged, if the FIT station is drifting downwards, slowly loosen the
counterbalance bolt, rotating counter-clockwise (Figure 2). If the FIT station is drifting upwards, slowly tighten
the counterbalance bolt, rotating clockwise.
3. Release the locking lever. If the arm has been correctly balanced, the arm will not drop or lift and it will remain
in the same position. Ensure the arm is balanced from the lowest to the highest position by checking in various
positions. Tighten the height locking lever with the arm at the desired position, once determined.
4. If the arm is not balanced correctly, please go back to step 2 and repeat.
Counterbalance Bolt (1/2”) (3.81cm)
Height Locking Lever
Counterbalance Bolt
(1/2”) (3.81cm)
Opening of the cover
(Figure 1)
(Figure 2)
www.amico.com 27
SECTION 4: Adjustments
Installing The Extension Arm:
NOTE: Extension arms are normally shipped assembled with the AHM. If the extension arm is not assembled, please
follow the instructions below to attach the extension arm before mounting.
WARNING Remove all mounted devices before removing the FIT station from the rail.
WARNING Do not reuse the removed screws to attach AHM arm base, contact Amico Accessories at
(1-877-264-2697). Use part number H-HSCSP-1032-58.
1. Remove the FIT station from the rail, see FIT station mounting section on page 7-14 for instructions or contact
Amico Accessories at (1-877-264-2697)
2. Remove the 4 screws attached to the AHM arm base, and remove the installed extension arm/ush mount.
Attach new extension arm to the AHM arm using 4 new screws in the same position (Figure 1).
3. Follow installation instructions to remount the FIT station onto the rail and for remounting of all devices.
Plastic Caps
Screws
(Figure 1)
(Figure 2)
28 Amico Accessories Inc.
SECTION 4: Adjustments
FIT Post
Portrait and Landscape Adjustment
WARNING Make the adjustments with the monitor securely mounted.
NOTE: To adjust the orientation, turn the monitor (Figure 1). Do not twist/tangle wires.
1. The Portrait and Landscape adjustment is done by holding the monitor and rotating 90 degrees.
Portrait
Landscape
(Figure 1)
www.amico.com 29
SECTION 4: Adjustments
Monitor Tilt & Swivel
WARNING Be sure to support the monitor if adjusting the tilt angle with monitor mounted.
WARNING After monitor is installed, tighten large and small tilt adjustment screws to tightest position
possible with the weight of the monitor attached. Alternate between tightening large screw and small screw
untill appropriate tension is reached.
1. The monitor can swivel 360 (clockwise & counterclockwise/left & right) and also can tilt up & down by +/- 15.
ADJUSTING TILT TENSION: Tighten or loosen the large screw on the mounting bracket and then tighten or loosen
the two smaller screws to ne tune the tension (Figure 1).
ADJUSTING SWIVEL TENSION: Remove the cap from the keyboard base. To adjust the swivel tension of the
monitor, slightly (1/4 turn) loosen/tighten the nut at the base of the keyboard tray. To adjust the swivel tension of the
keyboard (when keyboard is rotated, the monitor will follow), slightly (1/4 turn) loosen/tighten the 3 Phillips head
screws in the cavity, directly adjacent to the nut, at the base of the keyboard tray. (Figure 2)
± 360°
(Figure 1)
± 150
Small screws
Large screw
keyboard base
Screws for
adjusting the
swivel tension of
the keyboard
Nut for adjusting
the swivel tension
of the monitor
(Figure 2)
30 Amico Accessories Inc.
SECTION 4: Adjustments
Negative Tilt Knob
NOTE: Negative Tilt knob is designed to tilt the BACK/REAR of the keyboard Tray down, and the FRONT of the
keyboard upwards.
WARNING Do not rest weight on keyboard tray while adjusting the negative tilt knob, doing
so may deform keyboard arm.
1. To raise the angle of the keyboard, tilt the keyboard upwards until desired angle is achieved by hand, then turn
the Negative Tilt knob clockwise until the knob cannot turn anymore. (Figure 1)
2. To lower the angle of the keyboard, turn the negative tilt knob counterclockwise, the keyboard tray should
began lowering on its own. Continue turning the knob until desired angle is achieved. (Figure 1)
Lowers
Negative Tilt Knob
Raise
(Figure 1)
www.amico.com 31
SECTION 4: Adjustments
System
FIT Station Storage
WARNING Remove all un-xed equipment from the top of the keyboard tray before folding
the FIT station
WARNING Storing the FIT station with the height locking lever facing the wall may result in
the lever hitting the wall. The lever may be removed before storage.
NOTE: FIT Stations can easily be folded to free up oor space when not in use.
NOTE: The following folding procedure assumes the FIT Station is in the default arm position. (Figure 1) and applies to
both arms with extension and without
1. Decide which side of the channel will be used to store the unit. Release the height locking lever on FIT stations
and raise it to the highest vertical position.
NOTE: If the monitor interferes with the folding of the keyboard tray, raise the monitor to the highest position.
2. Push the keyboard tray up and turn the keyboard tray away from the side of the channel that will be used to
store the unit. (Figure 2)
3. Ensure monitor and the swivel post face the same direction as the folded keyboard tray. (Figure 2)
IT Station Default Position
AHM Arm
FIT station example shown above
Turn monitor
head in the
direction of the
keyboard tray
Swivel Post
Keyboard Tray
Keyboard Tray folded and turned to the Right
32 Amico Accessories Inc.
(Figure 2)(Figure 1)
SECTION 4: Adjustments
4. Rotate the arm towards the desired side of the channel. (Figure 1)
5. For a folding extension, hold the extension arm against the wall, and then pivot the AHM back towards the
channel until it rotates another 180 degrees. (Figure 2)
Caps
Bolt
(Figure 1)
(Figure 2)
6. Rotational tension can be adjusted by tightening/loosening the bolts located at the joints of AHM/extension
arms. Remove the caps to access the bolt before adjusting (Figure 1).
www.amico.com 33
SECTION 4: Adjustments
Rotation
WARNING For FIT Station with extension arms, both arms have a 180 degree rotation. Ensure proper
clearance around the arm(s) to avoid collision.
NOTE: If the arm becomes dicult to rotate, or too loose, please contact Amico Accessories:
1-877-264-2697
NOTE: Adjusting the rotational tension of the extension arms can be done by loosening or tightening
the bolt at the joints of the arms and the adapter (Figure 1) using a 3/4” socket wrench or equivalent tool. Be
careful not to overloosen.
Single Arm Rotation: To rotate the AHM, simply push on the side of the AHM in the direction desired.
Extension Arm Rotation: To rotate the extension arm (near wall), push on the side of the extension arm, near the
mid-way point (Figure 1). To rotate the AHM, hold the extension arm with one hand and push on the side of the AHM
with the mounted monitor (Figure 2).
AHM extension arm
Bolt at extension arm
Bolt at
adapter
To rotate AHM:
Second Arm rotated
34 Amico Accessories Inc.
Extension Arm rotated
(Figure 1)
(Figure 2)
SECTION 4: Adjustments
Swivel Post
1. The Swivel-post allows for vertical movement of the monitor independent of the keyboard tray and also allows
for rotation of the monitor.
2. To rotate the keyboard tray with the monitor simply rotate the keyboard tray and the monitor will rotate along
with it.
3. To rotate the monitor independently of the keyboard tray, hold the keyboard tray in place and rotate the
monitor.
VESA plate
Swivel
Swivel-Post
Swivel Post Cable Cover
(Figure 1) (Figure 2)
www.amico.com 35
SECTION 4: Adjustments
Spring Adjustment
WARNING Swivel-Post interior contains sharp edges, wear protective equiment when performing the tasks
below.
1. The spring in the Swivel-Post can be replaced if the monitor weight changes in order to maintain the appropriate
counterbalancing.
2. Remove the cap on top of the Swivel-Post to reveal the two screws. Use a philips head screwdriver (#2) to
remove the two screws (Figure 1). Also remove the Swivel-Post cover.
3. Remove the top plate and slide out the VESA Head to reveal the gas spring underneath. Replace the gas spring
with the new gas spring, ensure that there is a HEX nut on the thin side of the replacement spring and the nut is
facing up (Figure 2).
4. Replace the VESA Head, re-attach the top plate with the screws and replace the cap and the swivel post cover.
Top Cap
Top Plate
Screws
Swivel-Post VESA plate
Gas Spring
HEX nut
36 Amico Accessories Inc.
Swivel-Post Cover
(Figure 1)
(Figure 2)
SECTION 5: Troubleshooting, Maintenance,
Product Classication
Troubleshooting
Symptom Possible cause Solution
- Too easy or too dicult to tilt the monitor up
and down
- Too easy or too dicult to utilize the portrait
landscape feature
- Too easy or too dicult to rotate the monitor
at the head left and right
- The entire IT station is rocking slightly when
in use.
- The monitor head is not secure, it is
wobbling or loose when using the portrait
landscape adjustment
- AHM arm moves up and down with diculty,
DO NOT FORCE
- Popping sound when moving the AHM arm
up and down
- Length of the extension arm is at an angle
- Extension arm is not secure or it is rocking
slightly
- AHM arm lifts up too rapidly w/o the
monitor.
- AHM arm is too dicult to maneuver w/ the
monitor.
- AHM arm falls to the lowest position on its
own w/ monitor.
- Oil is leaking from the gas spring, light
yellow in colour
- Irregular swiveling or rotation of keyboard
- Swivel post rotation is dicult
- Excessive Gapping or angling at joints of arm - Damaged Hardware
- Keyboard tray does not go up and/or cannot
stay up.
- IT station slides down to the bottom of the
channel unprovoked.
- Squeaks when rotating parts of the IT station - Lack of Grease Add clear grease to working joints
- Monitor drifts down/AHM drifts down - Damaged or incorrect Gas spring in AHM/
- Excessively loosened or tightened hardware.
- Weight of the monitor is not compatible with
the arm
- Damaged hardware. Please contact Amico Accessories.
- Excessively loosened or tightened hardware.
- Damaged hardware.
- Loosened/ damaged hardware Perform preventive maintenance. Check all
- Damaged head Monitor head needs to be replaced. Please
- Height locking lever is not released Loosen the height locking lever (See Pg 25)
- Damaged gas bracket Please contact Amico Accessories
- Damaged extension arm
- Weight of the monitor exceeds the load
rating
- Counterbalance is not adjusted properly for
devices
- Height locking lever is not tightened
properly
- Damaged gas spring Gas spring needs to be replaced. Please
- Excessively loosened or tightened hardware.
- Damaged hardware.
- Equipment is too heavy
- Physical Damage
- Loosened/ damaged hardware Check for damage at the hinge of the
- Damaged Rail
- Damaged Adapter
Swivel post
Please see “MONITOR TILT” section of the
manual (See Pg 29 ) or use an arm with a
compatible weight rating
Please see “ROTATION (Monitor Head)” section
of the manual (See Pg 29)
screws are secured, or please contact Amico
Accessories.
contact Amico Accessories.
Please contact Amico Accessories
Tighten Height Locking Lever (See Pg 25)
Please see “counterbalance” section of the
manual(See pg 26)
contact Amico Accessories.
Please contact Amico Accessories
Check device mounted for weight
compatibility. If problem persists contact
Amico Accessories
keyboard tray, or contact Amico Accessories.
Ensure all set screws securing the adapter to
the rail are tight. Check rail and adapter for
damage, and replace as necessary.
Please contact Amico Accessories
If the above solutions do not solve your symptoms or you are in need of parts/hardware, please contact Amico
Accessories, 1-877-264-2697
www.amico.com 37
SECTION 5: Troubleshooting, Maintenance,
Product Classication
Preventive Maintenance (FIT Station)
WARNING: FIT stations require periodic inspection and maintenance to perform optimally and achieve
maximum operation life.
WARNING: The intervals shown on the next page are recommended. Maintenance schedules should be
more frequent for higher use areas.
Please be sure to thoroughly check the areas illustrated below for FIT stations:
If the above solutions do not solve your symptoms or you are in need of parts/hardware, please contact Amico
Accessories, 1-877-264-2697
38 Amico Accessories Inc.
SECTION 5: Troubleshooting, Maintenance,
Product Classication
Area Maintenance
1
Area 1: VESA Adapter
A) Check if the adapter plate and the monitor are securely attached. VESA 75/100 (FIT) -
Ensure the four screws on the mounting plate(s) are fastened to the tightest possible
position.
B) Visually inspect for any signs of grinding and gapping.
Area 2: Swivel Post
2
A) Inspect the bolt, washers and contacting surfaces for grinding and wearing. Ensure the
bolt is tightened to the tightest position.
B) Check for any signs of gapping between the bushing and the head. Also ensure the head
of the AHM is level and is secure.
C) Inspect the bolt, washers and contacting surfaces for grinding and wearing.
D) Inspect rivet.
Area 3: Height Adjustment Lever
A) Ensure the adjustment lever is tight and secure. Also inspect visually for any signs of
impact or wear on the outside surface of the AHM arm.
3
Area 4: CPU Mount
4
A) Ensure the two set screws on the channel and two thumb screws are fastened to the
tightest possible Position.
Period
(Month)
4
1
1
4
4
4
1
1
Area 5: Swivel Block At Adapter
5
A) Ensure all the screws are fastened to the tightest possible position. Inspect for any signs
of grinding, bending and gapping and ensure the AHM arm is tightly attached to the
swivel block.
4
Area 6: Rail Bracket (MON Adapter shown)
6
7
B) Inspect visually for any gapping between the bracket and the adapter. Ensure the bracket
is tightly attached to the adapter.
• MRS - Ensure the screws are fastened to the tightest possible position (shown in
image)
• VRS - Ensure the screw knobs are fastened to the tightest possible position and nuts
on the opposite side are secure. (See Page 9)
Area 7: AHM Internals
A) Visually inspect for any grinding or gapping of the contacting surfaces. Check for any uid
leakage from the gas spring.
4
1
Area 8: Keyboard Swivel Block
8
A) Visually inspect for any gapping between the keyboard swivel block and the AHM head.
Also check for any signs of grinding on the surfaces contacting the screw and the nut.
1
www.amico.com 39
SECTION 5: Troubleshooting, Maintenance,
Product Classication
AHM-FIT - - -
Color
W
White
X
Custom
Keyboard Tray
F
Falcon
M
Mini
X
Custom
D
Secondary Surface
Additional Extension Length
0
No Extension
Spring Strength
25
5.5-8 lbs (2.5-3.6 kg) Monitors
35
7.5-10 lbs (3.4-4.5 kg) Monitors
50
13-15.5 lbs (5.8-7 kg) Monitors
60**
15.5-18 lbs (5.8-7 kg) Monitors
XX
Custom
(For Monitors > 18 lbs (7-8.1 kg) or Fixed Height)
Extension Type
F
Folding
Track Adapter
M
Monitor Channel
AB
*Amico Horizontal
Direct Mount - Bottom
AT
*Amico Horizontal
Direct Mount - Top
V
*Amico Vertical
Direct Mount
6” (15.24cm) Extension
7
3
9” (22.86cm) Extension
1
12” (30.48cm) Extension
5
16” (40.64cm) Extension
NOTE: All dimensions are not exact.
** Use MON-LCD-HANDLE for displays between 10-13lbs (25.4-33.02cm)
40 Amico Accessories Inc.
R
Reverse Folding
5
N/A (No Extension)
G
*Hill-Rom Vertical
Direct Mount
D
Datex/Ohmeda,
Dovetail
Direct Mount
* Direct mount options not available
with extensions.
SECTION 5: Troubleshooting, Maintenance,
Product Classication
Cleaning
WARNING: The cleaning chemicals and methods below are not meant for controlling any infections. It
shall be the responsibility of the hospital or the hospital’s infection control ocer to sanitize the equipment.
WARNING: Please do not spray any chemical directly onto the arm. Apply onto a soft cloth and wipe clean
to prevent chemicals getting into the internal components of the arm.
The mounting assembly may be cleaned with most mild, non-abrasive solutions commonly used in the hospital
environment (e.g. diluted bleach, ammonia, or alcohol solutions). The surface nish will be permanently damaged
by strong chemicals and solvents such as acetone and trichloroethylene. Steel wool or other abrasive material
should never be used. Damage caused by the use of unapproved substances or processes will not be warranted. It is
recommended that you test any cleaning solution on a small area of the arm that is not visible to verify compatibility.
Never submerge the arm and do not allow liquids to enter it. Wipe any cleaning agents o the arm immediately using a
water-dampened cloth. Dry the arm thoroughly after cleaning.
Acetone
(Figure 1)
No Acetone
Acetone is a colorless,
mobile, ammable liquid
No Trichloroethylene
Trichloroethylene is a chlorinated
hydrocarbon comvmonly used
as an industrial solvent.
Trichloroethylene
(Figure 2)
www.amico.com 41
Accessories
Warranty Policy
Amico Accessories Inc. warrants all mounting accessories to be free from defects in material and workmanship for a period of
twelve (12) months from the date of shipment. Within this period Amico Accessories Inc. will repair or replace any part which is
proven to be defective.
Amico Accessories Inc. will warrant its materials to be free from defect for an additional period of four (4) years, ve (5) years
from the date of shipment. Within this period, Amico Accessories Inc. will replace any part at no charge, which is proven to be
defective. Shipping and Installation costs after the rst twelve (12) months will be borne by the customer.
This warranty is valid only when the product has been properly installed according to Amico Accessories Inc. specications, used
in a normal manner and serviced according to factory recommendations. It does not cover products that are not manufactured
by Amico Accessories Inc. It does not cover failures due to damage which occurs in shipments or failures which resulted from
accidents, misuse, abuse, neglect, mishandling, alteration, misapplication or damage that may be attributable to acts of God.
Amico Accessories Inc. shall not be liable for incidental or consequential damages resulting from use of equipment.
All claims for warranty must rst be approved by Amico Accessories Inc. A valid Return Goods Authorization (RGA) number must
be obtained from Amico Accessories Inc. prior to commencement of any service work. Warranty work, which has not been pre-
authorized by Amico Accessories Inc., will not be reimbursed.
AMICO ACCESSORIES INC. DOES NOT HONOR VERBAL STATEMENTS CONCERNING THE WARRANTY.
The distributor and/or dealer are not sanctioned to create verbal warranties about the product described in this agreement. Any
statements will not be honored or be made part of the agreement of sale. This document is the nal complete and exclusive
terms of the agreement.
THIS WARRANTY IS INCLUSIVE AND REPLACES ALL OTHER WARRANTIES.
Amico Accessories Inc. shall not, under any circumstances be liable for incidental or consequential damages including, but not
limited to, prot, loss of sales or injuries to person(s) or property. Correction of noncompliance as noted above will result in
completion of all liabilities of Amico Accessories Inc., whether based on agreement, neglect or changed materials, designs or
specications without notice.
All claims for warranty must rst be approved by Amico Accessories Inc. Service Department: accessories@amico.com
or 1.877.264.2697). A valid Return Goods Authorization number must be obtained from Amico Accessories Inc. prior to
commencement of any warranty claim.
www.amico.com
Amico Accessories Inc. | www.amico.com
85 Fulton Way, Richmond Hill
Ontario, L4B 2N4, Canada
71 East Industry Court, Deer Park
NY 11729, U.S.A
Toll Free Tel: 1.877.264.2697
Toll Free Fax: 1.866.440.4986
Tel: 905.763.7778
Fax: 905.763.8587
Email: info@amico.com
ACC FIT MANUAL Rev C 16.09.2014
Loading...
