Amico Ceiling Column Rigid LITE (Stationary) User Manual

Approval and Installation Booklet

Rigid Stationary Lite Ceiling Column

www.amico.com

ABOUT US

Amico Corporation has been a leading manufacturer of Medical Equipment since 1974, selling its prod­ucts through a global distribution channel from three manufacturing facilities in Canada and the U.S.

With a track record of exceeding expectations, Amico is dedicated to developing and manufacturing the
most advanced medical equipment for the industrial and global Health Care Industry. With over 9 di er­ent divisions, Amico products o er a total hospital solution.

2 Amico Pipeline

Table of Contents

Product Description 3

Cleaning 3

Inspection and Testing 3

Elevation View 4

Device and Accessory Chart 5

Device Placement (Bottom View) 6

Electrical Diagram (Bottom View) 7

Mounting Plate to Outlet Detail 8

Mounting Information 9

Typical Location View 10

Notes 11

2 Amico Pipeline

Product Description

The Rigid-LITE Ceiling Column shall be an Amico Alert-1 series.

The shroud is made of 16 gauge stainless steel alloy #304 with a # 4 satin  nish, consisting of a removable access
panel, stainless steel ceiling collar and a heavy gauge steel mounting plate.

All electrical services are provided by means of EMT metal conduits and gas services are type L, oxygen cleaned copper
pipes.

NOTE: Nitrogen is type K oxygen cleaned copper pipe.

Standard dimensions are 14 3/4” x 14 3/4” (374.65 mm x 374.65 mm)

NOTE: Electrical devices are pre-wired to electrical junction box at the mounting plate, unless other wise stated.
Gases will be manifolded for single point connections to the source. All pipes will extend 8” from the top of mount­ing plate.

Cleaning

The Amico Outlets are factory cleaned for oxygen service. Exposed surfaces of the outlet may be cleaned with a mild
detergent solution or wiped with a disinfectant commonly used in patient rooms that is compatible with plastics,
anodized aluminium and die cast zinc.

Inspection and Testing

Medical Gas Outlets should be inspected periodically or at least once a year. The test should be in accordance with
NFPA 99 “Gas and Vacuum systems”, or CSA Z7396.1-06 “Non ammable Medical Gas Piping System”.

Test for leaks: Ensure that no leaks exist, with or without the adapter inserted.
Test for Indexing: Only a mating gas speci c adapter should insert smoothly into the outlet, latch and be retained.

Test for Flow:

- Gas Outlets: 120 l/min (4.2 scfm) @ 345 kPa (50 psi), maximum allowable pressure drop is 28 kPa (4 psi).

- Nitrogen Outlet: 400 l/min (14.1 scfm) @ 1,250 kPa (180 psi), maximum allowable pressure drop is 70 kPa (10 psi).

- Vacuum Outlet: 30 l/min (1.1 scfm) @ 54 kPa (16 inHg), maximum allowable pressure drop is 13 kPa (4 inHg).

Refer to the appropriate standards for the proper way of performing the  ow test.

NOTE: The Amico medical gas and vacuum outlets meet and exceed these requirements at the time of manufacture.
However piping source capacity, sizing and restrictions may prevent outlets from attaining these values.

www.amico.com 3

Elevation View

To accommodate di erent ceiling heights, Amico Corporation has standardized three di erent variations.

Please select the required nominal column height below:

L1= Nominal Column Height

30” (762mm)

36” (914.4mm)

42” (1066.8mm)

Ceiling Height:

Column Height

Floor Clearance:

Ceiling Height

L1

Ceiling
Height

Floor Clearance

78" [1981.2mm]*

Quantity

Finished Floor Line

* Recommended Floor Clearance

NOTE: Custom heights are available at an additional cost. Please contact Amico for pricing.

Approval Signature Date Phone No.

4 Amico Pipeline

Device and Accessory Chart

*QD

XXX

Ohmeda / Medaes

Compatible

CH

XXX

Chemetron
Compatible

PB

XXX

Puritan-Bennett

Compatible

*DI

XXX

DISS

PE

Ceiling Column

Passive Evacuation

(19mm/33mm)

IMP

Passive Evacuation

with Impedance

V al ve (19mm /2 2mm)

(Side Mount Only)

GJ

Ground Jack

Receptacle

Single Hampden

(SLR-3)
GREEN

GJ2

Ground Jack

Receptacle

Dual Hampden

(SLR-3)
GREEN

E9-RED

E10-IVO.

Duplex Receptacle

8300-HG

125V/20a

(US / International)

E11-RED
E12-IVO.

Single Receptacle

8310-HG

125V/20a

(US / International)

E5-RED
E6-IVO.

Duplex Receptacle

8200-HG

125V/15a

(CAN / International)

E7-RED
E8-IVO.

Single Receptacle

8210-HG

125V/15a

(CAN / Internatio

nal)

E13-RED

E14-IVO.

TL

Oxequip

Compatible

SL

OX

XXX

Monitor Jack

Duplex

(5-pin shown)

Amphenol Model

10-825806-05S

97-14S-5S

IV

MJ

E13C-RED

E14C-IVO.

Ground Fault Circuit

Interrupter

(C = Canadian)

DJ
DP

Data - Telephone

Vacuum

Bottle Slide

ALL ELECTRICAL DEVICES ARE HUBBELL BRAND

NOTE: CARBON DIOXIDE OUTLETS ARE NOT AVAILABLE IN PURITAIN-BENNETT. NITROGEN OUTLETS ARE ONLY AVAILABLE IN DISS.

NOTE: 0.75” [19.05mm] TYPE L COPPER PIPE WILL BE PROVIDED FOR STATIONARY COLUMNS EXTENDING 0.75” [19.05mm] ABOVE CEILING PLATE.

Stai nless Steel

IV Hook

(Duplex only)

Communication Jack or

Duplex Receptacle

(Provision Only)

DP - Duplex Receptacle

Provision

Twist-Lock

Receptacle

Hubble 23000-HG

125V/20a

Approval Signature Date Phone No.

www.amico.com 5

Device Placement (Bottom View)

Please fill the devices that you require for your application.
(Specify by using the symbols on Page 5 of this Approval Booklet.)

Positions 1 - 12 = Medical Gas Outlets
Posititions A1 - D5 = Electrical and/or communication devices

NOTE:

1. A maximum of 2 data provisions only.

2. Multiple of a gas outlet can only be placed in goups.
example: OXY (position 1+2 or 1+5).

Approval Signature Date Phone No.

Please Specify Outlet Language

US

CAN

FRENCH

SPANISH/US

SPANISH/ISO

6 Amico Pipeline

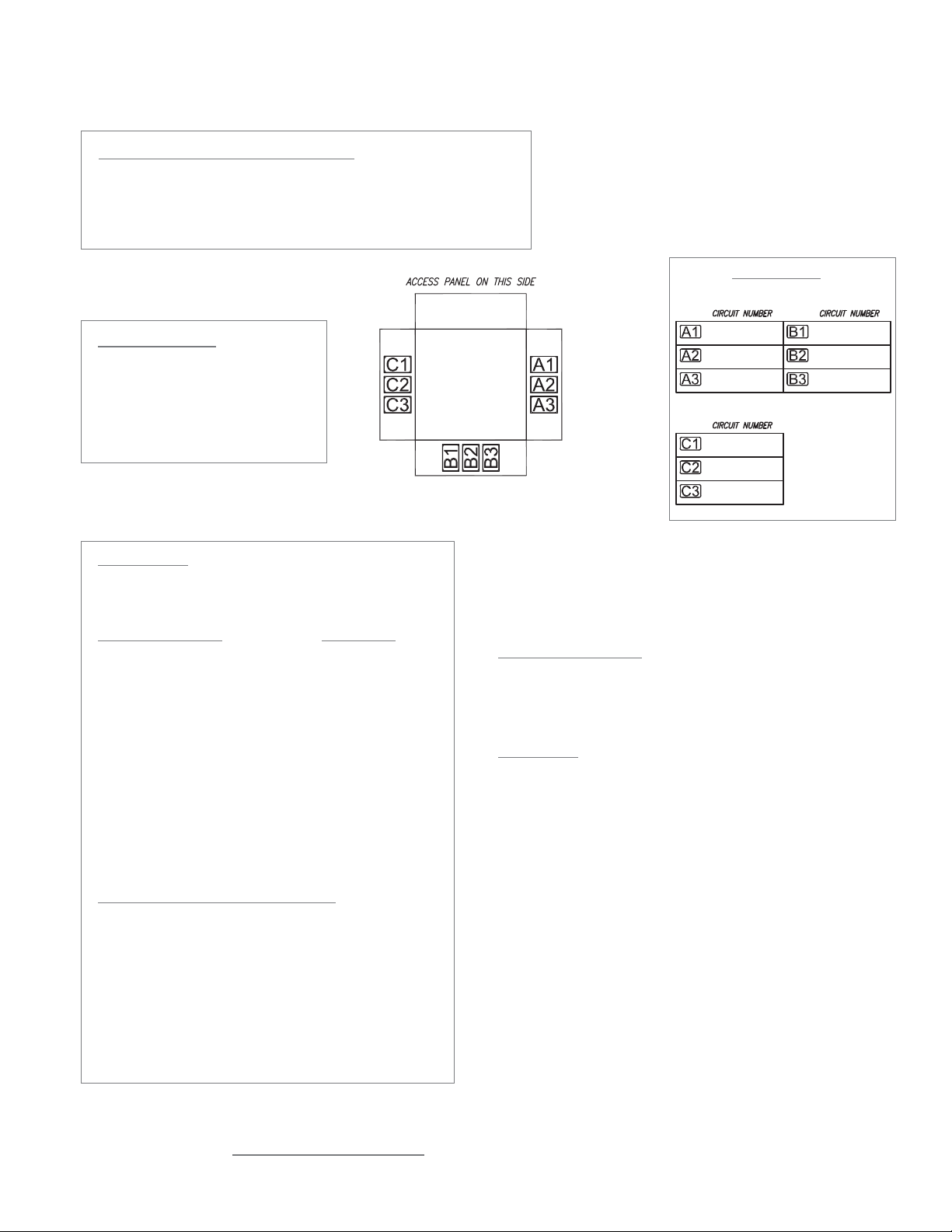

Electrical Diagram (Bottom View)

____ gauge

____ gauge

____________________

____________________

____ gauge

Green

*Please Select One of the Following:

Amico rec

ommended circuit schedule based on layout

Custom circuit schedule. Please specify on circuit chart

Receptacle Type:

US/CAN

*BRITISH (simplex only)

*GERMAN (simplex only)

*Please specify electrical details:

Type of wire:

THHN XHHW RW90

NOTE:

1. If type of wire & gauge is not specified, Amico
will use the following:

AWG Wire Gauge: Wire Color:

For US/International

10 & 12 LIVE/HOT

LIVE/HOT - 12 Ga. THHN Wire Black
NEUTRAL - 12 Ga. THHN Wire White

10 & 12 NEUTRAL

GROUND - 10 Ga. THHN Wire Green

For Canada

Circuit Chart

10 GROUND

Isolated Power

Please select one of the following

All receptacles shall be mounted with
ground pin “DOWN”

All receptacles shall be mounted with
ground pin “UP” (Default)

LIVE/HOT - 12 Ga. RW90 Wire Black
NEUTRAL - 12 Ga. RW90 Wire White
GROUND - 10 Ga. RW90 Wire Green

2. Conduit: 1/2” [12.7mm] rigid EMT.
3/4" rigid EMT for low voltage provision.

3. A pull-string will be provided to be connected by
others for all ground jacks and data provision.

4. British or German Receptacle cannot be positioned
side by side ie: A1 and A2.

Approval Signature Date Phone No.

www.amico.com 7

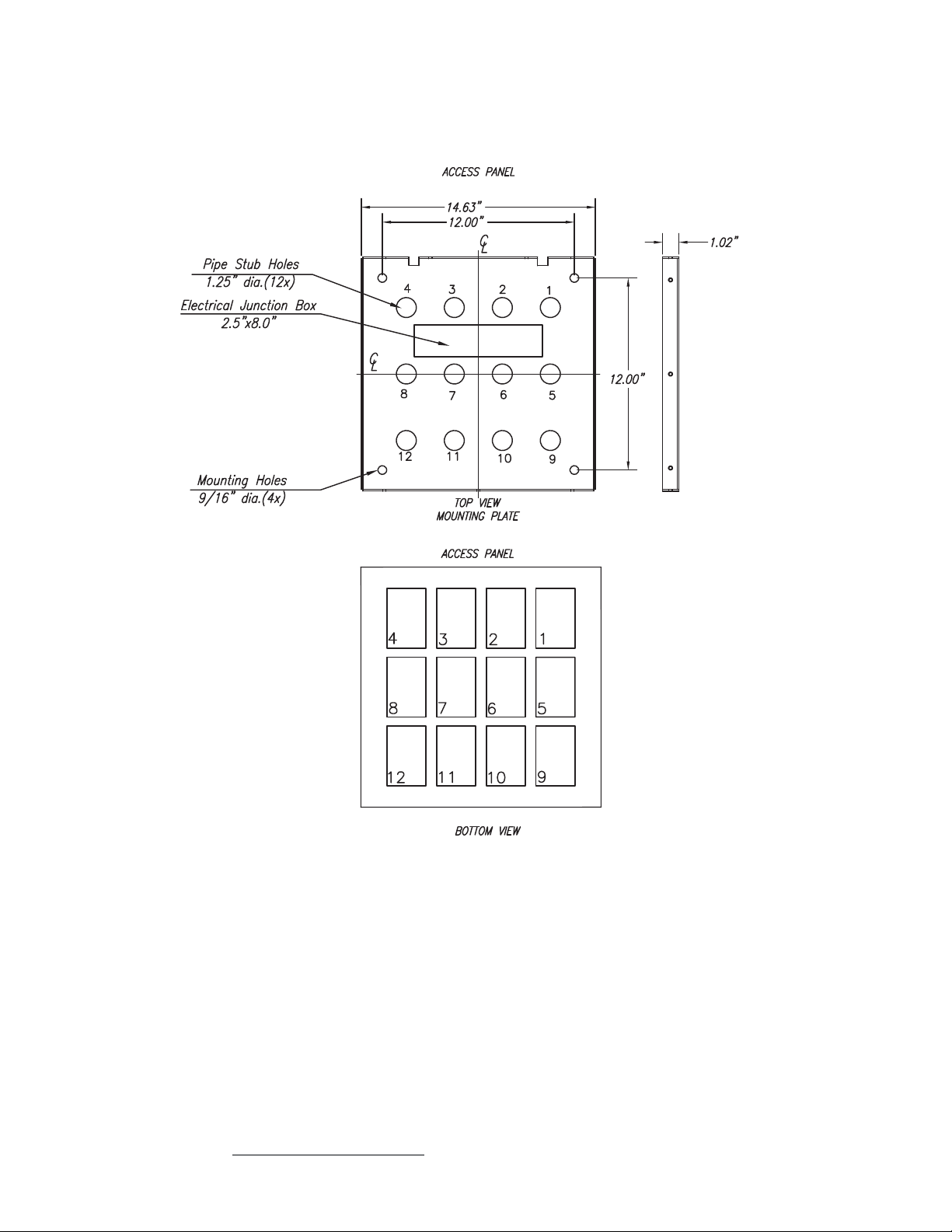

Mounting Plate to Outlet Detail

NOTE:

1. Gases will be manifolded for single point connections from source.

2. All pipes will extend 8” from the top of mounting plate.

3. Pipe stubs diameters are:

- 3/4” dia. for vacuum, WAGD, and AGSS (Type L)

-1/2” dia. for medical air, oxygen, and nitrous oxide (Type L)

-1/2” dia. for nitrogen (Type K)

4. Exact locations of gas terminations on mounting plate will be determined after receiving the booklet.

Approval Signature Date Phone No.

8 Amico Pipeline

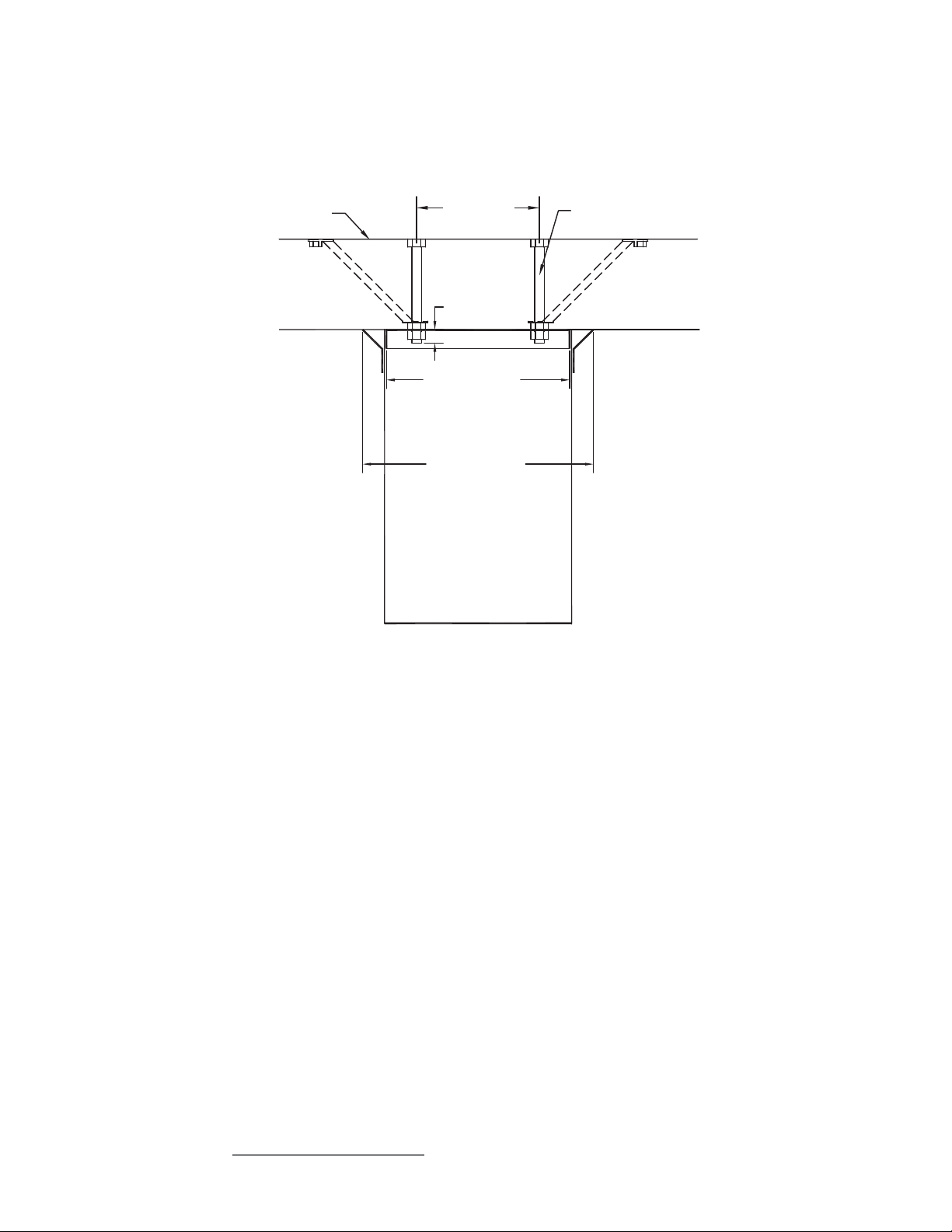

Mounting Information

STRUCTURAL
CEILING

FINISHED CEILING

12"

[304.8mm]

6" [152.4mm]

RECOMMENDED

14-5/8" [371.48mm]

SQUARE

MOUNTING PLATE

18-3/8" [457.2mm] SQUARE

CEILING COVER

(FIELD INSTALLED)

1/2" 12.7mm THREADED
ROD TYP. OF 4 BY OTHERS

ANTI-SWAY
SUPPORT STRUCTURE
(SUPPLIED BY OTHERS)

NOTE:

1. All labour and material for installation of mounting plate to mounting structure supplied by others.

2. Installer has final responsibility for the strength and stability of the mounting structure that is supplied by
others.

3. Mounting plate is  xed to the column and cannot be pre-shipped.

4. Mounting plate to be mounted  ush with  nished ceiling.

5. Gas piped extend 8” above the column.

Approval Signature Date Phone No.

www.amico.com 9

Typical Location View

3’ - 4’

[914.4 - 1219.2mm]

3’ - 4’

[914.4 - 1219.2mm]

3’ - 4’

[914.4 - 1219.2mm]

3’ - 4’

[914.4 - 1219.2mm]

10 Amico Pipeline

Approval Signature Date Phone No.

www.amico.com

Amico Architectural | www.amico.com

85 Fulton Way, Richmond Hill

Ontario, L

4B 2N4, Canada

71 East Industry Court, Deer Park
NY 11729, U.S.A
