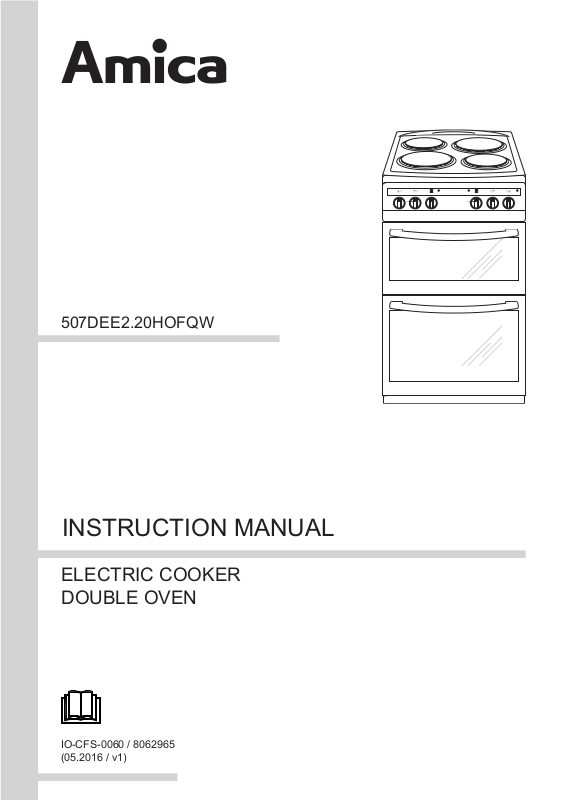

507DEE2.20HOFQW
INSTRUCTION MANUAL
ELECTRIC COOKER
DOUBLE OVEN
IO-CFS-0060 / 8062965
(05.2016 / v1)
DEAR CUSTOMER,
The cooker is exceptionally easy to use and extremely efcient. After reading the instruction
manual, operating the cooker will be easy.
Before being packaged and leaving the manufacturer, the cooker was thoroughly checked
with regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the cooker until you have read this instruction manual.
The cooker is intended for household use only.
The manufacturer reserves the right to introduce changes which do not affect the
operation of the appliance.
2
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 8
Installation ......................................................................................................................... 10
Operation ........................................................................................................................... 12
Baking in the oven – practical hints ............................................................................... 16
Cleaning and maintenance .............................................................................................. 18
Technical data ................................................................................................................... 23
3
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Warning: Unattended cooking on a hob with fat or oil can
be dangerous and may result in re.
NEVER try to extinguish a re with water, but switch off the
appliance and then cover ame e.g. with a lid or a re blanket.
Warning: Danger of re: do not store items on the cooking
surfaces.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
Accessible parts may become hot during use. Young children
should be kept away.
Warning: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
4
SAFETY INSTRUCTIONS
Warning: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibillity of electric shock.
Before opening the cover, cleaning it of any dirt is recommended. The cooker hob surface should be cooled down
before closing the cover.
You should not use steam cleaning devices to clean the
appliance.
Danger of burns! Hot steam may escape when you open the
oven door. Be careful when you open the oven door during
or after cooking. Do NOT lean over the door when you open
it. Please note that depending on the temperature the steam
can be invisible.
The appliance becomes hot during operation. Take care not to touch the hot parts inside
the oven.
Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
Ensure that small items of household equipment, including connection leads, do not touch
the hot oven or the hob as the insulation material of this equipment is usually not resistant
to high temperatures.
Do not leave the cooker unattended when frying. Oils and fats may catch re due to
overheating or boiling over.
Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25
kg on the hob.
Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
Do not use the cooker in the event of a technical fault. Any faults must be xed by an
appropriately qualied and authorised person.
In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the cooker.
The appliance has been designed only for cooking. Any other use (for example for heat-
ing) does not comply with its operating prole and may cause danger.
5
HOW TO SAVE ENERGY
Using energy in a responsible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Use proper pans for cooking.
Pans with thick, at bases can save up to 1/3
on electric energy. Remember to cover pans
if possible otherwise you will use four times
as much energy!
Match the size of the saucepan to the
surface of the heating plate.
A saucepan should never be smaller than a
heating plate.
Ensure heating plates and pan bases
are clean.
Soils can prevent heat transfer – and repeatedly burnt–on spillages can often only be
removed by products which cause damage
to the environment.
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
Switch off the oven in good time and make
use of residual heat.
For long cooking times, switch off heating
plates 5 to 10 minutes before nishing cooking. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch off the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.
6
UNPACKING
DISPOSAL OF THE APPLIANCE
During transportation, protective packaging was used to
protect the appliance against
any damage. After unpacking,
please dispose of all elements
of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the appliance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packaging materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
Old appliances should not simply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the instruction manual or the packaging shows that
it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
a signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.
7
DESCRIPTION OF THE APPLIANCE
8
7
3, 4
1
12
9
5, 6
2
10
11
1 Temperature control knob - main oven
2 Temperature control knob - top oven
3, 4, 5, 6 Heating plate control knobs
7 Red thermostat light - main oven
8 Red thermostat light - top oven
9 Yellow operation light
10 Top oven door
11 Main oven door
12 Electric hob
8
SPECIFICATIONS OF THE APPLIANCE
Oven ttings:
Wire Shelf Grill Pan, Grill Rack, Grill Pan Handle
Cover Knobs
*All images are for indication only; please refer to your individual unit for actual item.
9
INSTALLATION
Installing the cooker
The kitchen should be dry and airy and
have effective ventilation according to the
existing technical provisions.
The room should be equipped with a ven-
tilation system that pipes away exhaust
fumes created during combustion. This
system should consist of a ventilation
grid or hood. Hoods should be installed
according to the manufacturer’s instructions. The cooker should be placed so
as to ensure free access to all control
elements.
Coating or veneer used on tted furniture
must be applied with a heat resistant
adhesive (100°C). This prevents surface
deformation or detachment of the coating. If you are unsure of your furniture’s
heat resistance, you should leave approximately 2 cm of free space around
the cooker. The wall behind the cooker
should be resistant to high temperatures.
During operation, its back side can warm
up to around 50°C above the ambient
temperature.
Anti-tilt protection
CAUTION! You must install the anti-tilt pro-
tection. If you do not install it, the appliance
can tilt.
The appliance must be secured by using
the safety chain (supplied and mounted to
cooker rear).
Fasten hook to the kitchen wall and connect
safety chain to the hook.
1
20mm
2
The cooker should stand on a hard, even
oor (do not put it on a base).
Before you start using the cooker it should
be leveled, which is particularly important
for fat distribution in a frying pan. To this
purpose, adjustable feet are accessible
after removal of the drawer. The adjustment range is +/- 5 mm.
3
10
INSTALLATION
Electrical connection
Warning: This appliance must be earthed.
The appliance must be installed by a competent electrician using a double pole control
unit of 40 ampere minimum capacity with
3 mm minimum contact separation at all
poles.
We recommend that the appliance is connected by a qualied electrician who is member of the N.C.E.I.C. and who will comply with
the I.E.E. and local regulation.
220-240V 1N~
Access to the main terminal is gained by
opening the terminal block cover at the
rear of the appliance (use a small at-
bladed screwdriver).
Connection shuld be made with 4 mm2
twin and earth cable.
First strip the wires, then push the cab-
lethrough the cable clamp in the terminal
block cover.
Connect the cable to the terminal block
and tighten the cable clamp screw (see
diagram).
Ensure the cable exits through the cable
grip clamping on the outer sheath of the
cable and x in place by tightening the
xing screw.
Ensure all screws are adequately tight-
ened. Do not over tighten as you may risk
damaging the screw threads.
Close the terminal box, ensuring that the
cover is engaged on the locking tabs.
The supply cable must be positioned
away from any hot parts of the rear of
the appliance. If this cannot be done
then another method of protecting the
supply cable from the hot parts must be
used i.e. Heat resistant sleeving or high
temperature cables.
L - Live (Red or Brown)
N - Neutral (Black or Blue)
PE - Earth (Green/Yellow or sleeving)
Grounding lead must be connected to screw
with symbol.
The power supply cable must have these
minimum requirements:
- Type: HO5VV-F (PVC insulated and
sheathed exible cable)
- 3 cores x 4 mm2 .
11
OPERATION
Before rst use
Remove packaging, clean the interior of the
oven and the hob.
Take out and wash the oven ttings with
warm water and a little washing–up liquid.
Switch on the ventillation in the room or
open a window.
Heat the oven (to a temperature of 250°C,
for approx. 30 min.), remove any stains and
wash carefully; the heating plates of the hob
should be heated for around 4 min. without
a pan.
12
OPERATION
1
How to use the heating plate
The level of heat can be adjusted gradually by turning the appropriate knob to the right or left.
Switching on the plate results in a yellow signal light on the control panel turning on.
An appropriately selected pan saves energy. A pan should have a thick, at base with a diameter equal to the plate diameter, as in that case heat is transferred most efciently.
0 Switch off
● MIN. Warming up
1 Stewing vegetables, slow cooking
● Cooking soups, larger dishes
2 Slow frying
● Grilling meat, sh
3 MAX. Fast heating up, fast cooking, frying
Do not switch on heating plate until the pan has been placed on it.
Caution!
Ensure the plate is clean – a soiled
zone does not transfer all of the
heat.
Protect the plate against corrosion.
Switch off the plate before a pan is
removed.
Do not leave pans with prepared
dishes based on fats and oils unattended on the switched – on plate; hot
fat can spontaneously catch re.
13
0
3
2
OPERATION
Top oven functions and operations
Natural convection oven (conventional).
The oven can be warmed up using the bottom
and top heaters, as well as the grill. Operation
of the oven is controlled by the temperature
regulator knob.
0
100
Oven on and off
In order to switch on the oven you need to:
set required working conditions of the
oven, its temperature and a mode of
heating,
set the knob to the required position, turn-
ing it right.
Switching on the oven is indicated by two
signal lights, yellow and red, turning on. The
yellow light turned on means the oven is working. If the red light goes out, it means the oven
has reached the set temperature. If a recipe
recommends placing dishes in a warmed-up
oven, this should be not done before the red
light goes out for the rst time. When baking,
the red light will temporarily come on and go
out (to maintain the temperature inside the
oven). Switching off the oven – in order to
switch off the oven, set the knob to the “0”
knob position, turning it left. The signal light
should go out.
250
150
200
Top and bottom heaters on, the
oven door is closed.
100-250
0
C
The thermostat enables the user to set
the temperature within a range from
100°C to 250°C. Use for baking. This
setting is ideal for baking cakes, meat,
sh, bread and pizza (it is necessary
to preheat the oven and use a baking
tray) on one oven level.
Grill on, the oven door is open.
The thermostat enables the user to
100-250
0
set the temperature within a range
C
from 100°C to 250°C. Grilling is used
for cooking of small portions of meat:
steaks, schnitzel, sh, toasts, Frank-
furter sausages, (thickness of roasted
dish should not exceed 2-3 cm and
should be turned over during roasting). For grilling with the function grill
the temperature must be set to 250ºC.
Warning!
The door of the oven should be open
while grilling. Put the knob cover on.
Accessible parts may
become hot during use.
Young children should
be kept away.
Red thermostat light
Yellow operation light
14
OPERATION
250
Main oven functions and operations
Oven with automatic air circulation.
The oven can be warmed up using the ring
heating element and rotating fan. Operation
of the oven is controlled by the temperature
regulator knob.
0
100
150
200
Oven on and off
In order to switch on the oven you need to:
set required working conditions of the
oven, its temperature and a mode of
heating,
set the knob to the required position, turn-
ing it right.
Switching on the oven is indicated by two
signal lights, yellow and red, turning on. The
yellow light turned on means the oven is working. If the red light goes out, it means the oven
has reached the set temperature. If a recipe
recommends placing dishes in a warmed-up
oven, this should be not done before the red
light goes out for the rst time. When baking,
the red light will temporarily come on and go
out (to maintain the temperature inside the
oven). Switching off the oven – in order to
switch off the oven, set the knob to the “0”
knob position, turning it left. The signal light
should go out.
Convection with ring heating element
100-250
0
The thermostat enables the user to
C
set the temperature within a range
from 100°C to 250°C. The oven is
heated up by a heating element with
air circulation forced by a rotating fan
tted in the central part of the back
wall of the chamber. Lower baking
temperatures than in the conventional
oven can be used.
Heating the oven up in this manner ensures uniform heat circulation around
the dish being cooked in the oven.
Independent oven lighting
The main oven lamp will be switched on
after the temperature has been set by
the temperature regulator knob.
Red thermostat light
Yellow operation light
15
BAKING IN THE OVEN – PRACTICAL HINTS
Baking
we recommend using the baking trays which were provided with your cooker;
it is also possible to bake in cake tins and trays bought elsewhere which should be
put on the drying rack; for baking it is better to use black trays which conduct heat
better and shorten the baking time;
shapes and trays with bright or shiny surfaces are not recommended when using the
conventional heating method (top and bottom heaters), use of such tins can result in
undercooking the base of cakes;
when using the ultra-fan function it is not necessary to initially heat up the oven
chamber, for other types of heating you should warm up the oven chamber before
the cake is inserted;
before the cake is taken out of the oven, check if it is ready using a wooden stick (if
the cake is ready the stick should come out dry and clean after being inserted into
the cake);
after switching off the oven it is advisable to leave the cake inside for about 5 min.;
temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees
lower than in normal baking (using top and bottom heaters);
the baking parameters given in Table are approximate and can be corrected based
on your own experience and cooking preferences;
if information given in recipe books is signicantly different from the values included
in this instruction manual, please apply the instructions from the manual.
Roasting meat
cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on
the gas burners.
use heatproof ovenware for roasting, with handles that are also resistant to high
temperatures;
when roasting on the drying rack or the grate we recommend that you place a baking
tray with a small amount of water on the lowest level of the oven;
it is advisable to turn the meat over at least once during the roasting time and during
roasting you should also baste the meat with its juices or with hot salty water – do
not pour cold water over the meat.
16
BAKING IN THE OVEN – PRACTICAL HINTS
Natural convection oven (conventional)
Type
of
dish
Oven
functions
Temperature Level Time
160 - 200 2 - 3 30 - 50
160 - 180 2 20 - 40*
210 - 220 2 45 - 60
225 - 250 2 120 - 150
160 - 230 2 90 - 120
160 - 180 2 45 - 60
190 - 210 2 40 - 50
in minutes
Oven with automatic air circulation (including a fan and an ultra-fan heater)
Type
of
dish
Oven
functions
Temperature Level Time
140 - 160 2 10 - 40*
in minutes
200 - 230 1 - 3 10 - 20
160 - 180 2 - 3 45 - 60
160 - 180 2 120 - 160
160 - 190 2 90 - 120
175 - 190 2 60 - 70
* Baking smaller items
Caution!
The gures given in Tables are approximate and can be adapted based on your own
experience and cooking preferences.
17
CLEANING AND MAINTENANCE
By ensuring proper cleaning and maintenance of your cooker you can have a sig-
nicant inuence on the continuing fault-free
operation of your appliance.
Before you start cleaning, the cooker must
be switched off and you should ensure
that all knobs are set to the “”/“0” position. Do not start cleaning until the cooker
has completely cooled.
Electric hob
From time to time a lukewarm heating plate
should be covered with a thin layer of an available lubricating agent,. It is recommended to
use engine oil applied for sewing machines or
bicycles. Do not apply edible oil, because its
salt contents may damage the plates. Dried
up spillage on the surface or rim of the plates
should be removed with a dry pad or brush.
Do not use abrasives, because they may
cause the forming of rust on the plates. By no
means rub the plates with abrasive paper.
Take care not to let salt drop on the plates. It
dissolves in water poducing ugly rust spots.
Use only dry pots and do not put wet lids on
the plates. The enamel parts of the cooker
can be wiped with a gentle rinsing solution
and dried with a soft cloth. Spillage can be
wiped during cooking with a dry cloth, to
prevent building up of hard to clean burnt
deposits.
Chrome plated parts (e.g. rings around heating plates can be easily polished with a soft
cloth).
18
CLEANING AND MAINTENANCE
Oven
The oven should be cleaned after every
use. When cleaning the oven the lighting
should be switched on to enable you to
see the surfaces better.
The oven chamber should only be washed
with warm water and a small amount of
washing-up liquid.
Caution!
Do not use cleaning products containing abrasive materials for the cleaning
and maintenance of the glass front
panel.
Replacement of the oven light bulb
In order to avoid the possibility of an
electric shock ensure that the appliance
is switched off before replacing the bulb.
Set all control knobs to the position “”/“0”
and disconnect the mains plug,
unscrew and wash the lamp cover and
then wipe it dry.
unscrew the light bulb from the socket,
replace the bulb with a new one – a high
temperature bulb (300°C) with the follow-
ing parameters:
- voltage 230 V
- power 25 W
- thread E14.
Screw the bulb in, making sure it is prop-
erly inserted into the ceramic socket.
Screw in the lamp cover.
19
CLEANING AND MAINTENANCE
A
B
C
Removing the Top Oven Door
In order to obtain easier access to the oven
chamber for cleaning, it is possible to remove
the door. To do this, tilt the safety catch part
of the hinge upwards (g. A). Close the door
lightly, lift and pull it out towards you. In order
to t the door back on to the cooker, do the
inverse. When tting, ensure that the notch of
the hinge is correctly placed on the protrusion
of the hinge holder. After the door is tted to
the oven, the safety catch should be carefully
lowered down again. If the safety catch is not
set it may cause damage to the hinge when
closing the door.
Removing the inner panel
1. Using a at screwdriver unhook the upper door slat, prying it gently on the sides
(g. B).
2. Pull the upper door slat loose. (g. B, C)
Tilting the hinge safety catches
20
CLEANING AND MAINTENANCE
D
1
2
3
1
2
3
2
3. Pull the inner glass panel from its seat
(in the lower section of the door). Re-
move the inner panel (g. D, D1).
4. Clean the panel with warm water with
some cleaning agent added.
Carry out the same in reverse order to
reassemble the inner glass panel. Its
smooth surface shall be pointed upwards.
Important! Do not force the upper
strip in on both sides of the door at
the same time. In order to correctly t
the top door strip, rst put the left end
of the strip on the door and then press
the right end in until you hear a “click”.
Then press the left end in until you hear
a “click”.
D1
1
2
1
Removal of the internal glass panel.
2 glass panel.
Removal of the internal glass panel.
3 glass panel.
21
CLEANING AND MAINTENANCE
Regular inspections
Besides keeping the cooker clean, you
should:
carry out periodic inspections of the con-
Caution!
All repairs and regulatory activities
should be carried out by the appropriate service centre or by an
appropriately authorised tter.
trol elements and cooking units of the
cooker. After the guarantee has expired
you should have a technical inspection of
the cooker carried out at a service centre
at least once every two years,
x any operational faults,
carry out periodical maintenance of the
cooking units of the cooker.
OPERATION IN CASE OF EMERGENCY
In the event of an emergency, you should:
switch off all working units of the cooker
disconnect the mains plug
call the service centre
some minor faults can be xed by referring to the instructions given in the table below.
Before calling the customer support centre or the service centre check the following points
that are presented in the table.
PROBLEM REASON ACTION
1. The appliance does not
work.
2. The oven lighting does not
work.
Break in power supply. Check the household fuse
The bulb is loose or damaged. Tighten up or replace the
22
box; if there is a blown fuse
replace it with a new one.
blown bulb (see ‘Cleaning
and Maintenance’).
TECHNICAL DATA
Model 507DEE2.20HOFQW
Rated Voltage 220-240V~
Rated Frequency 50 Hz
Power 9500 W
Electric hob 5500 W
Top oven 2000 W
Top heater 500 W
Bottom heater 1000 W
Grill 2000 W
Main oven 1900 W
Ring element 2000 W
External Dimensions (H x W x D) 500(W) x 600(D) x 900(H) mm
Certicate of compliance CE
The Manufacturer hereby declares that this product complies with the general requirements pursuant to the
following European Directives:
The Low Voltage Directive 2014/35/EC,
Electromagnetic Compatibility Directive 2014/30/EC,
ErP Directive 2009/125/EC,
and therefore the product has been marked with the symbol and the Declaration of Conformity has been
issued to the manufacturer and is available to the competent authorities regulating the market.
23
Loading...
