MegaRUM II

Dual Pentium II

PCI ISA Motherboard

User's Guide

MAN-774

1/15/99

5555 Oakbrook Parkway, Building 200,

Norcross, GA 30093

This publication contains proprietary information which is protected by copyright. No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language or computer language, or transmitted in any form whatsoever without the prior written consent of the publisher, American Megatrends, Inc.

Limited Warranty

Buyer agrees if this product proves to be defective, that American Megatrends, Inc. is only obligated to replace or refund the purchase price of this product at American Megatrend's discretion according to the terms and conditions on the motherboard warranty card. American Megatrends shall not be liable in tort or contract for any loss or damage, direct, incidental or consequential. Please see the Warranty Registration Card shipped with this product for full warranty details.

Limitations of Liability

In no event shall American Megatrends be held liable for any loss, expenses, or damages of any kind whatsoever, whether direct, indirect, incidental, or consequential, arising from the design or use of this product or the support materials provided with the product.

Trademarks

VESA is a registered trademark of the Video Electronics Standards Association. Intel, Pentium. Pentium Pro, and Pentium II are registered trademarks of Intel Corporation. MS-DOS, Microsoft Word, and Microsoft are registered trademarks of Microsoft Corporation. Microsoft Windows, Windows NT, and Windows 95 are trademarks of Microsoft Corporation. IBM, AT, XT, CGA, VGA, PS/2, OS/2, and EGA are registered trademarks of International Business Machines Corporation. Fujitsu is a registered trademark of Fujitsu America, Inc. Motorola is a registered trademark of Motorola Corporation. Hitachi is a registered trademark of Hitachi America, Ltd. PNY is a registered trademark of PNY Corporation. Oki is a registered trademark of Oki America, Inc. NEC is a registered trademark of NEC Corporation. Micron is a registered trademark of Micron Corporation. SCO, Unix, and UnixWare are registered trademarks of the Santa Cruz Operation, Inc. Toshiba is a registered trademark of Kabushiki Kaisha Toshiba. All other brand and product names are trademarks or registered trademarks of their respective companies.

Revision History

5/1/98 Initial release of preliminary version. 5/12/98 Revised AMIBIOS Setup chapter. 8/5/98 Revised motherboard drawing for Rev C. 9/4/98 Released revised manual. 9/24/98 Revised motherboard drawing and printed addendum. 11/6/98 Added Chapter 5, about AMI ClientCare installation 12/11/98 Removed references to DMI Wizard 95. Replace SystemGuru with AMI_ClientCare. 1/15/99 Deleted Xeon and added Pentium II.

MegaRUM II PCI Motherboard User’s Guide

Table of Contents

1 Hardware Installation....................................1

MegaRUM II PCI Motherboard Layout ..........................3

Step 1 Unpack the Motherboard.....................................4

Step 2 Configure CPU Speed..........................................5

Step 3 Install Additional Voltage Regulator ...................6

Step 4 Connect CPU Fans ..............................................6

Step 5 Install CPU..........................................................7

Step 6 Install Memory.................................................. 12

Step 7 Install the Motherboard .....................................14

Step 8 Attach Cables....................................................15

Step 9 Connect I/O .......................................................23

Step 10 Connect SCSI I/O............................................32

Step 11 Install Drivers..................................................37

Step 12 Test and Configure..........................................38

2 AMIBIOS Setup............................................39

Section 1 Standard Setup..................................................... 41

Section 2 Advanced CMOS Setup........................................46

Section 3 Advanced Chipset Setup.......................................50

Section 4 Power Management Setup....................................52

Section 5 PCI/PnP Setup...................................................... 56

Section 6 Peripheral Setup................................................... 62

Section 7 Other Setup Options.............................................66

Auto-Detect Hard Disks ...............................................66

AMIBIOS Password Support ........................................66

Change User Password.................................................67

Change Supervisor Password........................................67

Change Language Settings........................................... 67

Auto Configuration with Optimal Settings ...................68

Auto Configuration with FailSafe Settings ...................68

Save Settings and Exit..................................................68

Exit Without Saving.....................................................68

3 Programming Flash ROM...........................71

4 Deleting a Password...................................75

5 AMI_ClientCare Installation Procedure.....77

A Specifications..............................................79

Index...................................................................81

Preface iii

Preface

To the OEM Thank you for purchasing the high performance American

Megatrends MegaRUM II Dual Pentium II PCI ISA motherboard. This product is a state of the art motherboard that includes the famous AMIBIOS. It is assumed that you have also licensed the rights to use the American Megatrends documentation for the American Megatrends MegaRUM II motherboard.

This manual was written for the OEM to assist in the proper installation and operation of this motherboard. This manual describes the specifications and features of the MegaRUM II PCI motherboard. It explains how to assemble a system based on the MegaRUM II PCI motherboard and how to use the AMIBIOS that is specifically designed for this motherboard.

This manual is not meant to be read by the computer owner who purchases a computer with this motherboard. It is assumed that you, the computer manufacturer, will use this manual as a sourcebook of information, and that parts of this manual will be included in the computer owner's manual.

Disclaimer

AMI only certifies that this product will work correctly when this

product is used with the same jumper settings, the same system

configuration, the same memory module parts, and the same

peripherals that were tested by AMI with this product. The complete

list of tested jumper settings, system configurations, peripheral

devices, and memory modules are documented in the AMI Compatibility Report for this product. Call your AMI sales

representative for a copy of the Compatibility Report for this product.

Technical Support If an American Megatrends motherboard fails to

operate as described or you are in doubt about a configuration option, please call technical support at 770246-8600.

Web Site We invite you to access the American Megatrends world

wide web site at: http://www.ami.com.

MegaRUM II PCI Motherboard User’s Guide

Preface v

Packing List

You should have received the following:

• a MegaRUM II Dual Pentium II PCI ISA

motherboard,

• one SCSI driver diskette,

• the AMI Server Manager User’s Guide,

• one CD containing the AMI Server Manager server

management software for Windows NT,

• one termination card,

• two VRM modules,

• two retention mechanisms for the Pentium II CPUs,

• two plastic spacers for the Pentium II retention

mechanisms,

• a Warranty Card, and

• the American Megatrends MegaRUM II Dual

Pentium II PCI ISA Motherboard User's Guide.

MegaRUM II PCI Motherboard User’s Guide

Preface vii

1 Hardware Installation

Overview

The American Megatrends MegaRUM II PCI Dual Pentium II ISA motherboard features include:

• two Intel Pentium II CPUs operating at 120, 133,

150, 166, 180, 200, 210, 233, 240, 266, 300, 333, 400 MHz or higher speeds ,

• up to 2 GB of system memory (512 MB has been

tested) on the motherboard,

• parity checking or ECC (Error Checking and

Correction),

• PCI local bus throughput of 132 megabytes per

second,

• two Ultra Wide SCSI channels operating at 80 MB/s,

• specially designed for the American Megatrends

RAID Upgrade controller cards,

• the American Megatrends AMI_ClientCare server

management software,

• one ISA expansion slot,

• four 32-bit PCI expansion slots, and

• two 64-bit PCI expansion slots.

CPUs The MegaRUM II motherboard will support all Intel Slot1

CPUs operating at 233 MHz, 266 MHz, 400 MHz or faster speeds.

PCI Bus Speed AMIBIOS automatically configures the PCI slots. The

PCI slots are synchronous with the CPU clock:

CPU External Clock Frequency PCI Expansion Slot Frequency

100 MHz 33 MHz

66 MHz 33 MHz

Cont’d

Chapter 1 Hardware Installation

Overview, Continued

Onboard I/O The MegaRUM II motherboard includes:

• one onboard Symbios Logic 53C896 SCSI controller

that provides two 80 MB/s ultra wide SCSI channels,

• two 40-pin IDE connectors for 1 – 4 IDE drives,

• a 34-pin floppy drive connector,

• two serial port connectors,

• a 25-pin parallel port connector,

• a keyboard DIN connector,

• two 4-pin USB ports, and

• a 9-pin berg keyboard/mouse connector.

Server Management Software The American Megatrends

AMI_ClientCare server management software is included with the MegaRUM II motherboard. AMI_ClientCare uses the I2C interface to constantly monitor and report the CPU temperature, fan speed, ECC memory errors, ambient temperature, CPU voltage, system voltage and other user-specified system status information to any remote client computer. See the American Megatrends AMI_ClientCare User’s Guide for additional information.

MegaRUM II PCI Motherboard User’s Guide

MegaRUM II PCI Motherboard Layout

Chapter 1 Hardware Installation

Step 1 Unpack the Motherboard

Step Action

1 Inspect the cardboard carton for obvious damage. If damaged, call 770-

246-8600. Leave the motherboard in its original packing.

2 Perform all unpacking and installation procedures on a ground-

connected anti-static mat. Wear an anti-static wristband grounded at the same point as the anti-static mat. Or use a sheet of conductive aluminum foil grounded through a 1 megohm resistor instead of the anti-static mat. Similarly, a strip of conductive aluminum foil wrapped around the wrist and grounded through a 1 megohm resistor serves the same purpose as the wristband.

3 Inside the carton, the motherboard is packed in an anti-static bag, and

sandwiched between sheets of sponge. Remove the sponge and the anti-static bag. Place the motherboard on a grounded anti-static surface component side up. Save the original packing material.

4 Inspect the motherboard for damage. Press down on all ICs mounted in

sockets to verify proper seating. Do not apply power to the motherboard if it has been damaged.

5 If the motherboard is undamaged, it is ready to be installed.

Set Jumpers Set all jumpers and install the CPU before placing the

motherboard in the chassis.

Avoid Static Electricity

Static electricity can damage the motherboard and other computer components. Keep the motherboard in the antistatic bag until it is to be installed. Wear an anti-static wrist grounding strap before handling the motherboard. Make sure you stand on an anti-static mat when handling the motherboard.

Avoid contact with any component or connector on any adapter card, printed circuit board, or memory module. Handle these components by the mounting bracket.

MegaRUM II PCI Motherboard User’s Guide

Step 2 Configure CPU Speed

If using two CPUs with different speed ratings, set the motherboard jumpers to the lower CPU speed. When JP6 is open, the system bus frequency is determined by the processors. When JP6 is shorted, the system bus frequency is forced to be 66 MHz.

Important

Please contact American Megatrends technical support

at 770-246-8600 to support a CPU running at other

speeds.

CPU Internal

Frequency if Bus

Frequency is 100 MHz

350 MHz 233 MHz Short Pins 1-2

400 MHz 266 MHz Open Pins 1-2

450 MHz 300 MHz Open Pins 1-2

500 MHz 330 MHz Open Pins 1-2

CPU Internal

Frequency if Bus

Frequency is 66 MHz

JP8

Open Pins 3-4 Open Pins 5-6 Short Pins 7-8

Short Pins 3-4 Short Pins 5-6 Short Pins 7-8

Short Pins 3-4 Open Pins 5-6 Short Pins 7-8

Open Pins 3-4 Short Pins 5-6 Short Pins 7-8

Cont’d

Chapter 1 Hardware Installation

Step 3 Install Additional Voltage Regulator

One Voltage Regulator Module (VRM) is shipped with every MegaRUM II motherboard. You need another VRM if you install two CPUs. You can order VRMs for Intel Pentium II CPUs from:

Manufacturer Part Number AMI Part Number

VXI 073-20740-20 MDL-PII-V5A190

Step 4 Connect CPU Fans

JP1 and JP2 (shown below) are 3-pin bergs that connect the fan on the CPU heat sink to the motherboard power. JP1 is the CPU fan connector for the CPU in CPU Slot1. JP2 is the CPU fan connector for the CPU in CPU Slot2.

All Pentium II CPUs are shipped with a heat sink and a CPU fan.

JP1 and JP2 are keyed in such a way that the CPU fan connector can only be attached in the correct manner.

The connector from the CPU fan usually has three leads (red, yellow, and black leads).

JP19, JP18 System Fan JP19and JP18 are 3-pin bergs. The pinout is the

same for JP19 and JP18 as it is for JP1 and JP2. JP19 and JP18 provide +12V power to the main chassis fan. The chassis fan should provide a tachometer output on Pin 3 so it can be monitored by the onboard server management hardware.

MegaRUM II PCI Motherboard User’s Guide

Step 5 Install CPU

The Pentium II CPUs are on Intel Slot1 adapter cards. Insert the Slot1 cards into the CPU card sockets on the motherboard. See the motherboard drawing on page 3 for the location.

The CPU Slot1 sockets are below the SDRAM sockets, as shown on page 3.

Warning

Improper CPU installation can damage the CPU and the

motherboard. You must follow the procedures in this

section exactly as documented. Make sure you wear an

antistatic wristband while installing the CPU. Follow all

antistatic procedures described on page 4.

Termination Card The MegaRUM II motherboard is shipped with a

termination card that should be installed in the empty CPU slot if only one CPU is installed.

You must install the termination card in the empty CPU slot if installing only one Pentium II CPU. The motherboard will not power up unless both CPU slots are occupied. The CPU slot where the termination card is installed does not require a VRM.

Cont’d

Chapter 1 Hardware Installation

Step 5 Install CPU, Continued

Retention Mechanism Kit You must mount the Intel Retention

Mechanism Kit before installing all Pentium II CPU modules. This kit includes: the retention mechanism assembly, attachment mounts, and spacer, as shown below:

Install Spacer Place the spacer around the CPU socket on the

motherboard, as shown below:

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Step 5 Install CPU, Continued

Install Retention Mechanism Place the retention mechanism on top of the

CPU socket, as shown below:

Install Attachment Mounts Place the two attachment mounts on the

bottom of the motherboard, directly under the ends of the CPU socket.

Chapter 1 Hardware Installation

Cont’d

Step 5 Install CPU, Continued

Install the Heat Sink If the heat sink is not already installed on the CPU

module, slide the heat sink top support into the lowest gap on the CPU module, as shown below:

The slide the CPU module into the Retention Mechanism Assembly, as shown below:

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Step 5 Install CPU, Continued

Install the Heat Sink, cont’d Press the buttons on either side of the CPU

module, as shown below:

Hook the top support of the heat sink to the support base of the heat sink to complete the CPU module installation:

Chapter 1 Hardware Installation

Step 6 Install Memory

System Memory There are four 72-bit SDRAM DIMM (Dual Inline

Memory Module) sockets. System memory must be populated one bank at a time. Each bank has one socket.

The minimum amount of system memory supported by the MegaRUM II PCI is 8 MB. Each socket can hold one DIMM. You can use:

• 1 MB x 64 (or 72),

• 2 MB x 64 (or 72),

• 4 MB x 64 (or 72),

• 8 MB x 64 (or 72),

• 16 MB x 64 (or 72),

• 32 MB x 64 (or 72), or

• 64 MB x 64 (or 72).

Fast Page Mode and EDO SIMMs cannot be mixed in the same memory bank.

The MegaRUM II motherboard will support 128 MB SIMMs when they become available, permitting up to 2 GB of system memory to be installed on the motherboard. The motherboard supports SDRAM DIMM operating at 10 or 12 ns (RAS access time).

Memory Display System memory is reported by AMIBIOS as it boots and

again when the AMIBIOS System Configuration Screen is displayed just before the operating system boots. The memory displayed by AMIBIOS on the System Configuration Screen is 384 KB less than the total memory installed.

PC 100 Compatible Specifications

Parameter Specification

100 MHz Unbuffered SDRAM DIMM

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Step 6 Install Memory, Continued

Installing DIMMs The eight SDRAM DIMM sockets on the motherboard

can be filled with either 1 MB x 64 (or 72), 2 MB x 64 (or

72), 4 MB x 64 (or 72), 8 MB x 64 (or 72), or 16 MB x 64 (or 72) DIMMs.

Place the motherboard on an anti-static mat. With the component side of the DIMM facing you, firmly push the DIMM into the socket at an angle, then push it up. When properly inserted, the DIMM clicks into place as the latching pins engage. The DIMM installation process is shown below:

Title: INSSIMM.EPS from CorelDRAW! Creator: CorelDRAW! CreationDate: Mon Jul 10 10:35:32 1995

Chapter 1 Hardware Installation

Step 7 Install the Motherboard

Step Action

1 Place the chassis on an anti-static mat. Connect the chassis to ground

to avoid static damage during installation. Connect an alligator clip with a wire lead to any unpainted part of the chassis. Ground the other end of the lead at the same point as the mat and the wristband.

2 Rotate the chassis so the front is to the right, and the rear is to the left.

The side facing you is where the motherboard is mounted. The power supply is mounted at the far end of the chassis.

3 Hold the motherboard, component-side up, with the edge with the

SIMM sockets toward you and the edge with the power supply connector away from you. The keyboard, mouse, and video connectors should be to the left.

4 Carefully slide the motherboard into the chassis. Make certain the edge

connectors fit the ports in the rear of the chassis. The motherboard should rest level with the chassis.

5 Place the mounting screws in the holes provided and tighten them. If

necessary, shift the motherboard slightly to align the mounting holes on the motherboard with the holes on the chassis,

Warning

If using metallic screws, make sure you use them only in

the plated mounting holes.

If using metallic screws, make sure the head of the screw

fits completely inside the plated mounting holes.

MegaRUM II PCI Motherboard User’s Guide

Step 8 Attach Cables

Connectors The MegaRUM II PCI motherboard includes many

connectors. Connection instructions, illustrations of connectors, and pinouts are supplied in the following pages. A list of all connectors described in this section follows:

Connector turn to

Power supply connectors JP7, JP10 page 17 Drain CMOS RAM power – JP11 page 18 Infrared connector – JP3 page 18 Keyboard connector J2 page 19 PS/2 mouse connector J1 page 19 Chassis intrusion LED – JP13 page 19 Hardware reset switch JP17 page 20 Speaker JP20 page 20 BIOS chip voltage select JP15 page 20 Keyboard lock connector J15 page 21 USB connector J3 page 22 BIOS size select jumper JP14 page 22 Power Button JP16 page 22 Serial port 1 connector J6 page 23 Serial port 2 connector J7 page 23 Parallel port connector J5 page 24 Floppy connector JP9 page 25 IDE primary connector JP5 page 28 IDE secondary connector JP4 page 29 RAC – Port J9 page 31 SCSI channel 1 (Wide) – J18 page 32 SCSI channel 2 (Wide) – J17 page 32

Chapter 1 Hardware Installation

Cont’d

Step 8 Attach Cables, Continued

Cable Connector Ends When connecting chassis connectors to the

motherboard, make sure to connect the correct connector end. Most connector wires are color-coded. Match the color of the wires leaving the switch or LED to the same pin on the connector end. There may be more than one connector with the same color-coded wires. If so, follow the wire to the switch or LED. All motherboard components are outlined by a white rectangular box with a broad arrow at one end. Pin 1 is always at the arrow end of the white outlined box, as shown below:

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Step 8 Attach Cables, Continued

Connect Power Supply The power supply should match the physical

configuration of the chassis. Make sure the power switch is Off before assembly.

Before attaching all components, make sure the proper voltage has been selected. Power supplies often can run on a wide range of voltages and must be set (usually via a switch) to the proper range. Use at least a 300 watt power supply, which should have built-in filters to suppress radiated emissions.

Attach the power supply cables to the power connector on the motherboard. ATX-compatible power supplies have two 20-pin connectors, JP7 and JP10. The power connector pinout is:

Pin Description Pin Description

11 +3.3V 1 +3.3V 12 -12V 2 +3.3V 13 Ground 3 Ground 14 -PWR_ON 4 +5V 15 Ground 5 Ground 16 Ground 6 +5V 17 Ground 7 Ground 18 -5V 8 PWR+GOOD 19 +5V 9 5V_VR 20 +5V 10 +12V

Chapter 1 Hardware Installation

Cont’d

Step 8 Attach Cables, Continued

JP11 Drain CMOS RAM Power JP11 is a 3-pin berg that can be used to

erase the contents of CMOS RAM, where all system configuration information is stored.

If you forget the AMIBIOS password, you can place a shorting bridge on JP11 for a few seconds to erase the old password (and all system configuration information as well). You must then reboot the computer, run AMIBIOS Setup, and restore all system configuration information. The JP11 settings are:

CMOS Drain JP Setting

Normal operation (factory setting). 1-2

The contents of CMOS RAM are destroyed. 2-3

JP3 Infrared Connector The JP3 is a 10-pin dual-inline berg.

Pin Assignments

1 VCC5V

2, 6, 7, 8, 9, 10 N/C

3 4 5

IRRX

GND

IRTX

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Step 8 Attach Cables, Continued

J2 Keyboard Connector The keyboard connector is a 9-pin MINIDIN

socket. The pinout is shown below.

Pin Assignments

1 Keyboard data

2, 6, 9 Not used

3 KBGGND 4 VCC 5 Keyboard clock

7 – 8 Ground

Connect Mouse Cable The mouse connector is a 9-pin MINIDIN. The

pinout is:

Pin Description Pin Description

1 Mouse data 2, 6, 9 N/C 3 Keyboard ground 4 VCC 5 Mouse clock 7, 8 Ground

JP13 Chassis Door Intrusion JP13 is a 2-pin berg that can be used to

attach a wire to the chassis door intrusion connector, if the chassis has this feature. The logic must be set so that Pin 1 and Pin 2 are shorted when the chassis door is closed and open when the chassis door is opened.

Cont’d

Chapter 1 Hardware Installation

Step 8 Attach Cables, Continued

JP17 Reset Switch Connector JP17 is a two-pin berg that is attached via a

cable to an externally-mounted reset switch. When the reset switch is pressed, the system performs a hard reset. Pin 2 is ground and Pin 1 is Hard Reset.

JP20 Speaker Connector JP20 is a four-pin single-inline berg that is

optionally attached via a cable to a standard speaker. AMIBIOS signals hardware problems through the speaker.

Pin Description

1 VCC 2 N/C 3 N/C 4 Data out

JP15 BIOS Chip Voltage Select JP15 is a 3-pin single-inline berg which

lets you choose the BIOS chip VPP voltage.

Pin Description

Short pin 1-2 VPP = 12V (default) Short pin 2-3 VPP = 5V

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Step 8 Attach Cables, Continued

J15 Keyboard Lock J15 is a 5-pin single-inline berg that is attached via a

cable to the keyboard lock connector (or separate keyboard lock and Power LED connectors). The computer chassis may not include the keyboard lock and Power LED on a single connector. The keyboard lock allows the user to lock the keyboard, protecting the system from unauthorized use. Pin 1 on the motherboard is identified by the broad arrow.

Pin Description

1 VCC 2 Ground 3 Ground 4 Keyboard Lock (KBDINH) 5 Ground

Cont’d

Chapter 1 Hardware Installation

Step 8 Attach Cables, Continued

Optional USB Cable You can only use a custom USB cable with this

motherboard. You can order this USB cable (AMI part number CBLKIT-USB-1) from American Megatrends at 800-828-9264.

Warning

The pinout for the optional USB Cable Box is: Pin 1 Red VCC Pin 2 Green Data + Pin 3 White Data Pin 4 Black Ground

Please make sure that the USB cable is correctly installed. Incorrect

installation will damage the motherboard.

J3 USB Connectors J3 is 4-pin USB (Universal Serial Bus) stacked

connector. The pinouts are:

Pin Signal Description

1 VCC 2 Data+ 3 Data– 4 Ground

JP14 BIOS Size Select JP14 is a 3-pin berg that enables you to choose the

BIOS size.

Pin Description

Short pin 1-2 BIOS size = 256KB (default) Short pin 2-3 BIOS size = 128KB

JP16 Power Button JP16 is a two-pin single-inline berg.

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Step 9 Connect I/O

Onboard Adapters The MegaRUM II PCI motherboard has:

• two serial ports (J6 and J7),

• a parallel port (J5),

• two Ultra Wide SCSI connectors,

• an IDE controller on the PCI bus (the primary IDE

connector is JP5 and the secondary IDE connector is JP4), and

• a floppy controller (JP9). The serial and parallel port connectors are described

below.

Conflicts AMIBIOS minimizes conflicts between onboard and

offboard I/O devices. AMIBIOS automatically checks the adapter cards

installed in the expansion slots on the MegaRUM II PCI motherboard for a hard disk or floppy controller and serial or parallel ports.

J6 SER1 J7 SER2 J6 and J7 are 9-pin connectors that provide an AT-

compatible serial port interface. Connect the cables supplied with the motherboard to J6 and J7. The serial port base I/O port address and other serial port settings can be selected in Peripheral Setup in AMIBIOS® Setup.

The J6 and J7 pinout is shown below.

Pin Signal Description Pin Signal Description

1 Carrier Detect 6 Data Set Ready 2 Receive Data 7 Request to Send 3 Transmit Data 8 Clear to Send 4 Data Terminal

Ready

5 Ground 10 CUT PIN

9 Ring Indicator

Chapter 1 Hardware Installation

Cont’d

Step 9 Connect I/O, Continued

J5 Parallel Port J5 is a 25-pin connector for a parallel port. The J5 pinout

is shown below. Connect the 16-pin to DB25 cable provided with the motherboard to J5. The parallel port interface supports:

• the standard Centronics-compatible parallel port,

• the ECP (Extended Capabilities Port), and

• the EPP (Enhanced Parallel Port) port.

All parallel port settings must be correctly configured through Peripheral Setup in AMIBIOS Setup.

Pin Signal Description Pin Signal Description

1 STROBE# 2 PD0 3 PD1 4 PD2 5 PD3 6 PD4 7 PD5 8 PD6 9 PD7 10 ACK# 11 BUSY 12 PE 13 SLCT 14 AUTOFD# 15 ERROR# 16 INIT# 17 SLCTIN# 18 Ground 19 Ground 20 Ground 21 Ground 22 Ground 23 Ground 24 Ground 25 Ground 26 Ground

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Step 9 Connect I/O, Continued

JP9 Floppy JP9 is a 34-pin dual-inline berg. Connect the cable from

the floppy drive to JP9, as shown below. The onboard floppy controller cannot be used if a hard disk card with a floppy controller is installed. Choose Standard Setup and Peripheral Setup to configure the floppy controller.

The motherboard supports up to two 720 KB, 1.44 MB, or

2.88 MB 3½" drives and 360 KB and 1.2 MB 5¼" drives. The connecting cable is a 34-pin ribbon connector with two 34-pin edge connectors for attaching the floppy disk drives. There is a small twist in the cable between the floppy connectors. The last (end) connector should be connected to floppy drive A: as shown below.

Title: FLOOP.EPS from CorelDRAW! Creator: CorelDRAW! CreationDate: Tue Jun 06 17:57:03 1995

Chapter 1 Hardware Installation

Cont’d

Step 9 Connect I/O, Continued

JP9 Floppy Connector Pinout

Pin Use Pin Use

1 GND 2 DENSE1 3 GND 4 N/C 5 GND 6 DRATE0 7 GND 8 -INDEX

9 GND 10 -MOTOR0 11 GND 12 -FDSEL1 13 GND 14 -FDSEL0 15 GND 16 -MOTOR1 17 GND 18 DIR 19 GND 20 21 GND 22 -WDATA 23 GND 24 -WGATE 25 GND 26 -TRK0 27 GND 28 -WRPROT 29 GND 30 -RDATA 31 GND 32 HDSEL 33 GND 34 DSKCHNG

Twist in Floppy Cable

Floppy B to A Floppy B to A Floppy B to A Floppy B to A

10 to 16 12 to 14 14 to 12 16 to 10 11 to 15 13 to 13 15 to 11

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Step 9 Connect I/O, Continued

IDE Drives Attach the IDE drives in the following manner. Choose

Peripheral Setup in AMIBIOS Setup to enable the onboard IDE controller.

Chapter 1 Hardware Installation

Cont’d

Step 9 Connect I/O, Continued

Attach IDE Cable to JP5 JP5 is the primary IDE (Integrated Drive

Electronics) hard disk drive connector. Both the primary master and the primary slave IDE drives must be connected by cable to JP5, as shown below.

JP5 is a 40-pin dual-inline berg that connects an IDE drive to the primary onboard IDE connector. This motherboard supports IDE Modes 0, 1, 2, 3, and 4, IDE prefetch, LBA (Logical Block Address) mode, high capacity drives (over 528 MB), 32-bit data transfer, and fast IDE transfer. These IDE features are configured in Peripheral Setup in the AMIBIOS Setup utility.

Disable the onboard IDE interface in Peripheral Setup to use an ISA ESDI, RLL, MFM, or SCSI hard disk drive controller.

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Step 9 Connect I/O, Continued

JP5 Pinout JP5 is the primary IDE connector. The JP5 pinout is:

Pin Use Pin Use

1 -RESET 2 GND 3 DATA7 4 DATA8 5 DATA6 6 DATA9 7 DATA5 8 DATA10

9 DATA4 10 DATA11 11 DATA3 12 DATA12 13 DATA2 14 DATA13 15 DATA1 16 DATA14 17 DATA0 18 DATA15 19 GND 20 KEY (N/C) 21 -REQ 22 GND 23 -IOW 24 GND 25 -IOR 26 GND 27 IDERDY 28 Pulldown 29 -ACK 30 GND 31 INT14 32 N/C 33 HA1 34 N/C 35 HA0 36 HA2 37 -CS0 38 -CS1 39 -IDEACT 40 GND

JP4 Secondary IDE Controller JP4, the secondary IDE connector, is a 40-

pin dual-inline berg that connects the secondary primary and slave IDE drives to the secondary onboard IDE controller.

Attach the secondary master and slave IDE drives to JP4 via a standard 40-pin IDE cable as shown on page 28.

Cont’d

Chapter 1 Hardware Installation

Step 9 Connect I/O, Continued

JP4 Pinout JP4 is the secondary IDE connector. The JP4 pinout is:

Pin Use Pin Use

1 -RESET 2 GND 3 DATA7 4 DATA8 5 DATA6 6 DATA9 7 DATA5 8 DATA10

9 DATA4 10 DATA11 11 DATA3 12 DATA12 13 DATA2 14 DATA13 15 DATA1 16 DATA14 17 DATA0 18 DATA15 19 GND 20 KEY (N/C) 21 -REQ 22 GND 23 -IOW 24 GND 25 -IOR 26 GND 27 IDERDY 28 Pulldown 29 -ACK 30 GND 31 INT15 32 N/C 33 HA1 34 N/C 35 HA0 36 HA2 37 -CS2 38 -CS3 39 N/C 40 GND

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Step 9 Connect I/O, Continued

J9 Pinout J9 is the 16-pin connector specifically for AMI’s new

MegaRAC PCI adapter, which is a PCI remote assistant card.

Pin Description

SMI#

I2C CLK

Reserved

GND

Power Off

I2C Data

Reserved

Keylock

Reserved

HSTRST#

GND

IRQ#

GPI01

GPI02

Chapter 1 Hardware Installation

Step 10 Connect SCSI I/O

SCSI Connectors J18 (SCSI channel 1) and J17 (SCSI channel 2) are 68-

pin high density (Wide) SCSI connectors.

High Density SCSI Connectors The 68-pin high density connectors are

0.050” pitch unshielded connectors. The high-density connector pinouts are shown below:

These connectors provide all signals needed to connect to wide SCSI devices. The connector pinouts are for a singleended primary bus (P-CABLE) as specified in SCSI-3 Parallel Interface X3T9.2, Project 885-D, revision 1.2b, date July 2, 1993.

The cable assemblies that interface with this 68-pin connector are:

• flat ribbon or twisted pair cable for connecting

internal wide SCSI devices,

• flat ribbon or twisted pair cable for connecting

internal and external wide SCSI devices,

• cable assembly for converting from internal wide

SCSI connectors to internal non-wide (Type 2) connectors,

• cable assembly for converting from internal wide to

internal non-wide SCSI connectors (Type 30), and

• cable assembly for converting from internal wide to

internal non-wide SCSI connectors.

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Step 10 Connect SCSI I/O, Continued

High-Density 68-Pin SCSI Connector Pinout

Signal Connector

Ground Data121 1 2 35 -DB(12)

Ground Data132 3 4 36 -DB(13)

Data 14 3 5 6 37 -DB(14) Data 15 4 7 8 38 -DB(15) SCOP1 5 9 10 39 -DB(P1) Data 0 6 11 12 40 -DB(0) Data 1 7 13 14 41 -DB(1) Data 2 8 15 16 42 -DB(2) Data 3 9 17 18 43 -DB(3) Data 4 10 19 20 44 -DB(4) Data 5 11 21 22 45 -DB(5) Data 6 12 23 24 46 -DB(6) Data 7 13 25 26 47 -DB(7) Data (P) 14 27 28 48 -DB(P) Ground 15 29 30 49 Ground Ground DIFFSENS TERMPWR 17 33 34 51 TERMPWR TERMPWR 18 35 36 52 TERMPWR Reserved 19 37 38 53 Reserved Ground 20 39 40 54 Ground ATN 21 41 42 55 -ATN Ground 22 43 44 56 Ground BSY 23 45 46 57 -BSY ACK 24 47 48 58 -ACK RST 25 49 50 59 -RST MSG 26 51 52 60 -MSG SEL 27 53 54 61 -SEL C/D 28 55 56 62 -C/D REQ 29 57 58 63 -REQ I/O 30 59 60 64 -I/O Data 8 31 61 62 65 -DB(8) Data 9 32 63 64 66 -DB(9) Data 10 33 65 66 67 -DB(10) Data 11 34 67 68 68 -DB(11)

16 31 32 50 Ground

Cable

Connector

Signal

Chapter 1 Hardware Installation

Cont’d

Step 10 Connect SCSI I/O, Continued

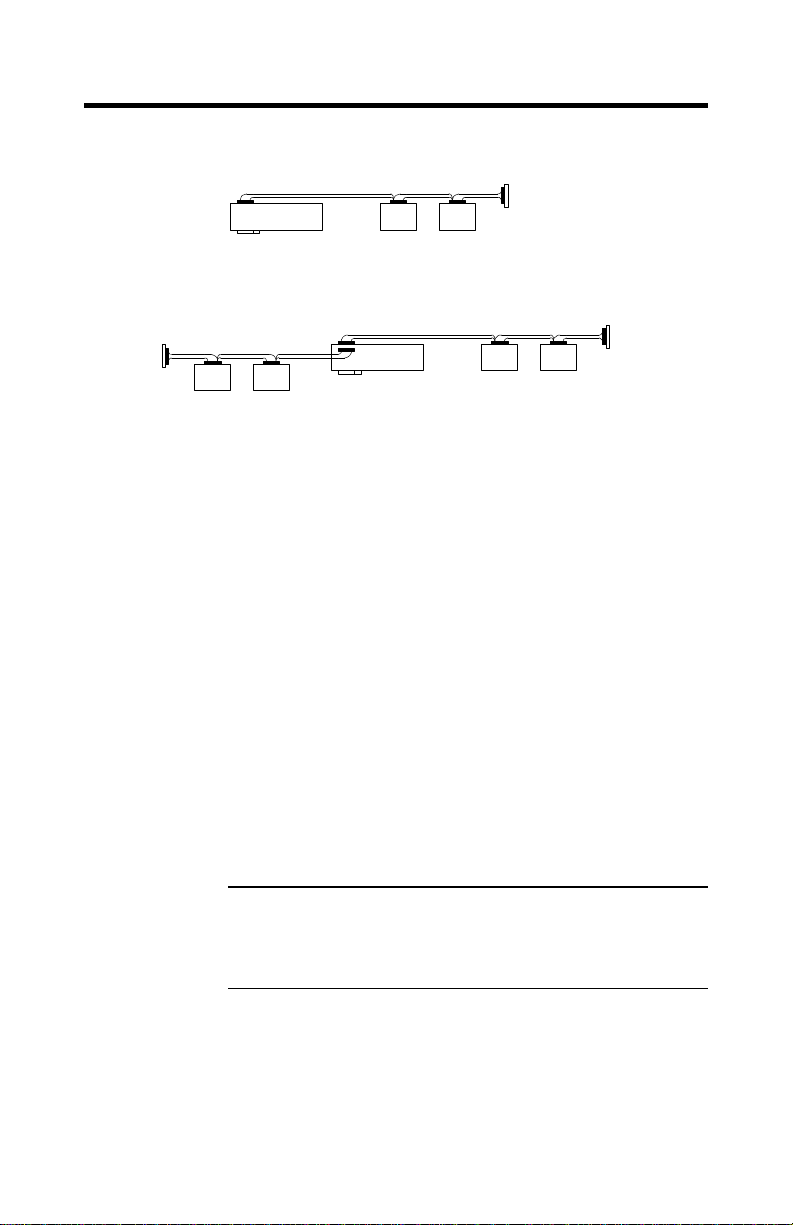

Single-Ended Ultra SCSI Understanding the cable requirements,

termination and stub lengths is key to the successful implementation of a Ultra-SCSI subsystem.

SCSI Cables - Up to Four Devices The total external SCSI cable length

for single-ended when using up to 4 Ultra-SCSI devices (maximum. capacitance of device = 25pf) should be less than or equal to:

(3 meter-(SCSI signal length on AMI RAID)-(SCSI length in storage

box) = (3 meter - 0.305 meter - SCSI length in storage box) = 2.695 - SCSI length in storage box

SCSI Cables - More than Four Devices The total external SCSI cable

length for single-ended when using from five to eight Ultra-SCSI devices (max. cap of device = 25pf) should be less than or equal to:

(1.5 meter-(SCSI signal length on AMI RAID)-(SCSI length in storage box)

= (1.5 meter - 0.305 meter - SCSI length in storage box)

= 1.195 - SCSI length in storage box

Spacing Devices The SCSI devices should be uniformly spaced between

terminators with the end devices located as close as possible to the terminators.

SCSI Signal Path The SCSI signal path is a controlled impedance

environment with the following characteristic impedance:

90 ohms +/- 6 ohms for the REQ and ACK signals

90 ohms +/- 10 ohms for all other signals

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Step 10 Connect SCSI I/O, Continued

SCSI Termination The SCSI channels on the MegaRUM II motherboard

use active termination for each SCSI channel. You must terminate the SCSI bus properly. The SCSI bus on each SCSI channel is an electrical transmission line and it must be terminated properly at both ends to minimize reflections and losses. You complete the SCSI bus by setting termination at both ends.

Do not add terminators in the middle of the SCSI bus. The end devices must be located as close as possible to the terminators. A simple rule is to place SCSI terminator after the last SCSI device on each of the SCSI connectors. MegaRUM II automatically terminates the onboard SCSI connectors.

Stub length The stub length shall not exceed 0.1 meter. The spacing of

devices on the SCSI bus should be at least three times the stub length to avoid stub clustering.

SCSI Cables Teflon flat ribbon cables give the best performance in the

Ultra-SCSI environment. These cables should be used for all internal cabling. To minimize discontinuities and signal reflections, the use of cables with different impedance’s on the same bus should be minimized.

Cont’d

Chapter 1 Hardware Installation

Step 10 Connect SCSI I/O, Continued

SCSI

terminator

SCSI Termination Possibilities

SCSI

terminator

Termination on

Termination on controller

motherboard

enabled

enabled.

Setup using one connector for one channel

SCSI devices

(termination disabled on both)

Setup using two connectors for one channel

If the MegaRUM II is at one end of a cable, it sets termination automatically at that end. Otherwise, MegaRUM II disables its own termination and you must set termination at the cable ends. If another connector on MegaRUM II is also used for the same channel, the termination on MegaRUM II is disabled automatically and termination should be set on the device at the farthest end of the cable.

For a disk array, set SCSI bus termination so that removing or adding a SCSI device does not disturb termination. An easy way to do this is to connect MegaRUM II at one end of the SCSI cable for each channel and to connect an external terminator module at the other end of each cable. The connectors between the two ends can connect SCSI devices. Disable termination on the SCSI devices. See the manual for each SCSI device to disable termination.

SCSI devices

(termination disabled on both)

Termination on

Termination on controller

disabled

motherboard disabled.

SCSI devices

(termination disabled on both)

SCSI

terminator

Selecting a SCSI Terminator Use ALT-2 type external SCSI terminators

on SCSI channels operating at 10 MB/s or higher synchronous data transfer.

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Step 11 Install Drivers

The following drivers are provided with the MegaRUM II motherboard:

• one CD containing the American Megatrends AMI Server

Manager server management software, and

• one diskette with SCSI drivers for Windows NT v3.51 and

v4.0, and SCSI drivers for Windows 95.

Installing AMI Server Manager The American Megatrends AMI Server

Manager User’s Guide is provided with the MegaRUM II

motherboard. Follow the installation instruction in the

American Megatrends AMI Server Manager User’s Guide.

Installing SCSI Drivers The SCSI driver installation process is operating

system-dependent. See the user documentation for the operating system that is installed in this computer for information about the SCSI driver installation procedure.

Chapter 1 Hardware Installation

Step 12 Test and Configure

Review the following points before powering up:

• make sure that all adapter cards are seated properly,

• make sure all connectors are properly installed,

• make sure the CPU is seated properly,

• make sure there are no screws or other foreign

material on the motherboard,

• plug the system into a surge-protected power strip,

and

• make sure blank back panels are installed on the back

of the chassis to minimize RF emissions.

Start the Test Plug everything in and turn on the switch. If there are any

signs of a problem, turn off the unit immediately. Reinstall the connectors. Call Technical Support if there are problems.

BIOS Errors If the system operates normally, a display should appear

on the monitor. The BIOS Power On Self Test (POST) should execute.

If POST does not run successfully, it will beep or display error messages. Beeps indicate a serious problem with the system configuration or hardware. The Beep Code indicates the problem. AMIBIOS Beep Codes are defined in the AMIBIOS Technical Reference. Make sure the affected part is properly seated and connected. An error message is displayed if the error is less serious. Recheck the system configuration or the connections.

Configure the System Run AMIBIOS Setup. You must enter the requested

information and save the configuration data in NVRAM. The system will then reset, run POST, and boot the operating system. See the following chapter for information on configuring the computer.

MegaRUM II PCI Motherboard User’s Guide

2 AMIBIOS Setup

In ISA and EISA computers, the system parameters (such as amount of memory, type of disk drives and video displays, and many other elements) are stored in CMOS RAM. Unlike the DRAM (dynamic random access memory) that is used for standard system memory, CMOS RAM requires very little power. When the computer is turned off, a back-up battery provides power to CMOS RAM, which retains the system parameters. Every time the computer is powered-on, the computer is configured with the values stored in CMOS RAM by the system BIOS, which gains control when the computer is powered on.

The system parameters are configured by a system BIOS Setup utility. Historically, BIOS Setup utilities have been character-based, required keyboard input, and have had user interfaces that were not very intuitive.

Starting AMIBIOS Setup As POST executes, the following appears:

Hit DEL if you want to run SETUP

Press Delete to run AMIBIOS Setup.

Chapter 2 AMIBIOS Setup 39

AMIBIOS Setup Menu

The AMIBIOS Setup main menu appears as follows. Each menu item is described in this chapter.

STANDARD CMOS SETUP

ADVANCED CMOS SETUP ADVANCED CHIPSET SETUP POWER MANAGEMENT SETUP

PCI / PLUG AND PLAY SETUP

PERIPHERAL SETUP

AUTO-DETECT HARD DISK

CHANGE USER PASSWORD

CHANGE SUPERVISOR PASSWORD

AUTO CONFIGURATION WITH OPTIMAL SETTINGS

AUTO CONFIGURATION WITH FAIL-SAFE SETTINGS

Standard CMOS setup for changing time, date, hard disk type, etc.

Esc:Exit ↑↓:Sel F2/F3:Color F10:Save & Exit

CHANGE LANGUAGE SETTING

SAVE SETTINGS AND EXIT

EXIT WITHOUT SAVING

MegaRUM II PCI Motherboard User’s Guide

Section 1 Standard Setup

Choose Standard CMOS Setup from the AMIBIOS Setup main menu. All Standard Setup options are described in this section. The Standard CMOS Setup screen is shown below.

Date (mm/dd/yyyy): Tue Sep 1,1998 Base Memory: 640 KB Time (hh/mm/ss) : 16:05:13 Extd Memory: 255 KB

Floppy Drive A: 1.44MB 3½ Floppy Drive B: Not Installed

LBA Blk PIO 32Bit Type Size Cyln Head Wpcom Sec Mode Mode Mode Mode Pri Master: Auto 42 40 981 5 981 17 Off Off Auto On Pri Slave: Not Installed Sec Master: Not Installed Sec Slave: Not Installed

Boot Sector Virus Protection Disabled Month: Jan – Dec ESC:Exit ↑↓:Sel

Day: 01 – 31 PgUp/PgDn:Modify Year: 1901 – 2099 F2/F3:Color

AMIBIOS SETUP-STANDARD CMOS SETUP

Date/Time Select Standard CMOS Setup from the AMIBIOS Setup

main menu. Highlight Date or Time using the arrow keys. Enter new values through the keyboard. Press the <Tab> key or the arrow keys to move between fields. The date must be entered in MM/DD/YYYY format. The time is entered in HH:MM:SS format. The time is in 24-hour format, also. For example, 5:30 a.m. appears as 05:30:00, and 5:30 p.m. as 17:30:00.

Press <PgUp> or <PgDn> after you have selected an option to display the complete list of valid setting in the bottom section of the screen. For example, when the cursor is in the Date field, the options for month, day, and year display, as seen in the screen above.

Cont’d

Chapter 2 AMIBIOS Setup 41

Standard Setup, Continued

Floppy Drive A: and B: Move the cursor to these fields via ↑ and ↓ and

select the floppy type. The settings are 360 KB 5¼ inch,

1.2 MB 5¼ inch, 720 KB 3½ inch, or 1.44 MB 3½ inch.

Boot Sector Virus Protection This option is near the bottom of the

Standard Setup screen. The settings are Enabled or Disabled. Choose Enabled to enable boot sector protection. AMIBIOS displays a warning when any program (or virus) issues a Disk Format command or attempts to write to the boot sector of the hard disk drive. If enabled, the following appears when a write is attempted to the boot sector. You may have to type N several times to prevent the boot sector write.

Boot Sector Write!!! Possible VIRUS: Continue (Y/N)? _

The following appears after any attempt to format any cylinder, head, or sector of any hard disk drive via the BIOS INT 13 Hard Disk Drive Service:

Format!!! Possible VIRUS: Continue (Y/N)? _

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Standard Setup, Continued

Primary Master, Primary Slave, Secondary Master, Secondary Slave

Select one of these hard disk drives to configure the hard disk drive named in the option. Press <Enter> to autodetect. The settings for each of these drives are:

Setting How to Configure

1 – 46

Predefined types

USER:

Enter parameters

manually

AUTO:

Set parameters

automatically on

each boot

If you are configuring an old MFM drive and you know the drive type, select the correct drive type between 1 –

46. If you are installing an old MFM drive and you do not know the drive type or the drive parameters do not match the drive parameters for types 1 – 46, enter the correct hard disk drive parameters. Select Auto to let AMIBIOS determine the parameters. Click on OK when AMIBIOS displays the drive parameters. You can also change these parameters if you do not think AMIBIOS detected the drive parameters correctly or if you want to enable an enhanced IDE feature. You can modify these parameters as follows:

Select LBA/Large Mode. Select On if the drive has a capacity greater than 540 MB.

Select Block Mode. Select On to allow block mode data transfers.

Select 32-Bit Mode. Select On to allow 32-bit data transfers.

Select the PIO Mode. It is best to select Auto to allow AMIBIOS to determine the PIO mode. If you select a PIO mode that is not supported by the IDE drive, the drive will not work properly. If you are absolutely certain that you know the drive’s PIO mode, select PIO mode 0 - 5, as appropriate.

CDROM:

Use for ATAPI

CDROM drives

ARMD:

Use for LS120,

MO, Iomega Zip

drives

Select CDROM if configuring an ATAPI drive. AMIBIOS displays the drive parameters.

Select this setting if you are configuring an LS120, MO (Magneto-Optical), or Iomega Zip drive.

Cont’d

Chapter 2 AMIBIOS Setup 43

Standard Setup, Continued

Entering Drive Parameters You can also enter the hard disk drive

parameters. The drive parameters are:

Parameter Description

Type The number for a drive with certain identification

parameters.

Size The formatted size of the drive is the number of heads

times the number of cylinders times the number of sectors per track times 512 (bytes per sector).

Cylinders The number of cylinders in the disk drive.

Heads The number of heads.

Write

Precompensation

Landing Zone This number is the cylinder location where the heads

Sectors The number of sectors per track. MFM drives have 17

LBA Mode LBA (Logical Block Addressing) is a method of

Blk Mode Block mode boosts IDE drive performance by increasing

PIO Mode IDE PIO mode programs timing cycles between the IDE

32Bit Mode Hard disk drives connected to the computer via the ISA

The actual physical size of a sector gets progressively smaller as the track diameter diminishes. Yet each sector must still hold 512 bytes. Write precompensation circuitry on the hard disk compensates for the physical difference in sector size by boosting the write current for sectors on inner tracks. This parameter is the track number on the disk surface where write precompensation begins.

normally park when the system is shut down.

sectors per track. RLL drives have 26 sectors per track. ESDI drives have 34 sectors per track. SCSI and IDE drives have even more sectors per track.

addressing data on a disk drive. In LBA mode, the maximum drive capacity is 8.4GB.

the amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt.

drive and the programmable IDE controller. As the PIO mode increases, the cycle time decreases.

bus transfer data 16 bits at a time. An IDE drive on the PCI bus or VL-Bus can use a 32-bit data path.

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Standard Setup, Continued

Hard Disk Drive Types

Type Cylinders Heads Write

1 306 4 128 305 17 10 MB 2 615 4 300 615 17 20 MB 3 615 6 300 615 17 31 MB 4 940 8 512 940 17 62 MB 5 940 6 512 940 17 47 MB 6 615 4 65535 615 17 20 MB 7 462 8 256 511 17 31 MB 8 733 5 65535 733 17 30 MB

9 900 15 65535 901 17 112 MB 10 820 3 65535 820 17 20 MB 11 855 5 65535 855 17 35 MB 12 855 7 65535 855 17 50 MB 13 306 8 128 319 17 20 MB 14 733 7 65535 733 17 43 MB 16 612 4 0 663 17 20 MB 17 977 5 300 977 17 41 MB 18 977 7 65535 977 17 57 MB 19 1024 7 512 1023 17 60 MB 20 733 5 300 732 17 30 MB 21 733 7 300 732 17 43 MB 22 733 5 300 733 17 30 MB 23 306 4 0 336 17 10 MB 24 925 7 0 925 17 54 MB 25 925 9 65535 925 17 69 MB 26 754 7 754 754 17 44 MB 27 754 11 65535 754 17 69 MB 28 699 7 256 699 17 41 MB 29 823 10 65535 823 17 68 MB 30 918 7 918 918 17 53 MB 31 1024 11 65535 1024 17 94 MB 32 1024 15 65535 1024 17 128 MB 33 1024 5 1024 1024 17 43 MB 34 612 2 128 612 17 10 MB 35 1024 9 65535 1024 17 77 MB 36 1024 8 512 1024 17 68 MB 37 615 8 128 615 17 41 MB 38 987 3 987 987 17 25 MB 39 987 7 987 987 17 57 MB 40 820 6 820 820 17 41 MB 41 977 5 977 977 17 41 MB 42 981 5 981 981 17 41 MB 43 830 7 512 830 17 48 MB 44 830 10 65535 830 17 69 MB 45 917 15 65535 918 17 114 MB 46 1224 15 65535 1223 17 152 MB

AMIBIOS automatically sets IDE drive parameters. Select USER to enter MFM, ESDI, or RLL drive

parameters. Select Not Installed for SCSI drives. Select CDROM for CD-ROM drives.

Precompensation

Landing

Zone

Sectors Size

Chapter 2 AMIBIOS Setup 45

Section 2 Advanced CMOS Setup

Choose Advanced CMOS Setup from the AMIBIOS Setup main menu. Advanced CMOS Setup options are displayed by highlighting the option using the arrow keys. All Advanced CMOS Setup options are described in this section.

Primary Display This option configures the type of monitor attached to the

computer. The settings are Absent, VGA/EGA, CGA40x25, CGA80x25, or Mono. The Optimal and FailSafe default settings are VGA/EGA.

PS/2Mouse Support Set this option to Enabled to enable AMIBIOS support

for a PS/2-type mouse. The settings are Enabled or

Disabled. The Optimal and Fail-Safe default settings are Enabled.

Display BIOS P.O.S.T. Messages Set this option to display BIOS

messages during the Power On Self Test. The settings are

Yes or No. The Optimal and Fail-Safe default settings are Yes.

Pause-On Configuration Screen Set this option to pause at the

configuration screen during setup. The settings are

Disabled, 1 sec, 2 sec, 3 sec, 4 sec, 5 sec, 6 sec, 7 sec, 8 sec, 9 sec, or 10 sec. The Optimal and Fail-Safe default settings are 10 sec.

BootUp Num Lock Set this option to On to turn the Num Lock key On at

system boot. The settings are On or Off. The Optimal and Fail-Safe default settings are On.

Password CheckThis option enables the password check option every time

the system boots or the end user runs Setup. If Always is chosen, a user password prompt appears every time the computer is turned on. If Setup is chosen, the password prompt appears if AMIBIOS is executed. See page 66 for instructions on changing a password. The Optimal and Power-On defaults are Setup.

MegaRUM II PCI Motherboard User’s Guide

Advanced CMOS Setup, Continued

Boot To OS/2 Set this option to Yes if running OS/2 operating system

and using more than 64 MB of system memory on the motherboard. The settings are Yes or No. The Optimal and Fail-Safe default settings are No.

S.M.A.R.T. for Hard Disks Set this option to Enabled to permit AMIBIOS

to use the SMART (Self Monitoring Analysis and Reporting Technology) protocol for reporting server system information over a network. The settings are Enabled or Disabled. The Optimal and Fail-Safe default settings are Disabled.

Quick Boot Set this option to Enabled to instruct AMIBIOS to boot

quickly when the computer is powered on. The settings are Disabled or Enabled. The Optimal and Fail-Safe default settings are Disabled.

1st Boot Device This option sets the type of device for the first boot drives

that the AMIBIOS attempts to boot from after AMIBIOS POST completes. The settings are Disabled, SCSI,

NETWORK, Floppy, ARMD-FDD, ARMD-HDD, ATAPI CDROM, I2O, 1st IDE-HDD, 2nd IDE-HDD, 3rd IDE HDD, or 4th IDE-HDD. The default setting is Floppy. The Optimal and Fail-Safe default settings are Floppy.

2nd Boot Device This option sets the type of device for the second boot

drives that the AMIBIOS attempts to boot from after AMIBIOS POST completes. The settings are Disabled,

SCSI, Floppy, ARMD-FDD, ARMD-HDD, ATAPI CDROM, 1st IDE-HDD, 2nd IDE-HDD, 3rd IDE HDD, or 4th IDE-HDD. The default setting is Disabled. The

Optimal and Fail-Safe default settings are 1st IDE.

Cont’d

Chapter 2 AMIBIOS Setup 47

Advanced CMOS Setup, Continued

3rd Boot Device This option sets the type of device for the third boot drives

that the AMIBIOS attempts to boot from after AMIBIOS POST completes. The settings are Disabled, Floppy,

ARMD-FDD, ARMD-HDD, ATAPI CDROM, 1st IDEHDD, 2nd IDE-HDD, 3rd IDE HDD, or 4th IDE-HDD.

The default setting is Disabled. The Optimal and FailSafe default settings are SCSI.

4th Boot Device This option sets the type of device for the fourth boot

drives that the AMIBIOS attempts to boot from after AMIBIOS POST completes. The settings are Disabled,

Floppy, ARMD-FDD, ARMD-HDD, ATAPI CDROM, 1 IDE-HDD, 2nd IDE-HDD, 3rd IDE HDD, or 4th IDEHDD. The default setting is Disabled. The Optimal and Fail-Safe default settings are Disabled.

Try Other Boot Devices Set this option to Yes to instruct AMIBIOS to

attempt to boot from any other drive in the system if it cannot find a boot drive among the drives specified in the

1st Boot Device, 2nd Boot Device, 3rd Boot Device, and 4th Boot Device options. The settings are Yes or No. The

Optimal and Fail-Safe default settings are No.

C000,16K Shadow C400,16K Shadow This option controls the location of the contents of

video ROM. The settings are:

Setting Description

Enabled

Cached

Disabled

The contents of the video ROM area (C0000h - C7FFFh) are written to the corresponding address in RAM. The contents of the video ROM area (C0000h - C7FFFh) are written to the corresponding RAM address and can be read from or written to cache memory. The video ROM is not copied to RAM. The contents of the video ROM cannot be read from or written to cache memory.

The Optimal and Fail-Safe default settings are Cached.

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Advanced Setup, Continued

C800,16K Shadow CC00,16K Shadow D000,16K Shadow D400,16K Shadow D800,16K Shadow DC00,16K Shadow These options enable shadowing of the contents of the

ROM area in the option title.

Setting Description

Enabled

Cached

Disabled

The contents of the ROM area are written to the corresponding address in RAM for faster execution. The contents of the ROM area are written to the corresponding RAM address and can be read from or written to cache memory. The ROM is not copied to RAM. The contents of the video ROM cannot be read from or written to cache memory.

The Optimal and Fail-Safe default settings are Cached.

Chapter 2 AMIBIOS Setup 49

Section 3 Advanced Chipset Setup

Choose Advanced Chipset Setup from the AMIBIOS Setup main menu. All Chipset Setup options are described below.

USB Function Set this option to Enabled to enable the system BIOS USB

(Universal Serial Bus) functions. The settings are Enabled or Disabled. The Optimal and Fail-Safe default settings are Enabled.

Onboard SCSI-1 The settings are Enabled or Disabled. The Optimal and

Fail-Safe default settings are Enabled.

Onboard SCSI-2 The settings are Enabled or Disabled. The Optimal and

Fail-Safe default settings are Enabled.

BX Master Latency Timer (Clks) This option specifies the master latency

timings (in PCI clocks) for devices in the computer. The settings are Disabled, 32, 64, 96, 128, 160, 192, or 224. The Optimal and Fail-Safe default settings are 64.

Multi-Trans Timer (Clks) This option specifies the multi-trans latency

timings (in PCI clocks) for devices in the computer. The settings are Disabled, 32, 64, 96, 128, 160, 192, or 224. The Optimal and Fail-Safe default settings are 32.

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Advanced Chipset Setup, Continued

Mlti-Trans Timer (Clocks) This option sets the multi-trans timer. The

settings are in units of Clocks. The settings are 32, 64, 96, 128, 160, 192, 224, or Disabled. The Optimal default setting is 32. The Fail-Safe default setting is Disabled.

Graphics Aperture Size This option specifies the amount of system

memory that can be used by the Accelerated Graphics Port (AGP). The settings are 4 MB, 8 MB, 16 MB, 32 MB, 64 MB, 128 MB, or 256 MB. The Optimal and Fail-Safe default settings are 64 MB.

AGP Mlti-Trans Timer (AGP Clocks) This option sets the AGP multi-

trans timer. The settings are in units of AGP Clocks. The settings are 32, 64, 96, 128, 160, 192, 224, or Disabled. The Optimal default setting is 32. The Fail-Safe default setting is Disabled.

AGP Low-Priority Timer (AGP Clks) This option sets the AGP low-

priority timer. The settings are in units of AGP Clocks. The settings are 16, 32, 48, 64, 80, 96, 112, 128, 144, 160, 176, 192, 208, 224, or Disabled. The Optimal default setting is 16. The Fail-Safe default setting is Disabled.

Chapter 2 AMIBIOS Setup 51

Section 4 Power Management Setup

Choose Power Management Setup from the AMIBIOS Setup main menu. All Power Management Setup options are described in this section.

ACPI Aware O/S Set this option to Yes if the operating system you are

running under complies with the Intel ACPI (Advanced Configuration and Power Interface) specification. The settings are Yes or No. The Optimal and Fail-Safe default settings are No.

Power Management/APM Set this option to Enabled to enable the chipset

power management and APM (Advanced Power Management) features. The settings are Enabled or

Disabled. The Optimal and Fail-Safe default settings are Disabled.

Power Button Function This option specifies how the power button

mounted externally on the computer chassis is used. The settings are:

Setting Description

On/Off Pushing the power button turns the computer on or off.

Suspend Pushing the Power button places the computer in Suspend

mode or Full On power mode.

The Optimal and Fail-Safe default settings are On/Off.

Green PC Monitor Power State This option specifies the power state that

the green PC-compliant video monitor enters when AMIBIOS places it in a power saving state after the specified period of display inactivity has expired. The settings are Stand By, Suspend, or Off. The Optimal default setting is Suspend. The Fail-Safe default setting is

Stand By.

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Power Management Setup, Continued

Video Power Down Mode This option specifies the power state that the

video subsystem enters when AMIBIOS places it in a power saving state after the specified period of display inactivity has expired. The settings are Standby, Suspend or Disabled. The Optimal default setting is Stand By. The Fail-Safe default setting is Disabled.

Hard Disk Power Down Mode This option specifies the power conserving

state that the hard disk drive enters after the specified period of hard drive inactivity has expired. The settings are Disabled, Stand By, or Suspend. The Optimal default setting is Suspend. The Fail-Safe default setting is Disabled.

Hard Disk Time Out (Minute) This option specifies the length of a period

of hard disk drive inactivity. When this length of time expires, the computer enters power-conserving state specified in the Hard Disk Power Down Mode option. The settings are Disabled, 1 min. (minute), 2 min, 3 min.,

4 min., 5 min., 6 min, 7 min., 8 min., 9 min., 10 min., 11 min., 12 min., 13 min, or 14 min. The Optimal and Fail- Safe default settings are Disabled.

Power Saving Type The settings are POS, Sleep, Stop Clock, and Deep

Sleep. The Optimal and Fail-Safe default settings are POS.

Standby/Suspend Timer Unit This option specifies the unit of time used

for the Standby and Suspend timeout periods. The settings are 4 msec, 4 sec, 32 sec, or 4 min. The Optimal and FailSafe default settings are 4 min.

Cont’d

Chapter 2 AMIBIOS Setup 53

Power Management Setup, Continued

Standby Time Out This option specifies the length of a period of system

inactivity while in Full power on state. When this length of time expires, the computer enters Standby power state. The settings are Disabled, 4 min, 8 min, up to and including 508 minutes, in increments of 4 minutes. The Optimal and Fail-Safe default settings are Disabled.

Suspend Time Out This option specifies the length of a period of system

inactivity while in Standby state. When this length of time expires, the computer enters Suspend power state. The settings are Disabled, 4 min, 8 min, up to and including 508 minutes, in increments of 4 minutes. The Optimal and Fail-Safe default settings are Disabled.

Slow Clock Ratio This option specifies the speed at which the system clock

runs in the Standby Mode power saving state. The settings are expressed as a percentage between the normal CPU clock speed and the CPU clock speed when the computer is in the power-conserving state. The settings are 0 -

12.5%, 12.5% - 25%, 25% - 37.5%, 37.5% -50% , 50% -

62.5%, 62.5% - 75%, or 75% -87.5%. The Optimal and Fail-Safe default settings are 50% - 62.5%.

Display Activity When set to Monitor, this option enables event monitoring

on the video display. If set to Monitor and the computer is in a power saving state, AMIBIOS watches for display activity. The computer enters the Full On state if any activity occurs. AMIBIOS reloads the Standby and Suspend timeout timers if display activity occurs. The settings are Monitor or Ignore. The Optimal and Fail-Safe default settings are Ignore.

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Power Management Setup, Continued

Device 6 (Serial Port 1) Device 7 (Serial Port 2) Device 8 (Parallel Port) Device 5 (Floppy Disk) Device 0 (Primary Master IDE) Device 1 (Primary Salve IDE) Device 2 (Secondary Master IDE) Device 3 (Secondary Slave IDE) When set to Monitor, these options

enable event monitoring on the specified hardware interrupt request line. If set to Monitor and the computer is in a power saving state, AMIBIOS watches for activity on the specified IRQ line. The computer enters the Full On state if any activity occurs. AMIBIOS reloads the Standby and Suspend timeout timers if activity occurs on the specified IRQ line.

The settings for each of these options are Monitor or Ignore. The Optimal default setting is Ignore, except for Device 0 (Primary Master IDE), which has an Optimal default setting of Monitor. The Fail-Safe default setting is Monitor.

Chapter 2 AMIBIOS Setup 55

Section 5 PCI/PnP Setup

Choose PCI/PnP Setup from the AMIBIOS Setup main menu. All PCI/PnP Setup options are described in this section.

AMI RAID Express Installed Set this option to Yes if the AMI RAID

Express is installed. The settings are Yes or No. The Optimal and Fail-Safe settings are No.

Boot to SCO UNIX Set this option for the computer to boot to SCO UNIX.

The settings are Yes or No. The Optimal and Fail-Safe settings are No.

Plug and Play-Aware OS Set this option to Yes if the operating system in

this computer follows the Plug and Play specification. Windows 95 is PnP-aware. The settings are Yes or No. The default setting is Yes. The Optimal and Fail-Safe default settings are No.

PCI VGA Palette Snoop When this option is set to Enabled, multiple VGA

devices operating on different buses can handle data from the CPU on each set of palette registers on every video device. Bit 5 of the command register in the PCI device configuration space is the VGA Palette Snoop bit (0 is disabled). For example: if there are two VGA devices in the computer (one PCI and one ISA) and the VGA Palette Snoop bit is:

Snoop Bit Action

Disabled

Enabled

Data read and written by the CPU is only directed to the PCI VGA device's palette registers. Data read and written by the CPU is directed to the both the PCI VGA device palette registers and the ISA VGA device palette registers, and the palette registers of both devices can be identical.

This option must be set to Enabled if an ISA adapter card installed in the system uses VGA palette snooping. The Optimal and Fail-Safe default settings are Disabled.

Allocate IRQ to PCI VGA Set this option to Yes to allocate an IRQ to a VGA

adapter card that uses the PCI local bus. The settings are Yes or No. The Optimal and Fail-Safe default settings are Yes.

MegaRUM II PCI Motherboard User’s Guide

Cont’d

Chapter 2 AMIBIOS Setup 57

PCI/PnP Setup, Continued

USB Device Latency This option specifies the latency timings (in PCI

clocks) for USB devices. The settings are 32, 64, 96, 128, 160, 192, 224, or 248. The Optimal and Fail-Safe default settings are 64.

PCI Slot-1 Latency This option specifies the latency timings (in PCI

clocks) for PCI devices installed in the Slot-1 expansion slot. The settings are 32, 64, 96, 128, 160, 192, 224, or

248. The Optimal and Fail-Safe default settings are 64.

PCI Slot-2 Latency This option specifies the latency timings (in PCI

clocks) for PCI devices installed in the Slot-2 expansion slot. The setting is 128. The Optimal and Fail-Safe default settings are 128.

PCI Slot-3 Latency This option specifies the latency timings (in PCI

clocks) for PCI devices installed in the Slot-3 expansion slot. The settings are 32, 64, 96, 128, 160, 192, 224, or

248. The Optimal and Fail-Safe default settings are 64.

PCI Slot-4 Latency This option specifies the latency timings (in PCI

clocks) for PCI devices installed in the Slot-4 expansion slot. The setting is 128. The Optimal and Fail-Safe default settings are 128.

AGP Slot IRQ Priority This option specifies the IRQ priority for the AGP

devices installed in the computer. The setting is N/A. The Optimal and Fail-Safe default settings are N/A.

USB Device IRQ Priority These options specify the IRQ priority for USB

devices installed in the Slot-1 expansion slot. The settings are Auto, 3, 4, 5, 7, 9, 10, 11, 12, and 14, in priority order. If Auto is selected, AMIBIOS automatically determines the optimal IRQ priority order. The Optimal and Fail-Safe default settings are Auto.

Cont’d

MegaRUM II PCI Motherboard User’s Guide

PCI/PnP Setup, Continued

PCI Slot1 IRQ Priority These options specify the IRQ priority for PCI

devices installed in the computer. The settings are Auto, 3, 4, 5, 7, 9, 10, 11, 12, and 14, in priority order. If Auto is selected, AMIBIOS automatically determines the optimal IRQ priority order. The Optimal and Fail-Safe default settings are Auto.

PCI SCSI-1 Latency PCI SCSI-2 Latency This option specifies the latency timings (in PCI

clocks) for PCI devices installed in the Slot-1 and Slot-2 expansion slots. The settings are 32, 64, 96, 128, 160, 192, 224, or 248. The Optimal and Fail-Safe default settings are 32.

PCI Slot-5 Latency PCI Slot-6 Latency This option specifies the latency timings (in PCI

clocks) for PCI devices installed in the Slot-5 and Slot-6 expansion slots. The setting is N/A. The Optimal and Fail- Safe default settings are N/A.

PCI SCSI-1 IRQ Priority PCI SCSI-2 IRQ Priority This option specifies the IRQ priority for SCSI

devices 1 and 2 installed in the computer. The settings for SCSI-1 are Auto, IRQ5, or IRQ9. The settings for SCSI-2 are Auto, IRQ9, or IRQ10. If Auto is selected, AMIBIOS automatically determines the optimal IRQ priority order. The Optimal and Fail-Safe default settings are Auto.

PCI Slot-5 IRQ Priority PCI Slot-6 IRQ Priority This option specifies the IRQ priority for PCI

devices installed in the Slot-5 and Slot-6 expansion slots. The setting is N/A. The Optimal and Fail-Safe default settings are N/A.

Cont’d

Chapter 2 AMIBIOS Setup 59

PCI/PnP Setup, Continued

IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10 IRQ11 IRQ12 IRQ14 IRQ15 These options specify the bus that the specified IRQ line is

used on. These options allow you to reserve IRQs for legacy ISA adapter cards. These options determine if AMIBIOS should remove an IRQ from the pool of available IRQs passed to devices that are configurable by the system BIOS. The available IRQ pool is determined by reading the ESCD NVRAM. If more IRQs must be removed from the pool, the end user can use these options to reserve the IRQ by assigning an ISA setting to it. Onboard I/O is configured by AMIBIOS. All IRQs used by onboard I/O are configured as PCI/PnP. IRQ14 and 15 will not be available if the onboard Triton 2 PCI IDE is enabled. If all IRQs are set to ISA and IRQ14 and 15 are allocated to the onboard PCI IDE, IRQ9 will still be available for PCI and PnP devices, because at least one IRQ must be available for PCI and PnP devices. The settings are Auto, Primary PCI, Secondary PCI, or ISA. The Optimal and Fail-Safe default settings are Auto.

DMA Channel 0 DMA Channel 1 DMA Channel 3 DMA Channel 5 DMA Channel 6 DMA Channel 7These options allow you to specify the bus type used by

each DMA channel. The settings are PnP or ISA. The Optimal and Fail-Safe default settings are PnP.

Cont’d

MegaRUM II PCI Motherboard User’s Guide

PCI/PnP Setup, Continued

Reserved ISA Card Memory Size This option specifies the size of the

memory area reserved for legacy ISA adapter cards. The settings are Disabled, 16K, 32K, or 64K. The Optimal and Fail-Safe default settings are Disabled.

Reserved ISA Card Memory Address This option specifies the beginning

address (in hex) of the reserved memory area. The specified ROM memory area is reserved for use by legacy ISA adapter cards.

The settings are C0000, C4000, C8000, CC000, or

D0000. The Optimal and Fail-Safe default settings are C8000.

Chapter 2 AMIBIOS Setup 61

Section 6 Peripheral Setup

Choose Peripheral Setup from the AMIBIOS Setup main menu. All Peripheral Setup options are described below.

Onboard Floppy Controller Set this option to Enabled to enable the

floppy drive controller on the motherboard. The settings are Auto (AMIBIOS automatically determines if the floppy controller should be enabled), Enabled, or Disabled. The Optimal and Fail-Safe default settings are Auto.

Onboard Primary/Secondary IDE This option specifies the IDE channels

used by the onboard IDE controller. The settings are Disabled, Primary, Secondary, or Both. The Optimal and Fail-Safe default settings are Both.

IDE Bus Mastering Set this option to Enabled to specify that the IDE

controller on the PCI bus has bus mastering capability. The settings are Disabled or Enabled. The Optimal and Fail-Safe default settings are Disabled.

Primary Prefetch Set this option to Enabled to allow prefetch of

information from the IDR disk drives by the primary IDE controller. The settings are Disabled or Enabled. The Optimal and Fail-Safe default settings are Disabled.

Secondary Prefetch Set this option to Enabled to allow prefetch of

information from the IDR disk drives by the secondary IDE controller. The settings are Disabled or Enabled. The Optimal and Fail-Safe default settings are Disabled.

Offboard PCI\ISA IDE Card This option specifies whether an offboard

PSI/ISA IDE card is used in the computer. You must also specify the PCI\ISA expansion slot on the motherboard where the offboard PCI\ISA controller card is installed. If an offboard PCI\ISA controller is used, the motherboard onboard IDE controller is automatically disabled. The settings are Absent, ISA, PCI Slot1, PCI Slot2, PCI Slot3, PCI Slot4, PCI Slot5, or PCI Slot6. The Optimal and FailSafe default settings are Absent.

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Peripheral Setup, Continued

Primary\Secondary This option specifies the PSI/ISA IDE cards used by

the offboard IDE controller. The settings are Disabled, Primary, Secondary, or Both. The Optimal and Fail-Safe default settings are Both.

PCI IDE Card Primary IRQ This option specifies the primary IRQ used

by the PCI IDE card. The setting is IRQ14. The Optimal and Fail-Safe default settings are IRQ14.

PCI IDE Card Secondary IRQ This option specifies the secondary IRQ

used by the PCI IDE card. The setting is IRQ15. The Optimal and Fail default settings are IRQ15.

Onboard Serial Port1 IRQ This option specifies the IRQ used by serial

port 1. The settings are Disabled, or IRQ4. The Optimal and Fail-Safe default settings are IRQ4.

Onboard Serial Port1 This option specifies the base I/O port address of

serial port 1. The settings are Auto (AMIBIOS

automatically determines the correct base I/O port address), Disabled, 3F8h/COM1, or 3E8h/COM3. The Optimal and Fail-Safe default settings are Auto.

Serial Port1 FIFO The settings are Disabled or Enabled. The Optimal and

Fail-Safe default settings are Disabled.

Onboard Serial Port2 IRQ This option specifies the IRQ used by serial

port 2. The settings are Disabled, or IRQ3. The Optimal and Fail-Safe default settings are IRQ3.

Onboard Serial Port2 This option specifies the base I/O port address of

serial port 2. The settings are Auto (AMIBIOS

automatically determines the correct base I/O port address), Disabled, 3F8h/COM1, 2F8h/COM2, 3E8h/COM3, or 2E8h/COM4. The Optimal and Fail-Safe

default settings are Auto.

Cont’d

Chapter 2 AMIBIOS Setup 63

Peripheral Setup, Continued

Serial Port2 Mode This option specifies the operating mode for serial port

2.This option appears only if the Onboard Serial Port2 option is not set to Auto or Disabled. The settings are IrDA, ASK IR, or Normal. The Optimal and Fail-Safe default settings are Normal.

IR Duplex Mode This option specifies the infrared transmission method.

This option appears only if the Onboard Serial Port2 option is not set to Auto or Disabled. The settings are Full or Half. There are no default settings.

Cont’d

IrDA Protocol The settings are 1.6 us or 3/16. The Optimal and Fail-Safe

default settings are 1.6 us.

Onboard Parallel Port IRQ This option specifies the IRQ used by the

parallel port. The settings are Disabled, IRQ7, or IRQ5. The Optimal and Fail-Safe default settings are IRQ7.

Parallel Port Mode This option specifies the parallel port mode. The

Optimal and Fail-Safe default settings are ECP. The settings are:

Setting Description

Normal EPP

ECP

Bi-Dir

MegaRUM II PCI Motherboard User’s Guide

The normal parallel port mode is used. The parallel port can be used with devices that adhere to the Enhanced Parallel Port (EPP) specification. EPP uses the existing parallel port signals to provide asymmetric bidirectional data transfer driven by the host device. The parallel port can be used with devices that adhere to the Extended Capabilities Port (ECP) specification. ECP uses the DMA protocol to achieve data transfer rates up to 2.5 Megabits per second. ECP provides symmetric bidirectional communication. Data can be sent to and received from the parallel port.

Cont’d

Peripheral Setup, Continued

Parallel Port DMA Channel This option is available only if the setting for

the Parallel Port Mode option is ECP. This option sets the DMA channel used by the parallel port. The settings are Auto, (DMA Channel) 1, or 3.

EPP Version This option specifies the Enhanced Parallel Port

specification version number that is used in the system. This option appears only if the Parallel Port Mode option is set to EPP. The settings are 1.7, 1.9, and N/A.

There are no Optimal and Fail-Safe default settings because the default setting for the Parallel Port Mode option is not EPP. If the Parallel Port Mode is set to Normal or ECP, then N/A displays.

Chapter 2 AMIBIOS Setup 65

Section 7 Other Setup Options

Auto-Detect Hard Disks

Choose this option to let AMIBIOS automatically detect the hard disk drive parameters. The Standard CMOS Setup screen will appear after AMIBIOS has configured the drives. Press <Esc> and choose Save Settings and Exit to reconfigure the system configuration with the new hard disk drive parameters.

AMIBIOS Password Support

Two Levels of Password Protection AMIBIOS provides both a Supervisor

and a User password. If you use both passwords, the Supervisor password must be set first.

The system can be configured so that all users must enter a password every time the system boots or when AMIBIOS Setup is executed, using either or both the Supervisor password or User password.

The Supervisor and User passwords activate two different levels of password security.

Set the Password Check option in Advanced Setup (see the Advanced Setup section ) by choosing either Always (the password prompt appears every time the system is powered on) or Setup (the password prompt appears only when AMIBIOS Setup is executed). The password is encrypted and stored in NVRAM.

If you select password support, you are prompted for a 1 – 6 character password. Type the password on the keyboard. The password does not appear on the screen when typed. Make sure you write it down. If you forget it, you must drain NVRAM and reconfigure.

Remember the Password Keep a record of the new password when the

password is changed. If you forget the password, you must erase the system configuration information in NVRAM (Non-Volatile Random Access Memory). See page 75 for information about erasing system configuration information.

MegaRUM II PCI Motherboard User’s Guide

Change User Password

Select Change User Password from the AMIBIOS Setup main menu.

Enter new User password:

appears. Type the password and press <Enter>. The screen does not display the characters entered. Retype the password as prompted and press <Enter>. If the password confirmation is incorrect, an error message appears. The password is stored in NVRAM after AMIBIOS completes. The next time the system boots, a password prompt appears if the Password Check option is set to Always.

Change Supervisor Password

Select Change Supervisor Password from the AMIBIOS Setup main menu.

Enter new supervisor password:

Change Language Settings

This option is not implemented in this AMIBIOS.

Chapter 2 AMIBIOS Setup 67

Auto Configuration with Optimal Settings

AMIBIOS will automatically set all AMIBIOS Setup options to a complete set of default settings when you choose this option. The following appears:

Load high performance settings (Y/N) ? N

The Optimal settings are designed for maximum system performance, but may not work best for all computer applications. In particular, do not use the Optimal AMIBIOS Setup options if your computer is experiencing system configuration problems.

Auto Configuration with FailSafe Settings

AMIBIOS will automatically set all AMIBIOS Setup options to a complete set of default settings when you choose this option. The following appears:

Load Failsafe settings (Y/N) ? N

The Fail-Safe settings are designed for maximum system stability, but not maximum performance. Choose the FailSafe AMIBIOS Setup options if your computer is experiencing system configuration problems.

Save Settings and Exit

When you have completed the system configuration changes, choose this option to leave AMIBIOS Setup and to reboot the computer so the new system configuration parameters can take effect.

Exit Without Saving

Choose this option to quit AMIBIOS Setup without making any permanent changes to the system configuration.

MegaRUM II PCI Motherboard User’s Guide

Chapter 2 AMIBIOS Setup 69

3 Programming Flash ROM

All versions of the MegaRUM II PCI motherboard use Flash EPROM to store the system BIOS. The advantage of Flash EPROM is the EPROM chip does not have to be replaced to update the BIOS. The end user can actually reprogram the BIOS, using a ROM file supplied by American Megatrends.

Programming the Flash EPROM

Step Action

1 Turn power off. Make sure the computer has a working speaker. 2 Insert the floppy disk with the S774P.ROM file in drive A:. 3 Press and hold the <Ctrl> and <Home> keys down while turning the

power on. Continue to hold the <Ctrl> and <Home> keys down until the access light on the floppy drive comes on. It may take 10 seconds or more before this light turns on.

Since MegaRUM II uses a 2 megabit BIOS, the flashing process may take up to 3 minutes.

4 Release the <Ctrl> and <Home> keys. AMIBIOS issues a series of beep

codes that indicate that the system BIOS ROM file is being updated.

5 When the flash ROM has successfully been programmed, the computer

will reboot.

6 When the computer reboots, check the BIOS Release text at the bottom

of the first boot screen to make sure that the correct BIOS has been used.

7 The error message

NVRAM checksum bad, NVRAM cleared

will appear during the first boot after a successful BIOS ROM update. This message indicates that the NVRAM area in the system BIOS has been cleared. AMIBIOS will reconstruct the NVRAM area before the computer boots completely, so you can safely ignore this message.

8 Load the optional default and save.

Chapter 3 Programming the Flash ROM 71

Cont’d

Programming the Flash ROM, Continued

Bootblock Actions When you reprogram from system boot, the bootblock

code:

Step Action

1 Reads S774P.ROM from the root directory of the floppy disk in drive

A:. 2 Erases the Flash EPROM. 3 Programs the Flash EPROM with the data read from the floppy disk in

drive A:. 4 Generates a CPU reset, rebooting the computer.

The bootblock part of the Flash EPROM is not programmed. Should you inadvertently open the disk drive door or turn power off to the computer while programming the Flash EPROM, the bootblock will be unaffected. Simply turn power back on and begin the Flash ROM programming process again.

S774P.ROM S774P.ROM resides on a floppy disk and contains the

updated main BIOS code. American Megatrends will provide this file when the AMIBIOS for the MegaRUM II PCI ISA motherboard must be updated.

S774P.ROM must be present in the root directory of the floppy disk before the onboard Flash EPROM can be reprogrammed. The file that has the main BIOS code must be named S774P.ROM.

Cont’d

MegaRUM II PCI Motherboard User’s Guide

Programming the Flash ROM, Continued

Beep Codes The bootblock code produces a series of beeps during

Flash ROM programming to: signify completion of a step (as shown on the previous page), or to signal an error.

Error beeps are arranged in a coded sequence and have different meanings depending on when they occur. The error beep codes and when they can occur are:

Number of

Beeps

1 Insert diskette in floppy drive A:. 2 The S774P.ROM file was not found in the root directory of the

diskette in floppy drive A:. 3 Base memory error. 4 Flash program successful. 5 Floppy read error. 6 Keyboard controller BAT command failed. 7 No Flash EPROM detected. 8 Floppy controller failure. 9 Boot Block BIOS checksum error.

10 Flash erase error. 11 Flash Program error. 12 S774P.ROM file size error.

Continuous

beep

Flash Programming successful. Turn power off. Then turn power on

again to restart.

Description

Chapter 3 Programming the Flash ROM 73

Bootblock Code Checkpoint Codes

Code Description

E0h Verify the Boot Block BIOS checksum. Disable the internal

cache, DMA, and interrupt controllers. Initialize the system timer. Start memory refresh.

E1h Initialize the chipset registers. Set the BIOS size to 128K. Make

the 512 KB base memory available.

E2h Test the base 64 KB of system memory. Send the BAT command

to the keyboard controller. Make sure that <Ctrl> <Home> was pressed. Verify the main system BIOS checksum.

E3h The main system BIOS is good. Transfer control to the main

system BIOS. E4h Start the memory test. E5h The memory test is over. Initialize the interrupt vector table. E6h Initialize the DMA and interrupt controllers. E7h Determine the CPU internal clock frequency. E8h Initialize the I/O chipset, if any. E9h Program the CPU clock-dependent chip set parameters.

EAh Enable the timer and the floppy diskette interrupt. Enable the

internal cache. Copy the boot block BIOS and pass control to the

boot block BIOS in the 0000h segment.

EDh Initialize the floppy drive.

EEh Look for a diskette in drive A:. Read the first sector of the

diskette. EFh Floppy read error.

F0h Search for S774P.ROM in the root directory of the floppy diskette

in drive A:.

F1h The S774P.ROM file is not in the root directory. F2h Read the FAT table. Analyze the FAT to find the clusters

occupied by the S774P.ROM.

F3h Start reading the S774P.ROM file, cluster by cluster. F4h The S774P.ROM file is not the correct size. F5h Disable the internal cache. Raise the Vpp. Enable Flash write and

reset the Flash ROM. FBh Detect the flash type. FCh Start erasing flash blocks.

FDh Program the Flash ROM in the E0000-EFFFFh region.

FEh Start programming Flash at F0000-FFFFF region. FFh Flash programming is successful. The computer reboots.

MegaRUM II PCI Motherboard User’s Guide

4 Deleting a Password

If you forget the passwords you set up through AMIBIOS Setup, the only way you can restart the computer is to erase the system configuration information where the passwords are stored. System configuration data is stored in CMOS RAM, a type of memory that consumes very little power.

Erase Old Password You can drain CMOS RAM power via J35 on the

motherboard. J35 is a 2-pin berg that is normally always OPEN. Perform the following steps to erase the old password.

Important

Make sure you are properly grounded before

performing the following procedure. You must be

certain that no electrostatic discharge (ESD) occurs.

ESD can ruin your motherboard. Wear an antistatic

wristband attached to a ground. See “Avoid Static

Electricity” on the following page.

Step Action

1 Turn the computer power off and remove the computer cover. 2 Place a shorting bridge on J35. 3 Turn on computer power for about 10 seconds. 4 Turn the computer off again. 5 Remove the shorting bridge from J35. 6 Turn on computer power again.

Since you drained power from CMOS RAM, all system configuration information has been erased. You must now re-enter the system configuration information by running AMIBIOS Setup.

Chapter 4 Deleting a Password 75

Avoid Static Electricity

Avoid contact with any component or connector on any adapter card, printed circuit board, or memory module. Handle these components by the mounting bracket.

MegaRUM II PCI Motherboard User’s Guide

5 AMI_ClientCare Installation Procedure

This procedure is valid when installing AMI_ClientCare in a computer with an AMI Series 774 MegaRUM II motherboard.

Installation Requirements

• A computer with a Series 774 MegaRUM II

motherboard and a system BIOS that has the DMIenabled BIOS file S774P.ROM, dated 11/05/98.

• The AMI_ClientCare installation CD

Procedure

Step 1 Flash the new S774P.ROM file on to the MegaRUM II

BIOS on the Series 774 MegaRUM II motherboard. See Chapter 3, Flashing ROM BIOS, for information about flashing the BIOS. The new BIOS must be installed before system information can be displayed correctly.

Step 2 Boot Windows NT on this computer after the new BIOS

has been successfully installed.

Step 3 Place the AMI_ClientCare CD in the CD-ROM drive.

Run the SETUP program on the AMI_ClientCare CD. Follow the instructions on the screen. See the American Megatrends AMI_ClientCare User’s Guide (part number MAN-CLIENT) for information about using AMI_ClientCare.

Chapter 5 AMI ClientCare Installation Procedure 77

MegaRUM II PCI Motherboard User’s Guide

A Specifications

Engineering Specifications

Temperature Ranges The following values are ambient temperatures

inside the computer case. The board temperatures reflect the dual Pentium II II CPU Heat dissipation requirements because they will be the hottest motherboard components. Temperature specifications vary with the CPU frequency.

Frequency Heat

All frequencies

Sink

YES 200 feet

Airflow

over CPU

per minute

Airflow

over other

component

Not critical

Temperature

Range

0 ° through 50 °

C. ambient

You must make sure that there is adequate air flow over the CPU inside the case.

Humidity The recommended humidity range for operation of the

motherboard is 20% to 80% non-condensing.

Appendix A Specifications 79

MegaRUM II PCI Motherboard User’s Guide

Index

1st Boot Device, 47

2nd Boot Device, 47

3rd Boot Device, 48

4th Boot Device, 48

Auto-Detect Hard Disks, 65

BIOS

Password Support, 65 BIOS Errors, 38 BIOS P.O.S.T Messages, 46 Block Mode, 44 Boot Sector Virus Protection, 42 Boot To OS/2, 47 Boot to SCO UNIX, 56 Boot Up Num Lock, 46

Bootblock

Checkpoint Codes, 72

BX Master Latency Timer (Clks), 50

ACPI Aware O/S, 52 Active termination, 35 Add-On ROM Messages, 46 Advanced Chipset Setup, 50 Advanced Setup, 46 AGP Low Priority Timer (AGP

Clks), 51

AGP Multi-Trans Timer (AGP

Clocks), 51 AGP Slot IRQ Priority, 57 Allocate IRQ to PCI VGA, 56 AMI ClientCare Installation

Procedure, 75

Installation Requirements, 75

AMIBIOS Password Support, 65 AMIBIOS Setup, 39 AMIBIOS Setup Menu, 40 AMIFlash

Beep Codes, 71

ARMD, 43

Auto Configuration with FailSafe

Settings, 67 Auto Configuration with Optimal

Settings, 67

Cables

Attaching, 15

Connecting, 16

CD-ROM drive

Configuring, 43

Change Language Settings, 66 Change Supervisor Password, 66 Change User Password, 66

Chassis Door Open, 19 CMOS Drain, 18 COM1, 23 COM2, 23 Configure CPU, 5 Configuring System, 38 Conflicts, 23 Connectors, 15

DIMM, 13 Floppy disk, 25 IDE Hard Disk Drive, 28 Keyboard, 19 Reset Switch, 20 Serial ports, 23 Speaker, 20

CPU

Install, 7

Index 81

CPU Fan, 6

Date/Time, 41 Device 0 (Primary Master IDE), 55 Device 1 (Primary Slave IDE), 55 Device 2 (Secondary Master IDE),

55 Device 3 (Secondary Slave IDE), 55 Device 5 (Floppy Disk), 55 Device 6 (Serial Port 1), 55 Device 7 (Serial Port 2), 55 Device 8 (Parallel Port), 55 DIMMs

Installing, 13 Display Activity, 54 DMA Channel 0, 59 DMA Channel 1, 59 DMA Channel 3, 59 DMA Channel 5, 59 DMA Channel 6, 59 DMA Channel 7, 59

Enhanced Parallel Port, 24 EPP Version, 64 Exit Without Saving, 67 Extended Capabilities Port, 24

Figures

Floppy drive cable, 25

Floppy drive connector, 25

Flash EPROM

Programming, 69

Floppy Disk Connector

Pinout, 25 Floppy Drive A: and B, 42 Floppy Drive connector

Pinout, 26

Graphics Aperture Size, 51 Green PC Monitor Power State, 52

Hard Disk Drive Capacity, 44 Hard Disk Drive Parameters, 44 Hard Disk Drive Type D:, 43 Hard Disk Power Down Mode, 53 Hard Disk Timeout (Minute), 53 Heat sink, 10 High Density Connectors, 32 High-Density 68-Pin SCSI Connector

Pinout, 33

IDE Bus Mastering, 61 IDE drive

Configuring, 43

IDE Hard Disk Connector, 28

Install Memory, 12 Install the Heat Sink, 10, 11 Installing the Motherboard, 14

Iomega Zip drive, 43 IR Duplex Mode, 63 IrDA Protocol, 63 IRQ10, 59 IRQ11, 59 IRQ12, 59 IRQ14, 59 IRQ15, 59 IRQ3, 59 IRQ4, 59 IRQ5, 59 IRQ7, 59 IRQ9, 59

J1 PS/2 Mouse Connector, 19 J12 Keyboard Connector, 19 J15 Keyboard Lock connector, 21 J15 Wide SCSI channel 1 connector,

J17 Wide SCSI channel 2 connector,

32 J18 External SMI, 19 J3 USB Connectors, 22 J33 Erase Password, 73 J47 SCSI Termination, 31 J5 Parallel Port connector, 24

MegaRUM II PCI Motherboard User’s Guide

J6 Serial Port 1 (COM1), 23 J7 Serial Port 2 (COM2), 23 J9 Pinout, 31 JP 11 Drain CMOS RAM power, 18 JP 16 Power Button, 22 JP1 CPU Fan, 6 JP13 Chassis Door Open, 19 JP14 BIOS Size Select, 22 JP15 BIOS Chip Voltage Select, 20 JP17 Reset Switch Connector, 20 JP18 Chassis Fan, 6 JP19 Chassis Fan, 6 JP2 CPU Fan, 6 JP20 Speaker Connector, 20 JP3 Infrared Connector, 18 JP4 Pinout, 30 JP4 Secondary IDE Controller, 29 JP5 IDE Connector

Primary, 28 JP5 Pinout, 29 JP9 Floppy Connector, 25

Keyboard, 47 Keyboard connector, 19

LBA Mode, 44 LS-120 drive, 43

Magneto-Optical drive, 43 MegaRAC PCI adapter, 31 Memory

Reporting, 12 Monitor, 46 Mouse Cable, 19 Mouse Support, 46 Multi-Trans Timer (Clks), 50

Number of Cylinders, 44 Number of Heads, 44 Number of Sectorss, 44

NVRAM (Non-Volatile Random

Access Memory), 65

Offboard PCI\ISA IDE Card, 61 Onboard Adapters, 23 Onboard Floppy Controller, 61 Onboard I/O, 2 Onboard Parallel Port IRQ, 63 Onboard Primary/Secondary IDE, 61 Onboard Serial Port1, 62 Onboard Serial Port2, 62 Onboard Serial Port2 IRQ, 62 Optional USB Cable, 22 Outboard SCSI-1, 50 Outboard SCSI-2, 50 Overview, 1

P1 Power connector, 17 P3 Power connector, 17 Parallel Port, 24 Parallel Port DMA Channel, 64 Parallel Port Mode, 63

Password

Deleting, 73

Password Check, 46 Password Support

Levels of, 65 PCI Bus Speed, 1 PCI IDE Card Primary IRQ, 62 PCI IDE Card Secondary IRQ, 62 PCI SCSI-1 IRQ Priority, 58 PCI SCSI-1 Latency, 58 PCI SCSI-2 IRQ Priority, 58 PCI SCSI-2 Latency, 58 PCI SCSI-5 IRQ Priority, 58 PCI SCSI-5 Latency, 58 PCI SCSI-6 IRQ Priority, 58 PCI SCSI-6 Latency, 58 PCI Slot1 IRQ Priority, 58 PCI Slot-1 Latency, 57 PCI Slot-2 Latency, 57 PCI Slot-3 Latency, 57 PCI Slot-4 Latency, 57 PCI VGA Palette Snoop, 56 PCI/PnP Setup, 56

Index 83

Pentium II, 1 Peripheral Setup, 61 Pinout

Parallel Port, 24 Primary IDE connector, 29 Serial ports, 23

Pinouts

Keyboard lock, 21 Reset Switch, 20

Serial ports, 23 PIO Mode, 44 Plug and Play-Aware OS, 56 Power Button Function, 52 Power Management Setup, 52 Power Management/APM, 52 Power Saving Type, 53 Power Supply, 17

Connecting, 17 Pri Master, Pri Slave, Sec Master,

Sec Slave, 43 Primary Display, 46 Primary Prefetch, 61 Primary\Secondary, 62 PS/2 mouse support, 46 PS/2Mouse Support, 46

Quick Boot, 47

Reporting Memory, 12 Reserved ISA Card Memory

Address, 60 Reserved ISA Card Memory Size, 60 Reset Switch Connector, 20 Resource conflicts, 23 Retention Mechanism Kit, 8

S.M.A.R.T. for Hard Disks, 47 S774P.ROM, 70 S774P.ROM file, 69 Save Settings and Exit, 67 SCSI Cable Considerations, 34 SCSI Cables, 35 SCSI Connectors, 32

SCSI Drivers

Installing, 37 SCSI Signal Path, 34 SCSI Termination, 35 SCSI Termination Possibilities, 36 SDRAM DIMM Sockets, 12 SDRAM Speed (ns), 12 Secondary IDE Controller, 29 Secondary Prefetch, 61 Serial port

Pinout, 23 Serial Port1 FIFO, 62 Serial Port2 Mode, 63 Server Management Software, 2 Shadow C800,16K, 49 Shadow CC00,16K, 49 Shadow D000,16K, 49 Shadow D400,16K, 49 Shadow D800,16K, 49 Shadow DC00,16K, 49 Slow Clock Ratio, 54 Speaker Cable Connector, 20 Standard CMOS Setup Screen, 41 Standard Setup, 41 Standby Timeout, 54 Standby/Suspend Timer Unit, 53 Static Electricity, 4, 74 Stub length, 35 Suspend Timeout, 54 System Bus Frequency, 5 System Keyboard, 47 System memory, 12 SystemGuru

Installing, 37

Tables

Floppy pinout, 26

Hard Disk Drive Types, 45

I/O conflicts, 23

Serial port pinout, 23

Twist in floppy cable, 26 Termination card, 7 Testing System, 38 Try Other Boot Devices, 48

MegaRUM II PCI Motherboard User’s Guide

Unpack the Motherboard, 4 USB Connectors, 22 USB Device IRQ Priority, 57 USB Function, 50

Video Power Down Mode, 53 Video Shadow C000,16K, 48 Video Shadow C400,16K, 48 Voltage Regulator Module (VRM), 6

Write Precompensation, 44

Index 85

MegaRUM II PCI Motherboard User’s Guide

AMI MegaRUM II AMI MegaRUM II Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
