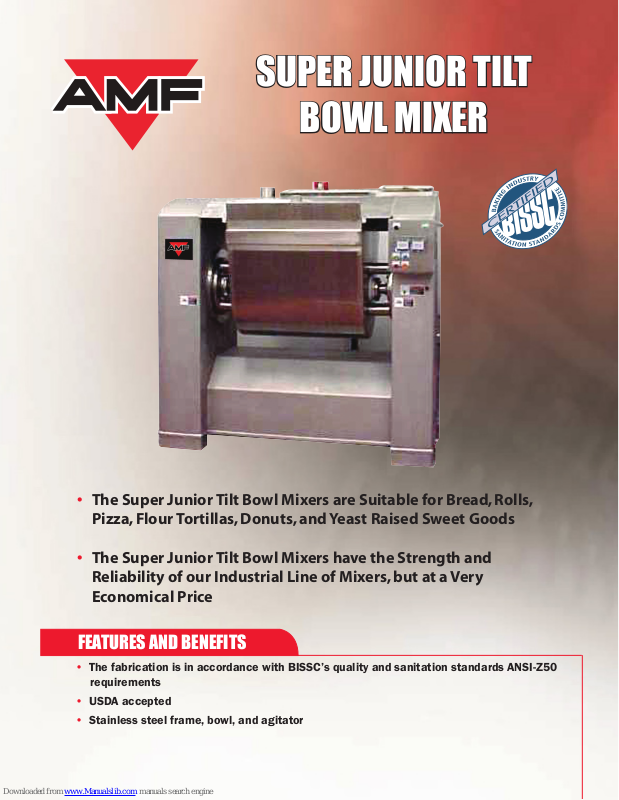

SUPER JUNIOR TILT
BOWL MIXER
• The Super Junior Tilt Bowl Mixers are Suitable for Bread, Rolls,
Pizza, Flour Tortillas, Donuts, and Yeast Raised Sweet Goods
• The Super Junior Tilt Bowl Mixers have the Strength and
Reliability of our Industrial Line of Mixers, but at a Very
Economical Price
FEATURES AND BENEFITS
• The fabrication is in accordance with BISSC’s quality and sanitation standards ANSI-Z50
requirements
• USDA accepted
• Stainless steel frame, bowl, and agitator
Page 2

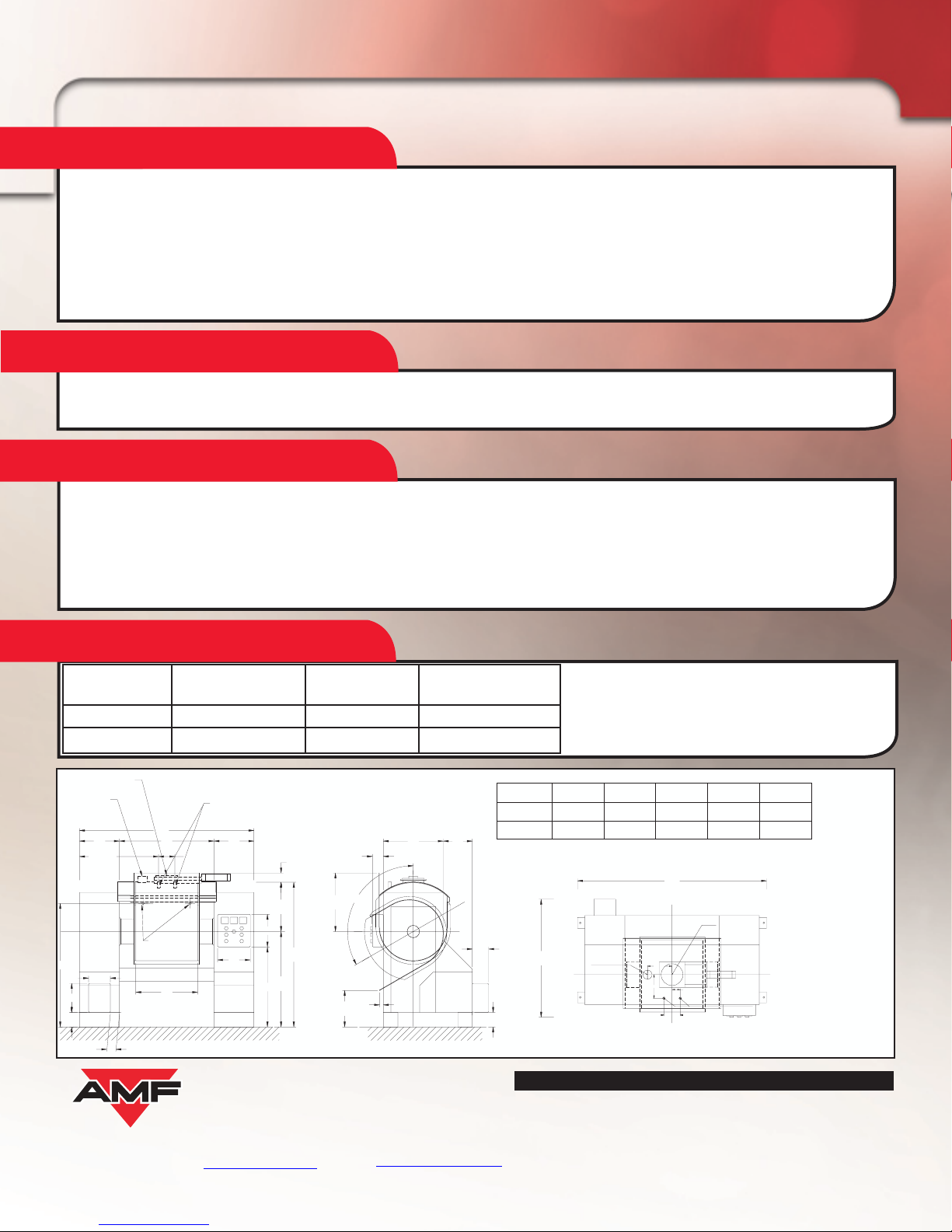

MECHANICAL FEATURES
C
L
L
C
•
OPERATOR
PANEL
JUNCTION
BOX
JUNCTION
BOX
(AT REAR)
1"
LIQUID
INLETS
1" NPT WATER
JACKET CONNECTION
(ON REAR)
DUST VENT
1" LIQUID INLET
(2)
5" AIR VENT
9.000
13.500
4.500
12" FLOUR INLET
FRONT
REAR
INLET DOOR
104
13.000
64 15/16
12
34
120
68
44
9
52 1/2
79 5/8
16
8
5
20 3/32
2
8
18
96
5 3/32
22
943 1/2
22 52
12" FLOUR
•5" FLOUR
33
32 7/32
6
18
27 1/8
16
FRONT VIEW of MACHINE RIGHT SIDE VIEW of MACHINE
A
B
C
D
E
Model A B C D E
SJT-400 43-1/2"
SJT-600 45-1/2"
96"
100"
52"
56"
34"
38"
104"
108"
SUPER JUNIOR TILT BOWL MIXER
• Solid stainless steel DE 90 bowl sheet, bowl ends
and bowl cover
• Solid stainless steel triple roller bar agitator and
agitator shaft
• Solid stainless steel mixer support frame and
USDA mat finish
• Solid steel mixer legs
• Sanitary removable shaft seals
ELECTRICAL FEATURES
• Safety interlocked proximity switches on end doors
• Manual operator panel with two, LCD timers, up/down, jog, start/stop, E-stop, ampmeter and thermometer read-out
• Motor control system has a remote, NEMA 12 enclosure, fully magnetic starters and circuit breaker
OPTIONS
• Manual trough hooks
• Bowl end cooling
• Canopy scraper
• 12” O.D. butterfly valve in lieu of sliding flour gate
• Removable stainless mixer legs to raise bowl
discharge height (per 3” increment)
• Top-rear access hatch
• Center lubrication block
• Side and rear bowl seals
• Pneumatic, 12” flour slide gate and vent with sock filter
• Two sanitary 1” diameter liquid inlets in bowl cover
• Single end Gates Poly Chain belt-drive system
• Parker hydraulic power bowl tilt, to 120 degrees forward
• Two speed, constant torque, 460V/3Ph/60Hz TEFC drive
• Vibration isolation pads
• Extra liquid inlet
• Main drive motor upgrade
• Washdown duty main drive
• Remote pedestal operator controls
• NEMA 4X stainless remote, motor control cabinet
• Allen Bradley PanelView 600 with Micrologix PLC
SPECIFICATIONS
Model
SJT-400 400 25 H.P. 8000 lb.
SJT-600 600 30 H.P. 8800 lb.
AMF’s continuing engineering is constantly improving product performance. Consequently machinery specications are subject to change without notice.
Rated Capacity (lb.)
@ 65% Absorption
Headquarters:
2115 West Laburnum Avenue
Richmond, Virginia 23227
Tel: 1-800-225-3771
or 804-355-7961
Fax: 1-804-342-9724
www.amfbakery.com
Standard
Main Drive
Approximate
Shipping Weight
Europe Ofce:
West Park Ring Road
Leeds LS16 6QQ
England
Tel: 44-1132-787110
Fax: 44-1132-741415
FOR MORE INFORMATION PLEASE CALL YOUR ACCOUNT MANAGER OR
1-800-BAKERS-1
www.amfbakery.com
9/2006
