UPS-1000-Li-2 User Manual
UPS-1000-Li-2
User Manual
© 2021 AMETEK, Inc. / Technical Support: 1-800-645-9721 / surgex.com / UM-UPS-1000-Li-2-Rev-A
UPS-1000-Li-2 User Manual
© 2021 AMETEK, Inc. / Technical Support: 1-800-645-9721 / surgex.com
UPS-1000-Li-2 User Manual
© 2021 AMETEK, Inc. / Technical Support: 1-800-645-9721 / surgex.com
I. INTRODUCTION 1
1. SAFETY INSTRUCTIONS………………………………………………………………..1
II. CONTROLS AND INDICATORS 2

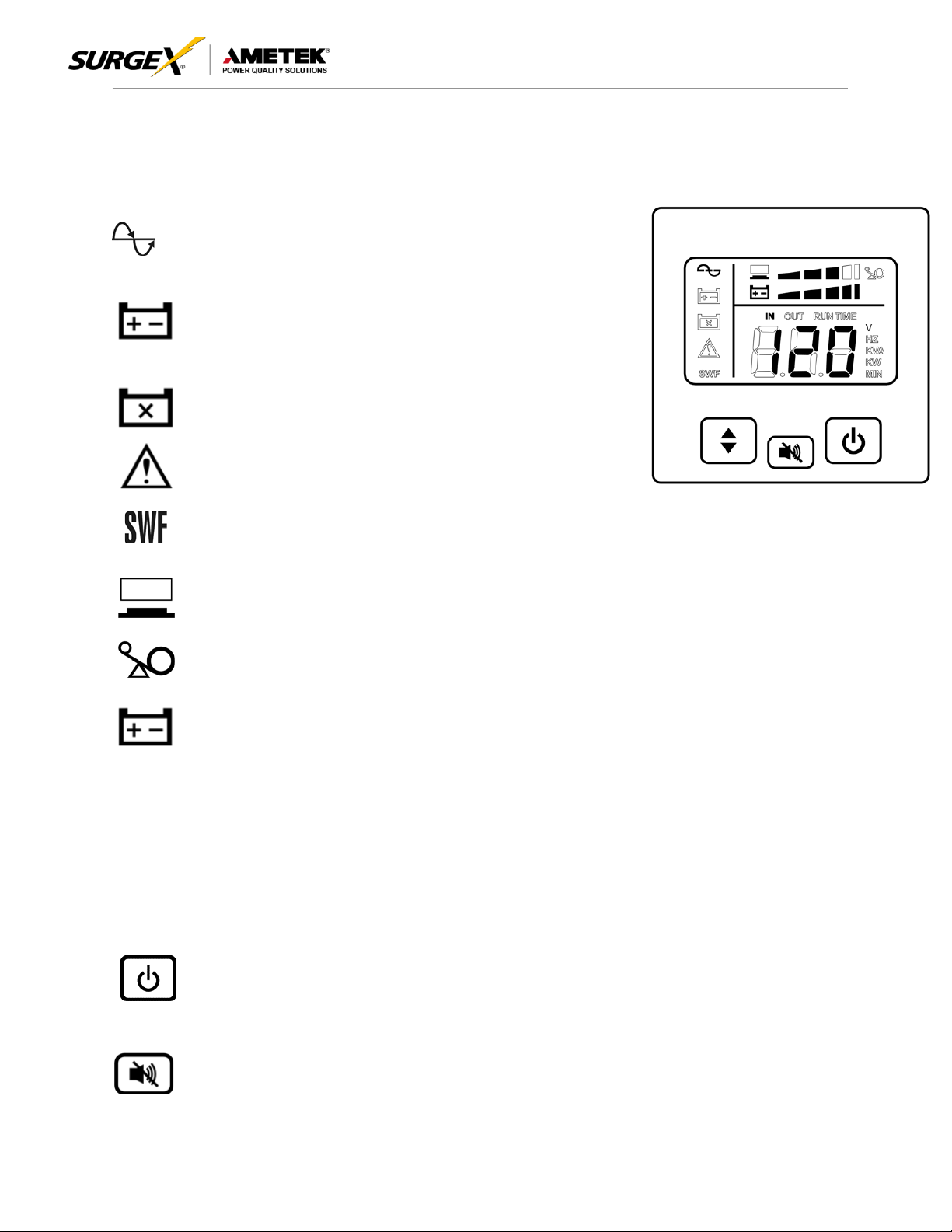

1. CONTROL PANEL………………………………………………………......................2
III. INSTALLATION INSTRUCTIONS 3
1. INSTALLATION………………………………………………………… ..................... 3
2. CONNECTING THE BATTERIES……………………………………… ....................... 3
3. CONNECTING THE UPS-1000-LI-2 TO AN AC SOURCE……………………… ........ 3
4. CHECKING THE SITE WIRING FAULT………………………………… ..................... 3
5. CHARGING THE BATTERY...………………………………………… ....................... 3
6. CONNECTING YOUR EQUIPMENT……………………………… ............................. 4
7. USB COMMUNICATION PORT CONNECTION (OPTIONAL)……… ............................ 4
8. POWER MONITORING SOFTWARE…………………… .......................................... 4
IV. OPERATION 4
1. TURNING THE EQUIPMENT ON / OFF………………………………………………….4
2. TEST BUTTON……………………………………………………………………..…...4
3. ALARM SILENCE BUTTON……………………………………………………………...4
4. SCROLL BUTTON……………………………………………………………………….4
5. LCD SCREEN…………………………………………………………………………..5
6. SELF-TEST…………………………………………………………….……………….5
7. ALARMS………………………………………………………………………………...5
V. TROUBLESHOOTING 6
VI. REPLACING THE BATTERY 7
1. Battery Replacement Procedure……………………………………………………8
VII. SPECIFICATIONS . 9
UPS-1000-Li-2 User Manual
© 2021 AMETEK Inc. / Technical Support: 1-800-645-9721 / surgex.com 1
I. INTRODUCTION
1. SAFTY INSTRUCTIONS!
CAUTION! The maximum ambient operating temperature for the UPS-1000-Li-2 is 40°C (“0 ~ 40°C” for Ambient Operation).
▪ The external vents and openings on this product are provided for ventilation. To ensure reliable operation and to protect this product
from over- heating, these vents and openings must not be blocked or covered. Do not insert any object into any of the vents or
openings that may hinder the ventilation.
▪ Install in a well-ventilated area, away from excess moisture, heat, dust, flammable gas or explosives.
▪ Leave space around all sides of the UPS-1000-Li-2 for proper ventilation.
▪ Do not mount the UPS-1000-Li-2 with its front or rear panel facing down at any angle.
▪ Before usage, you must allow the UPS-1000-Li-2 to adjust to room temperature (20°C~25°C or 68°F~77°F) for at least one hour to
avoid moisture condensing inside the UPS-1000-Li-2.
CAUTION! This product is ONLY intended to be installed in an indoor temperature-controlled environment that is free of
conductive contaminants. It is not intended for use in a computer room as defined in the Standard for the Protection of Electronic
Computer/Data Processing Equipment ANSI/NFPA 75.
CAUTION! Connect the UPS-1000-Li-2- to a two pole, three wire grounded AC wall outlet. The receptacle must be connected to
the appropriate branch protection (circuit breaker or fuse). Connection to any other type of receptacle may result in a shock hazard and
violate local electrical codes. Do not use extension cords or adapter plugs, or surge protectors.
CAUTION! To reduce the risk of fire, connect only to a utility powered circuit provided with 20 amperes maximum branch circuit over-
current protection in accordance with the National Electric Code, ANSI/NFPA 70.
CAUTION! To reduce the risk of electrical shock with the installation of this UPS-1000-Li-2 equipment and the connected equipment,
the user must ensure that the combined sum of the AC leakage current does not exceed 3.5mA.
CAUTION! To reduce the risk of electrical shock in conditions where the load equipment grounding cannot be verified, disconnect
the UPS-1000-Li-2 from the AC wall outlet before installing a computer interface cable. Reconnect the power cord only after all
signaling connections are made.
WARNING: This product contains potentially hazardous voltages. Do not attempt to disassemble the UPS-1000-Li-2 beyond the
battery replacement procedure. This product contains no user serviceable parts. Repairs and Battery replacement must be performed
by QUALIFIED SERVICE PERSONNEL ONLY.
WARNING: Qualified Service Personnel ONLY must perform the Installation and Servicing of the UPS-1000-Li-2. AMETEK
Electronic Systems Protection accepts no liabilities and is not limited to: injury to the Service Personnel, or damages to; the product, or the
connected equipment caused by the incorrect installation or servicing of the UPS-1000-Li-2 system.
WARNING: Risk of Electrical Shock. Hazardous live parts inside these power supplies are energized from the battery even when
the AC input is disconnected.
CAUTION! To de-energize the outputs of the UPS-1000Li:
1. If the UPS-1000-Li-2 is on press and release the On/Off/Test Button.
2. Disconnect the UPS-1000-Li-2 from the AC wall outlet.
3. To de-energize the UPS-1000-Li-2 completely, disconnect the battery.
