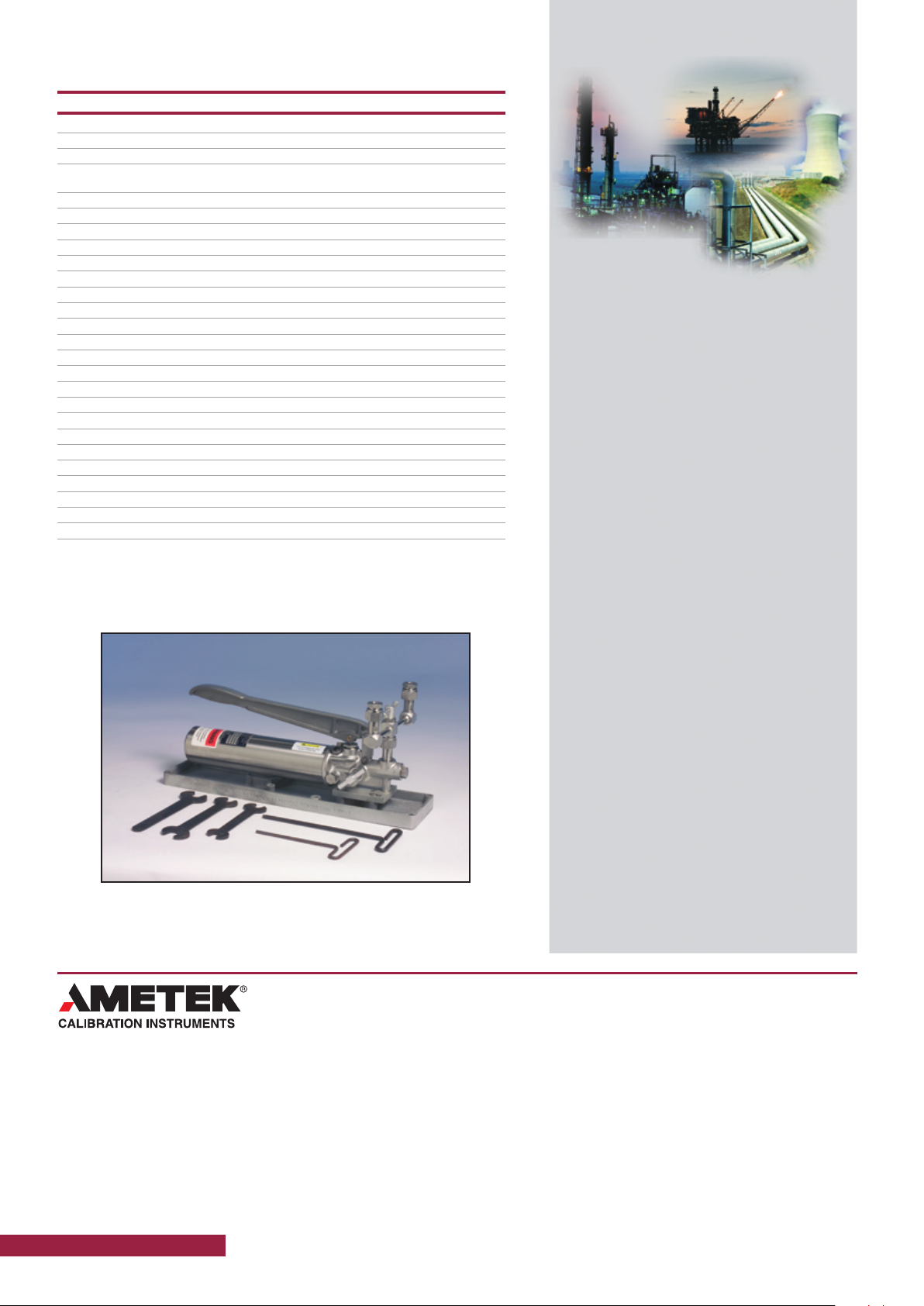

Ametek T-5, T-10, T-15, T-20, T-30 Specifications

p r e s s u r e

Specification Sheet

SS-CP-2150-US

Model Type T

Hydraulic Deadweight Tester

Pressure Range

100 to 10,000 kPa (10 to 15,000 psi)

Accuracy

to ±0.015% of Indicated reading
Accuracy ±0.025 and 0.100% is also
available

Repeatebility

±0.005% of Indicated reading

Available units

psi, kg/cm2, bar, kPa

Flexible configurations to meet dif­fering applications

- single column for field use

- dual column for lab use

Robust construction allows for
repeated daily use

Proven in design and application to
meet your needs

Complete tester with tools, cases,
and fittings

PRODUCT DESCRIPTION

The M&G Type T Hydraulic Deadweight Tester offers laboratory
accuracy in an instrument that is designed to withstand an industrial
environment. These testers are designed to be primary pressure
standards and are available in several ranges and engineering units

Laboratory accuracy

The M&G Type T Deadweight tester is available in ranges to 1,000 bar
(15,000 psi). This robust tester has been engineered to withstand the
stresses of daily operation in a manufacturing environment and still
maintain its accuracy and repeatability. The Type T is constructed of 300
series stainless steel and Monel and is supplied with Buna N O-rings as
a standard unit. Viton and EPT O-rings are optional. This deadweight can
use a water/alcohol mix or hydraulic oils for the pressure medium.

Traceable certification supplied
with each tester

ISO 9001 Manufacturer

Model T

®

Hydraulic Deadweight Tester

Specification Sheet

SS-2150-T

FEATURES

Three accuracies available

These instruments are available in ±0.100%, ±0.025%,
and ±0.015% of reading. The accuracy stated is the over­all accuracy of the tester. The accuracy takes into account
linearity, hysteresis, and repeatability. It would also
account for intrinsic corrections. Site corrections are the
user’s responsibility and the unit will not perform as speci­fied without them. The testers are manufactured to either
International Standard Gravity of 9.80665 m/s2 or to a user
specified local gravity.

Re-entrant piston / cylinders

The Type T deadweight employs a re-entrant type pis­ton/cylinder assembly. This design applies test fluid to the
outside and inside of the cylinder. Unlike a simple piston/
cylinder, this configuration reduces clearance between the
piston and cylinder as pressure increases. This reduces
the rate of fluid leakage and increases float time, offers the
technician more time for testing, and reduces the amount
of pumping necessary to sustain the fluid loss.

Re-entrant system

Configurations

There are two important factors in the selection of the
proper deadweight configuration for your application:
ranges and location. If you have applications for a single
range of tests, then a single piston/cylinder model is a
good choice.
However, if you have some high pressure and some low
pressure testing, the Type T is available with dual piston/
cylinder assemblies that are interchangeable and operate
using the same weight set (±0.100% and ±0.025% accu­racies) or utilize dedicated weight sets for each piston/cyl­inder assembly (±0.015% accuracy).
If you have the need to use the tester in a location other
than a lab, you may need a smaller and more mobile con­figuration. The single column configuration will be your
best selection. These are available with dual piston/cylin­der assemblies.
For the applications where the tester will be stationary,
the dual column configuration is a good choice for those
needing multiple ranges. These are supplied with two
piston/cylinder assemblies and both columns are installed
and ready for use. A selector valve is used to determine
which column is in service at any given time.

Worldwide engineering units

The M&G Type T deadweight tester can be manufactured
in four different engineering units: psi, bar, kgt/cm2, and
kPa. All of the different engineering units are available in
any of the configurations.

Pressure media

Because the Type T is manufactured using 300 series
stainless steel and Monel, you can use either hydraulic
fluids compatible with the material or a water/alcohol
mixture. We also offer EPT and Viton® o-rings as options.
This increases your media options. Additionally, we offer
an isolation membrane to protect your piston/cylinder
assemblies from abrasive media. This facilitates the use of
other fluids as process media but allows for the benefits of
MGAAA oil within the column, which preserves your cali­brated parts.

2 www.ametekmg.com

Model T

Weight
carrier

Weights Fluid reservoirCheck valves

Deadweight
piston & cylinder Instrument under test

Venier Pump

Test manifold

®

Hydraulic Deadweight Tester

Overhung weight carriers

Another feature of Type T deadweight tester is the way
that the weights are positioned on the carrier.
M&G utilizes an overhung weight carrier design. This
design employs a tube carrier that is positioned over the
column and onto the piston driver. The center of gravity
for the stack of weights is lowered, reducing side thrust
and friction; which lengthens the life of the piston/
cylinder assembly. This also improves measurement accu­racy.

Specification Sheet

SS-2150-T

Protected piston/cylinder

The piston and cylinder assembly are enclosed in the col­umn of the tester. The weight carrier floats on the piston
driver preventing damage to the piston/cylinder assembly.
Additionally, the piston/cylinder assembly is engineered
with positive over-pressure protection by restricting verti­cal movement. This protects the assembly from damage in
the event of weight removal under pressure.

Dual volume pump

The Type T pump offers a dual volume pumping feature
that allows for large volume of fluid to be added at low
pressures to fill the system and increase pressure rapidly.
Once the system is filled, you can switch the output vol­ume to a smaller volume. This eases pumping and also
provides for finer control in higher pressure ranges. The
reservoir is kept at atmospheric pressure meaning that
you can also refill the tester during a calibration run.

Easy Leveling

AMETEK floating ball testers incorporate a bulls-eye level
for reference when preparing the unit for use. The tester
also employs a 3-leg leveling system which is more con­venient and is superior to a 4-leg system.

Small incremental weight sets

Small incremental weight sets are avaliable to provide
fractional output pressures. These are available for the
Type T deadweight tester in psi, bar, kPa and kg/cm2.

www.ametekmg.com 3

Model T

®

Hydraulic Deadweight Tester

Specification Sheet

SS-2150-T

FUNCTIONAL SPECIFICATIONS

Model: ....................................................................... Type T

Type: ...............................................Hydraulic, piston gauge

Pressure range: ........................to 100,000 kPa / 15,000 psi

................................................................ (model dependent)

Accuracy (12 months): ................................to ±0.015% rdg

Increments (low - min): ...5 psi, 0.5 kg/cm2, 0.5 bar, 50 kPa
Increments (high - min): ...50 psi, 5 kg/cm2, 5 bar, 500 kPa

Increments (small): Small incremental weight sets available

Gravity: ......................9.80665 m/s2 (international standard)

....................Local gravity available (specify when ordering)

Piston/cylinders: .........................Single or dual (as ordered)

Columns: ....................................Single or dual (as ordered)

Weight sets:................................Single or dual (as ordered)

Pressure source: ....................Lever action, hand-actuated,

.................................................dual volume hydraulic pump

Medium: ....................Distilled water/alcohol mix (standard)

........................or AAA oil (optional) (specify when ordering)

Reservoir capacity: ..........................................1.23 l / 75 in

Displacement (high range): ..................................................

..........................2.8 to 3.2 cm2 / 0.17 to 0.20 in3 per stroke

General Process Information for
Calibrated Parts

Local gravity values must be specified by customer in

•

gals, cm/sec sec, or m/sec sec.

•

Include serial number, accuracy, gravity, and model
number of deadweight tester when ordering weight
sets or calibrated parts.

•

Masses for weights ordered separately, including
tolerance, must be supplied by customer; unless
combined with tester on same order.

Calibrated parts may be made to archival data if

•

requested on the purchase order.

Calibrated parts are certified for physical dimension

•

only (mass or area) and not for accuracy unless
ordered with a new tester or the tester is returned for
proper calibration of parts.

Weights for ±0.015% hydraulic testers cannot be

•

purchased without the associated calibrated parts at
AMETEK Calibration Instruments for calibration.

Certification of Accuracy and Traceability

A Certification of Accuracy and Traceability to NIST is
included with every AMETEK floating ball-type deadweight

3

tester. An optional Certification of Accuracy with area,
mass and intrinsic correction factors is available.

Displacement (low range): ....................................................

..................0.30 to 0.40 cm2 / 0.018 to 0.024 in3 per stroke

Wetted surfaces: ..............300 series stainless steel, monel

O-rings: ......................... Buna N (standard), EPT (optional),

................................Viton (optional) (specify when ordering)

Test connections: ...............1/4” NPT, 1/2” NPT, 7/16 UNF

....................- 1/4” BSP and 1/2” BSP (with metric models)

Weight material: . Hard, non-magnetic alloy (imperial units),

.......stainless steel ( ±0.015% imperial and metric models),

........................... aluminum (small incremental weight sets)

Engineering units: ............................... psi, kg/cm2, bar, kPa

Cases: .......... up to 4 (model and configuration dependent)

PHYSICAL SPECIFICATIONS

Weight:

Tester & Case: ............................................. 22.7 kg / 50 lbs

Weight Sets: ...................... 25 kg to 95.3 kg / 55 to 210 lbs

Configuration: ........................ Single or dual piston/cylinder

........................ single or dual column hydraulic deadweight

Delivery: ......Pump, piston(s), weight set(s), tools, manifold,

........ adapters, column base, tubing (dual-column models),

..............................manual, and NIST traceable certification

Notes: For ±0.015% testers, ±0.025% accuracy below 30” H2O,
1 psi, 7 kPa, 100 cm H2O or 0.07 bar. Gravity 9.80665 cm/s2 or
user’s local gravity when specified. H2O (water column) models
are calibrated to water at 20°C (68°F) but can be calibrated to
water at 60°F.

Notes: Deadweight tester and deadweight gauge accuracy is
expressed as “Percent of Indicated Pressure”. A 1.000 psi tester
with an accuracy of ±0.01% of indicated pressure will have an
allowable error of 0.1 psi at 10 psi, ±0.1 psi at 100 psi and ±1.0
psi at 1.000 psi. Generally, deadweight testers are used only in
the upper 90% of the range.

4 www.ametekmg.com

Model T

®

Hydraulic Deadweight Tester

ORDERING INFORMATION

Single column / Single piston / cylinder units

Model Engineering units Range area Increments Piston

T-5 psi 10 to 500 5 0.10 in
T-10 psi 10 to 1,000 5 0.10 in
T-15 psi 10 to 1,500 5 0.10 in
T-20 psi 20 to 2,000 10 0.20 in
T-30 psi 10 to 3,000 10 0.20 in
T-55 psi 50 to 5,000 25 0.50 in
T-110/TESTER psi 100 to 10,000 50 0.01 in
T-155 psi 100 to 15,000 50 0.01 in
TSQ-40M-1/C kg/cm2 1 to 40 0.5 0.10 in
TSQ-70M-1/ C kg/cm2 1 to 70 0.5 0.10 in
TSQ-100M-1/C kg/cm2 1 to 100 0.5 0.10 in
TSQ-200M-1/C kg/cm2 2 to 200 1 0.20 in
TSQ-400M-1/C kg/cm2 10 to 400 5 0.01 in
TSQ-700M-1/C kg/cm2 10 to 700 5 0.01 in
TSQ-100M-1/C kg/cm2 10 to 1,000 5 0.01 in
TSQ-40B-1/C bar 1 to 40 0.5 0.10 in
TSQ-70B-1/C bar 1 to 70 0.5 0.10 in
TSQ-100B-1/C bar 1 to 100 0.5 0.10 in
TSQ-200B-1/C bar 2 to 200 1 0.20 in
TSQ-400B-1/C bar 10 to 400 5 0.01 in
TSQ-700B-1/C bar 10 to 700 5 0.01 in
TSQ-1000B-1/C bar 10 to1,000 5 0.01 in
TSQ-4000N-1/C kPa 100 to 4,000 50 0.10 in
TSQ-7000N-1/C kPa 100 to 7,000 50 0.10 in
TSQ-10000N-1/C kPa 100 to 10,000 50 0.10 in
TSQ-40000N-1/C kPa 1,000 to 40,000 500 0.01 in
TSQ-70000N-1/C kPa 1,000 to 70,000 500 0.01 in
TSQ-100000N-1/C kPa 1,000 to 100,000 500 0.01 in

Metric units are supplied with Complete Data Certifications as indicated by “/C’
Metric units are supplied with 0.025% of Reading Accuracy as indicated by “-1’

Specification Sheet

SS-2150-T

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

Single column / Dual piston / cylinder units

Model Engineering units Range area Increments Piston

T-50 psi 10 to 500 5 0.10 in
100 to 5,000 50 0.01 in
T-100 psi 10 to 1,000 5 0.10 in
100 to 10,000 50 0.01 in
T-150/TESTER psi 10 to 1,500 5 0.10 in
100 to 15,000 50 0.01 in2

2

2

2

2

2

www.ametekmg.com 5

Model T

®

Hydraulic Deadweight Tester

ORDERING INFORMATION - continued

Single column / Dual piston / cylinder units

Model Engineering units Range area Increments Piston

T-150 psi 10 to 1,500 5 0.10 in
100 to 15,000 50 0.01 in
TQD-400M kg/cm2 1 to 40 0.5 0.10 in
10 to 400 5 0.01 in
TQD-700M kg/cm2 1 to 70 0.5 0.10 in
10 to 700 5 0.01 in
TQD-1000M kg/cm2 1 to 100 0.5 0.10 in
10 to 1,000 5 0.01 in
TQD-400B bar 1 to 40 0.5 0.10 in
10 to 400 5 0.01 in
TQD-700B bar 1 to 70 0.5 0.10 in
10 to 700 5 0.01 in
TQD-1000B bar 1 to 100 0.5 0.10 in
10 to 1,000 5 0.01 in
TQD-40000N kPa 100 to 4,000 50 0.10 in
1,000 to 40,000 500 0.01 in
TQD-70000N kPa 100 to 7,000 50 0.10 in
1,000 to 70,000 500 0.01 in
TQD-100000N kPa 100 to 10,000 50 0.10 in
1,000 to 100,000 500 0.01 in

Specification Sheet

SS-2150-T

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

Dual column / Dual piston / cylinder units

Model Engineering units Range area Increments Piston

DM-T-50 psi 10 to 500 5 0.10 in
100 to 5,000 50 0.01 in
DM-T-100 psi 10 to 1,000 5 0.10 in
100 to 10,000 50 0.01 in
DM-T-150 psi 10 to 1,500 5 0.10 in
100 to 15,000 50 0.01 in
DM-TQ-400M kg/cm2 1 to 40 0.5 0.10 in
10 to 400 5 0.01 in
DM-TQ-700M kg/cm2 1 to 70 0.5 0.10 in
10 to 700 5 0.01 in
DM-TQ-1000M kg/cm2 1 to 100 0. 5 0.10 in
10 to 1,000 5 0.01 in
DM-TQ-400B bar 1 to 40 0.5 0.10 in
10 to 400 5 0.01 in
DM-TQ-700B bar 1 to 70 0.5 0.10 in
10 to 700 5 0.01 in
DM-TQ-1000B bar 1 to 100 0.5 0.10 in
10 to 1,000 5 0.01 in
DM-TQ-40000N kPa 100 to 4,000 50 0.10 in
1,000 to 40,000 500 0.01 in
DM-TQ-70000N kPa 100 to 7,000 50 0.10 in
1,000 to 70,000 500 0.01 in
DM-TQ-100000N kPa 100 to 10,000 50 0.10 in
1,000 to 100,000 500 0.01 in

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

6 www.ametekmg.com

Model T

®

Hydraulic Deadweight Tester

ORDERING INFORMATION - continued

Special 0.015% Accuracy units

Model Engineering units Range area Increments Piston

DM-T-150-1AL/C psi 10 to 1,500 5 0.10 in
100 to 15,000 50 0.01 in
DM-TQ-400M kg/cm2 1 to 40 0.5 0.10 in
10 to 400 5 0.01 in2
700M kg/cm
10 to 70 5 0.01 in2
1000M kg/cm
10 to 1,000 5 0.01 in2
400B bar 1 to 40 0.5 0.10 in
10 to 400 5 0.01 in2
700B bar 1 to 70 0.5 0.10 in
10 to 700 5 0.01 in2
1000B bar 1 to 100 0.5 0.10 in
10 to 1,000 5 0.01 in2
40000N kPa 100 to 4,000 50 0.10 in
1,000 to 40,000 500 0.01 in2
70000N kPa 100 to 7,000 50 0.10 in
1,000 to 70,000 500 0.01 in2
100000N kPa 100 to 10,000 50 0.10 in
1,000 to 100,000 500 0.01 in2

These configurations are at Local Gravity (supplied on the Order)

Units have one independent weight set for each piston/cylinder combination
Other configurations are considered upon request

2

1 to 70 0.5 0.10 in

2

1 to 100 0.5 0.10 in

Specification Sheet

SS-2150-T

2

2

2

2

2

2

2

2

2

2

2

Options

Accuracy: for 0.025% of Reading add “-1/C” to model number

These units are all supplied with Data

for 0.015% of Reading* add “-1AL/C” to model number

0.015% units are not considered standard and are subject to quotation of user specifications

These units are all supplied with Data, Local gravity, and Special Weight Sets
Gravity: for Local Gravity add “L” to model number
Gravity must be specified on order in gals.
Certification: for Traceable Certification with Data add “/C” to model number

Examples

T-50 with Local Gravity T-50/L
T-50 with Certification with Data T-50/C
T-50 with 0.025% Accuracy T-50-1/C
T-50 with Local Gravity and 0.025% Accuracy T-50-1L/C

www.ametekmg.com 7

Accessories

Order no. Description

T-250 Pump rebuild kit - Type T Buna N (standard material)
T-559 Pump rebuild kit - Type T VITON (optional material)
T-326 Pump rebuild kit - Type T EPT (optional material)
T-258 Piston/cylinder assembly kit - Type T Buna N (standard material)

T-323 Piston/cylinder assembly kit - Type T VITON (optional material)
T-576 Piston/cylinder assembly kit - Type T EPT (optional material)

WG-109 Isolates media from piston/cylinder assembly - Buna N

MGAAA/QT Tester oil - 0.95 l (1 qt)
MGAAA/GL Tester oil - 3.79 l (1 gal)
99-90019 Oil dispenser

T-134 Union body (15/16-20 UNEF male x 1/4” NPT female)
T-135 Union body (15/16-20 UNEF male x 1/2” NPT female)
T-186 Union body (15/16-20 UNEF male x 7/16” NPT female)
T-331 Union body (15/16-20 UNEF male x 3/8” NPT female)
T-863 Union body (15/16-20 UNEF male x 1/8” NPT female)
T-786 Adapter (1/4” NPT male x 1/4” BSP female)
T-787 Adapter (1/4” NPT male x 1/2” BSP female)
60I104 Roll of Teflon tape
101549 Bonded seal (1/2”)
60R120 Bonded seal (1/4”)
60R122 Bonded seal (1/8”)
KH-18 Hose (0.46 m / 1.5 ft, 1/4” NPT male x 1/4” NPT male 700 bar / 10,000 psi
Small incremental weight sets available in psi, bar, kPa and kg/cm
Additional weight sets

2

is one of the world’s leading manufacturers and

AMETEK Calibration Instruments

developers of calibration instruments for

temperature, pressure and process signals

as well as for temperature sensors both from

a commercial and a technological point of view.

JOFRA Temperature Instruments

Portable precision thermometers. Dry-block and

liquid bath calibrators: 4 series, with more than

25 models and temperature ranges from

-90° to 1205°C / -130° to 2200°F. All featuring speed,
portability, accuracy and advanced documenting

functions with JOFRACAL calibration software.

JOFRA Pressure Instruments

Convenient electronic systems ranging from

-1 to 1000 bar (25 inHg to 14,500 psi) -

multiple choices of pressure ranges, pumps and

accuracies, fully temperature-compensated

for problem-free and accurate field use.

JOFRA Signal Instruments

Process signal measurement and simulation for

easy control loop calibration and measurement

tasks - from handheld field instruments to

laboratory reference level bench top instruments.

JOFRA / JF Marine Instruments

A complete range of calibration equipment

for temperature, pressure and signal,

approved for marine use.

FP Temperature Sensors

A complete range of temperature sensors

for industrial and marine use.

M&G Pressure Testers

Hydraulic floating-ball or hydraulic piston dead

weight testers with accuracies to 0.015% of reading.

M&G Pumps

Pressure generators from small Hydraulic

“bicycle” style pumps to hydraulic pumps

generating up to 1,000 bar (15,000 psi) .

Headquarter:

AMETEK Denmark A/S
Gydevang 32-34 • 3450 Allerød • Denmark
Tel: [phone] • [e-mail]

Sales & Service:
Europe, Asia, Africa, Middle East and South America

Information within this document is subject to change without notice.
©2007, by AMETEK, Inc., www.ametek.com. All rights reserved.

Pub code SS-CP -2150- US Issue 090 1

8 www.jofra.com

.. .becaus e c alibrat ion is
a ma tte r of co nfi dence

www.ametekcalibration.com

www.jofra.com

Sales & Service Offices:

AMETEK Mansfield & Green (North America)

Tel: [phone] • [e-mail]

AMETEK Singapore Pte. Ltd. (Singapore)
Tel: [phone] • [e-mail]

AMETEK Inc. Beijing Rep. Office (China)

Tel: [phone] • [e-mail]

AMETEK GmbH (Germany)

Tel: [phone] • [e-mail]

AMETEK Calibration Instruments (UK)

Tel: [phone] • [e-mail]
