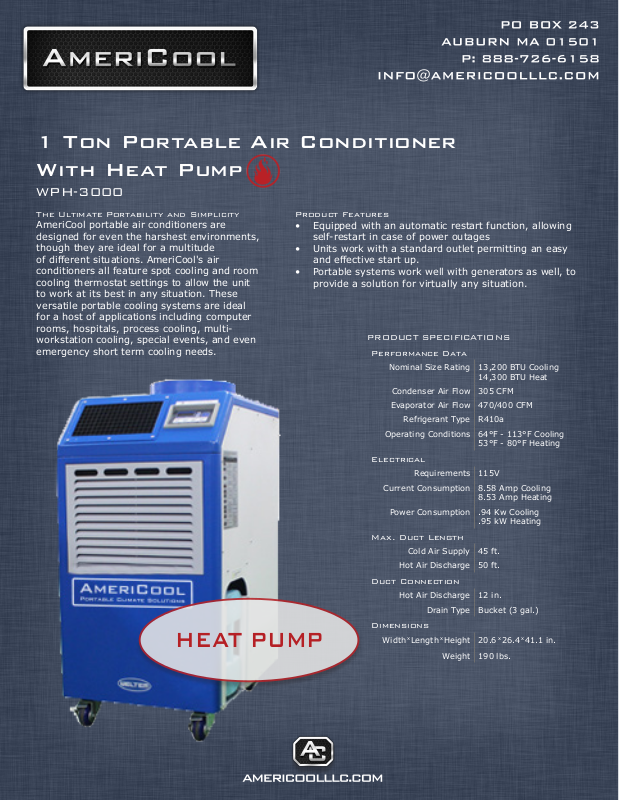

1 Ton Portable Air Conditioner
With Heat Pump
WPH-3000
The Ultimate Portability and Simplicity
AmeriCool portable air conditioners are
designed for even the harshest environments,
though they are ideal for a multitude
of different situations. AmeriCool's air
conditioners all feature spot cooling and room
cooling thermostat settings to allow the unit
to work at its best in any situation. These
versatile portable cooling systems are ideal
for a host of applications including computer
rooms, hospitals, process cooling, multiworkstation cooling, special events, and even
emergency short term cooling needs.
HEAT PUMP
Product Features
• Equipped with an automatic restart function, allowing
self-restart in case of power outages
• Units work with a standard outlet permitting an easy
and effective start up.
• Portable systems work well with generators as well, to
provide a solution for virtually any situation.
PRODUCT SPECIFICATIONS
Performance Data
Nominal Size Rating 13,200 BTU Cooling
14,300 BTU Heat
Condenser Air Flow 305 CFM
Evaporator Air Flow 470/400 CFM
Refrigerant Type R410a
Operating Conditions 64°F - 113°F Cooling
53°F - 80°F Heating
Electrical
Requirements 115V
Current Consumption 8.58 Amp Cooling
8.53 Amp Heating
Power Consumption .94 Kw Cooling
.95 kW Heating
Max. Duct Length
Cold Air Supply 45 ft.
Hot Air Discharge 50 ft.
Duct Connection
Hot Air Discharge 12 in.
Drain Type Bucket (3 gal.)
Dimensions
Width x Length x Height 20.6 x 26.4 x 41.1 in.
Weight 190 lbs.
