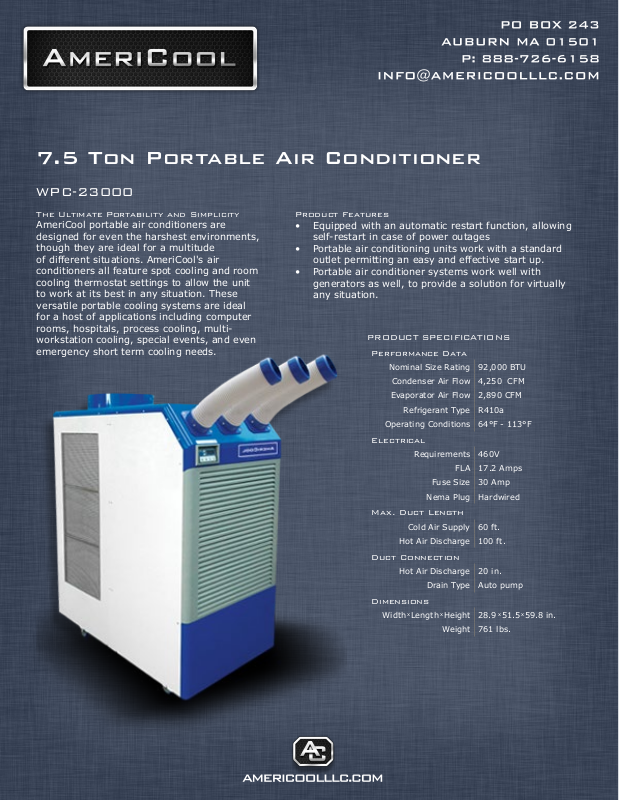

7.5 Ton Portable Air Conditioner
WPC-23000
The Ultimate Portability and Simplicity
AmeriCool portable air conditioners are
designed for even the harshest environments,
though they are ideal for a multitude
of different situations. AmeriCool's air
conditioners all feature spot cooling and room
cooling thermostat settings to allow the unit
to work at its best in any situation. These
versatile portable cooling systems are ideal
for a host of applications including computer
rooms, hospitals, process cooling, multi-
workstation cooling, special events, and even
emergency short term cooling needs.
Product Features
• Equipped with an automatic restart function, allowing
self-restart in case of power outages
• Portable air conditioning units work with a standard
outlet permitting an easy and effective start up.
• Portable air conditioner systems work well with
generators as well, to provide a solution for virtually
any situation.
PRODUCT SPECIFICATIONS
Performance Data
Nominal Size Rating 92,000 BTU
Condenser Air Flow 4,250 CFM
Evaporator Air Flow 2,890 CFM
Refrigerant Type R410a
Operating Conditions 64°F - 113°F
Electrical
Requirements 460V
FLA 17.2 Amps
Fuse Size 30 Amp
Nema Plug Hardwired
Max. Duct Length
Cold Air Supply 60 ft.
Hot Air Discharge 100 ft.
Duct Connection
Hot Air Discharge 20 in.
Drain Type Auto pump
Dimensions
Width x Length x Height 28.9 x 51.5 x 59.8 in.
Weight 761 lbs.
