Page 1

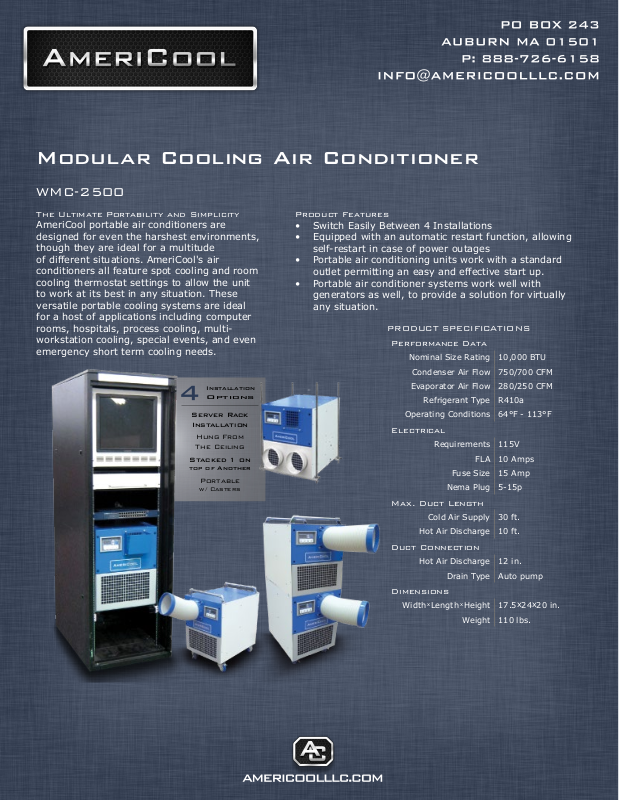

Modular Cooling Air Conditioner
WMC-2500
The Ultimate Portability and Simplicity
AmeriCool portable air conditioners are
designed for even the harshest environments,
though they are ideal for a multitude
of different situations. AmeriCool's air
conditioners all feature spot cooling and room
cooling thermostat settings to allow the unit
to work at its best in any situation. These
versatile portable cooling systems are ideal
for a host of applications including computer
rooms, hospitals, process cooling, multiworkstation cooling, special events, and even
emergency short term cooling needs.
Installation
Options
4
Server Rack
Installation
Hung From
The Ceiling
Stacked 1 on
top of Another
Portable
w/ Casters
Product Features
• Switch Easily Between 4 Installations
• Equipped with an automatic restart function, allowing
self-restart in case of power outages
• Portable air conditioning units work with a standard
outlet permitting an easy and effective start up.
• Portable air conditioner systems work well with
generators as well, to provide a solution for virtually
any situation.
PRODUCT SPECIFICATIONS
Performance Data
Nominal Size Rating 10,000 BTU
Condenser Air Flow 750/700 CFM
Evaporator Air Flow 280/250 CFM
Refrigerant Type R410a
Operating Conditions 64°F - 113°F
Electrical
Requirements 115V
FLA 10 Amps
Fuse Size 15 Amp
Nema Plug 5-15p
Max. Duct Length
Cold Air Supply 30 ft.
Hot Air Discharge 10 ft.
Duct Connection
Hot Air Discharge 12 in.
Drain Type Auto pump
Dimensions
Width x Length x Height 17.5x24x20 in.
Weight 110 lbs.
