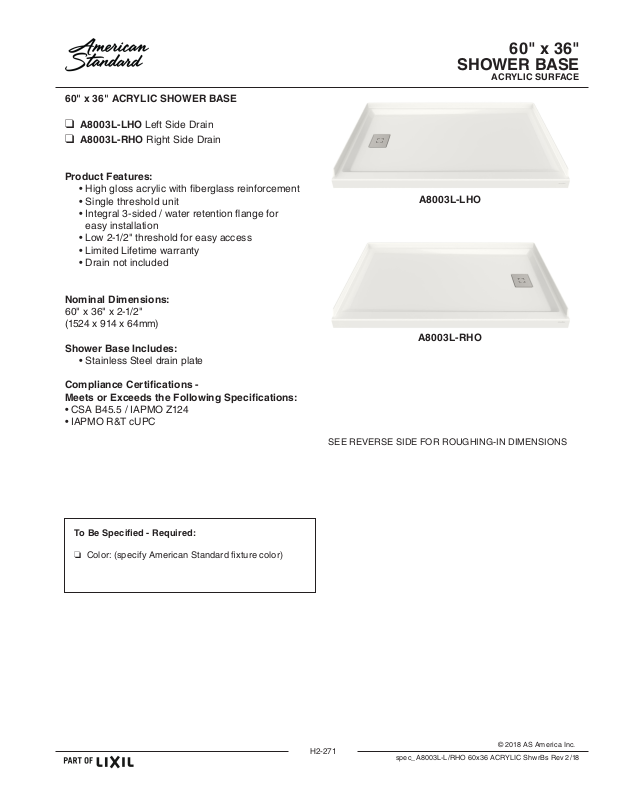

Page 1
60" x 36" ACRYLIC SHOWER BASE
❑ A8003L-LHO Left Side Drain
❑ A8003L-RHO Right Side Drain
Product Features:
• High gloss acrylic with berglass reinforcement
• Single threshold unit
• Integral 3-sided / water retention ange for
easy installation
• Low 2-1/2" threshold for easy access
• Limited Lifetime warranty
• Drain not included
Nominal Dimensions:
60" x 36" x 2-1/2"
(1524 x 914 x 64mm)
Shower Base Includes:
• Stainless Steel drain plate
60" x 36"
SHOWER BASE
ACRYLIC SURFACE
A8003L-LHO
A8003L-RHO
Compliance Certications Meets or Exceeds the Following Specications:
• CSA B45.5 / IAPMO Z124
• IAPMO R&T cUPC
To Be Specied - Required:
❏ Color: (specify American Standard xture color)
SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS
H2-271
© 2018 AS America Inc.
spec_A8003L-L/RHO 60x36 ACRYLIC ShwrBs Rev 2 /18
Page 2
LEFT HAND
OUTLET
17-1/2"
(445mm)
A8003L-LHO
Left Side Drain
8"
(203mm)
(1524mm)
60" x 36"
SHOWER BASE
ACRYLIC SURFACE
60"
36"
(914mm)
1-1/2"
(38mm)
2-1/2"
(64mm)
3-1/4"
(83mm)
A8003L-RHO
Right Side Drain
60"
(1524mm)
3-1/4"
FRONT
(83mm)
FRONT
TOP VIEW
2" (51mm)
THRESHOLD DEPTH
RIGHT SIDE
8"
(203mm)
17-1/2"
(445mm)
RIGHT HAND
OUTLET
36"
(914mm)
1-1/2"
(38mm)
2-1/2"
(64mm)
TOP VIEW
2" (51mm)
THRESHOLD DEPTH
RIGHT SIDE
H2-272
© 2018 AS America Inc.
spec_A8003L-L/RHO 60x36 ACRYLIC ShwrBs Rev 2 /18
