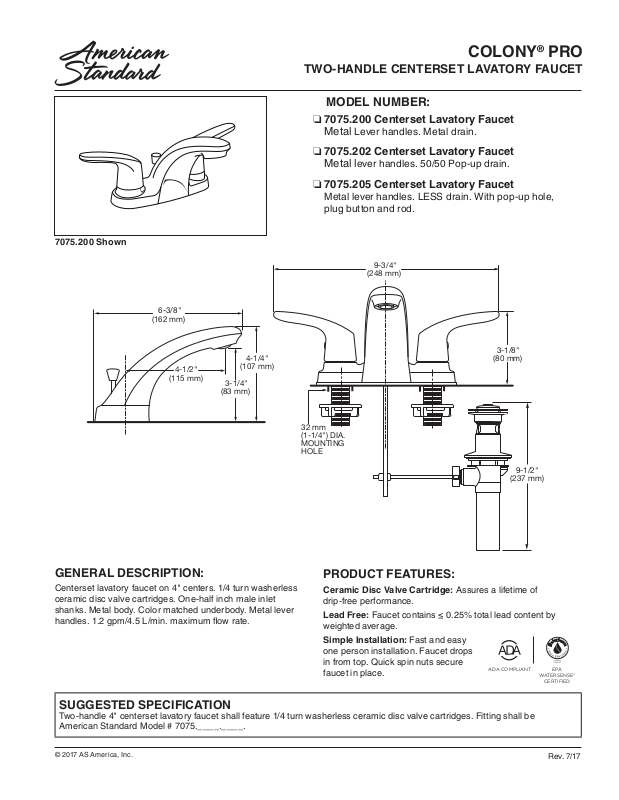

Page 1
7075.200 Shown
6-3/8"
(162 mm)
COLONY® PRO
TWO-HANDLE CENTERSET LAVATORY FAUCET
MODEL NUMBER:
❏ 7075.200 Centerset Lavatory Faucet
Metal Lever handles. Metal drain.
❏ 7075.202 Centerset Lavatory Faucet
Metal lever handles. 50/50 Pop-up drain.
❏ 7075.205 Centerset Lavatory Faucet
Metal lever handles. LESS drain. With pop-up hole,
plug button and rod.
9-3/4"
(248 mm)
4-1/4"
4-1/2"
(115 mm)
(107 mm)
3-1/4"
(83 mm)
GENERAL DESCRIPTION:
Centerset lavatory faucet on 4" centers. 1/4 turn washerless
ceramic disc valve cartridges. One-half inch male inlet
shanks. Metal body. Color matched underbody. Metal lever
handles. 1.2 gpm/4.5 L/min. maximum ow rate.
3-1/8"
(80 mm)
32 mm
(1-1/4") DIA.
MOUNTING
HOLE
PRODUCT FEATURES:
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Simple Installation: Fast and easy
one person installation. Faucet drops
in from top. Quick spin nuts secure
faucet in place.
ADA COMPLIANT EPA
9-1/2"
(237 mm)
WATERSENSE®
CERTIFIED
SUGGESTED SPECIFICATION
Two-handle 4" centerset lavatory faucet shall feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be
American Standard Model # 7075.____.____.
© 2017 AS America, Inc.
Re v. 7/17
Page 2
COLONY® PRO
TWO-HANDLE CENTERSET LAVATORY FAUCET
WITH LEVER HANDLES
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANS I A117.1
ASME A112 .18 .1
CSA B125.1
NSF 61/Section 9
NSF 372
Product
Number Description
7075.200
Colony PRO Single Control Centerset. Metal lever handle.
Metal drain.
FLOW RATE*
1.4
1.2
1.0
0.8
0.6
0.4
0.2
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002 278 295
Legacy
Bronze
806040200
PVD
Brushed
Nickel
7075.202
7075.205
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Colony PRO Single Control Centerset. Lever handle.
50/50 pop-up drain.
Colony PRO Single Control Centerset. Lever handle.
LESS drain. With pop-up hole, plug button and rod.
© 2017 AS America, Inc.
Re v. 7/17
