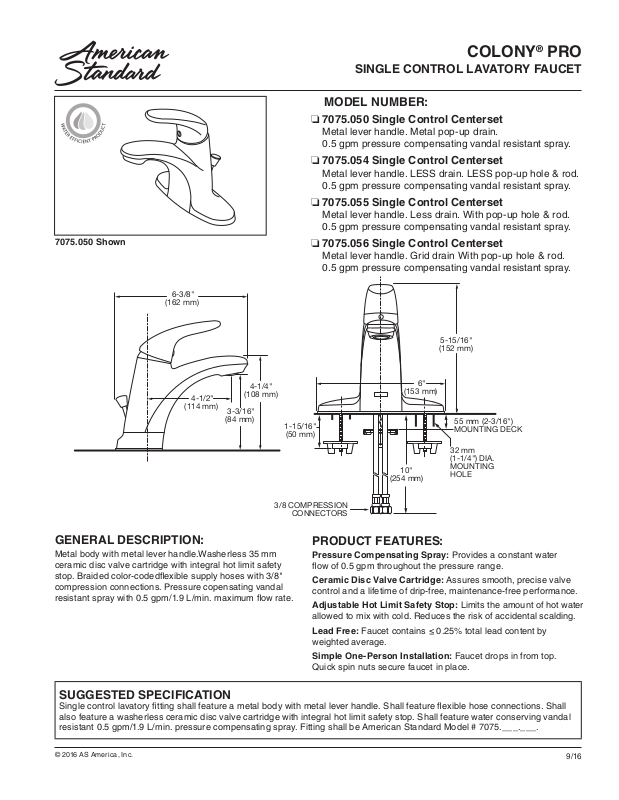

Page 1
7075.050 Shown
COLONY® PRO
SINGLE CONTROL LAVATORY FAUCET
MODEL NUMBER:
❏ 7075.050 Single Control Centerset
Metal lever handle. Metal pop-up drain.
0.5 gpm pressure compensating vandal resistant spray.
❏ 7075.054 Single Control Centerset
Metal lever handle. LESS drain. LESS pop-up hole & rod.
0.5 gpm pressure compensating vandal resistant spray.
❏ 7075.055 Single Control Centerset
Metal lever handle. Less drain. With pop-up hole & rod.
0.5 gpm pressure compensating vandal resistant spray.
❏ 7075.056 Single Control Centerset
Metal lever handle. Grid drain With pop-up hole & rod.
0.5 gpm pressure compensating vandal resistant spray.
6-3/8"
(162 mm)
5-15/16"
(152 mm)
4-1/4"
4-1/2"
(114 mm)
(108 mm)
3-3/16"
(84 mm)
1-15/16"
3/8 COMPRESSION
GENERAL DESCRIPTION:
Metal body with metal lever handle.Washerless 35 mm
ceramic disc valve cartridge with integral hot limit safety
stop. Braided color-codedexible supply hoses with 3/8"
compression connections. Pressure copensating vandal
resistant spray with 0.5 gpm/1.9 L/min. maximum ow rate.
6"
(153 mm)
55 mm (2-3/16")
(50 mm)
10"
(254 mm)
CONNECTORS
MOUNTING DECK
32 mm
(1-1/4") DIA.
MOUNTING
HOLE
PRODUCT FEATURES:
Pressure Compensating Spray: Provides a constant water
ow of 0.5 gpm throughout the pressure range.
Ceramic Disc Valve Cartridge: Assures smooth, precise valve
control and a lifetime of drip-free, maintenance-free performance.
Adjustable Hot Limit Safety Stop: Limits the amount of hot water
allowed to mix with cold. Reduces the risk of accidental scalding.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Simple One-Person Installation: Faucet drops in from top.
Quick spin nuts secure faucet in place.
SUGGESTED SPECIFICATION
Single control lavatory tting shall feature a metal body with metal lever handle. Shall feature exible hose connections. Shall
also feature a washerless ceramic disc valve cartridge with integral hot limit safety stop. Shall feature water conserving vandal
resistant 0.5 gpm/1.9 L/min. pressure compensating spray. Fitting shall be American Standard Model # 7075.___.___.
© 2016 AS America, Inc.
9/16
Page 2
COLONY® PRO
SINGLE CONTROL LAVATORY FAUCET
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18 .1
CSA B125.1
NSF 61/Section 9
NSF 372
Product
Number Description
FLOW RATE*
0.5
0.4
0.3
0.2
0.1
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
80604020
Finish
Option
Polished
Chrome
002
7075.050
7075.054
7075.055
7075.056
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Colony PRO Single Control Centerset. Metal lever handle.
Metal pop-up drain. 0.5 gpm pressure compensating vandal resistant spray.
Colony PRO Single Control Centerset. Metal lever handle. LESS drain.
LESS pop-up hole & rod. 0.5 gpm pressure compensating vandal resistant spray.
Colony PRO Single Control Centerset. Metal lever handle. LESS drain.
With pop-up hole & rod. 0.5 gpm pressure compensating vandal resistant spray.
Colony PRO Single Control Centerset. Metal lever handle. Grid drain.
0.5 gpm pressure compensating vandal resistant spray.
© 2016 AS America, Inc.
9/16
