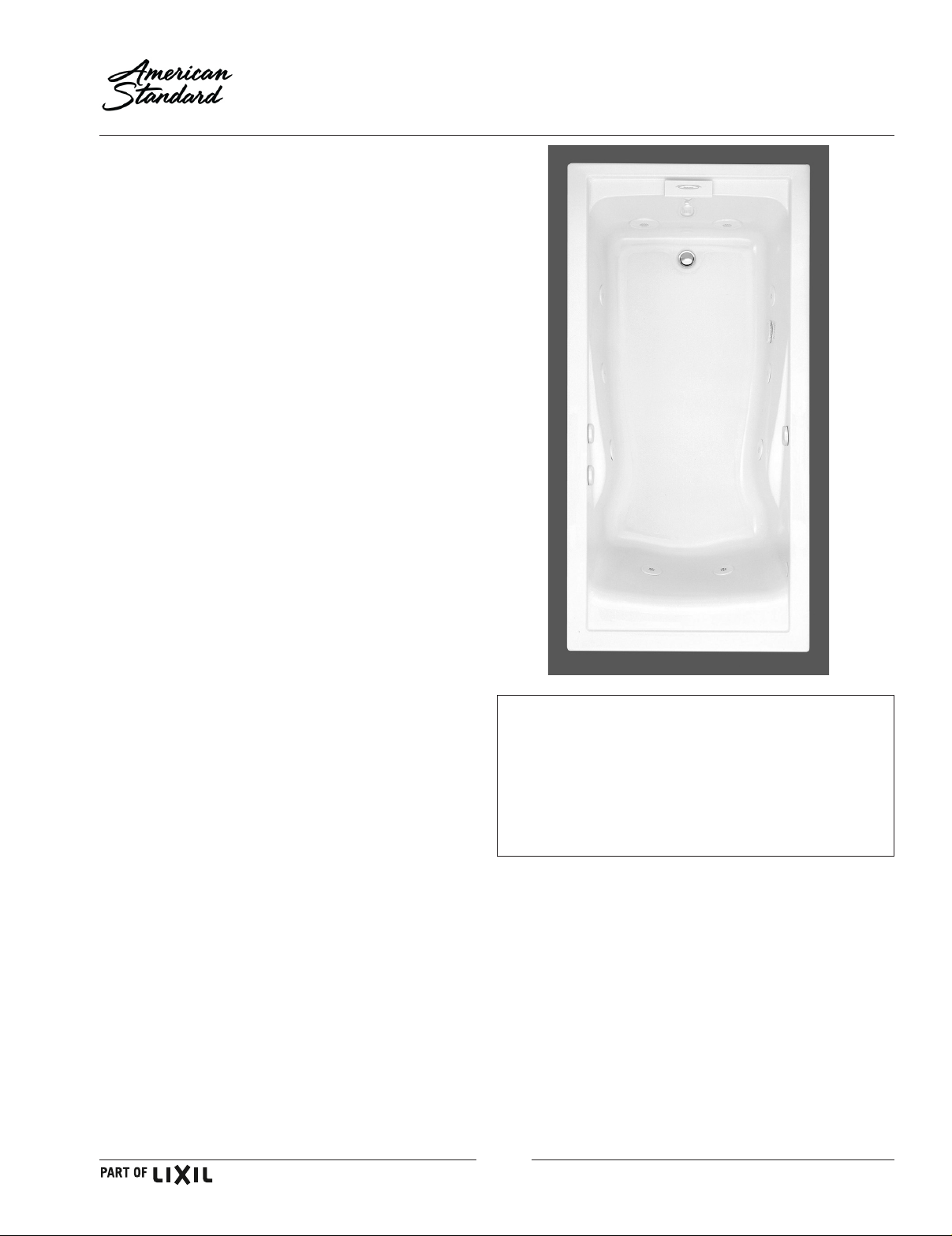

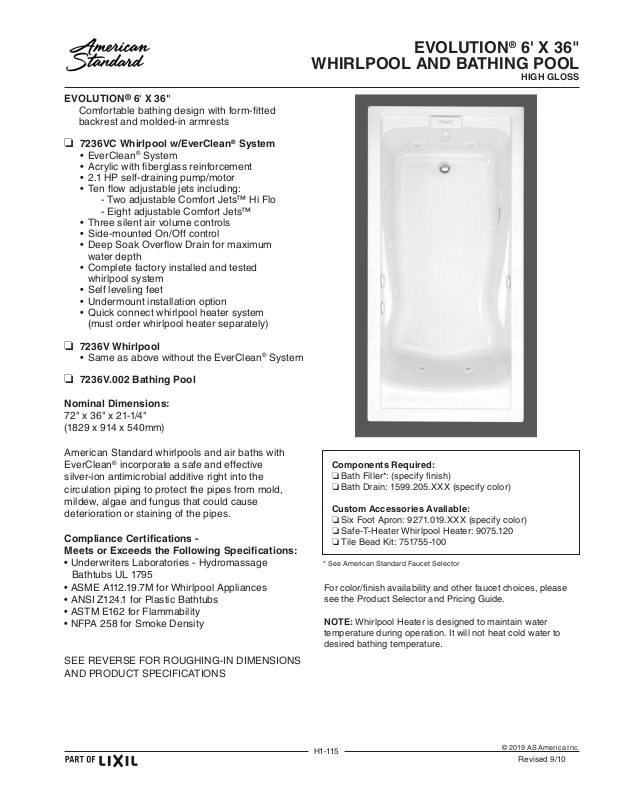

Page 1
EVOLUTION® 6' X 36"
Comfortable bathing design with form-tted
backrest and molded-in armrests
EVOLUTION® 6' X 36"
WHIRLPOOL AND BATHING POOL
HIGH GLOSS
❏ 7236VC Whirlpool w/EverClean
®
System
• EverClean® System
• Acrylic with berglass reinforcement
• 2.1 HP self-draining pump/motor
• Ten ow adjustable jets including:
- Two adjustable Comfort Jets™ Hi Flo
- Eight adjustable Comfort Jets™
• Three silent air volume controls
• Side-mounted On/Off control
• Deep Soak Overow Drain for maximum
water depth
• Complete factory installed and tested
whirlpool system
• Self leveling feet
• Undermount installation option
• Quick connect whirlpool heater system
(must order whirlpool heater separately)
❏ 7236V Whirlpool
• Same as above without the EverClean® System
❏ 7236V.002 Bathing Pool
Nominal Dimensions:
72" x 36" x 21-1/4"
(1829 x 914 x 540mm)
American Standard whirlpools and air baths with
EverClean® incorporate a safe and effective
silver-ion antimicrobial additive right into the
circulation piping to protect the pipes from mold,
mildew, algae and fungus that could cause
deterioration or staining of the pipes.
Compliance Certications Meets or Exceeds the Following Specications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
AND PRODUCT SPECIFICATIONS
Components Required:
❏ Bath Filler*: (specify nish)
❏ Bath Drain: 1599.205.XXX (specify color)
Custom Accessories Available:
❏ Six Foot Apron: 9271.019.XXX (specify color)
❏ Safe-T-Heater Whirlpool Heater: 9075.120
❏ Tile Bead Kit: 751755-100
* See American Standard Faucet Selector
For color/nish availability and other faucet choices, please
see the Product Selector and Pricing Guide.
NOTE: Whirlpool Heater is designed to maintain water
temperature during operation. It will not heat cold water to
desired bathing temperature.
H1-115
© 2019 AS America Inc.
Revised 9/10
Page 2

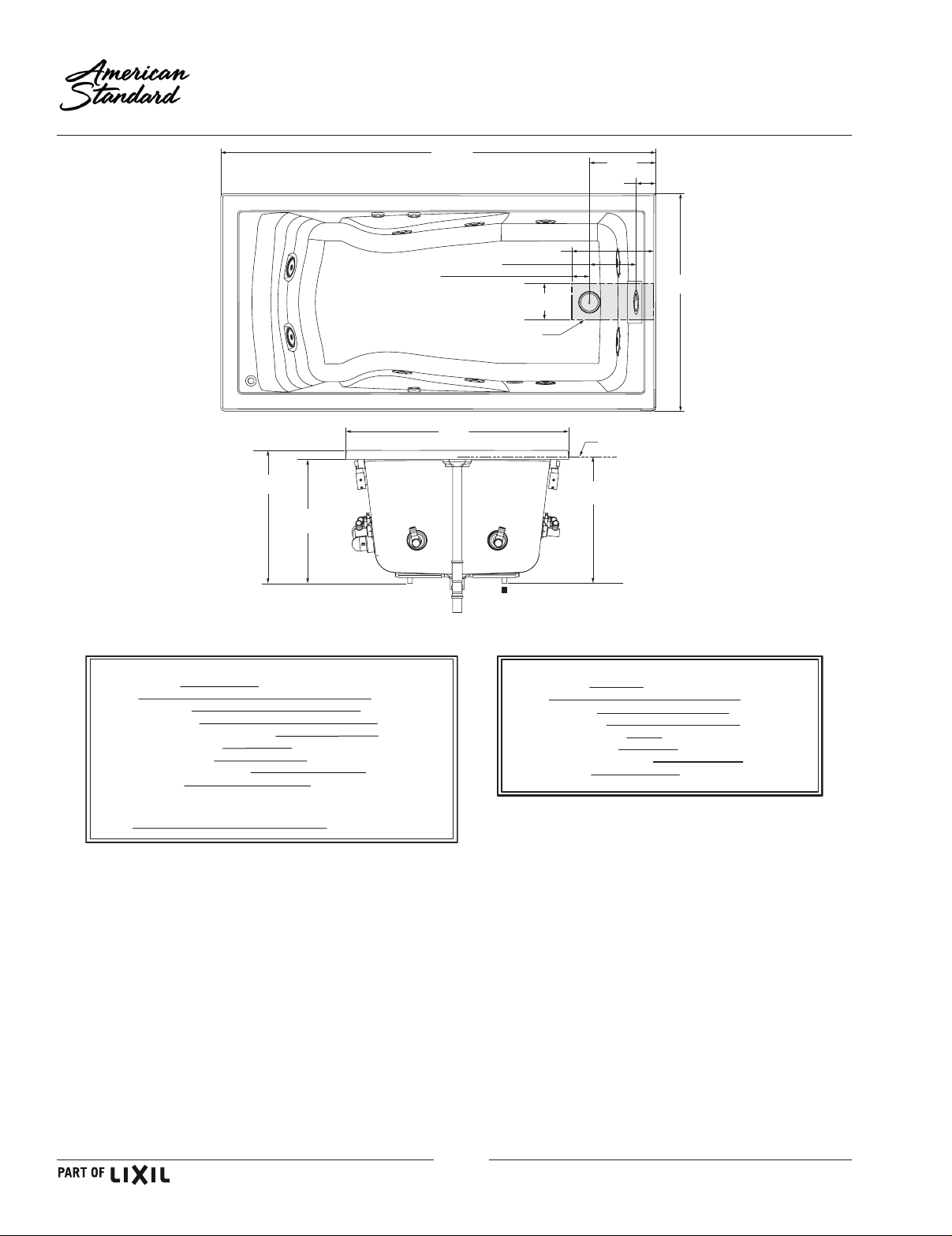

EVOLUTION® 6' X 36"
72"
WHIRLPOOL AND BATHING POOL
HIGH GLOSS
21-1/2"(H)
(546mm)
20"(C)
(508mm)
(76mm)
(1829mm)
3"
36"
(914mm)
7-3/4"
(197mm)
CUT OUT IN FLOOR
FOR DRAIN
13-3/4"
(349mm)
6"
(152mm)
C/L OF
OVERFLOW
20-1/8"(A)
(511mm)
(279mm)
3-1/4"
(83mm)
11"
36"
(914mm)
INSTALLED SIZE
GENERAL SPECIFICATIONS FOR 7236V WHIRLPOOL
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
WHIRLPOOL MIN. OPERATING VOL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PUMP
WHIRLPOOL ELECTRICAL SPECIFICATIONS
72 x 36 x 21-1/2 In. (1829 x 914 x 546mm)
53-1/2 x 26-1/4 In. (1359 x 667mm)
64-1/2 x 30 In. (1638 x 762mm)
57 Lbs./Sq.Ft. (280 Kgs./Sq.m)
106 Lbs. (48 Kg.)
1031 Lbs. (467 Kg.)
111 Gal. (420 L)
53 Gal. (201 L)
18-1/2 In.(470mm)
2.1 HP,14.4 AMPS,120V.
GENERAL SPECIFICATIONS FOR 7236V BATHING POOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
72 x 36 x 21-1/2 (1829 x 914 x 546mm)
53-1/2 x 26-1/4 In. (1359 x 667mm)
64-1/2 x 30 In. (1638 x 762mm)
56 Lbs./Sq.Ft. (275 Kgs./Sq.m)
91 Lbs. (41 Kg.)
1016 Lbs. (461 Kg.)
111 Gal. (420 L.)
18-1/2 (470mm)
NOTES:
BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISL AND OR PENINSULA TYPE INSTALLATION. SUMP OF BATH
IS SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT REQUIRED. ENCLOSING MATERIAL BY OTHERS.
■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL, DECK MOUNTED SPOUT AND INTEGRATED BATH FILLER FOR
ADDITIONAL INFORMATION.
OPTIONAL 3-WALL TILING BEAD KIT MODEL No. 751755-100 AND 6FT-APRON MODEL No. 9271.019 MUST BE ORDERED
SEPA R AT ELY
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1 and A112.19.7.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.
H1-116
© 2019 AS America Inc.
Revised 9/10
