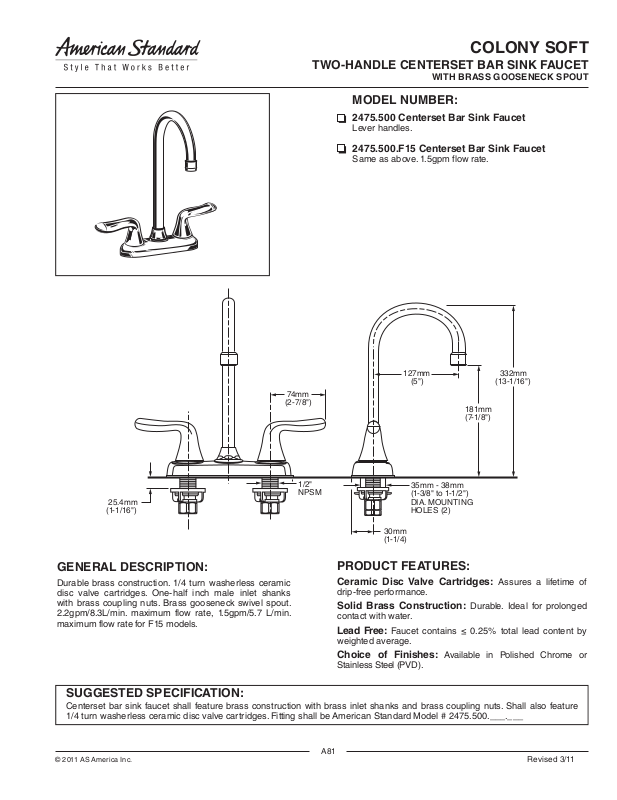

Page 1
COLONY SOFT
of
olonged
TWO-HANDLE CENTERSET BAR SINK FAUCET
WITH BRASS GOOSENECK SPOUT
MODEL NUMBER:
2475.500 Centerset Bar Sink Faucet
Lever handles.
2475.500.F15 Centerset Bar Sink Faucet
Same as above. 1.5gpm flow rate.
(2-7/8")
25.4mm
(1-1/16")
GENERAL DESCRIPTION:
Durable brass construction. 1/4 turn washerless ceramic
disc valve cartridges. One-half inch male inlet shanks
with brass coupling nuts. Brass gooseneck swivel spout.
2.2gpm/8.3L/min. maximum flow rate, 1.5gpm/5.7 L/min.
maximum flow rate for F15 models.
74mm
1/2"
NPSM
127mm
(5")
181mm
(7-1/8")
35mm - 38mm
(1-3/8" to 1-1/2")
DIA. MOUNTING
HOLES (2)
30mm
(1-1/4)
332mm
(13-1/16")
PRODUCT FEATURES:
Ceramic Disc Valve Cartridges: Assures a lifetime
drip-free performance.
Solid Brass Construction: Durable. Ideal for pr
contact with water.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Choice of Finishes: Available in Polished Chrome or
Stainless Steel (PVD).
SUGGESTED SPECIFICATION:
Centerset bar sink faucet shall feature brass construction with brass inlet shanks and brass coupling nuts. Shall also feature
1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 2475.500.___.___
© 2011 AS America Inc.
A81
Revised 3/11
Page 2
COLONY SOFT
TWO-HANDLE CENTERSET BAR SINK FAUCET
WITH BRASS GOOSENECK SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 & Annex G
FLOW RATE*
3.0
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
I N L E T P R E S S U RE (P S I )
2.2gpm/8.3L/min. FLOW RATE
FLOW RATE*
I N L E T P R E S S U RE (P S I )
1.5gp m/ 5. 7 L/ mi n. FLOW RATE
10080604020
10080604020
Product
Number
2475.500
Description
Bar Sink faucet. Lever handles.
2475.500.F15 Bar Sink faucet. Lever handles. Same as above. 1.5gpm flow rate.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2011 AS America Inc.
A82
Finish Options
Polished
Chrome
002
PVD
Stainless
Steel
075
Revised 3/11
