Page 1
PRESSURE-ASSISTED TOILET 1.1 gpf / 4.2 Lpf
12"
(30 5mm)
30- 1/4"
(76 8mm)
C/L OF OUTLET
FIN ISHE D WALL
9"
(22 6mm)
1"
(27 mm)
15"
(38 1mm)
18- 1/2"
(47 0mm)
C/L OF SEAT P OST HO LES
5-1 /2" (140mm CENTE RS)
13- 3/4"
(34 7mm)
6"
(150mm)
FIN ISHE D
FLO OR
29- 1/4"
(74 2mm)
9-1 /2"
(23 8mm)
20- 1/2"
(51 6mm)
14"
(35 6mm)
5/8 "
(16 mm)
*6"
(15 2mm)
*8"
(20 3mm)
SUP PLY
AS
REQ 'D
3"
(76 mm)
Certified by
IAPMO R&T

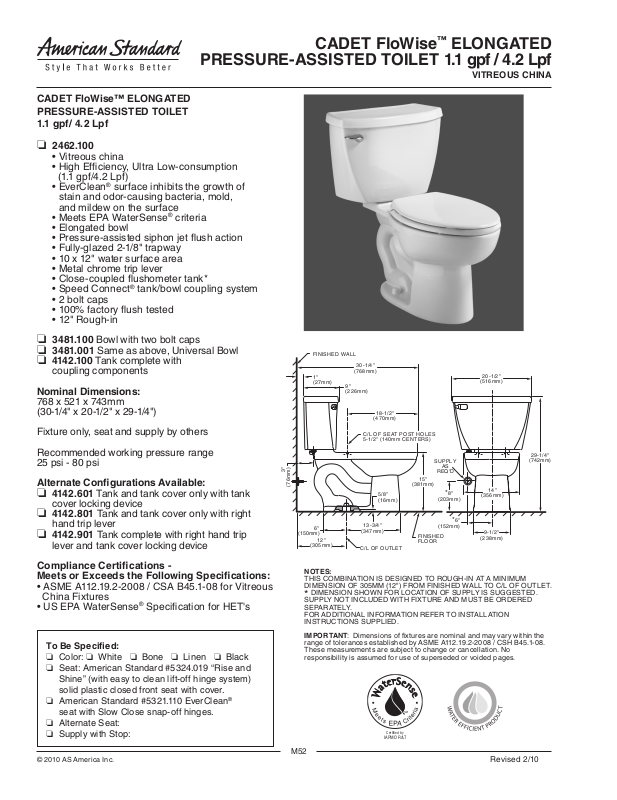

CADET FloWise™ ELONGATED
PRESSURE-ASSISTED TOILET
1.1 gpf/ 4.2 Lpf
❏ 2462.100
• Vitreous china
• High Efciency, Ultra Low-consumption
(1.1 gpf/4.2 Lpf)
• EverClean® surface inhibits the growth of
stain and odor-causing bacteria, mold,
and mildew on the surface
• Meets EPA WaterSense® criteria
• Elongated bowl
• Pressure-assisted siphon jet ush action
• Fully-glazed 2-1/8" trapway
• 10 x 12" water surface area
• Metal chrome trip lever
• Close-coupled ushometer tank*
• Speed Connect® tank/bowl coupling system
• 2 bolt caps
• 100% factory ush tested
• 12" Rough-in
❏ 3481.100 Bowl with two bolt caps
❏ 3481.001 Same as above, Universal Bowl
❏ 4142.100 Tank complete with
coupling components
CADET FloWise™ ELONGATED
VITREOUS CHINA
Nominal Dimensions:
768 x 521 x 743mm
(30-1/4" x 20-1/2" x 29-1/4")
Fixture only, seat and supply by others
Recommended working pressure range
25 psi - 80 psi
Alternate Congurations Available:
❏ 4142.601 Tank and tank cover only with tank
cover locking device
❏ 4142.801 Tank and tank cover only with right
hand trip lever
❏ 4142.901 Tank complete with right hand trip
lever and tank cover locking device
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008 / CSA B45.1-08 for Vitreous
China Fixtures
• US EPA WaterSense® Specication for HET's
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Black
❏ Seat: American Standard #5324.019 “Rise and
Shine” (with easy to clean lift-off hinge system)
solid plastic closed front seat with cover.
❏ American Standard #5321.110 EverClean
seat with Slow Close snap-off hinges.
❏ Alternate Seat:
❏ Supply with Stop:
© 2010 AS America Inc.
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM
DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
SUPPLY NOT INCLUDED WITH FIX TURE AND MUST BE ORDERED
SEPARATELY.
FOR ADDITIONAL INFORMATION REFER TO INSTALLATION
INSTRUCTIONS SUPPLIED.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ASME A112.19.2-2008 / CSH B45.1-08.
These measurements are subject to change or cancellation. No
responsibility is assumed for use of superseded or voided pages.
®
M52
Revised 2/10
