55mm (2-1/8")
FINISHED WALL
(10")
")

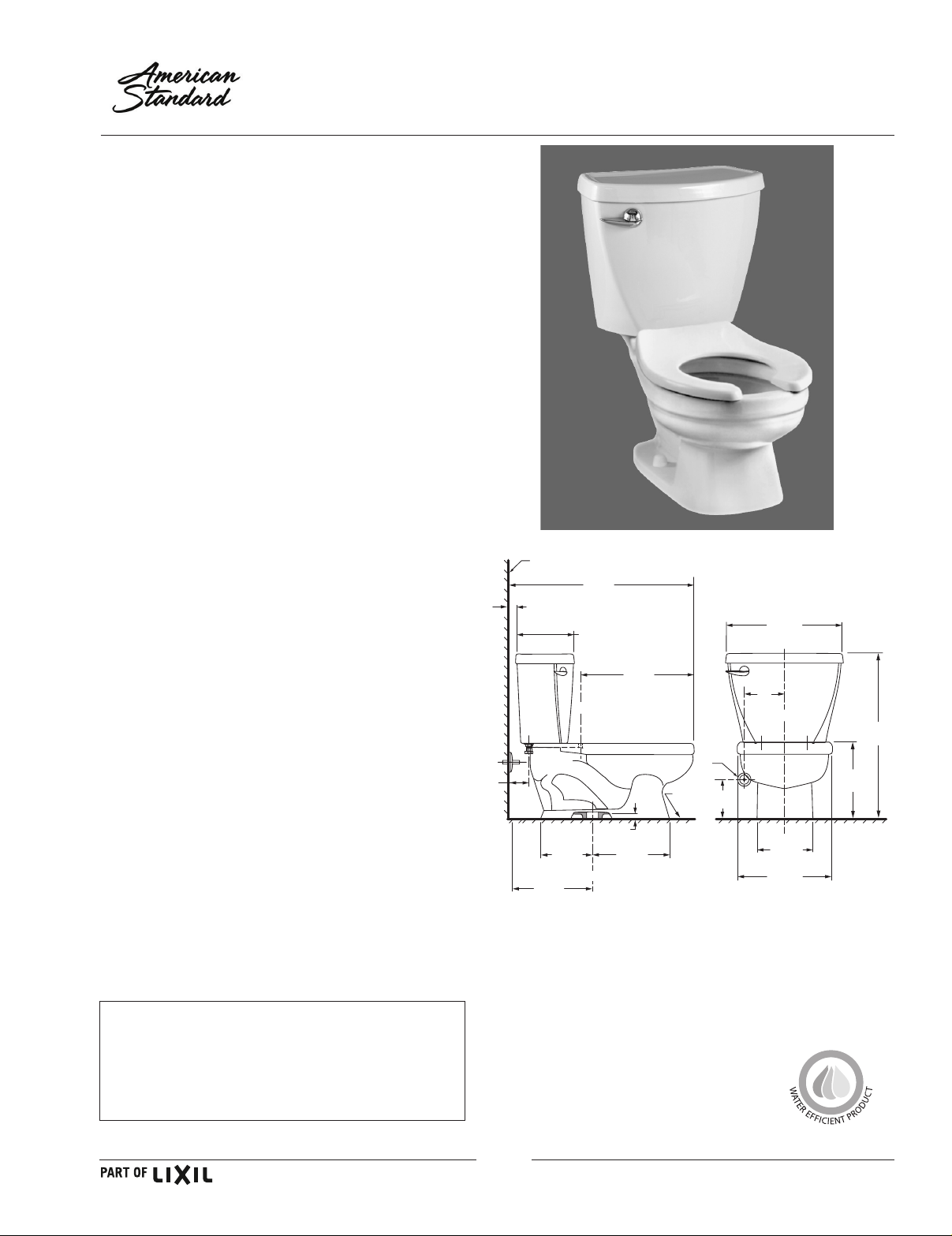

Baby Devoro™ FloWise® 10" High
Elongated Toilet
❏ 2315. 228
• Vitreous china
• High Efficiency, Low Consumption
(4.8 Lpf / 1.28 gpf)
• Meets denition of HET (High Efficiency Toilet)
• 10-1/4" rim height
• 10" roughing-in
• Elongated siphon action bowl
• Chrome trip lever
• Sanitary dam on bowl
• Fully glazed trapway
• 2 color-matched bolt caps
• ADA and TAS Compliant
❏ 3128.001 Elongated Bowl with bolt caps
❏ 4019.228 Tank complete with coupling
components and tank trim (1.28gpf / 4.8Lpf)
Nominal Dimensions:
633 x 439 x 622mm
(25" x 17-1/4" x 24-1/2")
Alternative Tank Congurations Available:
❏ 4019.613 Tank with locking device complete with
coupling components and tank trim
❏ 4019.828 Tank complete with trip lever on
right side
Fixture only, seat and supply are not included and
must be purchased separately.
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008 / CSA B45.1-08 for Vitreous
China Fixtures
System MaP* Score:
• 500 grams of miso @ 1.28 gpf
* Maximum Per formance (MaP) testing performed by IAPMO
R&T Lab. MaP Report conducted by Veritec Consulting,
Inc. and Koeller and Company.
To Be Specied:
❏ Color: ❏ White
❏ Seat: #5001G.055 Baby Devoro Seat open front
with EverClean® less cover
❏ Supply with Stop:
Baby Devoro™ FloWise® 10" High
Elongated Toilet
VITREOUS CHINA
633mm
16mm ± 6mm
(5/8
254mm
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM
DIMENSION OF 254mm (10) FROM FINISHED WALL TO C/L OF OUTLET
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
SUPPLY NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of xtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
(25")
" ± 1/4")
191mm
(7-1/2
")
C/L SEAT POST HOLES
140 mm (5-1/2") CENTERS
13mm
200mm
(7-7/8")
(1/2")
C/L OUTLET
395mm
(15-1/2")
250mm
(9-7/8")
FINISHED
FLOOR
SUPPLY
AS
REQ'D
159mm
*
(6-1/4")
152mm
(6")
439mm
(17-1/4
C/L
225mm
(8-7/8")
347mm
(13-1/8")
")
622mm
(24-1/2
260mm
(10-1/4")
3
spec_2315.228 Baby Devoro Rev. 2 2/21
© 2021 AS America Inc.
