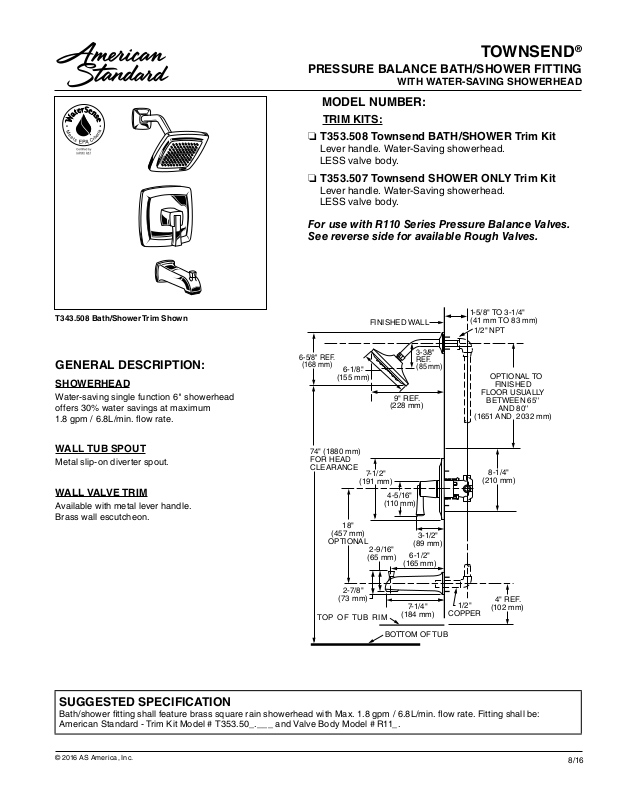

Page 1
TOWNSEND
PRESSURE BALANCE BATH/SHOWER FITTING
WITH WATER-SAVING SHOWERHEAD
MODEL NUMBER:
TRIM KITS:
❏ T353.508 Townsend BATH/SHOWER Trim Kit
Lever handle. Water-Saving showerhead.
LESS valve body.
❏ T353.507 Townsend SHOWER ONLY Trim Kit
Lever handle. Water-Saving showerhead.
LESS valve body.
For use with R110 Series Pressure Balance Valves.
See reverse side for available Rough Valves.
®

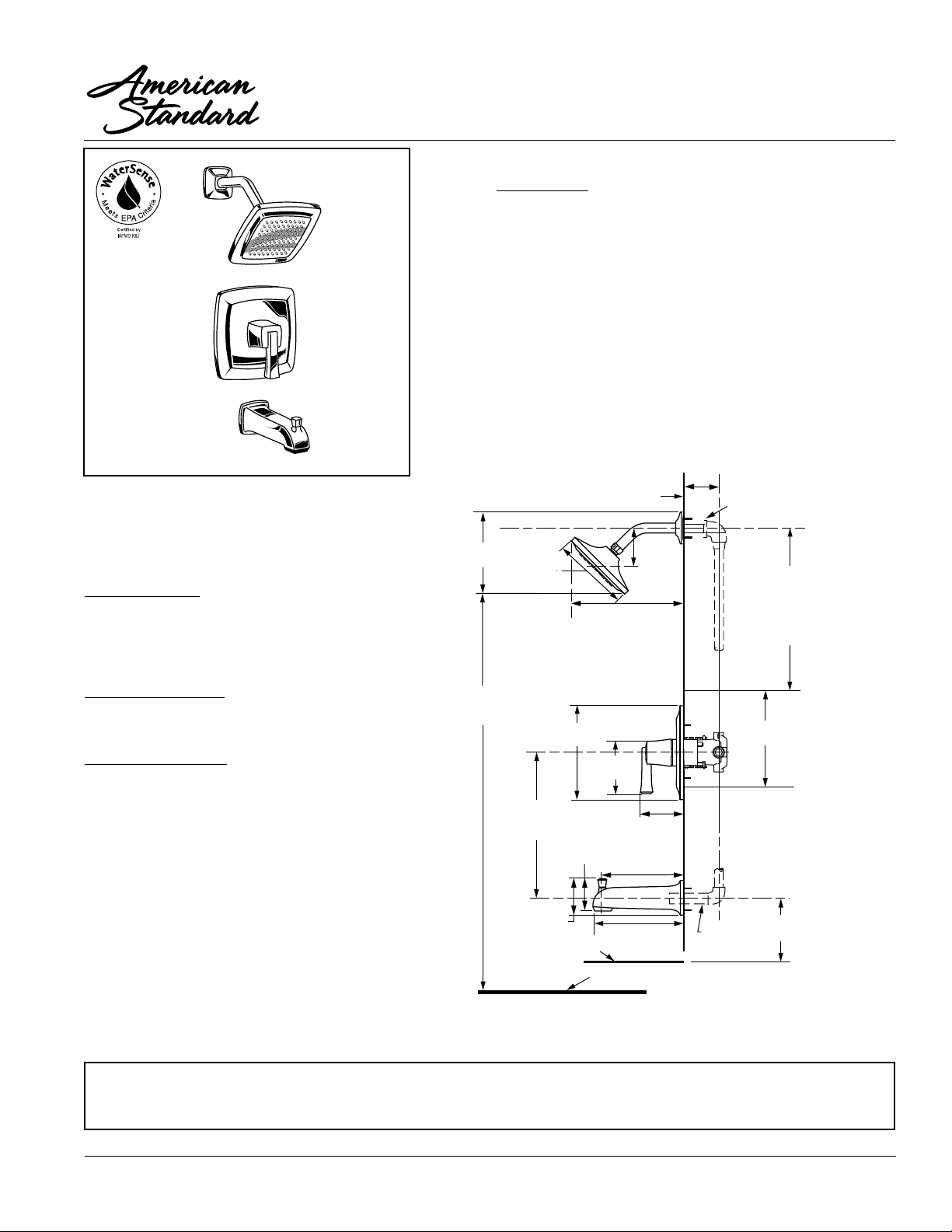

T343.508 Bath/Shower Trim Shown
GENERAL DESCRIPTION:
SHOWERHEAD
Water-saving single function 6" showerhead
offers 30% water savings at maximum
1.8 gpm / 6.8L/min. ow rate.
WALL TUB SPOUT
Metal slip-on diverter spout.
WALL VALVE TRIM
Available with metal lever handle.
Brass wall escutcheon.
6-5/8" REF.
(168 mm)
74" (1880 mm)
FOR HEAD
CLEARANCE
6-1/8"
(155 mm)
18"
(457 mm)
OPTIONAL
2-7/8"
(73 mm)
TOP OF TUB RIM
FINISHED WALL
9" REF.
(228 mm)
7-1/2"
(191 mm)
4-5/16"
(110 mm)
2-9/16"
(65 mm)
BOTTOM OF TUB
3-3/8"
REF.
(85 mm)
3-1/2"
(89 mm)
6-1/2"
(165 mm)
7-1/4"
(184 mm)
1-5/8" TO 3-1/4"
(41 mm TO 83 mm)
1/2" NPT
OPTIONAL TO
FLOOR USUALLY
BETWEEN 65''
(1651 AND 2032 mm)
8-1/4"
(210 mm)
1/2"
COPPER
(102 mm)
FINISHED
AND 80''
4" REF.
SUGGESTED SPECIFICATION
Bath/shower tting shall feature brass square rain showerhead with Max. 1.8 gpm / 6.8L/min. ow rate. Fitting shall be:
American Standard - Trim Kit Model # T353.50_.___ and Valve Body Model # R11_.
© 2016 AS America, Inc.
8/16

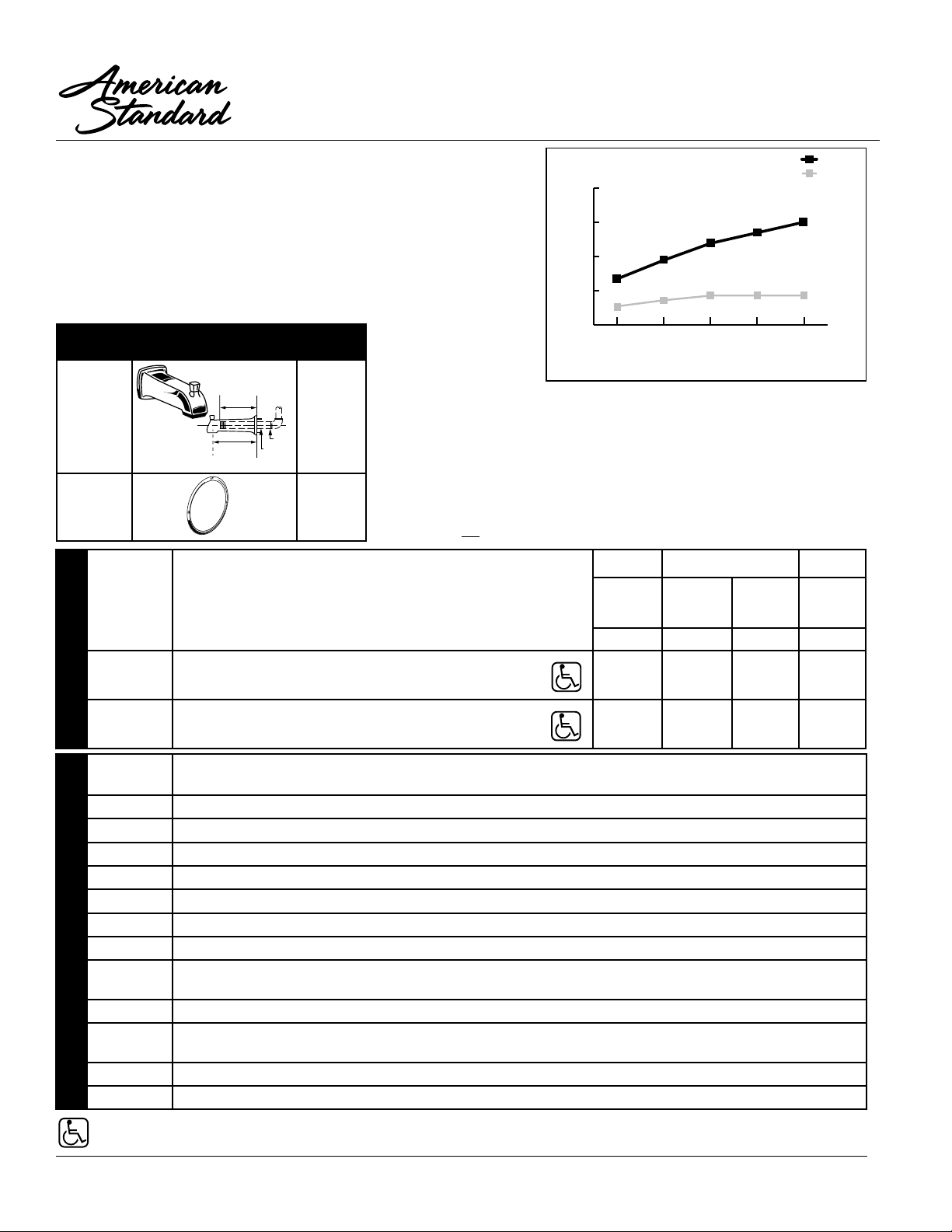

Page 2
TOWNSEND
PRESSURE BALANCE BATH/SHOWER FITTING
WITH WATER-SAVING SHOWERHEAD
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASSE 1016
ASME A112.18 .1
CSA B125.1
1/2"
NPT
1-1/4"
Parts
Suffix*
___IPT
___WD
MODIFICATIONS
IPS Spout
Factory
Installed
Decal Ring
(Red/Blue)
Product
Number
4" REF.
(100 mm)
6-1/2" REF.
(32 mm)
(165 mm)
DIA. HOLE
O
N
F
F
O
C
H
* TRIM & ROUGH MUST BE ORDERED SEPARATELY. Finish Options
Description
GALLONS PER MINUTE
*Flow rates shown are for mixed hot and cold.
*To modify a product, add suffix after the
4th digit (ex. T064ITP502.002)
FLOW RATE*
8
6
4
2
0
INLET PRESSURE (PSI)
Polished
Chrome
PVD
Polished
Nickel
Legacy
Bronze
002 013 278 295
Spout
Shower
10080604020
PVD
Brushed
Nickel
T353.508
TRIM KITS *
T353.507
Bath/Shower Trim Kit. Metal lever handle.
Water-Saving showerhead. LESS valve body.
Shower Only Trim Kit. Metal lever handle.
Water-saving showerhead. LESS valve body.
Product
Number Description
R111
R111S S
R11 0
R11 0 SS
R115
R115 S S
R117
R117S S
R118
ROUGH VALVE BODIES
R118 SS
R119
R119 S S
Rough Valve Body less trim. Universal inlets/outlets.
Rough Valve Body less trim. Universal inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. Direct sweat inlets/outlets.
Rough Valve Body less trim. Direct sweat inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. Female Thread inlets/outlets.
Rough Valve Body less trim. Female Thread inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807).
Rough Valve Body less trim. PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807)
with Screwdriver Stops.
Rough Valve Body less trim. PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960).
Rough Valve Body less trim. PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960)
with Screwdriver Stops.
Rough Valve Body less trim. CPVC inlets/universal outlets.
Rough Valve Body less trim. CPVC inlets/universal outlets with Screwdriver Stops.
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2016 AS America, Inc.
8/16
