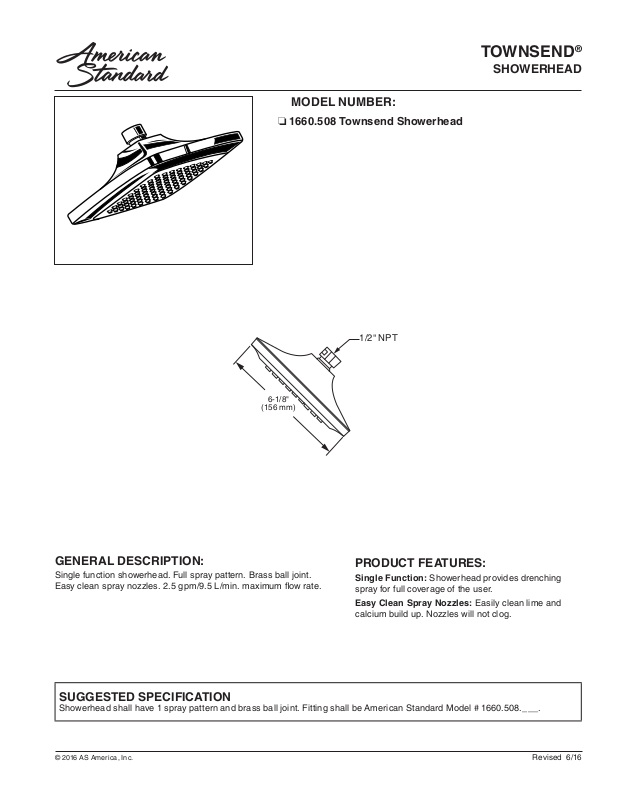

Page 1
MODEL NUMBER:
❏ 1660.508 Townsend Showerhead
1/2" NPT
TOWNSEND
SHOWERHEAD
®
6-1/8"
(156 mm)
GENERAL DESCRIPTION:
Single function showerhead. Full spray pattern. Brass ball joint.
Easy clean spray nozzles. 2.5 gpm/9.5 L/min. maximum ow rate.
PRODUCT FEATURES:
Single Function: Showerhead provides drenching
spray for full coverage of the user.
Easy Clean Spray Nozzles: Easily clean lime and
calcium build up. Nozzles will not clog.
SUGGESTED SPECIFICATION
Showerhead shall have 1 spray pattern and brass ball joint. Fitting shall be American Standard Model # 1660.508.___.
© 2016 AS America, Inc.
Revised 6/16
Page 2
TOWNSEND
SHOWERHEAD
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18 .1
CSA B125.1
Product
Number Description
FLOW RATE
3.0
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0
INLET PRESSURE (PSI)
80 100604020
Finishes
Polished
Chrome
002 013 278 295
PVD
Polished
Nickel
Legacy
Bronze
PVD
Satin
Nickel
1660.508
Townsend® Showerhead Only
Showerhead Accessories
Product
Number Description
1660.240
1660.241
Standard Shower Arm and Flange
Modern Shower Arm and Flange
© 2016 AS America, Inc.
Revised 6/16
