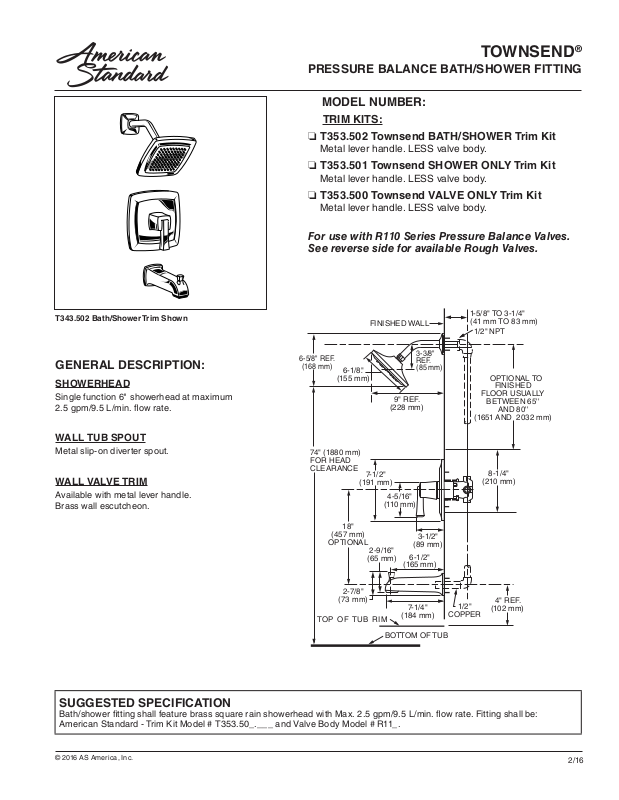

Page 1
TOWNSEND
PRESSURE BALANCE BATH/SHOWER FITTING
MODEL NUMBER:
TRIM KITS:
❏ T353.502 Townsend BATH/SHOWER Trim Kit
Metal lever handle. LESS valve body.
❏ T353.501 Townsend SHOWER ONLY Trim Kit
Metal lever handle. LESS valve body.
❏ T353.500 Townsend VALVE ONLY Trim Kit
Metal lever handle. LESS valve body.
For use with R110 Series Pressure Balance Valves.
See reverse side for available Rough Valves.
®

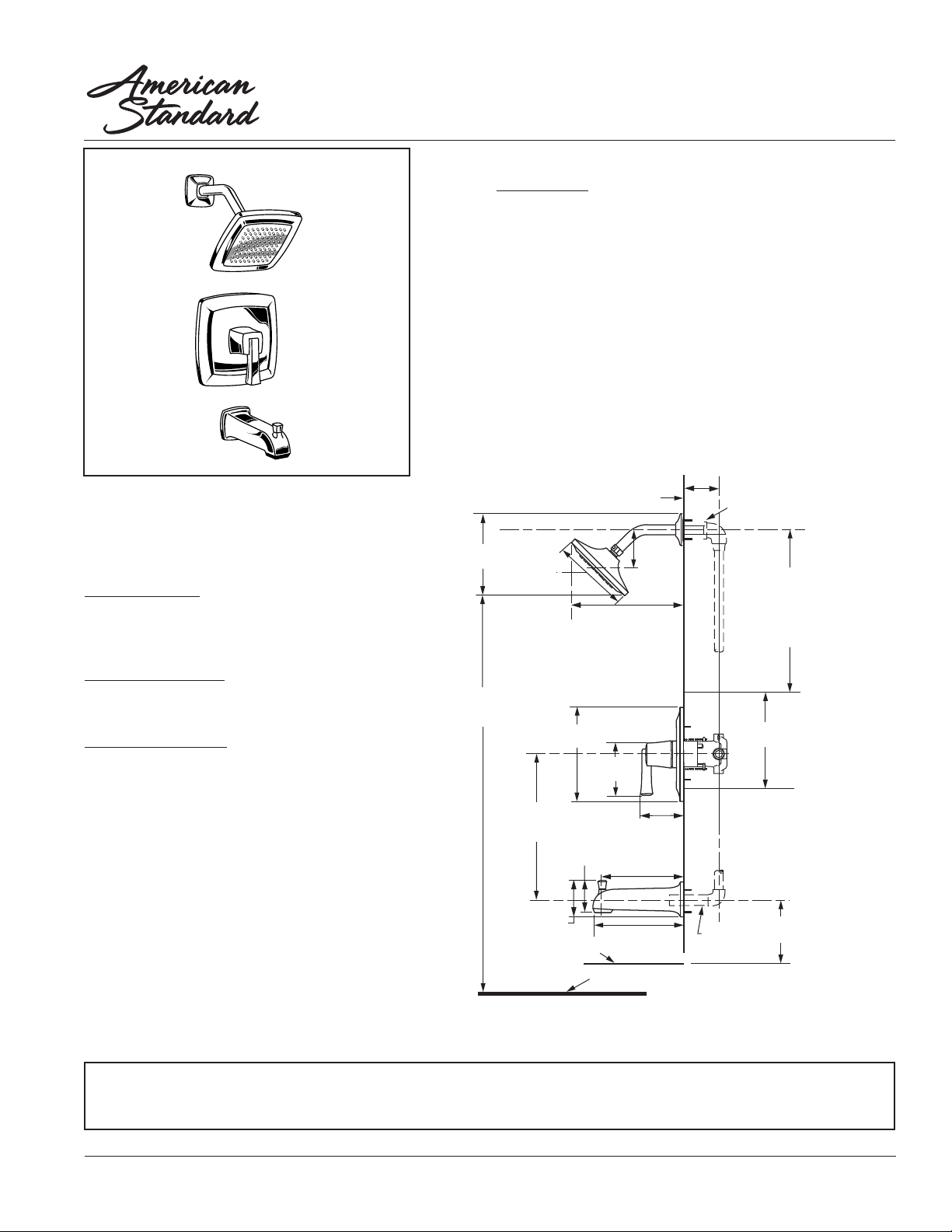

T343.502 Bath/Shower Trim Shown
GENERAL DESCRIPTION:
SHOWERHEAD
Single function 6" showerhead at maximum
2.5 gpm/9.5 L/min. ow rate.
WALL TUB SPOUT
Metal slip-on diverter spout.
WALL VALVE TRIM
Available with metal lever handle.
Brass wall escutcheon.
6-5/8" REF.
(168 mm)
74" (1880 mm)
FOR HEAD
CLEARANCE
6-1/8"
(155 mm)
18"
(457 mm)
OPTIONAL
2-7/8"
(73 mm)
TOP OF TUB RIM
FINISHED WALL
9" REF.
(228 mm)
7-1/2"
(191 mm)
4-5/16"
(110 mm)
2-9/16"
(65 mm)
BOTTOM OF TUB
3-3/8"
REF.
(85 mm)
3-1/2"
(89 mm)
6-1/2"
(165 mm)
7-1/4"
(184 mm)
1-5/8" TO 3-1/4"
(41 mm TO 83 mm)
1/2" NPT
OPTIONAL TO
FLOOR USUALLY
BETWEEN 65''
(1651 AND 2032 mm)
8-1/4"
(210 mm)
1/2"
COPPER
(102 mm)
FINISHED
AND 80''
4" REF.
SUGGESTED SPECIFICATION
Bath/shower tting shall feature brass square rain showerhead with Max. 2.5 gpm/9.5 L/min. ow rate. Fitting shall be:
American Standard - Trim Kit Model # T353.50_.___ and Valve Body Model # R11_.
© 2016 AS America, Inc.
2/16

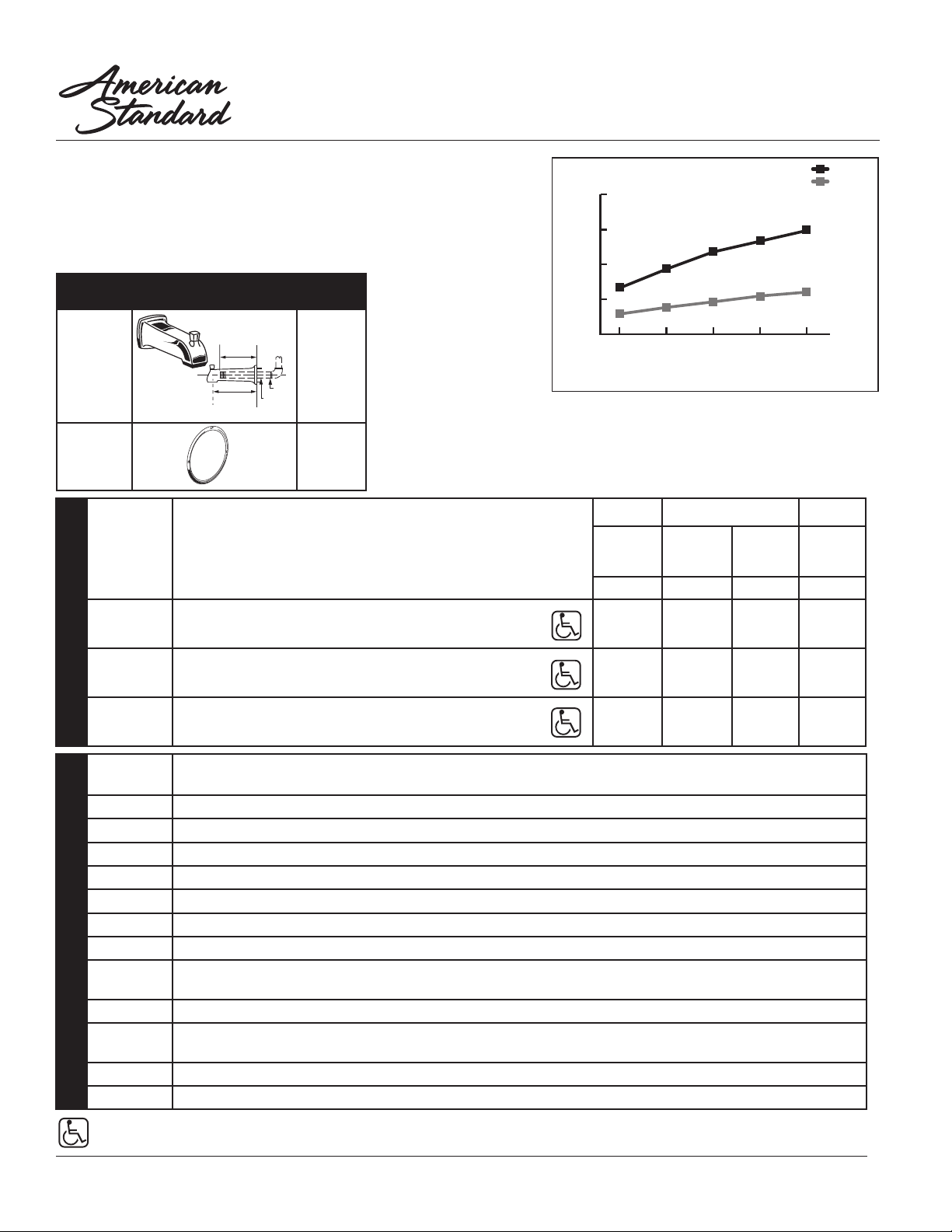

Page 2
TOWNSEND
PRESSURE BALANCE BATH/SHOWER FITTING
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1 / ASSE 1016
ASME A112.18.1 / CSA B125.1
1/2"
NPT
1-1/4"
Parts
Suffix*
___IPT
___WD
MODIFICATIONS
IPS Spout
Factory
Installed
Decal Ring
(Red/Blue)
t
Product
Number
4" REF.
(100 mm)
6-1/2" REF.
(32 mm)
(165 mm)
DIA. HOLE
O
N
F
F
O
C
H
* TRIM & ROUGH MUST BE ORDERED SEPARATELY. Finish Options
Description
GALLONS PER MINUTE
*Flow rates shown are for mixed hot and cold.
*To modify a product, add suffix after the
4th digit (ex. T064ITP502.002)
FLOW RATE*
8
6
4
2
0
INLET PRESSURE (PSI)
Polished
Chrome
PVD
Polished
Nickel
Legacy
Bronze
002 013 278 295
Spout
Shower
10080604020
PVD
Brushed
Nickel
T353.502
TRIM KITS *
T353.501
T353.500
Bath/Shower Trim Kit. Metal lever handle.
Showerhead. LESS valve body.
Shower Only Trim Kit. Metal lever handle.
Showerhead. LESS valve body.
Valve Trim Only. Metal lever handle.
LESS valve body.
Product
Number Description
R111
R111S S
R11 0
R11 0 SS
R115
R115 S S
R117
R117S S
R118
ROUGH VALVE BODIES
R118 SS
R119
R119 S S
Rough Valve Body less trim. Universal inlets/outlets.
Rough Valve Body less trim. Universal inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. Direct sweat inlets/outlets.
Rough Valve Body less trim. Direct sweat inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. Female Thread inlets/outlets.
Rough Valve Body less trim. Female Thread inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807).
Rough Valve Body less trim. PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807)
with Screwdriver Stops.
Rough Valve Body less trim. PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960).
Rough Valve Body less trim. PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960)
with Screwdriver Stops.
Rough Valve Body less trim. CPVC inlets/universal outlets.
Rough Valve Body less trim. CPVC inlets/universal outlets with Screwdriver Stops.
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2016 AS America, Inc.
2/16
