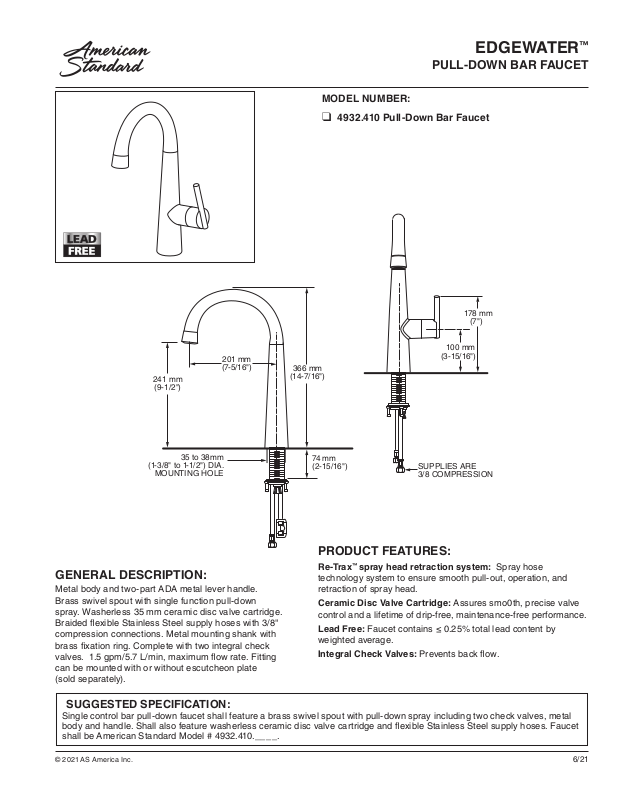

Page 1
EDGEWATER
PULL-DOWN BAR FAUCET
MODEL NUMBER:
❑ 4932.410 Pull-Down Bar Faucet
178 mm
(7")
™
201 mm
(7-5/16")
241 mm
(9-1/2")
35 to 38mm
(1-3/8" to 1-1/2") DIA.
MOUNTING HOLE
GENERAL DESCRIPTION:
Metal body and two-part ADA metal lever handle.
Brass swivel spout with single function pull-down
spray. Washerless 35 mm ceramic disc valve cartridge.
Braided exible Stainless Steel supply hoses with 3/8"
compression connections. Metal mounting shank with
brass xation ring. Complete with two integral check
valves. 1.5 gpm/5.7 L/min, maximum ow rate. Fitting
can be mounted with or without escutcheon plate
(sold separately).
100 mm
(3-15/16")
366 mm
(14-7/16")
74 mm
(2-15/16")
SUPPLIES ARE
3/8 COMPRESSION
PRODUCT FEATURES:
Re-Tr a x™ spray head retraction system: Spray hose
technology system to ensure smooth pull-out, operation, and
retraction of spray head.
Ceramic Disc Valve Cartridge: Assures smo0th, precise valve
control and a lifetime of drip-free, maintenance-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Integral Check Valves: Prevents back ow.
SUGGESTED SPECIFICATION:
Single control bar pull-down faucet shall feature a brass swivel spout with pull-down spray including two check valves, metal
body and handle. Shall also feature washerless ceramic disc valve cartridge and exible Stainless Steel supply hoses. Faucet
shall be American Standard Model # 4932.410.____.
© 2021 AS America Inc.
6/21
Page 2
EDGEWATER
FLOW RATE*
GALLONS PER MINUTE
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
0.0
0.5
1.0
1.5
2.0
2.5
3.0
10080604020
2.2 gpm/8.3 L/min. FLOW RATE
™
PULL-DOWN BAR FAUCET
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANS I A117.1
ASME A112 .18 .1
CSA B125.1
NSF 61/Section 9
NSF 372
Product
Number Description
FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
1.5 gpm/5.7 L/min. FLOW RATE
Finish Options
Polished
Chrome
002 075
10080604020
PVD
Stainless
Steel
4932.410
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Edgewater Pull-Down Bar Faucet.
© 2021 AS America Inc.
6/21
