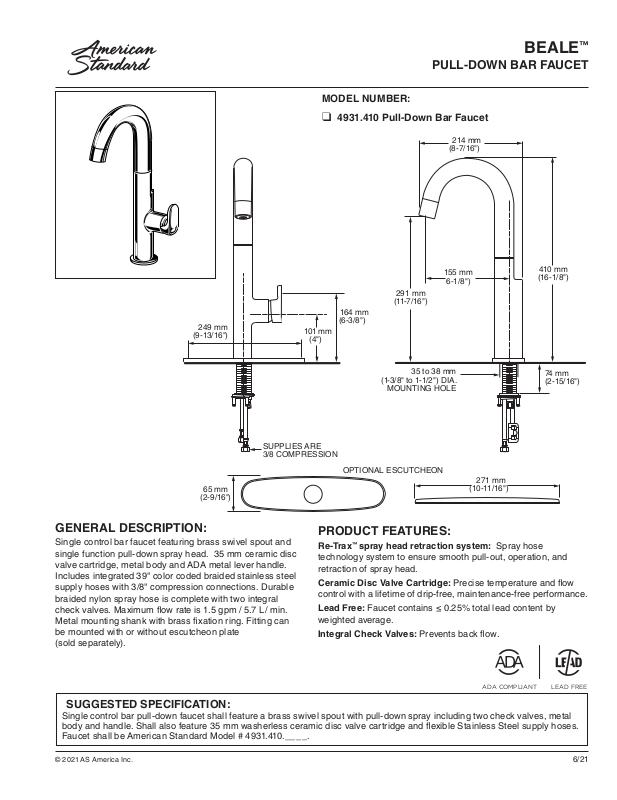

Page 1
PULL-DOWN BAR FAUCET
MODEL NUMBER:
❑ 4931.410 Pull-Down Bar Faucet
214 mm
(8-7/16")
BEALE
™
249 mm
(9-13/16")
SUPPLIES ARE
3/8 COMPRESSION
65 mm
(2-9/16")
GENERAL DESCRIPTION:
Single control bar faucet featuring brass swivel spout and
single function pull-down spray head. 35 mm ceramic disc
valve cartridge, metal body and ADA metal lever handle.
Includes integrated 39" color coded braided stainless steel
supply hoses with 3/8" compression connections. Durable
braided nylon spray hose is complete with two integral
check valves. Maximum ow rate is 1.5 gpm / 5.7 L/ min.
Metal mounting shank with brass xation ring. Fitting can
be mounted with or without escutcheon plate
(sold separately).
155 mm
6-1/8")
291 mm
(11-7/16")
164 mm
(6-3/8")
101 mm
(4")
35 to 38 mm
(1-3/8" to 1-1/2") DIA.
MOUNTING HOLE
OPTIONAL ESCUTCHEON
271 mm
(10-11/16")
410 mm
(16-1/8")
74 mm
(2-15/16")
PRODUCT FEATURES:
Re-Tr a x™ spray head retraction system: Spray hose
technology system to ensure smooth pull-out, operation, and
retraction of spray head.
Ceramic Disc Valve Cartridge: Precise temperature and ow
control with a lifetime of drip-free, maintenance-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Integral Check Valves: Prevents back ow.
ADA COMPLIANT LEAD FREE
SUGGESTED SPECIFICATION:
Single control bar pull-down faucet shall feature a brass swivel spout with pull-down spray including two check valves, metal
body and handle. Shall also feature 35 mm washerless ceramic disc valve cartridge and exible Stainless Steel supply hoses.
Faucet shall be American Standard Model # 4931.410.____.
© 2021 AS America Inc.
6/21
Page 2
BEALE
FLOW RATE*
GALLONS PER MINUTE
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
0.0
0.5
1.0
1.5
2.0
2.5
3.0
10080604020
2.2 gpm/8.3 L/min. FLOW RATE
™
PULL-DOWN BAR FAUCET
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANS I A117.1
ASME A112 .18 .1
CSA B125.1
NSF 61/Section 9
NSF 372
Product
Number Description
FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
1.5 gpm/5.7 L/min. FLOW RATE
Finish Options
Polished
Chrome
002 075
10080604020
PVD
Stainless
Steel
4931.410
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Beale Pull-Down Bar Faucet.
© 2021 AS America Inc.
6/21
