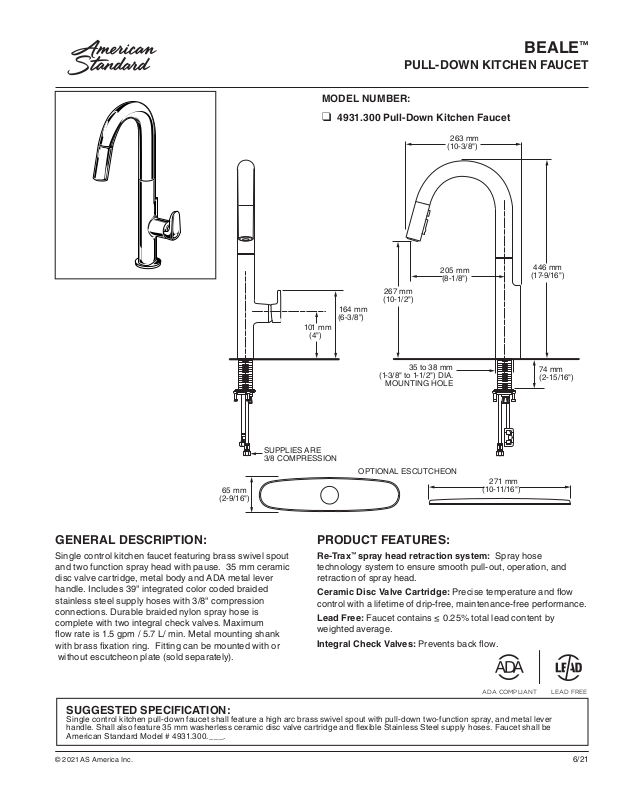

PULL-DOWN KITCHEN FAUCET
MODEL NUMBER:
❑ 4931.300 Pull-Down Kitchen Faucet
263 mm
(10-3/8")
BEALE
™
SUPPLIES ARE
3/8 COMPRESSION
65 mm
(2-9/16")
GENERAL DESCRIPTION:
Single control kitchen faucet featuring brass swivel spout
and two function spray head with pause. 35 mm ceramic
disc valve cartridge, metal body and ADA metal lever
handle. Includes 39" integrated color coded braided
stainless steel supply hoses with 3/8" compression
connections. Durable braided nylon spray hose is
complete with two integral check valves. Maximum
ow rate is 1.5 gpm / 5.7 L/ min. Metal mounting shank
with brass xation ring. Fitting can be mounted with or
without escutcheon plate (sold separately).
446 mm
(17-9/16")
74 mm
(2-15/16")
101 mm
(4")
267 mm
164 mm
(6-3/8")
(10-1/2")
(1-3/8" to 1-1/2") DIA.
MOUNTING HOLE
OPTIONAL ESCUTCHEON
205 mm
(8-1/8")
35 to 38 mm
271 mm
(10-11/16")
PRODUCT FEATURES:
Re-Tr a x™ spray head retraction system: Spray hose
technology system to ensure smooth pull-out, operation, and
retraction of spray head.
Ceramic Disc Valve Cartridge: Precise temperature and ow
control with a lifetime of drip-free, maintenance-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Integral Check Valves: Prevents back ow.
ADA COMPLIANT LEAD FREE
SUGGESTED SPECIFICATION:
Single control kitchen pull-down faucet shall feature a high arc brass swivel spout with pull-down two-function spray, and metal lever
handle. Shall also feature 35 mm washerless ceramic disc valve cartridge and flexible Stainless Steel supply hoses. Faucet shall be
American Standard Model # 4931.300.___.
© 2021 AS America Inc.
6/21
Page 2
BEALE
FLOW RATE*
GALLONS PER MINUTE
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
0.0
0.5
1.0
1.5
2.0
2.5
3.0
10080604020
2.2 gpm/8.3 L/min. FLOW RATE
™
PULL-DOWN KITCHEN FAUCET
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANS I A117.1
ASME A112 .18 .1
CSA B125.1
NSF 61/Section 9
NSF 372
Product
Number Description
FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
1.5 gpm/5.7 L/min. FLOW RATE
Finish Options
Polished
Chrome
002 075
10080604020
PVD
Stainless
Steel
4931.300
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Beale Pull-Down Kitchen Faucet.
