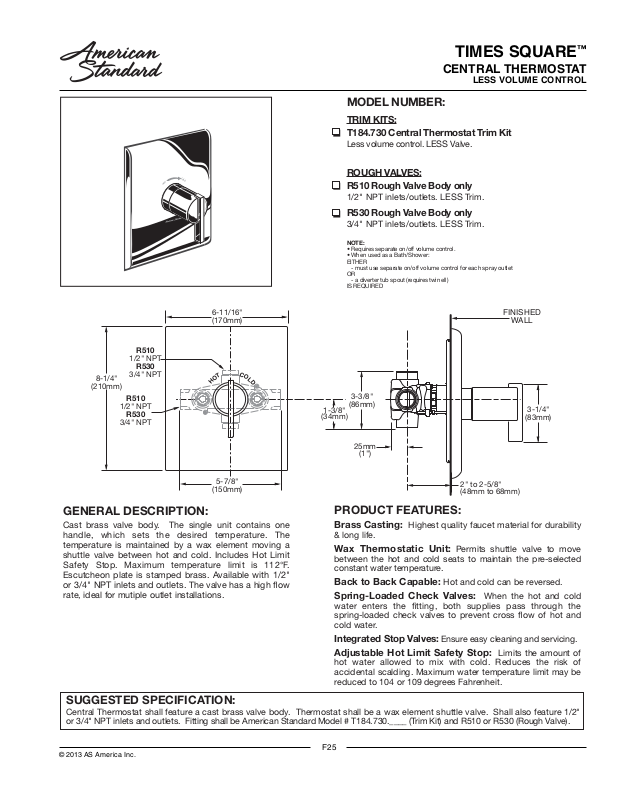

Page 1
TIMES SQUARE
CENTRAL THERMOSTAT
LESS VOLUME CONTROL
MODEL NUMBER:
TRIM KITS:
T184.730 Central Thermostat Trim Kit
Less volume control. LESS Valve.
™

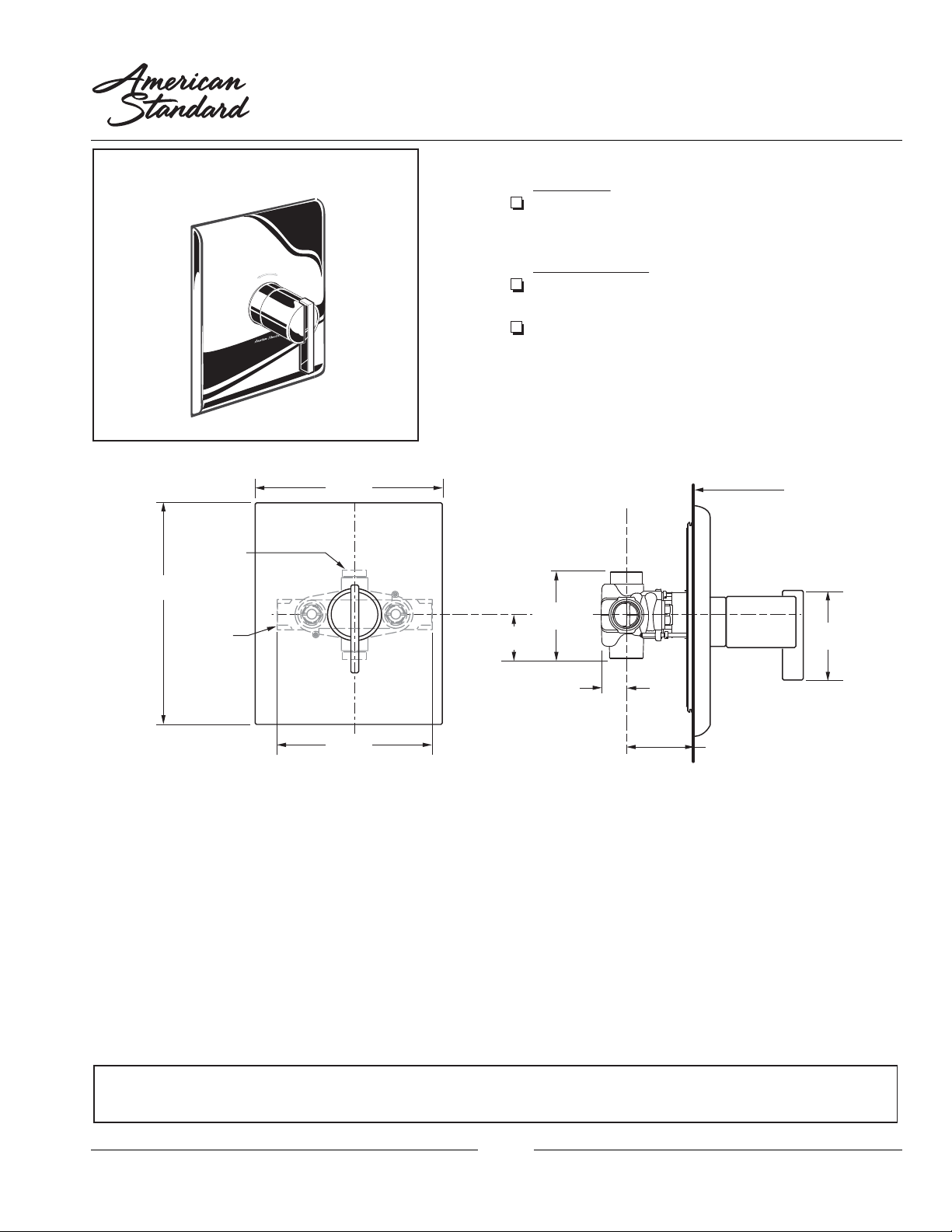

8-1/4"
(210mm)
R510
1/2" NPT
R530
3/4" NPT
R510
1/2" NPT
R530
3/4" NPT
C
O
L
D
T
O
H
ROUGH VALVES:
R510 Rough Valve Body only
1/2" NPT inlets/outlets. LESS Trim.
R530 Rough Valve Body only
3/4" NPT inlets/outlets. LESS Trim.
NOTE:
• Requires separate on/off volume control.
• When used as a Bath/Shower:
EITHER
- must use separate on/off volume control for each spray outlet
OR
- a diverter tub spout (requires twin ell)
IS REQUIRED
6-11/16"
(170mm)
T
O
H
C
O
L
D
3-3/8"
(86mm)
1-3/8"
(34mm)
25mm
(1")
FINISHED
WALL
3-1/4"
(83mm)
5-7/8"
(150mm)
GENERAL DESCRIPTION:
Cast brass valve body. The single unit contains one
handle, which sets the desired temperature. The
temperature is maintained by a wax element moving a
shuttle valve between hot and cold. Includes Hot Limit
Safety Stop. Maximum temperature limit is 112°F.
Escutcheon plate is stamped brass.
or 3/4" NPT inlets and outlets.
rate, ideal for mutiple outlet installations.
Available with 1/2"
The valve has a high ow
PRODUCT FEATURES:
Brass Casting: Highest quality faucet material for durability
& long life.
Wax Thermostatic Unit: Permits shuttle valve to move
between the hot and cold seats to maintain the pre-selected
constant water temperature.
Back to Back Capable: Hot and cold can be reversed.
Spring-Loaded Check Valves: When the hot and cold
2" to 2-5/8"
(48mm to 68mm)
water enters the tting, both supplies pass through the
spring-loaded check valves to prevent cross ow of hot and
cold water.
Integrated Stop Valves: Ensure easy cleaning and servicing.
Adjustable Hot Limit Safety Stop: Limits the amount of
hot water allowed to mix with cold. Reduces the risk of
accidental scalding. Maximum water temperature limit may be
reduced to 104 or 109 degrees Fahrenheit.
SUGGESTED SPECIFICATION:
Central Thermostat shall feature a cast brass valve body. Thermostat shall be a wax element shuttle valve. Shall also feature 1/2"
or 3/4" NPT inlets and outlets. Fitting shall be American Standard Model # T184.730.____ (Trim Kit) and R510 or R530 (Rough Valve).
© 2013 AS America In c.
F25
Page 2
TIMES SQUARE
™
CENTRAL THERMOSTAT
LESS VOLUME CONTROL
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASSE 1016
ASME A112.18.1
CSA B125
Product
Number
TRIM KITS**
T184.730
Product
Number
BODIES
ROUGH VALVE
R510
R530
*
*
Description
*
Central Thermostat Trim Kit. Less volume control.
Description
Rough Valve Body less trim. 1/2" inlets/outlets.
Rough Valve Body less trim. 3/4" inlets/outlets.

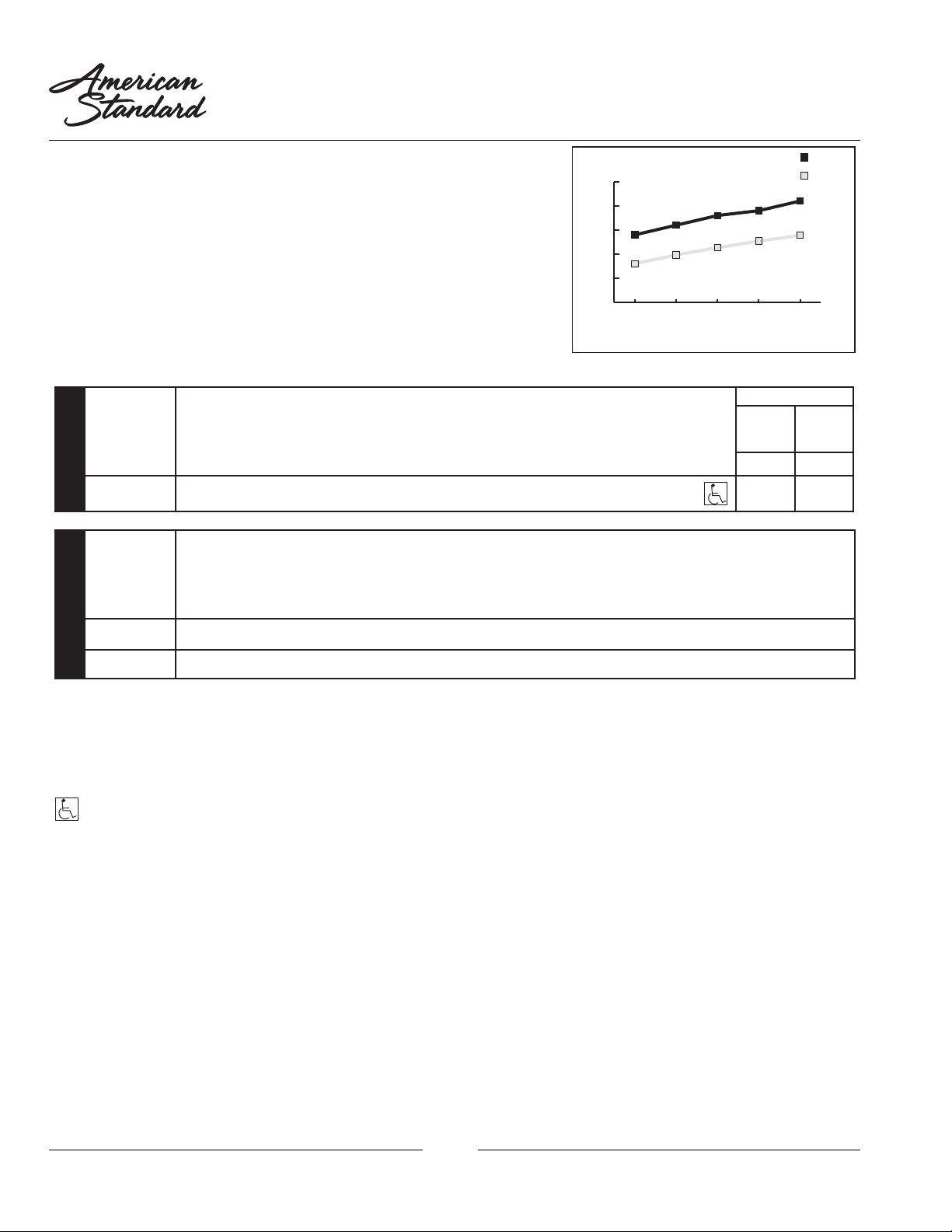

FLOW RATE*
25
20
15
10
5
GALLONS PER MINUTE
0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002
3/4"
1/2"
10080604020
PVD
Satin
Nickel
295
*NOTE: • When used as a Bath/Shower a separate on/off volume control for each spray outlet must be used.
Requires twin ell twin ell - (must be ordered separately) for use with diverter spouts.
• Requires separate on/off volume control.
** ROUGH & TRIM MUST BE ORDERED SEPARATELY.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2013 AS America In c.
F26
