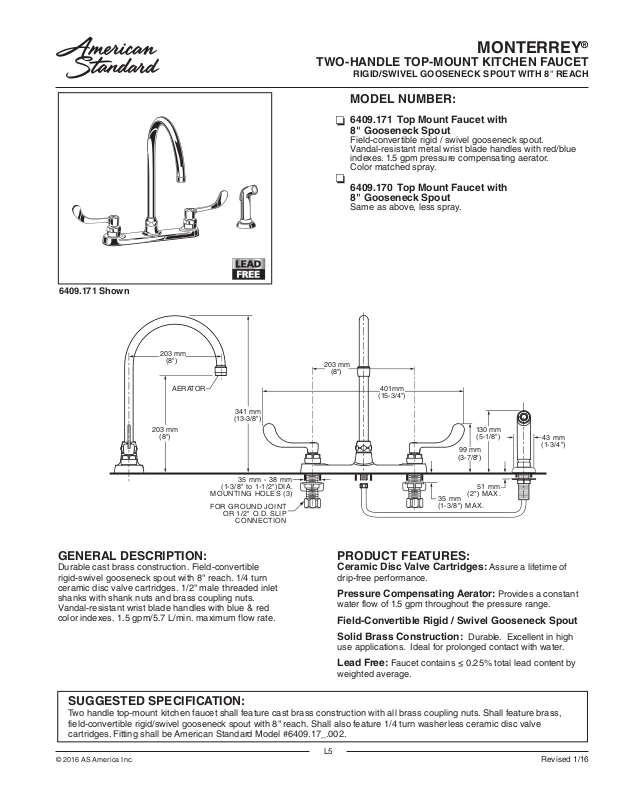

Page 1
6409.171 Shown
MODEL NUMBER:
MONTERREY
TWO-HANDLE TOP-MOUNT KITCHEN FAUCET
RIGID/SWIVEL GOOSENECK SPOUT WITH 8" REACH
6409.171 Top Mount Faucet with
8" Gooseneck Spout
Field-convertible rigid / swivel gooseneck spout.
Vandal-resistant metal wrist blade handles with red/blue
indexes. 1.5 gpm pressure compensating aerator.
Color matched spray.
6409.170 Top Mount Faucet with
8" Gooseneck Spout
Same as above, less spray.
®
203 mm
(8")
AERATO R
341 mm
(13-3/8")
203 mm
(8")
35 mm - 38 mm
(1-3/8" to 1-1/2")DIA.
MOUNTING HOLES (3)
FOR GROUND JOINT
OR 1/2" O.D. SLIP
CONNECTION
GENERAL DESCRIPTION:
Durable cast brass construction. Field-convertible
rigid-swivel gooseneck spout with 8" reach. 1/4 turn
ceramic disc valve cartridges. 1/2" male threaded inlet
shanks with shank nuts and brass coupling nuts.
Vandal-resistant wrist blade handles with blue & red
color indexes. 1.5 gpm/5.7 L/min. maximum flow rate.
203 mm
(8")
401mm
(15-3/4")
130 mm
99 mm
(3-7/8")
(2") MAX.
35 mm
(1-3/8") MAX.
(5-1/8")
51 mm
43 mm
(1-3/4")
PRODUCT FEATURES:
Ceramic Disc Valve Cartridges: Assure a lifetime of
drip-free performance.
Pressure Compensating Aerator: Provides a constant
water flow of 1.5 gpm throughout the pressure range.
Field-Convertible Rigid / Swivel Gooseneck Spout
Solid Brass Construction: Durable. Excellent in high
use applications. Ideal for prolonged contact with water.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION:
Two handle top-mount kitchen faucet shall feature cast brass construction with all brass coupling nuts. Shall feature brass,
field-convertible rigid/swivel gooseneck spout with 8" reach. Shall also feature 1/4 turn washerless ceramic disc valve
cartridges. Fitting shall be American Standard Model #6409.17_.002.
© 2016 AS America I nc.
L5
Revised 1/16
Page 2
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B125.1
NSF 61/Section 9, Annex G
CALGreen
Product
Number
6409.171
Description
Top mount faucet with field-convertible 8" rigid / swivel spout. VR wrist blade
handles. 1.5 gpm PCA aerator. With color matched spray.
MONTERREY
®
TWO-HANDLE TOP-MOUNT KITCHEN FAUCET
RIGID/SWIVEL GOOSENECK SPOUT WITH 8" REACH
FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish
Polished
Chrome
002
6409.170
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
Top mount faucet field-convertible 8" rigid / swivel spout. VR wrist blade
handles. 1.5 gpm PCA aerator. Less spray.
Other Aerators Available:
Part Suffix Description
LV15 1.5 gpm (5.7 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
L15 1.5 gpm (5.7 Lpm) PCA Non-Aerated Laminar Flow Outlet
V15 1.5 gpm (5.7 Lpm) Vandal-Resistant PCA Aerator
LV10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
L10 1.0 gpm (3.8 Lpm) PCA Non-Aerated Laminar Flow Outlet
V10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Aerator
V05 0.5 gpm (1.9 Lpm) Vandal-Resistant PCA Non-Aerated Spray
V035 0.35 gpm (1.3 Lpm) Vandal-Resistant PCA Non-Aerated Spray
*PCA - Pressure Compensating
All modifications meet CALGreen Code
© 2016 AS America I nc.
L6
Revised 1/16
