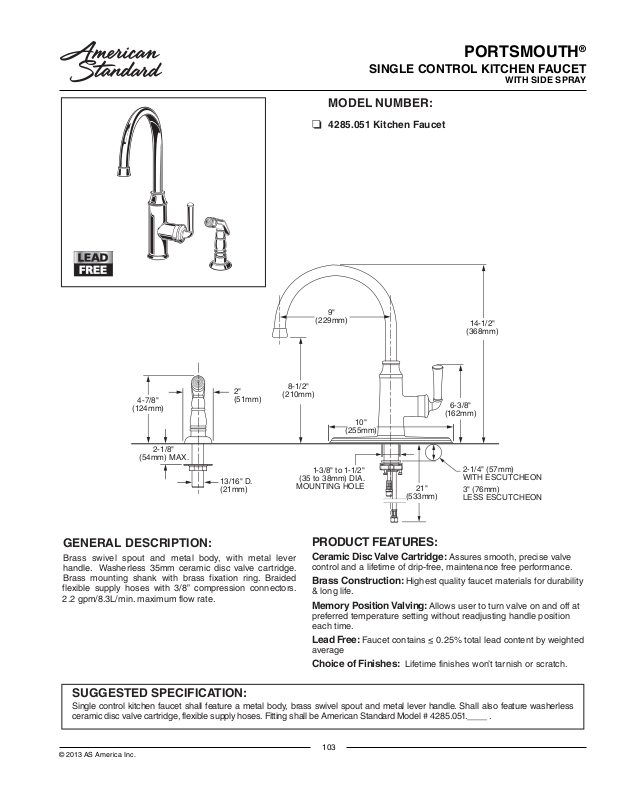

SINGLE CONTROL KITCHEN FAUCET
MODEL NUMBER:
4285.051 Kitchen Faucet
"
9
(229mm)
PORTSMOUTH
WITH SIDE SPRAY
14-1/2"
(368mm)
®
8-1/2
(210mm)
4-7/8"
(124mm)
2-1/8"
(54mm) MAX.
2"
(51mm)
13/16" D.
(21mm)
GENERAL DESCRIPTION:
Brass swivel spout and metal body, with metal lever
handle. Washerless 35mm ceramic disc valve cartridge.
Brass mounting shank with brass fixation ring. Braided
flexible supply hoses with 3/8” compression connectors.
2.2 gpm/8.3L/min. maximum flow rate.
"
"
6-3/8
21
"
(162mm)
2-1/4" (57mm)
WITH ESCUTCHEON
3
" (76mm)
LESS ESCUTCHEON
10"
(255mm)
" to 1-1/2"
1-3/8
(35 to 38mm) DIA.
MOUNTING HOLE
(533mm)
PRODUCT FEATURES:
Ceramic Disc Valve Cartridge: Assures smooth, precise valve
control and a lifetime of drip-free, maintenance free performance.
Brass Construction: Highest quality faucet materials for durability
& long life.
Memory Position Valving: Allows user to turn valve on and off at
preferred temperature setting without readjusting handle position
each time.
Lead Free: Faucet contains ≤ 0.25% total lead content by weighted
average
Choice of Finishes: Lifetime finishes won’t tarnish or scratch.
SUGGESTED SPECIFICATION:
Single control kitchen faucet shall feature a metal body, brass swivel spout and metal lever handle. Shall also feature washerless
ceramic disc valve cartridge, flexible supply hoses. Fitting shall be American Standard Model # 4285.051.____ .
© 2013 AS America Inc.
103
Page 2
PORTSMOUTH
SINGLE CONTROL KITCHEN FAUCET
WITH SIDE SPRAY
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
NSF 61/Section 9 & Annex G
CSA B125
Product
Number
4285.051
Description
Single control kitchen faucet with side spray.
FLOW RATE*
3.0
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
2.2gpm/8.3L/min. FLOW RATE
Finish Options
Polished
Chrome
002
PVD
Stainless
Steel
075
10080604020
Oil
Rubbed
Bronze
224
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2013 AS America Inc.
