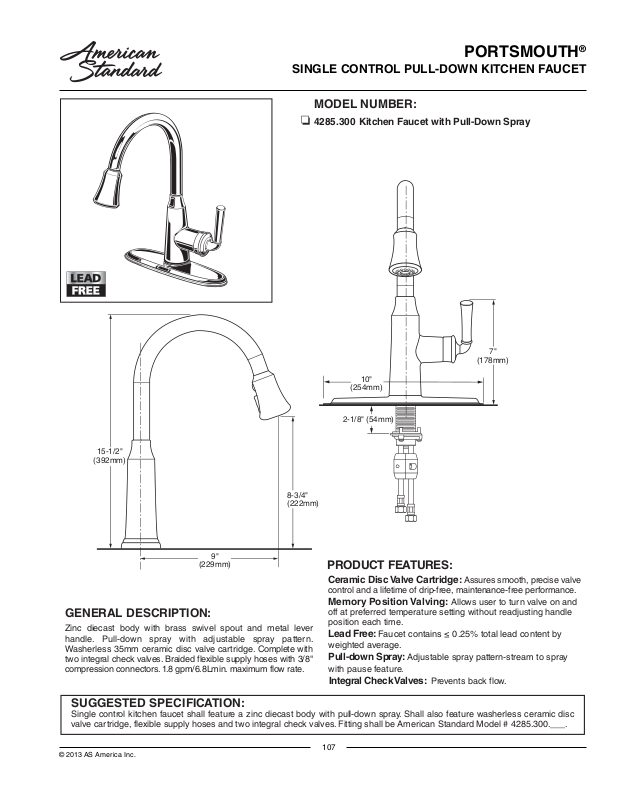

Page 1
PORTSMOUTH
SINGLE CONTROL PULL-DOWN KITCHEN FAUCET
MODEL NUMBER:
4285.300 Kitchen Faucet with Pull-Down Spray
®
15-1/2"
(392mm)
8-3/4"
(222mm)
9"
(229mm)
GENERAL DESCRIPTION:
Zinc diecast body with brass swivel spout and metal lever
handle. Pull-down spray with adjustable spray pattern.
Washerless 35mm ceramic disc valve cartridge. Complete with
two integral check valves. Braided flexible supply hoses with 3/8"
compression connectors. 1.8 gpm/6.8Lmin. maximum flow rate.
7"
(178mm)
10"
(254mm)
2-1/8" (54mm)
PRODUCT FEATURES:
Ceramic Disc Valve Cartridge: Assures smooth, precise valve
control and a lifetime of drip-free, maintenance-free performance.
Memory Position Valving: Allows user to turn valve on and
off at preferred temperature setting without readjusting handle
position each time.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Pull-down Spray: Adjustable spray pattern-stream to spray
with pause feature.
Integral Check Valves: Prevents back flow.
SUGGESTED SPECIFICATION:
Single control kitchen faucet shall feature a zinc diecast body with pull-down spray. Shall also feature washerless ceramic disc
valve cartridge, flexible supply hoses and two integral check valves. Fitting shall be American Standard Model # 4285.300.___.
© 2013 AS America Inc.
107
Page 2
PORTSMOUTH
SINGLE CONTROL PULL-DOWN KITCHEN FAUCET
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
NSF 61/Section 9 & Annex G
CSA B125
Product
Number
4285.300
Description
Single control pull-down kitchen faucet
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
1.8gpm/6.8L/min. FLOW RATE
Finish Options
Polished
Chrome
002
Stainless
Steel
(PVD)
075
Rubbed
Bronze
FLOW RATE*
10080604020
Oil
224
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2013 AS America Inc.
108
