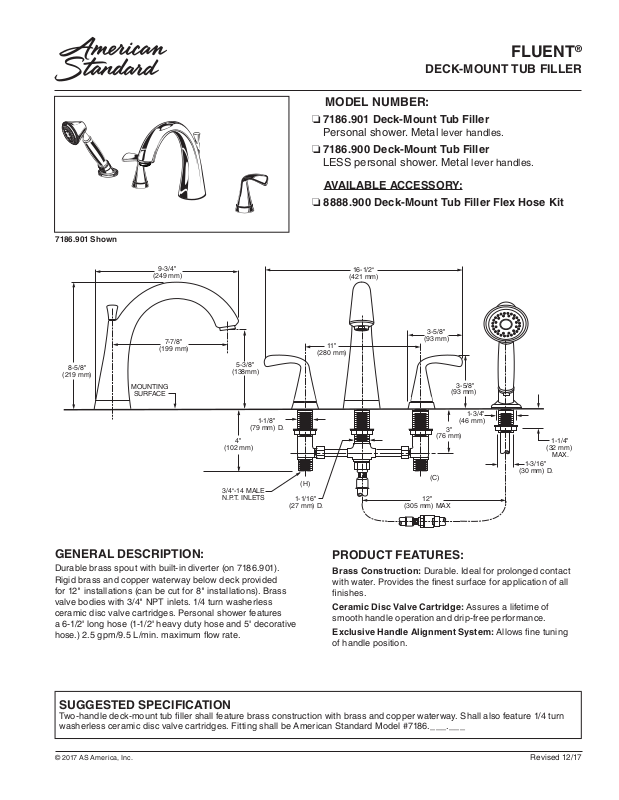

Page 1
7186.901 Shown
FLUENT
DECK-MOUNT TUB FILLER
MODEL NUMBER:
❏ 7186.901 Deck-Mount Tub Filler
Personal shower. Metal lever handles.
❏ 7186.900 Deck-Mount Tub Filler
LESS personal shower. Metal lever handles.
AVAILABLE ACCESSORY:
❏ 8888.900 Deck-Mount Tub Filler Flex Hose Kit
®
9-3/4"
(249 mm)
7-7/8"
(199 mm)
8-5/8"
(219 mm)
MOUNTING
SURFACE
5-3/8"
(138mm)
(79 mm) D.
4"
(102 mm)
"-14 MALE
3/4
N.P.T. INLETS
1-1/8"
(27 mm) D.
GENERAL DESCRIPTION:
Durable brass spout with built-in diverter (on 7186.901).
Rigid brass and copper waterway below deck provided
for 12" installations (can be cut for 8" installations). Brass
valve bodies with 3/4" NPT inlets. 1/4 turn washerless
ceramic disc valve cartridges. Personal shower features
a 6 -1/2' long hose (1-1/2' heavy duty hose and 5' decorative
hose.) 2.5 gpm/9.5 L/min. maximum ow rate.
(H)
1-1/16"
16-1/2"
(421 mm)
3-5/8"
11"
(280 mm)
(93 mm)
(76 mm)
(C)
12"
(305 mm) MAX
3-5/8"
(93 mm)
(46 mm)
3"
1-3/4"
1-3/16"
(30 mm) D.
PRODUCT FEATURES:
Brass Construction: Durable. Ideal for prolonged contact
with water. Provides the nest surface for application of all
nishes.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Exclusive Handle Alignment System: Allows ne tuning
of handle position.
1-1/4"
(32 mm)
MAX.
SUGGESTED SPECIFICATION
Two-handle deck-mount tub ller shall feature brass construction with brass and copper waterway. Shall also feature 1/4 turn
washerless ceramic disc valve cartridges. Fitting shall be American Standard Model #7186.___.___
© 2017 AS America, Inc.
Revised 12/17
Page 2
FLUENT
DECK-MOUNT TUB FILLER
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANS I A117.1
ASME A112 .18 .1
CSA B125.1
Check local plumbing codes. Some
installations may require a vacuum breaker.
Product
Number Description
7186.901
Deck-Mount Tub Filler. Personal shower. Metal lever handles.
FLOW RATE*
25
20
15
10
5
GALLONS PER MINUTE
0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002 278 295
Legacy
Bronze
Spout
Shower
80604020
PVD
Satin
Nickel
7186.900
8888.900
Deck-Mount Tub Filler. LESS personal shower.
Metal lever handles.
Deck-Mount Tub Filler Flex Hose Kit
N/A = Not Available
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
N/A N/A N/A
© 2017 AS America, Inc.
Revised 12/17
