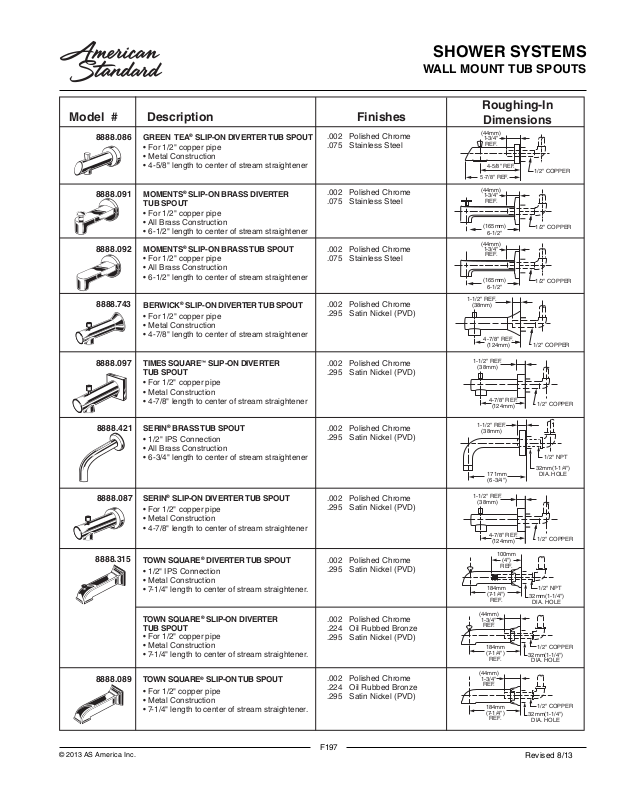

8888.086
8888.091
8888.092
8888.743
8888.097
DescriptionModel # Finishes
®
GREEN TEA
SLIP-ON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 4-5/8" length to center of stream straightener
MOMENTS® SLIP-ON BRASS DIVERTER
TUB SPOUT
• For 1/2" copper pipe
• All Brass Construction
• 6-1/2" length to center of stream straightener
MOMENTS® SLIP-ON BRASS TUB SPOUT
• For 1/2" copper pipe
• All Brass Construction
• 6-1/2" length to center of stream straightener
BERWICK® SLIP-ON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 4-7/8" length to center of stream straightener
TIMES SQUARE
™
SLIP-ON DIVERTER
TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 4-7/8" length to center of stream straightener
.002
Polished Chrome
.075
Stainless Steel
.002
Polished Chrome
.075
Stainless Steel
.002
Polished Chrome
.075
Stainless Steel
.002
Polished Chrome
.295
Satin Nickel (PVD)
.002
Polished Chrome
.295
Satin Nickel (PVD)
SHOWER SYSTEMS
WALL MOUNT TUB SPOUTS
Roughing-In
Dimensions
(44mm)
1-3/4"
REF.
4-5/8" REF.
5-7/8" REF.
(44mm)
1-3/4"
REF.
(165mm)
6-1/2"
(44mm)
1-3/4"
REF.
(165mm)
6-1/2"
1-1/2" REF.
(38mm)
4-7/8" REF.
(124mm)
1-1/2" REF.
(38mm)
4-7/8" REF.
(124mm)
1/2" COPPER
1/2" COPPER
1/2" COPPER
1/2" COPPER
1/2" COPPER
8888.421
8888.087
8888.315
8888.089
®
SERIN
BRASS TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
• 6-3/4" length to center of stream straightener
®
SLIP-ON DIVERTER TUB SPOUT
SERIN
• For 1/2" copper pipe
• Metal Construction
• 4-7/8" length to center of stream straightener
TOWN SQUARE® DIVERTER TUB SPOUT
• 1/2" IPS Connection
• Metal Construction
• 7-1/4" length to center of stream straightener.
TOWN SQUARE® SLIP-ON DIVERTER
TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 7-1/4" length to center of stream straightener.
TOWN SQUARE
®
SLIP-ON TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 7-1/4" length to center of stream straightener.
.002
Polished Chrome
.295
Satin Nickel (PVD)
.002
Polished Chrome
.295
Satin Nickel (PVD)
.002
Polished Chrome
.295
Satin Nickel (PVD)
.002
Polished Chrome
.224
Oil Rubbed Bronze
.295
Satin Nickel (PVD)
.002
Polished Chrome
.224
Oil Rubbed Bronze
.295
Satin Nickel (PVD)
1-1/2" REF.
(38mm)
171mm
(6-3/4")
1-1/2" REF.
(38mm)
4-7/8" REF.
(124mm)
184mm
(7-1/4")
REF.
(44mm)
1-3/4"
REF.
184mm
(7-1/4")
REF.
(44mm)
1-3/4"
REF.
184mm
(7-1/4")
REF.
100mm
(4")
REF.
1/2" NPT
32mm(1-1/4")
DIA. HOLE
1/2" COPPER
1/2" NPT
32mm(1-1/4")
DIA. HOLE
1/2" COPPER
32mm(1-1/4")
DIA. HOLE
1/2" COPPER
32mm(1-1/4")
DIA. HOLE
© 2013 AS America Inc.
F197
Revised 8/13
Page 2
8888.017
DescriptionModel # Finishes
COPELAND™ SLIP-ON DIVERTER TUB SPOUT
• For 1/2" Copper Pipe
• Metal Construction
• 4-7/8" length to center of stream straightener.
.002
Polished Chrome
.224
Oil Rubbed Bronze
.295
Satin Nickel (PVD)
SHOWER SYSTEMS
WALL MOUNT TUB SPOUTS
Roughing-In
Dimensions
25mm (1")
MIN.
124mm
(4-7/8
"
) REF.
1/2" COPPER
8888.094
8888.054
8888.022
8888.730
8888.055
™
QUENTIN
SLIP-ON DIVERTER TUB SPOUT
• For 1/2" Copper Pipe
• Metal Construction
• 4-5/8" length to center of stream straightener.
®
TROPIC
SLIP-ON DIVERTER TUB SPOUT
• For 1/2" Copper Pipe
• Metal Construction
• 5-1/8" length to center of stream straightener.
DELUXE 5-1/8" BRASS DIVERTER TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
PORTSMOUTH
®
SLIP-ON DIVERTER TUB SPOUT
• For 1/2" Copper Pipe
• Metal Construction
DELUXE DIVERTER TUB SPOUT
• 1/2" IPS Connection
• Metal Construction
.002
Polished Chrome
.224
Oil Rubbed Bronze
.295
Satin Nickel (PVD)
.002
Polished Chrome
.295
Satin Nickel (PVD)
.002
Polished Chrome
.295
Satin Nickel (PVD)
.002
Polished Chrome
.224
Oil Rubbed Bronze
.295
Satin Nickel (PVD)
.002
Polished Chrome
.295
Satin Nickel (PVD)
38mm (1-1/2")
MIN.
123mm
(4-13/16
25mm (1")
MIN.
130mm
(
5-1/8")
1-1/2" REF.
(38mm)
5-1/8" REF.
(130 mm)
130mm
(5-1/8")
REF.
"
) REF.
REF.
127mm
(5")
REF
1/2" COPPER
1/2" COPPER
1/2" I.P.S.
32mm(1-1/4")
DIA HOLE
1/2"
COPPER
1/2" COPPER
32mm(1-1/4")
DIA HOLE
8888.056
8888.026
© 2013 AS America Inc.
SLIP-ON NON DIVERTER TUB SPOUT
• For 1/2" Copper Pipe
• Metal Construction
SLIP-ON 4" DIVERTER TUB SPOUT
• For 1/2" Copper Water Tube
• Metal Construction
.002
Polished Chrome
.224
Oil Rubbed Bronze
.002 Polished Chrome
F198
130mm
(5-1/8")
REF.
121mm
(4-3/4")
REF.
1/2" COPPER
32mm(1-1/4")
DIA HOLE
1/2"SPOUT
NIPPLE
32mm(1-1/4")
DIA HOLE
Revised 10/13
