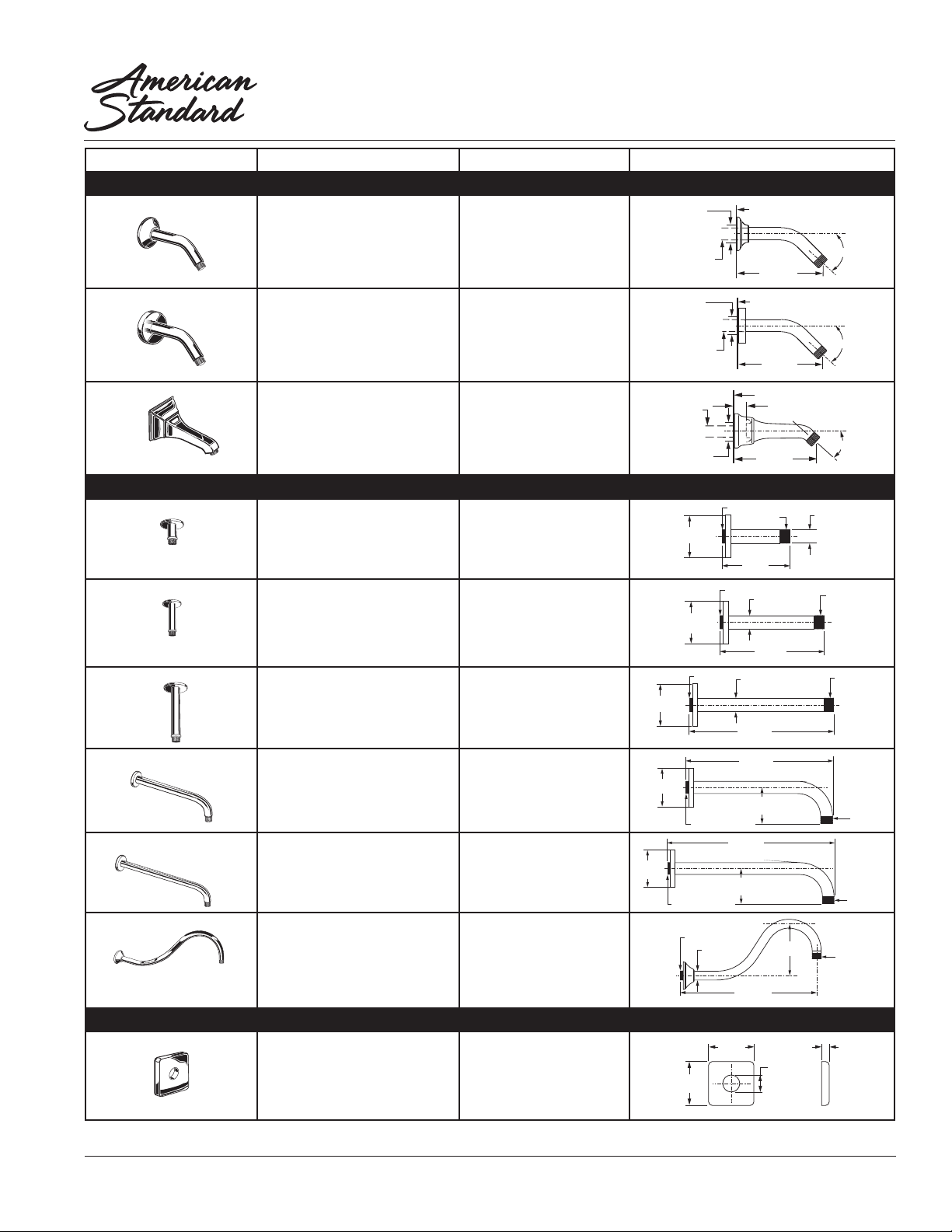

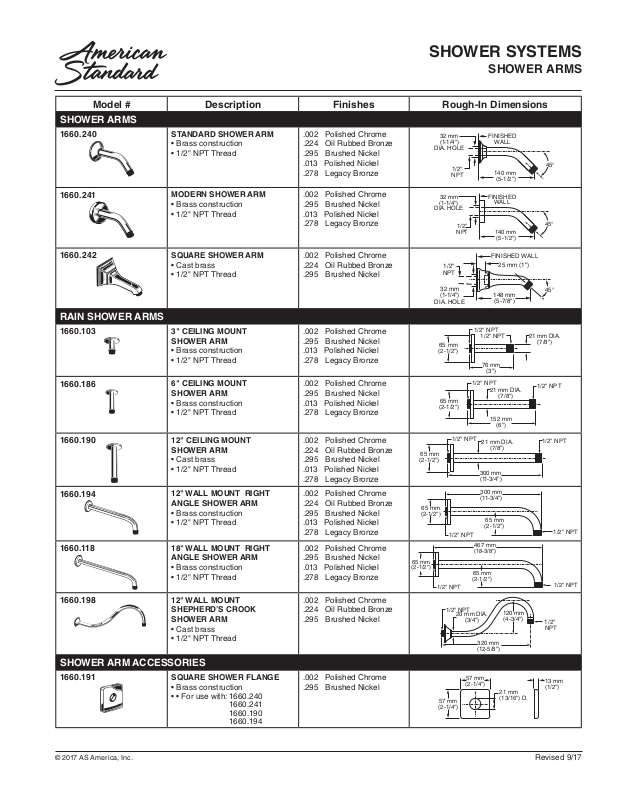

Model # Description Finishes Rough-In Dimensions
FINISHED WALL
(12-5/8")
(3")
1/2" NPT
(2-1/4")
13 mm
SHOWER ARMS
1660.240
1660.241
STANDARD SHOWER ARM
• Brass construction
• 1/2" NPT Thread
MODERN SHOWER ARM
• Brass construction
• 1/2" NPT Thread
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
.002 Polished Chrome
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
SHOWER SYSTEMS
SHOWER ARMS
32 mm
(1-1/4")
DIA. HOLE
1/2"
NPT
32 mm
(1-1/4")
DIA. HOLE
1/2"
NPT
FINISHED
WALL
140 mm
(5-1/2")
FINISHED
WALL
140 mm
(5-1/2")
45°
45°
1660.242
RAIN SHOWER ARMS
1660.103
1660.186
1660.190
1660.194
1660.118
1660.198
SQUARE SHOWER ARM
• Cast brass
• 1/2" NPT Thread
3" CEILING MOUNT
SHOWER ARM
• Brass construction
• 1/2" NPT Thread
6" CEILING MOUNT
SHOWER ARM
• Brass construction
• 1/2" NPT Thread
12" CEILING MOUNT
SHOWER ARM
• Cast brass
• 1/2" NPT Thread
12" WALL MOUNT RIGHT
ANGLE SHOWER ARM
• Brass construction
• 1/2" NPT Thread
18" WALL MOUNT RIGHT
ANGLE SHOWER ARM
• Brass construction
• 1/2" NPT Thread
12" WALL MOUNT
SHEPHERD’S CROOK
SHOWER ARM
• Cast brass
• 1/2" NPT Thread
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel
.002 Polished Chrome
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
.002 Polished Chrome
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
.002 Polished Chrome
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel
65 mm
(2-1/2")
65 mm
(2-1/2")
65 mm
(2-1/2")
1/2"
NPT
32 mm
(1-1/4")
DIA. HOLE
65 mm
(2-1/2")
65 mm
(2-1/2")
1/2" NPT
1/2" NPT
1/2" NPT
1/2" NPT
20 mm DIA.
1/2" NPT
65 mm
(2-1/2")
(3/4")
1/2" NPT
1/2" NPT
76 mm
21 mm DIA.
152 mm
21 mm DIA.
(7/8")
300 mm
(11-3/4")
300 mm
(11-3/4")
65 mm
(2-1/2")
467 mm
(18-3/8")
320 mm
25 mm (1")
148 mm
(5-7/8")
(7/8")
(6")
120 mm
(4-3/4")
45°
21 mm DIA.
(7/8")
1/2" NPT
1/2" NPT
1/2"
NPT
1/2" NPT
SHOWER ARM ACCESSORIES
1660.191
© 2017 AS America, Inc.
SQUARE SHOWER FLANGE
• Brass construction
• • For use with: 1660.240
1660.241
1660.190
1660.194
.002 Polished Chrome
.295 Brushed Nickel
57 mm
57 mm
(2-1/4")
21 mm
(13/16") D.
(1/2")
Revised 9/17
