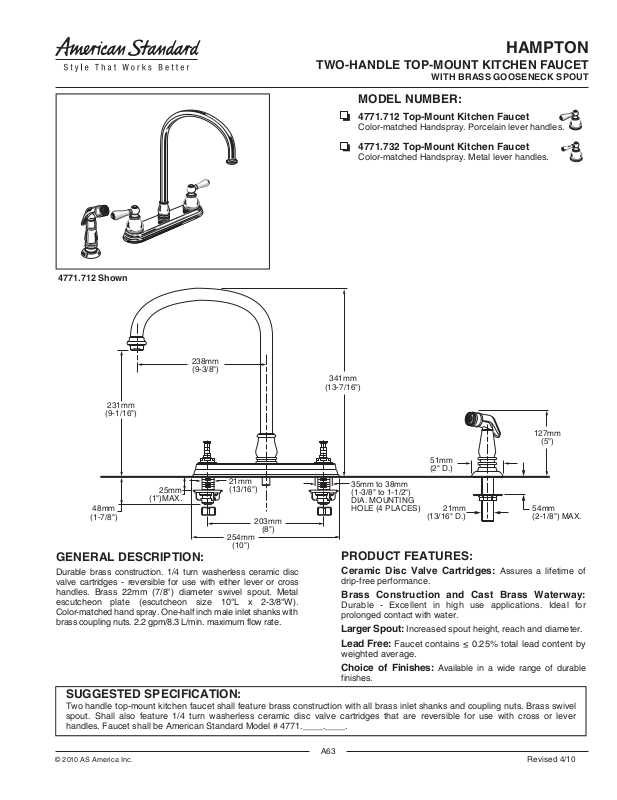

HAMPTON
GENERAL DESCRIPTION:
Durable brass construction. 1/4 turn washerless ceramic disc
valve cartridges - reversible for use with either lever or cross
handles. Brass 22mm (7/8") diameter swivel spout. Metal
escutcheon plate (escutcheon size 10"L x 2-3/8"W).
Color-matched hand spray. One-half inch male inlet shanks with
brass coupling nuts. 2.2 gpm/8.3 L/min. maximum flow rate.
PRODUCT FEATURES:
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Brass Construction and Cast Brass Waterway:
Durable - Excellent in high use applications. Ideal for
prolonged contact with water.
Larger Spout: Increased spout height, reach and diameter.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Choice of Finishes: Available in a wide range of durable
finishes.
4771.712 Shown
MODEL NUMBER:
4771.712 Top-Mount Kitchen Faucet
Color-matched Handspray. Porcelain lever handles.
4771.732 Top-Mount Kitchen Faucet
Color-matched Handspray. Metal lever handles.
SUGGESTED SPECIFICATION:
Two handle top-mount kitchen faucet shall feature brass construction with all brass inlet shanks and coupling nuts. Brass swivel
spout. Shall also feature 1/4 turn washerless ceramic disc valve cartridges that are reversible for use with cross or lever
handles. Faucet shall be American Standard Model # 4771.____.____.

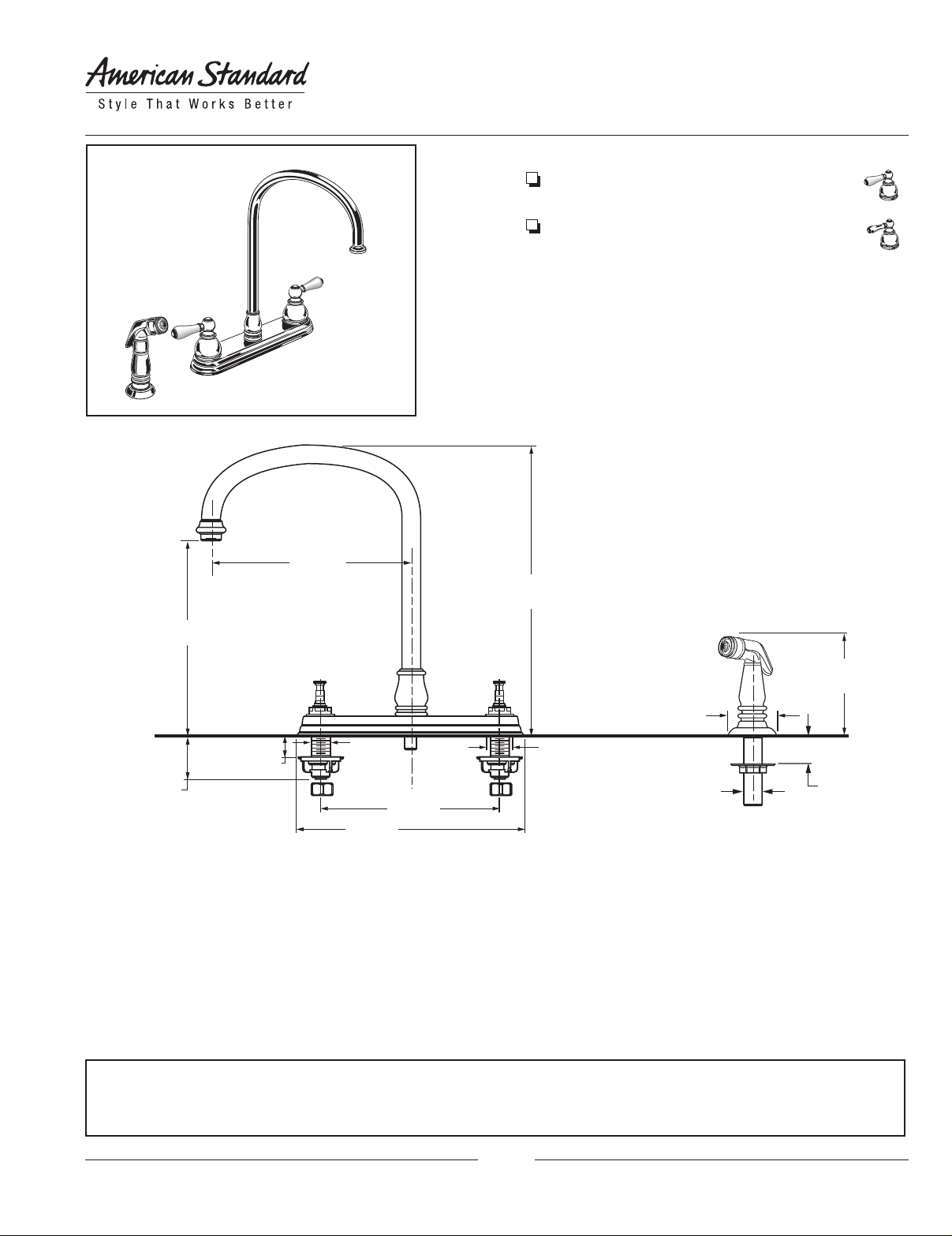

203mm
(8")
254mm
(10")
48mm
(1-7/8")
231mm
(9-1/16")
238mm
(9-3/8")
341mm
(13-7/16")
21mm
(13/16")
25mm
(1")MAX.
35mm to 38mm
(1-3/8" to 1-1/2")
DIA. MOUNTING
HOLE (4 PLACES)
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B 125
NSF 61/Section 9 & Annex G
51mm
(2" D.)
127mm
(5")
54mm
(2-1/8") MAX.
21mm
(13/16" D.)
TWO-HANDLE TOP-MOUNT KITCHEN FAUCET
WITH BRASS GOOSENECK SPOUT
© 2010 AS America I nc.
A63
Revised 4/10
Page 2
HAMPTON
Product
Number
Description
Finish Options
4771.712
Kitchen faucet. Color-matched Handspray.
Porcelain lever handles.
4771.732
Kitchen faucet. Color-matched Handspray.
Metal lever handles.
PVD
Polished
Brass
099
Polished
Chrome
002
PVD
Satin
Nickel
295
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.

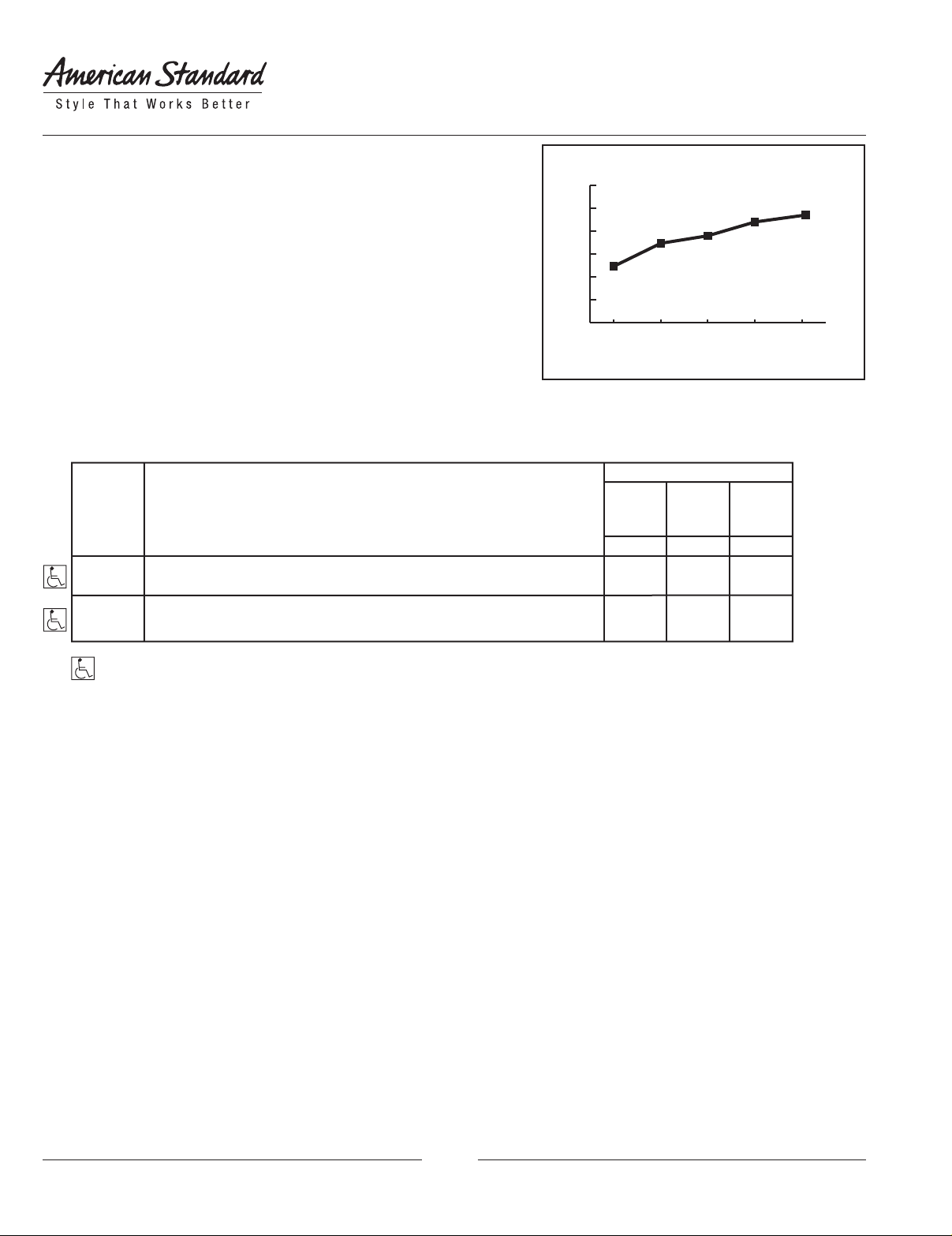

FLOW RATE*
GALLONS PER MINUTE
I N L E T P RE S S U R E ( P SI )
*Flow rates shown are for mixed hot and cold.
0.0
0.5
1.0
1.5
2.0
2.5
3.0
10080604020
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B 125
NSF 61/Section 9 & Annex G
TWO-HANDLE TOP-MOUNT KITCHEN FAUCET
WITH BRASS GOOSENECK SPOUT
© 2010 AS America I nc.
A64
Revised 4/10
