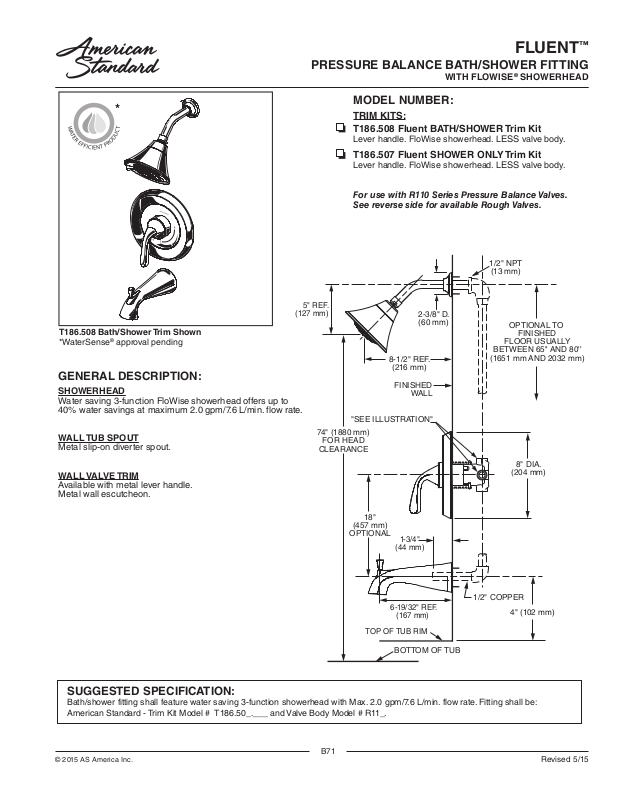

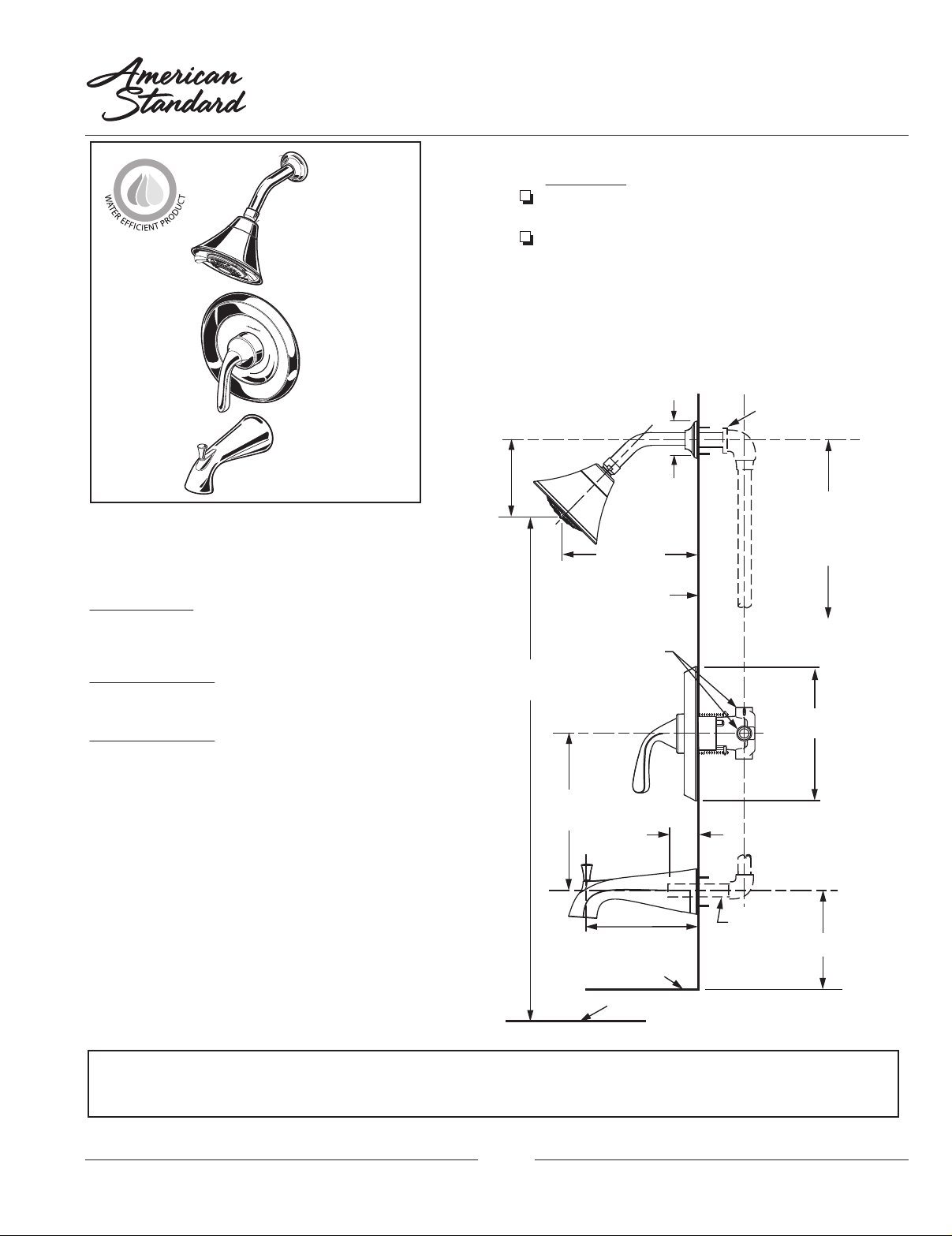

Page 1
FLUENT
™
PRESSURE BALANCE BATH/SHOWER FITTING
WITH FLOWISE® SHOWERHEAD
*
H
O f f
C
T186.508 Bath/Shower Trim Shown
*WaterSense
GENERAL DESCRIPTION:
SHOWERHEAD
Water saving 3-function FloWise showerhead offers up to
40% water savings at maximum 2.0 gpm/7.6 L/min. flow rate.
WALL TUB SPOUT
Metal slip-on diverter spout.
WALL VALVE TRIM
Available with metal lever handle.
Metal wall escutcheon.
®
approval pending
5" REF.
(127 mm)
74" (1880 mm)
CLEARANCE
MODEL NUMBER:
TRIM KITS:
T186.508 Fluent BATH/SHOWER Trim Kit
Lever handle. FloWise showerhead. LESS valve body.
T186.507 Fluent SHOWER ONLY Trim Kit
Lever handle. FloWise showerhead. LESS valve body.
For use with R110 Series Pressure Balance Valves.
See reverse side for available Rough Valves.
"SEE ILLUSTRATION"
FOR HEAD
18"
(457 mm)
OPTIONAL
2-3/8" D.
(60 mm)
8-1/2" REF.
(216 mm)
FINISHED
WALL
1-3/4
"
(44 mm)
1/2" NPT
(13 mm)
OPTIONAL TO
FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
(1651 mm AND 2032 mm)
8" DIA.
(204 mm)
6-19/32" REF.
(167 mm)
TOP OF TUB RIM
BOTTOM OF TUB
1/2" COPPER
SUGGESTED SPECIFICATION:
Bath/shower fitting shall feature water saving 3-function showerhead with Max. 2.0 gpm/7.6 L/min. flow rate. Fitting shall be:
American Standard - Trim Kit Model # T186.50_.___ and Valve Body Model # R11_.
© 2015 AS America Inc.
B71
4" (102 mm)
Revised 5/15

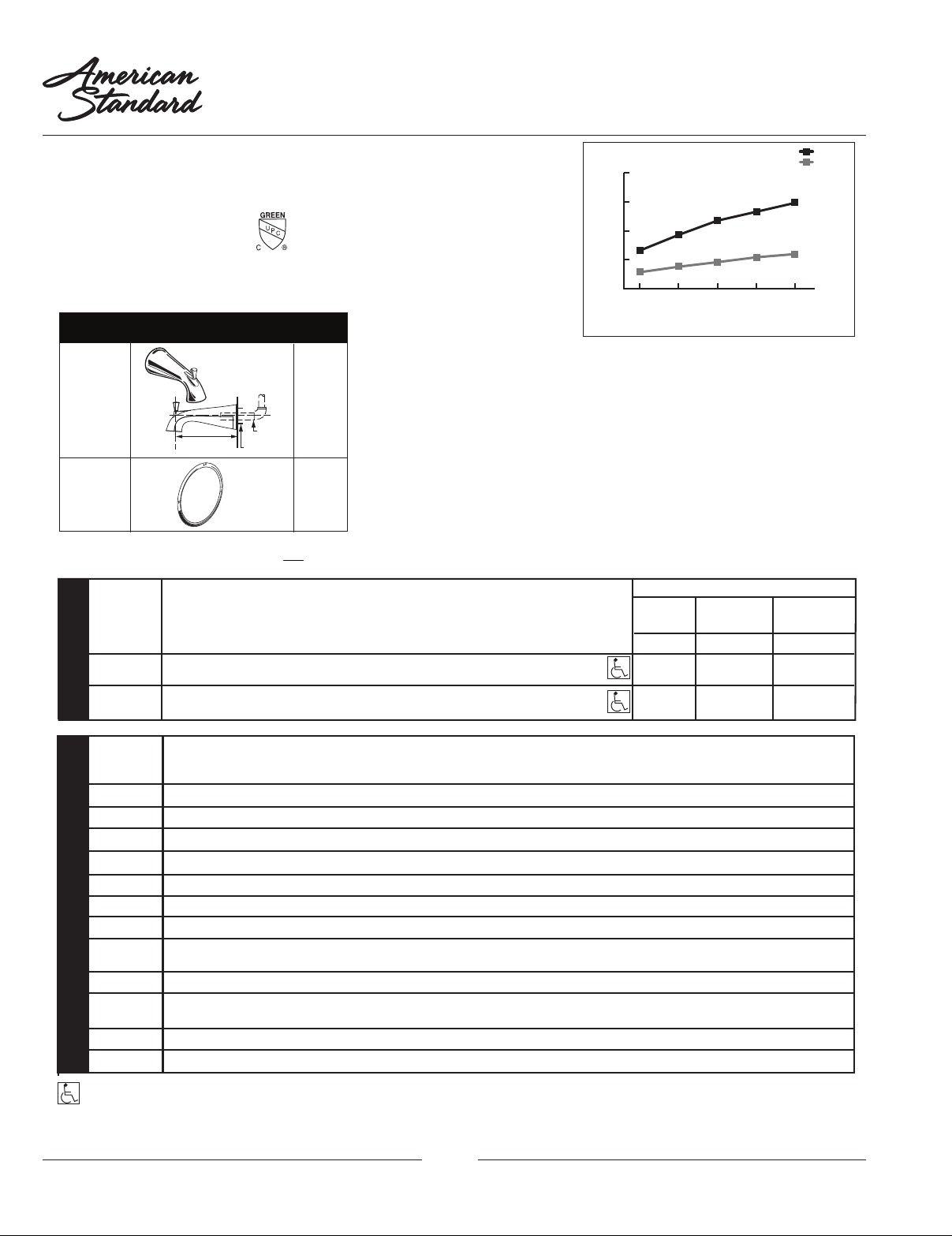

Page 2
FLUENT
™
PRESSURE BALANCE BATH/SHOWER FITTING
WITH FLOWISE® SHOWERHEAD
CODES AND STANDARDS
These products meet or exceed the
following codes and standards:
ANSI A 117.1
ASSE 1016
ASME A112.18.1
CSA B 125.1
Modifications
IPS Spout
Factory
Installed
Decal Ring
6-19/32"
(167 mm) REF.
H
1-1/4" (32 mm)
DIA. HOLE
O
N
F
F
O
C
(Red/Blue)
*To modify a product, add suffix after the
4th digit (ex. T064ITP502.002)
* TRIM & ROUGH MUST BE ORDERED SEPARATELY.
Product
Number
Description
T186.508 Bath/Shower trim kit. Lever handle. FloWise showerhead. LESS valve body.
TRIM KITS *
T186.507 Shower Only trim kit. Lever handle. FloWise showerhead. LESS valve body.
Parts
Suffix*
___IPT
1/2" NPT
___WD
FLOW RATE*
8
6
4
2
GALLONS PER MINUTE
0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
002
Oil Rubbed
Bronze
224
Polished
Chrome
Spout
Shower
10080604020
PVD
Satin Nickel
295
Product
Number
R111
R111SS
R110
R110SS
R115
R115SS
R117
R117SS
R118
ROUGH VALVE BODIES
R118SS
R119
R119SS
Description
Rough Valve Body less trim. Universal inlets/outlets.
Rough Valve Body less trim. Universal inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. Direct sweat inlets/outlets.
Rough Valve Body less trim. Direct sweat inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. Female Thread inlets/outlets.
Rough Valve Body less trim. Female Thread inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807).
Rough Valve Body less trim. PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807)
with Screwdriver Stops.
Rough Valve Body less trim. PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960).
Rough Valve Body less trim. PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960)
with Screwdriver Stops.
Rough Valve Body less trim. CPVC inlets/universal outlets.
Rough Valve Body less trim. CPVC inlets/universal outlets with Screwdriver Stops.
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2015 AS America Inc.
B72
Revised 5/15
