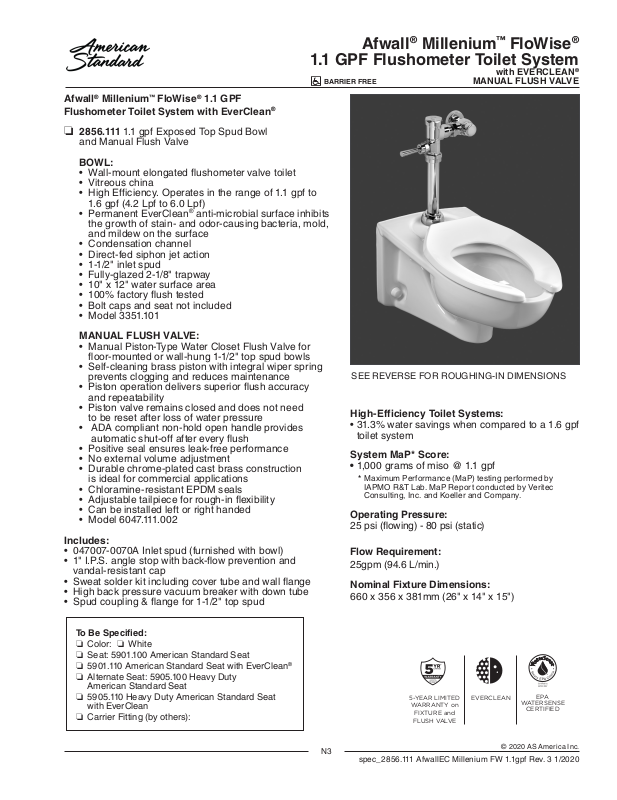

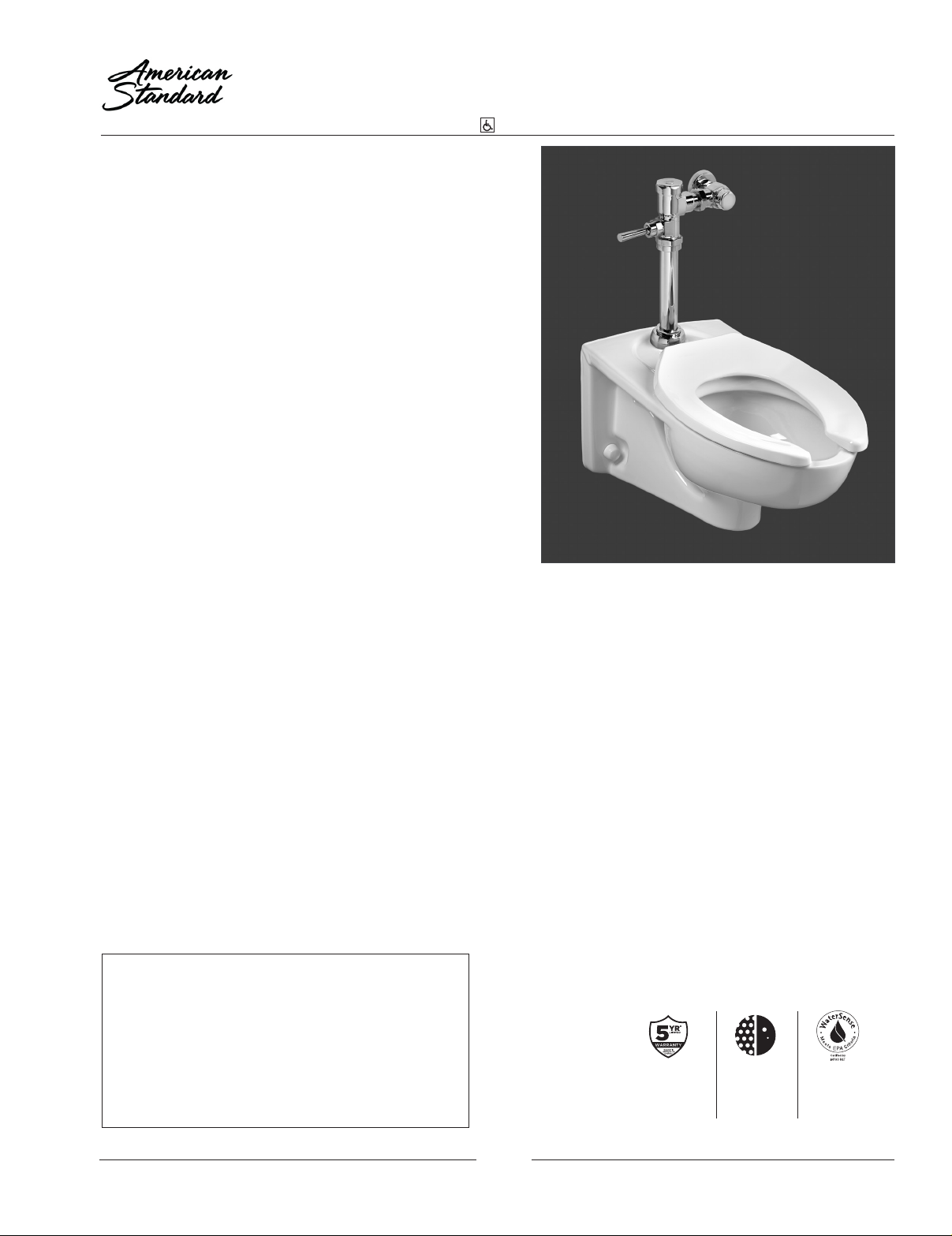

1.1 GPF Flushometer Toilet System
BARRIER FREE
Afwall® Millenium™ FloWise
Flushometer Toilet System with EverClean
❏ 285 6 .111 1.1 gpf Exposed Top Spud Bowl
and Manual Flush Valve
BOWL:
• Wall-mount elongated ushometer valve toilet
• Vitreous china
• High Efficiency. Operates in the range of 1.1 gpf to
1.6 gpf (4.2 Lpf to 6.0 Lpf)
• Permanent EverClean® anti-microbial surface inhibits
the growth of stain- and odor-causing bacteria, mold,
and mildew on the surface
• Condensation channel
• Direct-fed siphon jet action
• 1-1/2" inlet spud
• Fully-glazed 2-1/8" trapway
• 10" x 12" water surface area
• 100% factory ush tested
• Bolt caps and seat not included
• Model 3351.101
MANUAL FLUSH VALVE:
• Manual Piston-Type Water Closet Flush Valve for
oor-mounted or wall-hung 1-1/2" top spud bowls
• Self-cleaning brass piston with integral wiper spring
prevents clogging and reduces maintenance
• Piston operation delivers superior ush accuracy
and repeatability
• Piston valve remains closed and does not need
to be reset after loss of water pressure
• ADA compliant non-hold open handle provides
automatic shut-off after every ush
• Positive seal ensures leak-free performance
• No external volume adjustment
• Durable chrome-plated cast brass construction
is ideal for commercial applications
• Chloramine-resistant EPDM seals
• Adjustable tailpiece for rough-in exibility
• Can be installed left or right handed
• M od el 60 47.111. 0 0 2
Includes:
• 047007-0070A Inlet spud (furnished with bowl)
• 1" I.P.S. angle stop with back-ow prevention and
vandal-resistant cap
• Sweat solder kit including cover tube and wall ange
• High back pressure vacuum breaker with down tube
• Spud coupling & ange for 1-1/2" top spud
®
1.1 GPF
®
Afwall
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
®
Millenium™ FloWise
with EVERCLEAN
MANUAL FLUSH VALVE
®
High-Efficiency Toilet Systems:
• 31.3% water savings when compared to a 1.6 gpf
toilet system
System MaP* Score:
• 1,000 grams of miso @ 1.1 gpf
* Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Veritec
Consulting, Inc. and Koeller and Company.
Operating Pressure:
25 psi (owing) - 80 psi (static)
Flow Requirement:
25gpm (94.6 L/min.)
Nominal Fixture Dimensions:
660 x 356 x 381mm (26" x 14" x 15")
®
To Be Specied:
❏ Color: ❏ White
❏ Seat: 5901.100 American Standard Seat
❏ 5901.110 American Standard Seat with EverClean
❏ Alternate Seat: 5905.100 Heavy Duty
American Standard Seat
❏ 5905.110 Heavy Duty American Standard Seat
with EverClean
❏ Carrier Fitting (by others):
®
EPA
WATERSENSE
CERTIFIED
N3
WARRANTY on
FIXTURE and
FLUSH VALVE
spec_ 2856.111 AfwallEC Millenium FW 1.1gpf Rev. 3 1/2020
EVERCLEAN5-YEAR LIMITED
© 2020 AS America Inc.
Page 2

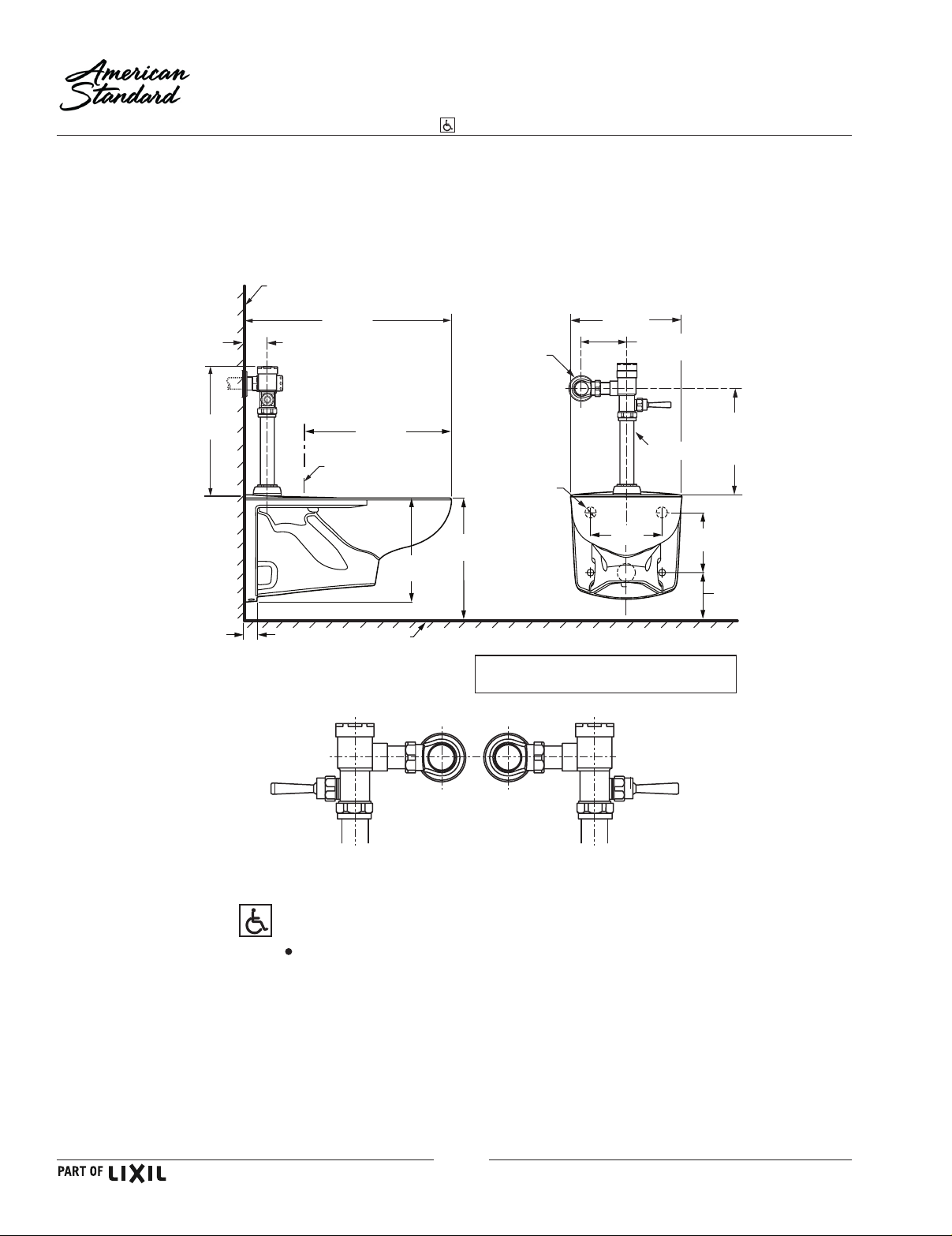

Afwall
2859.016
2859.128
2856.128
2856.016
2856.111
®
Millenium™ FloWise
1.1 GPF Flushometer Toilet System
BARRIER FREE
with EVERCLEAN
MANUAL FLUSH VALVE
®
®
Fixture Compliance Certications Meets or Exceeds the Following
Specications:
• ASME A112.19.2-2008 / CSA B45.1-08
for Vitreous China Fixtures
FINISHED WALL
660mm
73mm
(2-7/8")
343mm
(13-1/2")
C/L OF SEAT POST
HOLES 140 mm
(5-1/2") CENTER
(26")
470mm
(18-1/2")
333mm
(13-1/8")
Valve Listings:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
SUPPLY
DN 25mm
(1" I.P.S.)
(4) Ø 22mm
(7/8") HOLES
381mm
(15")
356mm
(14")
108 -133mm
(4-1/4" to 5-1/4")
-C-L-
*CRITICAL
LEVEL
229mm
(9")
ROUGH-IN
DIMENSION
293mm
(11- 1/2")
191mm
(7-1/2")
133mm
(5-1/4")
41mm
(1-5/8")
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE BUILDINGS AND
FACILITIES - CHECK LOCAL CODES.
When installed so that top of seat is 432 to 483mm (17" to 19") from the finished floor.
NOTES:
WASTE OUTLET SEAL RING MUST BE NEOPRENE OR GRAPHITE-FELT (WAX R ING
NOT RECOMMENDED).
SUGGESTED 2mm (1/16) CLEARANCE BETWEEN FACE OF WALL AND BACK OF BOWL .
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM BREAKER ON
THE FLUSHOMETER VALVE, THE PLUMBER MUST VERIFY DIMENSIONS SHOWN FOR
SUPPLY ROUGHING.
CARRIER FITTING AS REQUIRED TO BE FURNISHED BY OTHERS.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORT.
IMPORTANT: Dimensions of xtures are nominal and may var y within the range of
tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for
use of superseded or voided pages
FINISHED
FLOOR
*Note: The Critical Line (-C-L-) on Vacuum Breaker
must typically be a minimum of 6" (152mm) above
fixture. Consult Codes for details.
VALVE LEFT or RIGHT HAND INSTALLAT ION
N4
© 2020 AS America Inc.
spec_ 2856.111 AfwallEC Millenium FW 1.1gpf Rev. 3 1/2020
