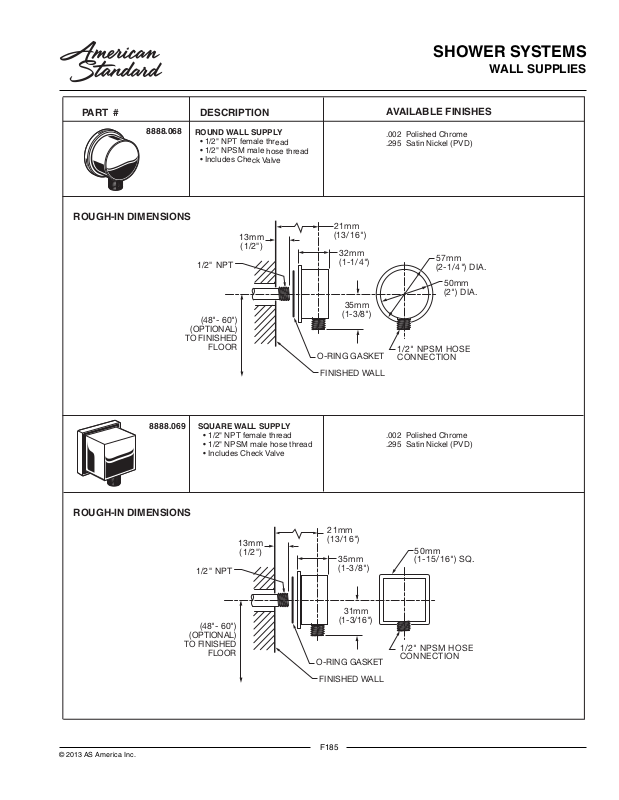

SHOWER SYSTEMS
WALL SUPPLIES
PART #
8888.068

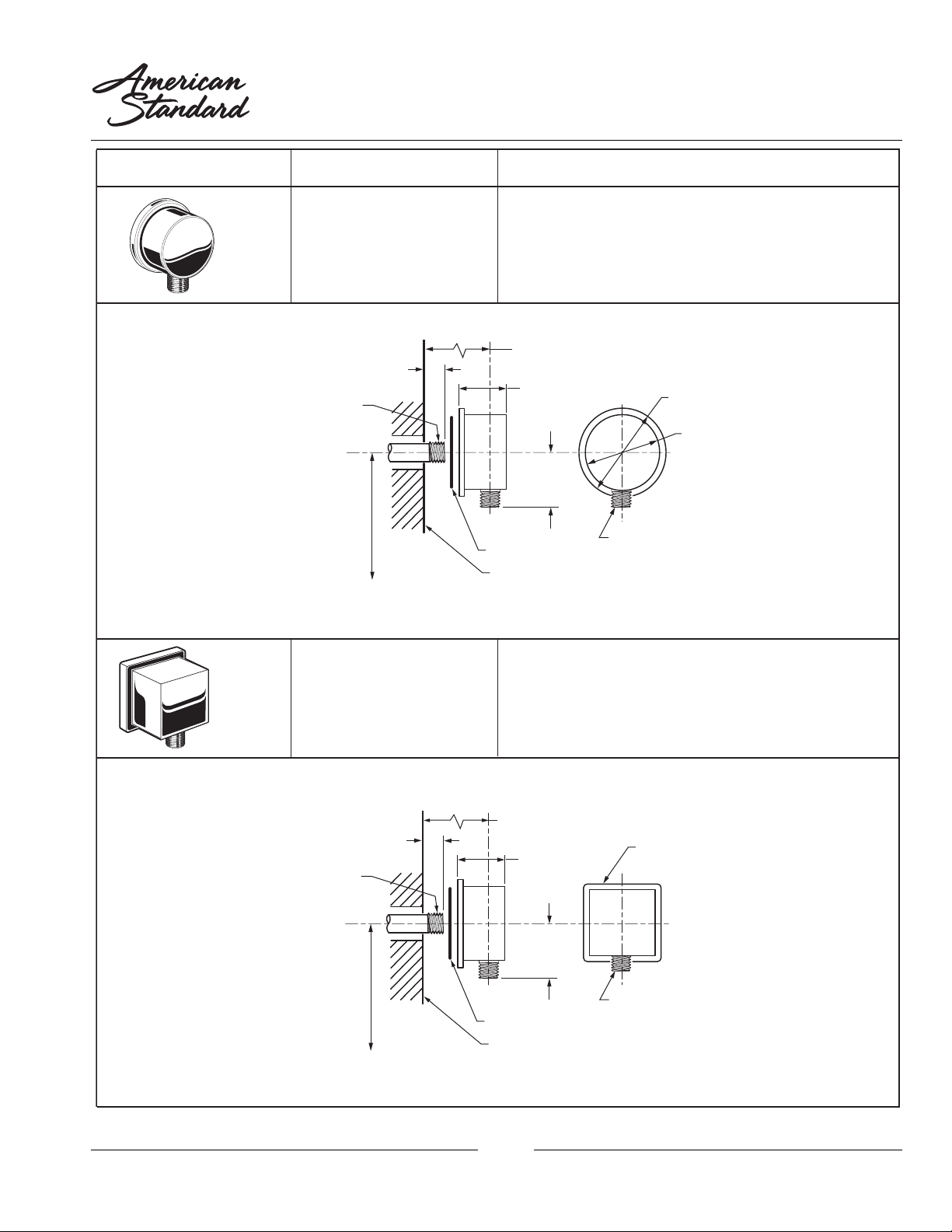

ROUGH-IN DIMENSIONS
DESCRIPTION
ROUND WALL SUPPLY
• 1/2" NPT female thread
• 1/2" NPSM male hose thread
• Includes Check Valve
13mm
(1/2")
1/2" NPT
(48"- 60")
(OPTIONAL)
TO FINISHED
FLOOR
21mm
(13/16")
32mm
(1-1/4")
35mm
(1-3/8")
O-RING GASKET
FINISHED WALL
AVAILABLE FINISHES
.002 Polished Chrome
.295 Satin Nickel (PVD)
57mm
(2-1/4") DIA.
50mm
(2") DIA.
1/2" NPSM HOSE
CONNECTION
8888.069
ROUGH-IN DIMENSIONS
SQUARE WALL SUPPLY
• 1/2" NPT female thread
• 1/2" NPSM male hose thread
• Includes Check Valve
13mm
(1/2")
1/2" NPT
(48"- 60")
(OPTIONAL)
TO FINISHED
FLOOR
21mm
(13/16")
35mm
(1-3/8")
31mm
(1-3/16")
O-RING GASKET
FINISHED WALL
.002 Polished Chrome
.295 Satin Nickel (PVD)
50mm
(1-15/16") SQ.
1/2" NPSM HOSE
CONNECTION
© 2013 AS America Inc.
F185
