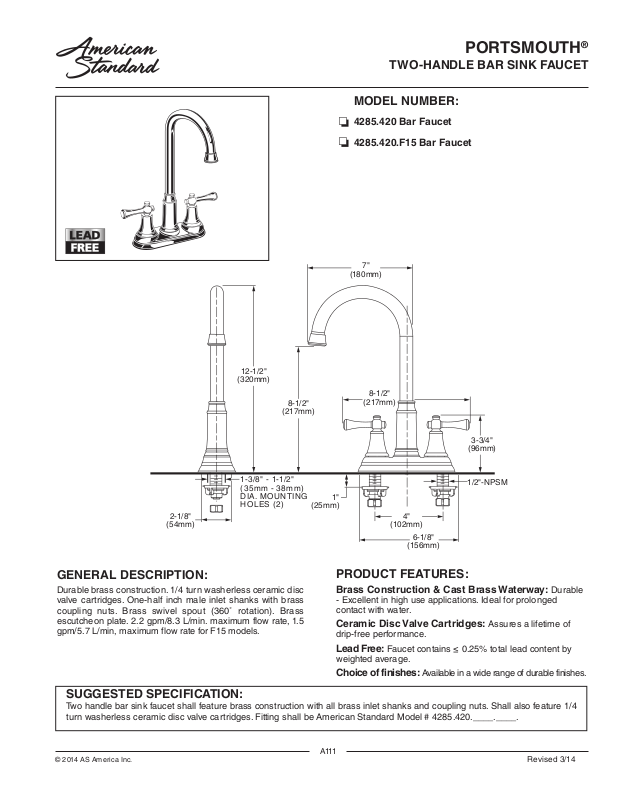

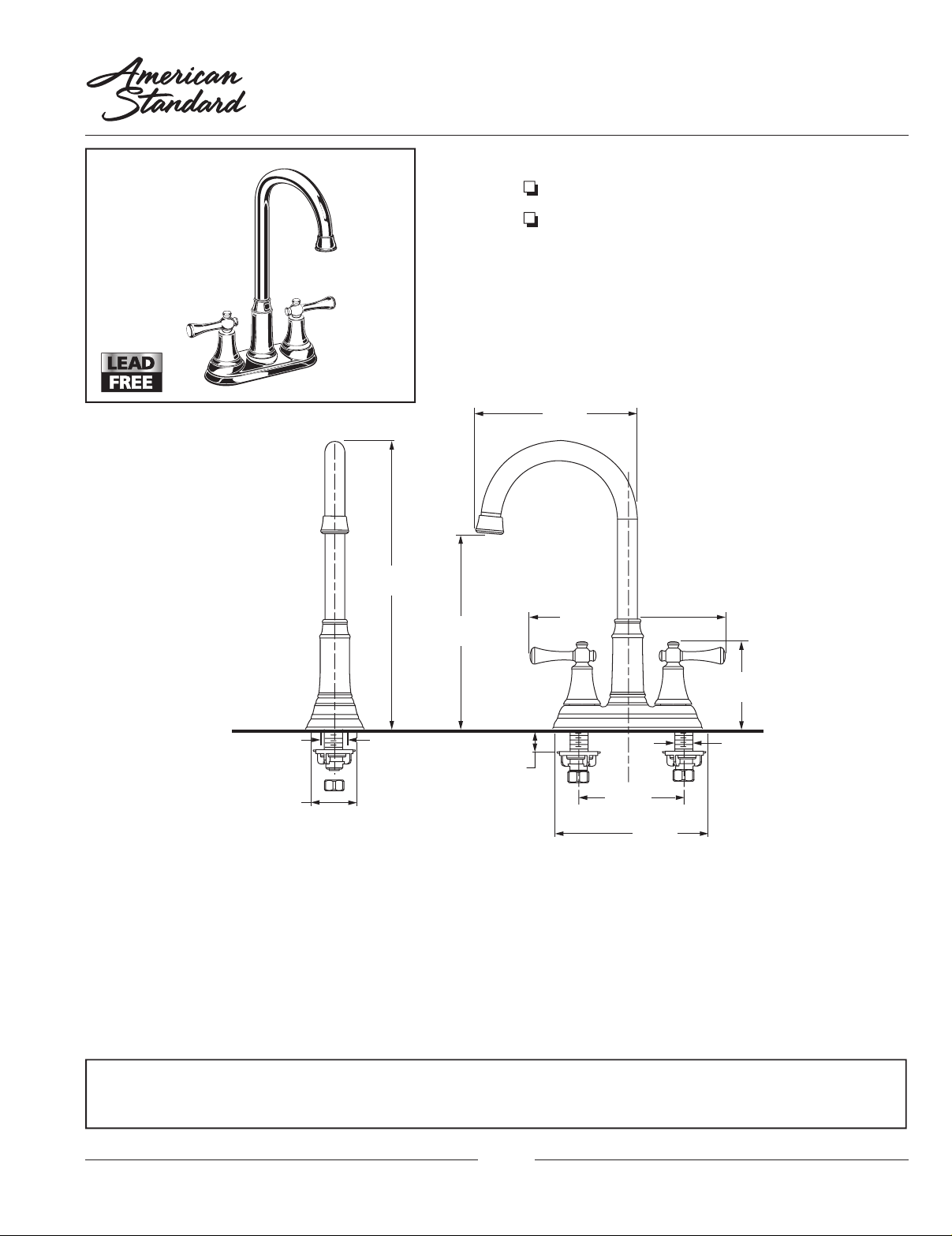

Page 1
TWO-HANDLE BAR SINK FAUCET
MODEL NUMBER:
4285.420 Bar Faucet
4285.420.F15 Bar Faucet
7"
(180mm)
PORTSMOUTH
®
12-1/2"
(320mm)
8-1/2"
(217mm)
1-3/8" - 1-1/2"
(35mm - 38mm)
DIA. MOUNTING
HOLES (2)
2-1/8"
(54mm)
GENERAL DESCRIPTION:
Durable brass construction. 1/4 turn washerless ceramic disc
valve cartridges. One-half inch male inlet shanks with brass
coupling nuts. Brass swivel spout (360˚ rotation). Brass
escutcheon plate. 2.2 gpm/8.3 L/min. maximum flow rate,
gpm/5.7 L/min, maximum flow rate for F15 models.
1.5
8-1/2"
(217mm)
3-3/4"
(96mm)
1/2"-NPSM
1"
(25mm)
4"
(102mm)
6-1/8"
(156mm)
PRODUCT FEATURES:
Brass Construction & Cast Brass Waterway: Durable
- Excellent in high use applications. Ideal for prolonged
contact with water.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Choice of finishes: Available in a wide range of durable finishes.
SUGGESTED SPECIFICATION:
Two handle bar sink faucet shall feature brass construction with all brass inlet shanks and coupling nuts. Shall also feature 1/4
turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 4285.420.____.____.
© 2014 AS America In c.
A111
Revised 3/14

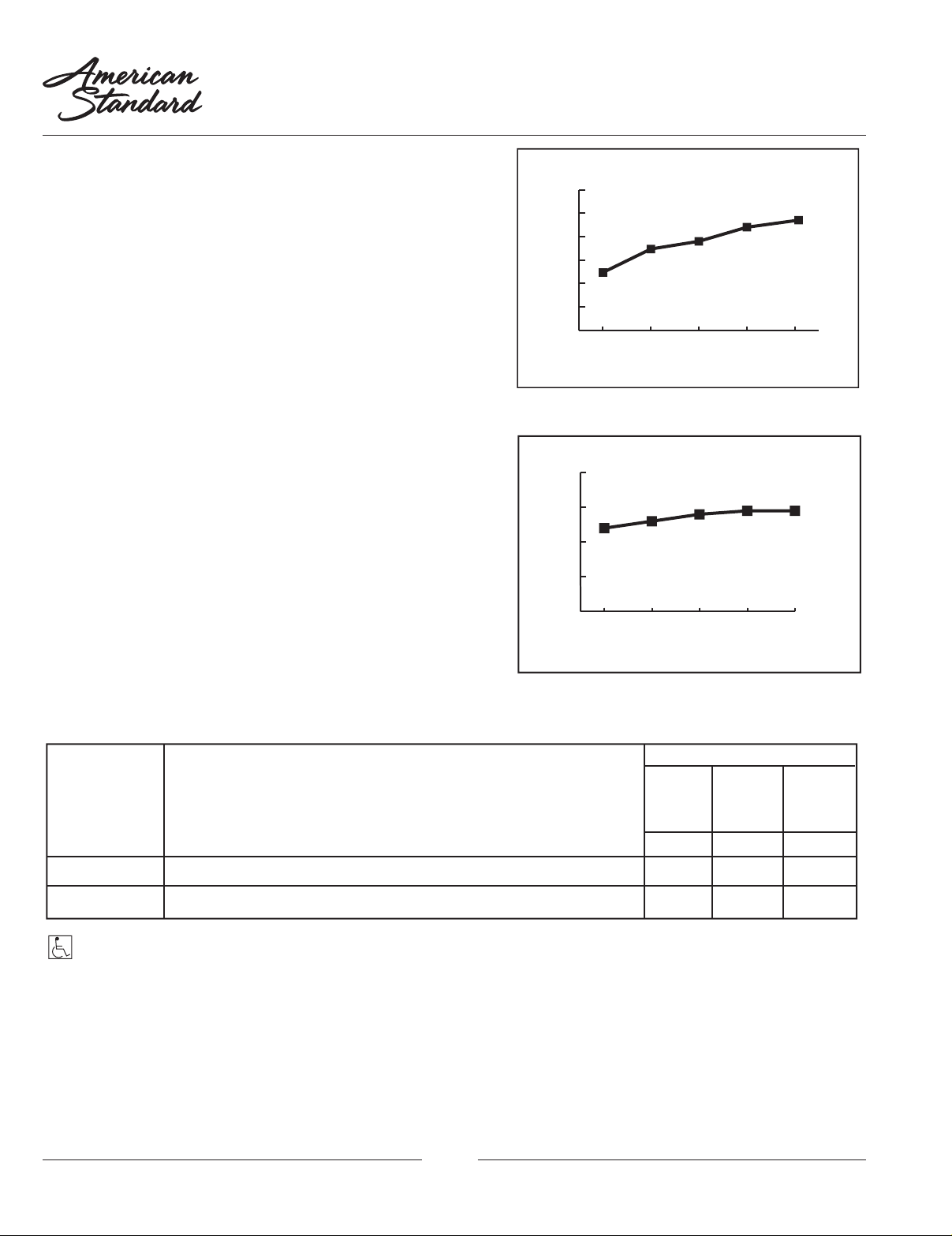

Page 2
PORTSMOUTH
TWO-HANDLE BAR SINK FAUCET
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B 125
NSF 61/Section 9 & Annex G
ANSI A117.1
FLOW RATE*
3.0
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
2.2gpm/8.3L/min. FLOW RATE
FLOW RATE*
INLET PRESSURE (PSI)
10080604020
10080604020
Product
Number
4285.420
4285.420.F15
Description
Two Handle Bar Faucet - 2.2 gpm/8.3 L/min. maximum flow rate
Two Handle Bar Faucet - 1.5 gpm/5.7 L/min. maximum flow rate
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
1. 5 gpm/5.7 L/min. FLOW RATE
Finish Options
Polished
Chrome
002
Stainless
Steel
(PVD)
075
Oil
Rubbed
Bronze
224
