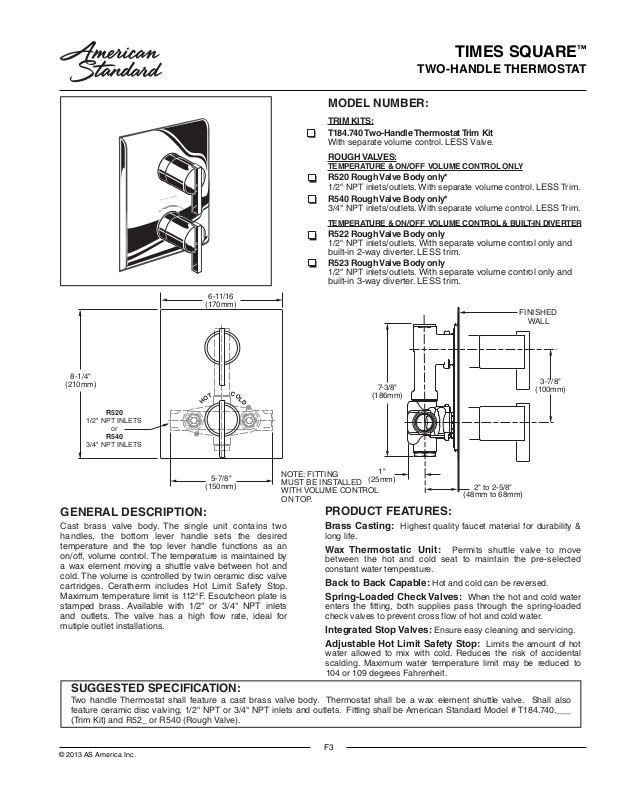

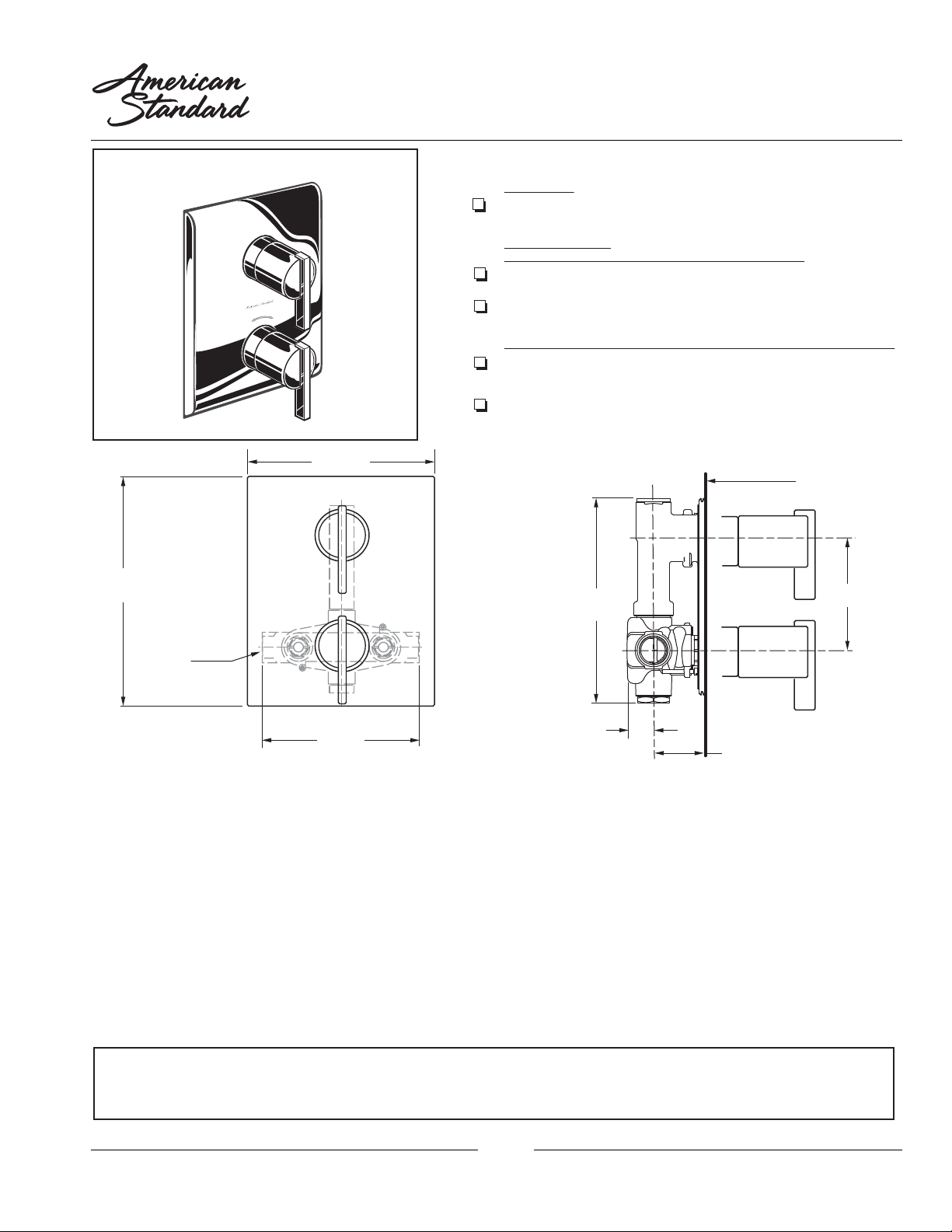

Page 1
TIMES SQUARE™
TWO-HANDLE THERMOSTAT
MODEL NUMBER:
TRIM KITS:
T184.740 Two-Handle Thermostat Trim Kit
With separate volume control. LESS Valve.
ROUGH VALVES:
TEMPERATURE & ON/OFF VOLUME CONTROL ONLY
R520 Rough Valve Body only*
1/2" NPT inlets/outlets. With separate volume control. LESS Trim.
C
O
L
D
T
O
H
6-11/16
(170mm)
R540 Rough Valve Body only*
3/4" NPT inlets/outlets. With separate volume control. LESS Trim.
TEMPERATURE & ON/OFF VOLUME CONTROL & BUILT-IN DIVERTER
R522 Rough Valve Body only
1/2" NPT inlets/outlets. With separate volume control only and
built-in 2-way diverter. LESS trim.
R523 Rough Valve Body only
1/2" NPT inlets/outlets. With separate volume control only and
built-in 3-way diverter. LESS trim.
FINISHED
WALL
8-1/4"
(210mm)
1/2" NPT INLETS
3/4" NPT INLETS
R520
or
R540
T
O
H
5-7/8"
(150mm)
C
O
L
D
NOTE: FITTING
MUST BE INSTALLED
WITH VOLUME CONTROL
ON TOP.
GENERAL DESCRIPTION:
Cast brass valve body. The single unit contains two
handles, the bottom lever handle sets the desired
temperature and the top lever handle functions as an
on/off, volume control. The temperature is maintained by
a wax element moving a shuttle valve between hot and
cold. The volume is controlled by twin ceramic disc valve
cartridges. Ceratherm includes Hot Limit Safety Stop.
Maximum temperature limit is 112°F. Escutcheon plate is
stamped brass.
and outlets.
mutiple outlet installations.
Available with 1/2" or 3/4" NPT inlets
The valve has a high flow rate, ideal for
7-3/8"
(186mm)
1"
(25mm)
2" to 2-5/8"
(48mm to 68mm)
PRODUCT FEATURES:
Brass Casting: Highest quality faucet material for durability &
long life.
Wax Thermostatic Unit: Permits shuttle valve to move
between the hot and cold seat to maintain the pre-selected
constant water temperature.
Back to Back Capable: Hot and cold can be reversed.
Spring-Loaded Check Valves: When the hot and cold water
enters the fitting, both supplies pass through the spring-loaded
check valves to prevent cross flow of hot and cold water.
Integrated Stop Valves: Ensure easy cleaning and servicing.
3-7/8"
(100mm)
Adjustable Hot Limit Safety Stop: Limits the amount of hot
water allowed to mix with cold. Reduces the risk of accidental
scalding. Maximum water temperature limit may be reduced to
104 or 109 degrees Fahrenheit.
SUGGESTED SPECIFICATION:
Two handle Thermostat shall feature a cast brass valve body. Thermostat shall be a wax element shuttle valve. Shall also
feature ceramic disc valving, 1/2" NPT or 3/4" NPT inlets and outlets. Fitting shall be American Standard Model # T184.740.___
(Trim Kit) and R52_ or R540 (Rough Valve).
© 2013 AS America Inc.
F3

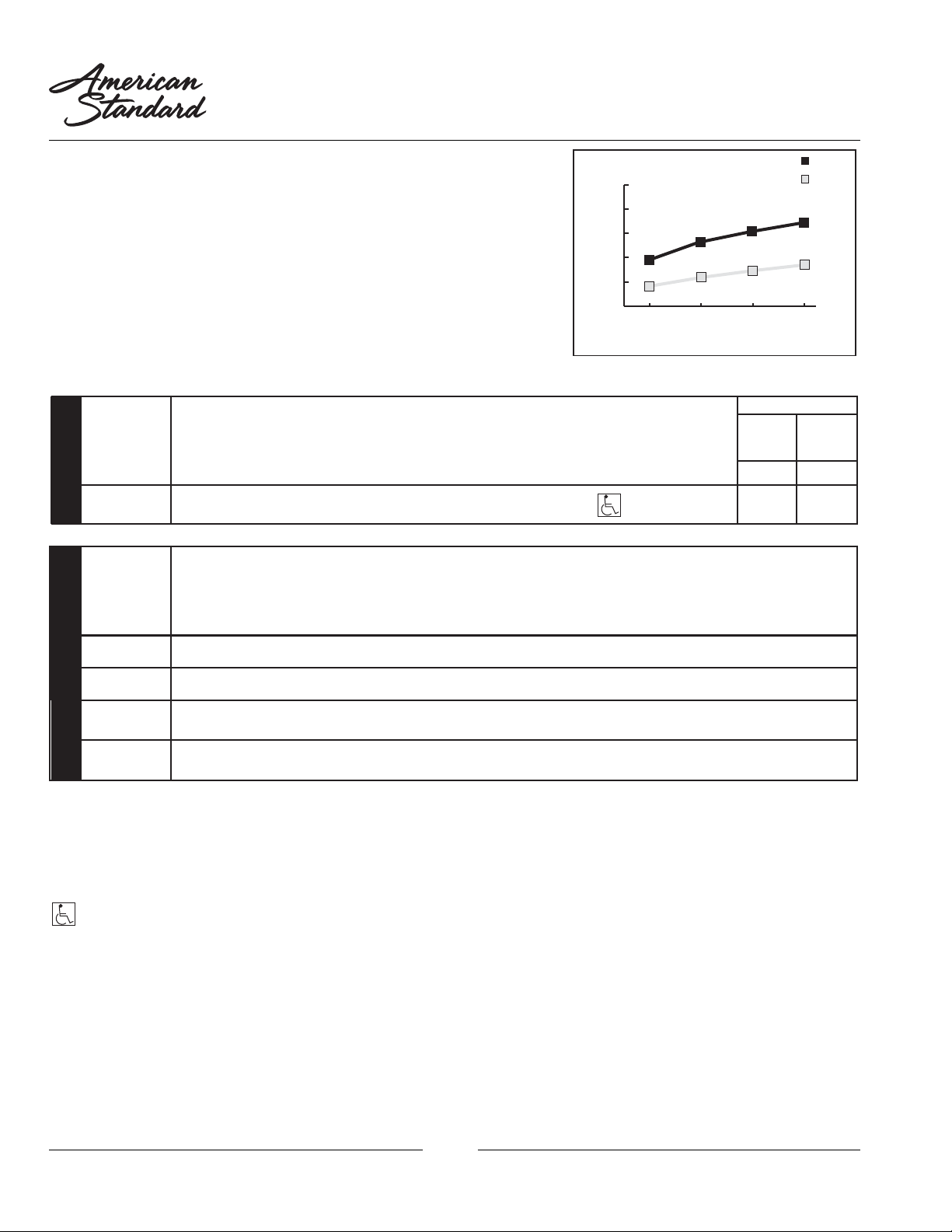

Page 2
TIMES SQUARE™
TWO-HANDLE THERMOSTAT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASSE 1016
ASME A112.18.1
CSA B125
Product
Number
T184.740
TRIM KITS**
Product
Number
Description
*
Two-handle Thermostat Trim Kit with separate volume control.
Description
FLOW RATE*
25
20
15
10
5
GALLONS PER MINUTE
0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002
3/4"
1/2"
80604020
PVD
Satin
Nickel
295
*
R520
*
R540
BODIES
R522
ROUGH VALVE
R523
*NOTE:
**
When used as a Bath/Shower a separate diverter valve is required (such as R420 or R430).
Requires twin ell (must be ordered separately) for use with diverter spouts.
ROUGH & TRIM MUST BE ORDERED SEPARATELY.
Rough Valve Body less trim - 1/2" NPT Inlets/Outlets. With separate volume control only. LESS trim.
Rough Valve Body less trim - 3/4" NPT Inlets/Outlets. With separate volume control only. LESS trim.
Rough Valve Body less trim - 1/2" NPT Inlets/Outlets. With separate volume control and
built-in 2-way diverter. LESS trim.
Rough Valve Body less trim - 1/2" NPT Inlets/Outlets. With separate volume control and
built-in 3-way diverter. LESS trim.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2013 AS America Inc.
F4
