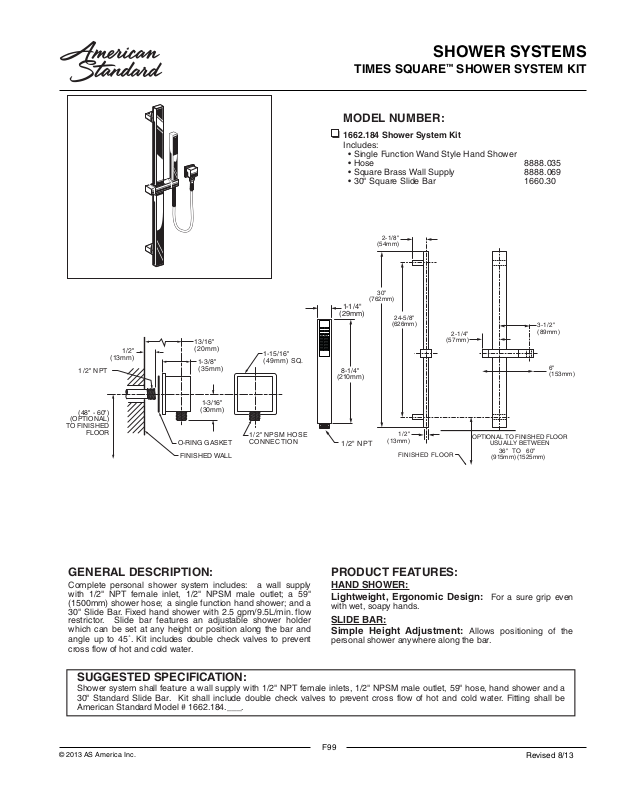

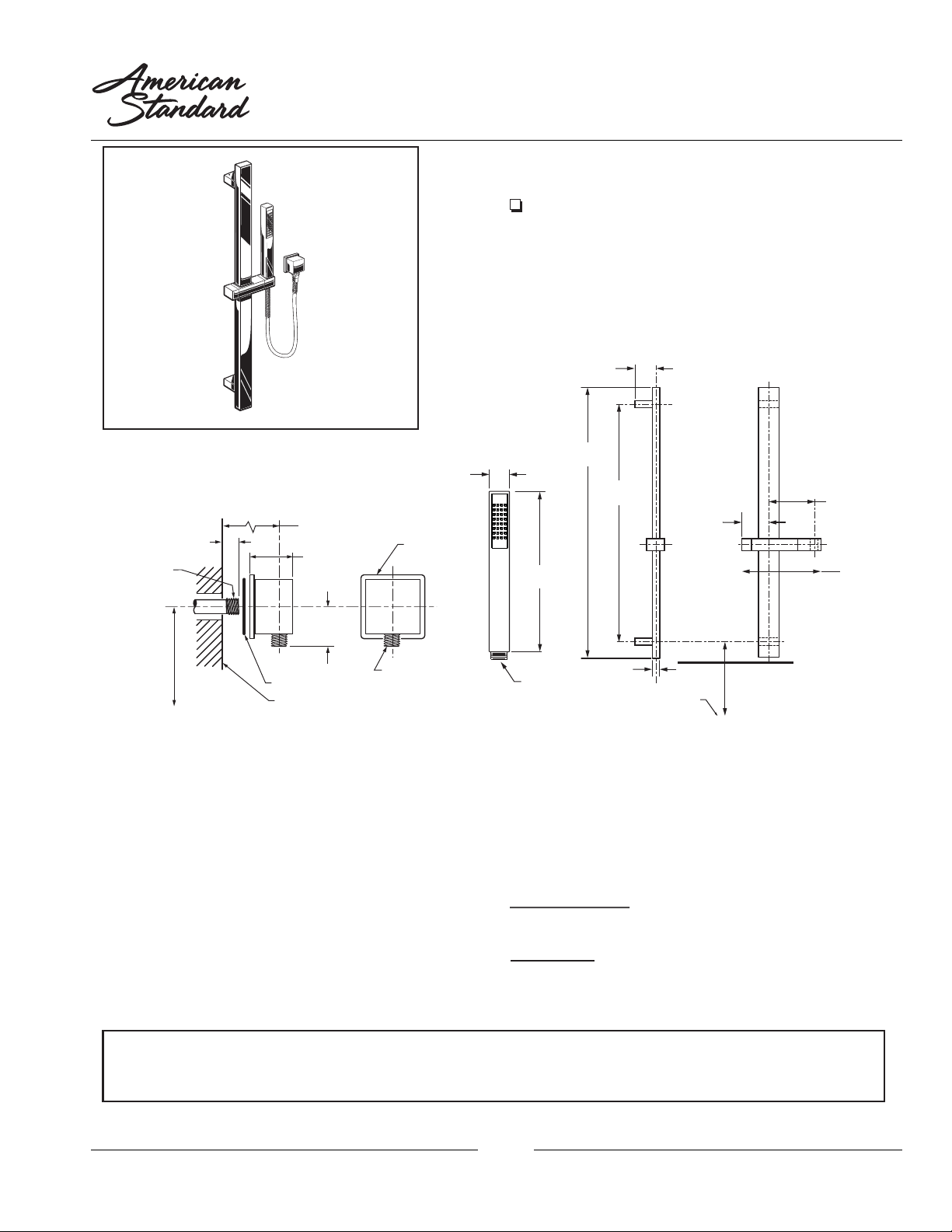

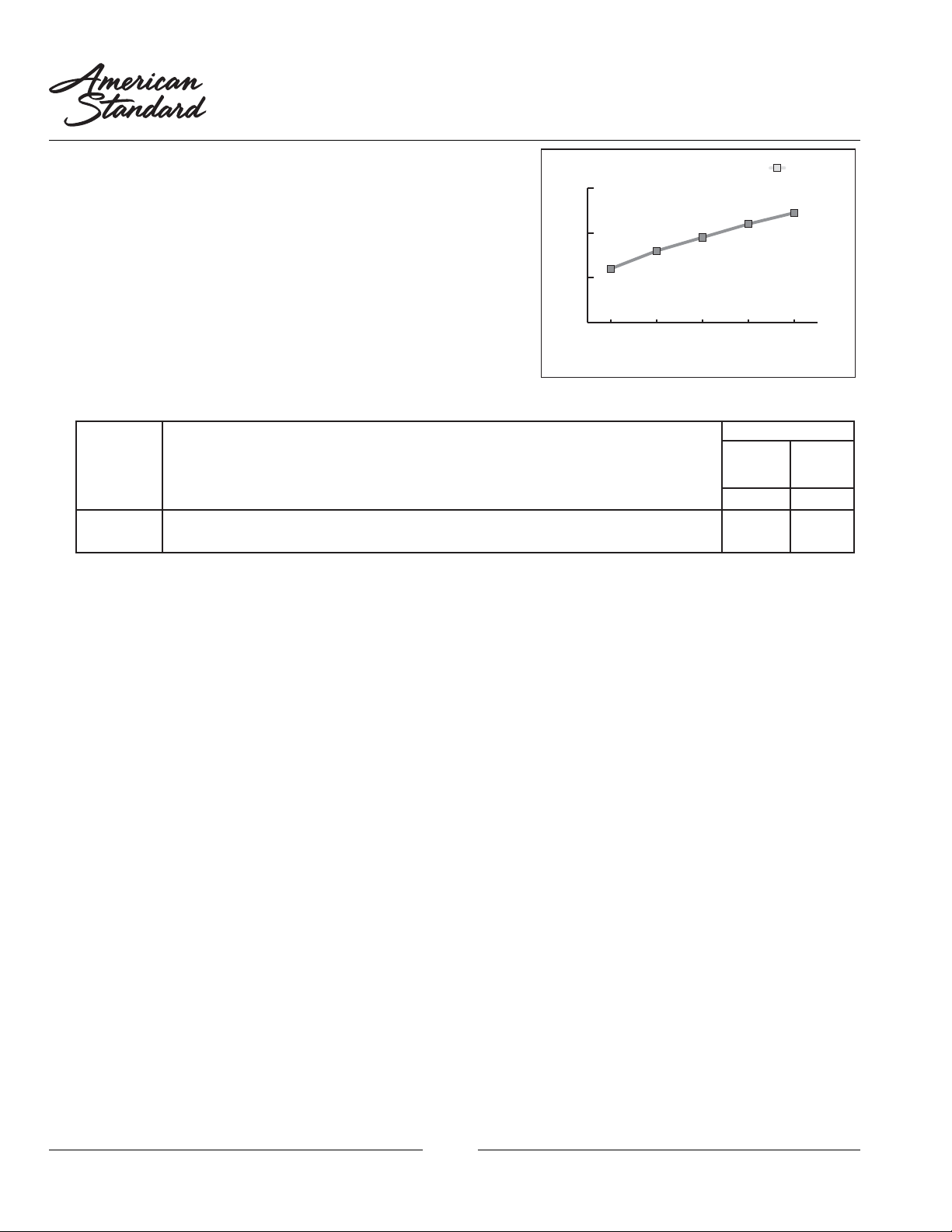

SHOWER SYSTEMS
TIMES SQUARE™ SHOWER SYSTEM KIT
MODEL NUMBER:
1662.184 Shower System Kit
Includes:
• Single Function Wand Style Hand Shower
• Hose
• Square Brass Wall Supply
• 30" Square Slide Bar
2-1/8"
(54mm)
30"
(762mm)
1-1/4"
(29mm)
8-1/4"
(210mm)
24-5/8"
(626mm)
2-1/4"
(57mm)
8888.035
8888.069
1660.30
3-1/2"
(89mm)
6"
(153mm)
1- 3/ 16 "
(48" - 60")
(OPTIONAL)
TO FINISHED
FLOOR
GENERAL DESCRIPTION:
Complete personal shower system includes: a wall supply
with 1/2" NPT female inlet, 1/2" NPSM male outlet; a 59"
(1500mm) shower hose; a single function hand shower; and a
30" Slide Bar. Fixed hand shower with 2.5 gpm/9.5L/min. flow
restrictor. Slide bar features an adjustable shower holder
which can be set at any height or position along the bar and
angle up to 45˚. Kit includes double check valves to prevent
(30mm)
O-RING GASKET
FINISHED WALL
1/2" NPSM HOSE
CONNECTION
1/2" NPT
1/2"
(13mm)
FINISHED FLOOR
OPTIONAL TO FINISHED FLOOR
USUALLY BETWEEN
36"
(915mm)
PRODUCT FEATURES:
HAND SHOWER:
Lightweight, Ergonomic Design:
with wet, soapy hands.
SLIDE BAR:
Simple Height Adjustment:
personal shower anywhere along the bar.
For a sure grip even
Allows positioning of the
60"
TO
(1525mm)
cross flow of hot and cold water.
SUGGESTED SPECIFICATION:
Shower system shall feature a wall supply with 1/2" NPT female inlets, 1/2" NPSM male outlet, 59" hose, hand shower and a
30" Standard Slide Bar. Kit shall include double check valves to prevent cross flow of hot and cold water. Fitting shall be
American Standard Model # 1662.184.___.
© 2013 AS America Inc.
F99
Revised 8/13
Page 2
SHOWER SYSTEMS
TIMES SQUARE™ SHOWER SYSTEM KIT
CODES AND STANDARDS
Install as required to comply with local code
requirements.
ASME A112.18.1
CSA 125
Product
Number
1662.184
Description
Shower System Kit. Contains single function wand hand shower, hose,
wall supply and slide bar.
3
2
1
GALLONS PER MINUTE
0
INLET PRESSURE (PSI)
FLOW RATE
Finish
Polished
Chrome
002
Hand Shower
10080604020
Satin
Nickel
PVD
295
