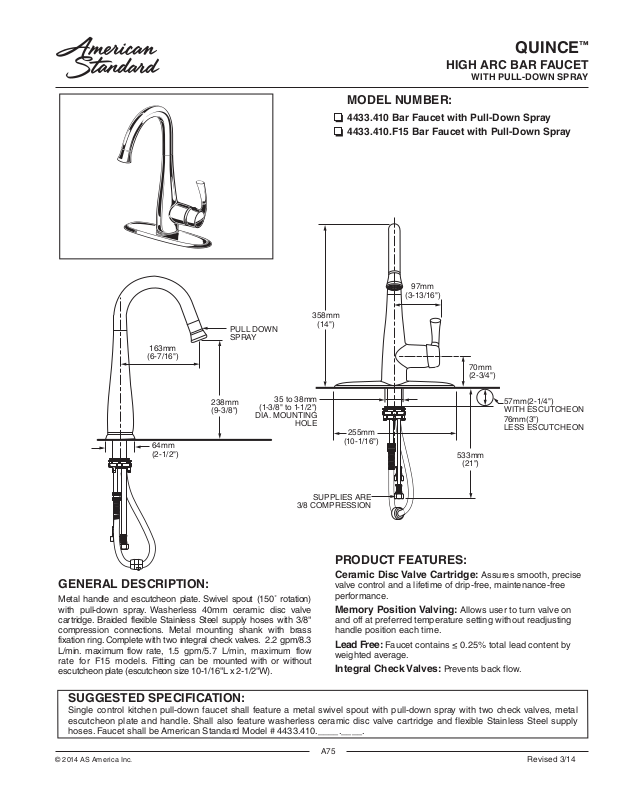

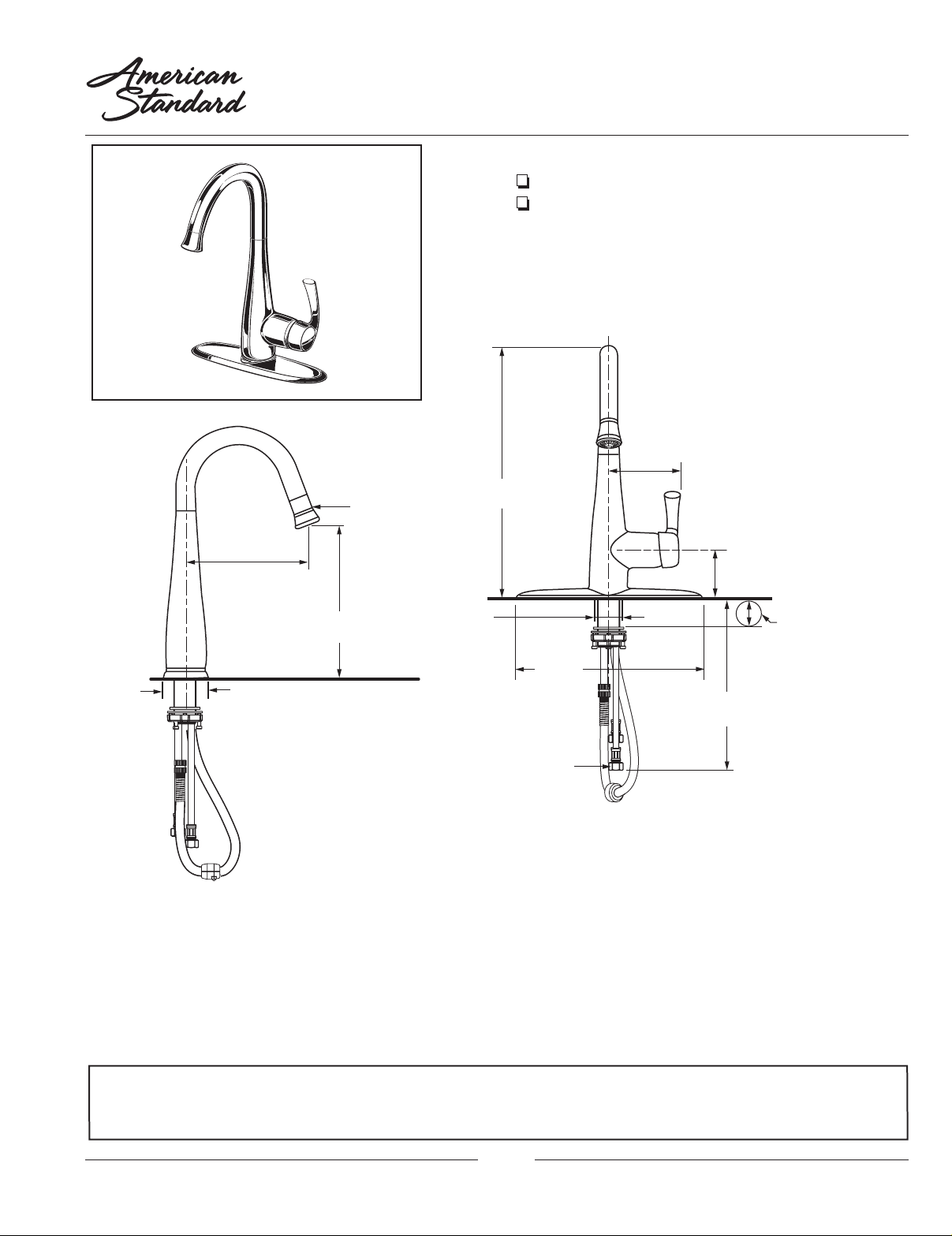

163mm
(6-7/16")
PULL DOWN
SPRAY
358mm
(14")
QUINCE™
HIGH ARC BAR FAUCET
WITH PULL- DOWN SPRAY
MODEL NUMBER:
4433.410 Bar Faucet with Pull-Down Spray
4433.410.F15 Bar Faucet with Pull-Down Spray
97mm
(3-13/16")
70mm
(2-3/4")
35 to 38mm
(1-3/8" to 1-1/2")
DIA. MOUNTING
HOLE
3/8 COMPRESSION
64mm
(2-1/2")
238mm
(9-3/8")
GENERAL DESCRIPTION:
Metal handle and escutcheon plate. Swivel spout (150˚ rotation)
with pull-down spray. Washerless 40mm ceramic disc valve
cartridge. Braided flexible Stainless Steel supply hoses with 3/8"
compression connections. Metal mounting shank with brass
fixation ring. Complete with two integral check valves. 2.2 gpm/8.3
L/min. maximum flow rate,
rate for F15 models.
escutcheon plate (escutcheon size 10-1/16"L x 2-1/2"W).
1.5 gpm/5.7 L/min, maximum flow
Fitting can be mounted with or without
57mm(2-1/4")
WITH ESCUTCHEON
76mm(3")
255mm
(10-1/16")
SUPPLIES ARE
533mm
(21")
LESS ESCUTCHEON
PRODUCT FEATURES:
Ceramic Disc Valve Cartridge: Assures smooth, precise
valve control and a lifetime of drip-free, maintenance-free
performance.
Memory Position Valving: Allows user to turn valve on
and off at preferred temperature setting without readjusting
handle position each time.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Integral Check Valves: Prevents back flow.
SUGGESTED SPECIFICATION:
Single control kitchen pull-down faucet shall feature a metal swivel spout with pull-down spray with two check valves, metal
escutcheon plate and handle. Shall also feature washerless ceramic disc valve cartridge and flexible Stainless Steel supply
hoses. Faucet shall be American Standard Model # 4433.410.____.____.
© 2014 AS America In c.
A75
Revised 3/14
Page 2
QUINCE™
HIGH ARC BAR FAUCET
WITH PULL- DOWN SPRAY
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
NSF 61/Section 9 & Annex G
CSA B125

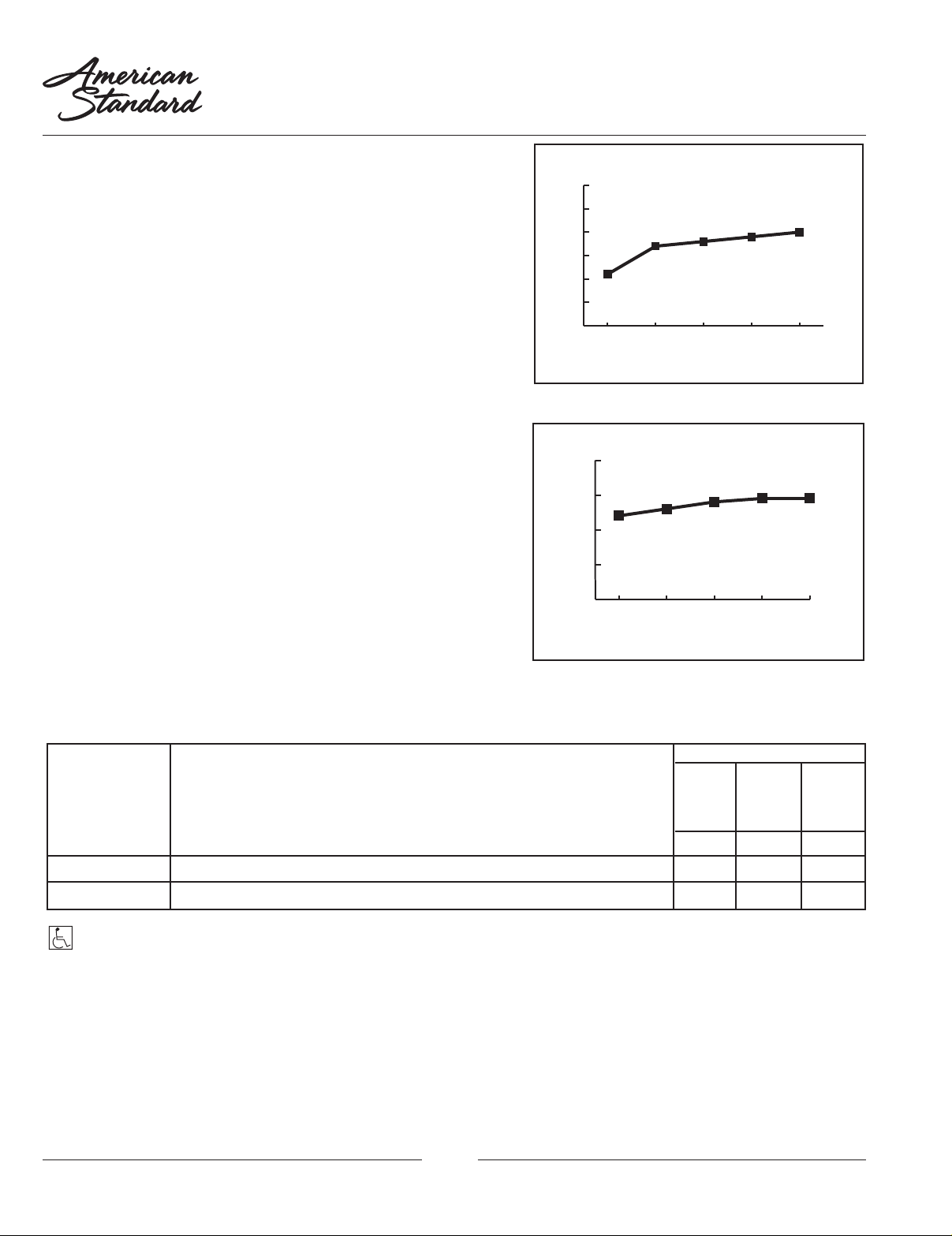

FLOW RATE*
3.0
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
2.2 gpm/8.3 L/min. FLOW RATE
FLOW RATE*
INLET PRESSURE (PSI)
1. 5 gpm/5.7 L/min. FLOW RATE
10080604020
10080604020
Product
Number
4433.410
4433.410.F15
Description
Pull-Down Bar Faucet - 2.2 gpm/8.3 L/min. maximum flow rate
Pull-Down Bar Faucet - 1.5 gpm/5.7 L/min. maximum flow rate
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2014 AS America In c.
A76
Finish Options
Polished
Chrome
002
Stainless
Steel
(PVD)
075
Revised 3/14
Oil
Rubbed
Bronze
224
