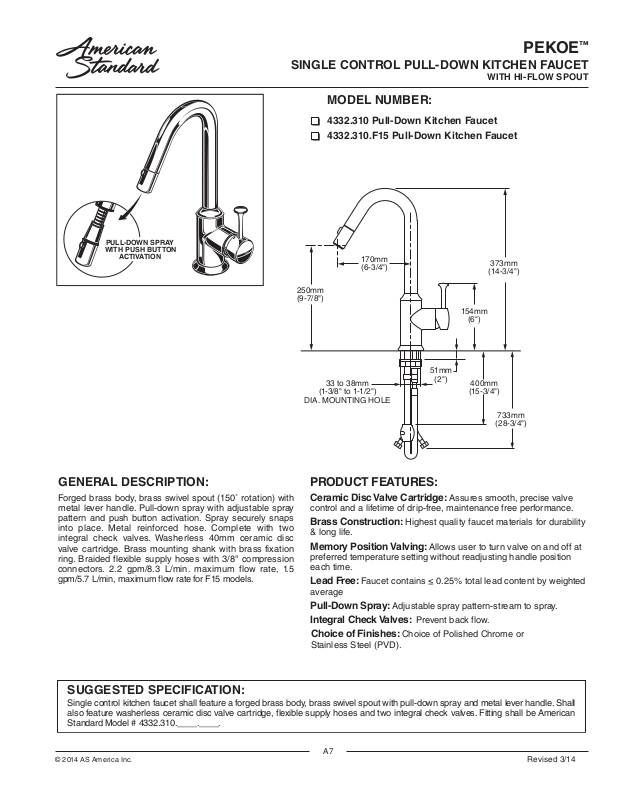

Page 1
PULL-DOWN SPRAY
WITH PUSH BUTTON
ACTIVATION
PEKOE
™
SINGLE CONTROL PULL-DOWN KITCHEN FAUCET
WITH HI-FLOW SPOUT
MODEL NUMBER:
4332.310 Pull-Down Kitchen Faucet
4332.310.F15 Pull-Down Kitchen Faucet
250mm
(9-7/8
170mm
")
(6-3/4
")
373mm
(14-3/4")
154mm
(6")
GENERAL DESCRIPTION:
Forged brass body, brass swivel spout (150˚ rotation) with
metal lever handle. Pull-down spray with adjustable spray
pattern and push button activation. Spray securely snaps
into place. Metal reinforced hose. Complete with two
integral check valves. Washerless 40mm ceramic disc
valve cartridge. Brass mounting shank with brass fixation
ring. Braided flexible supply hoses with 3/8" compression
connectors. 2.2 gpm/8.3 L/min. maximum flow rate
gpm/5.7 L/min, maximum flow rate for F15 models.
, 1.5
51mm
33 to 38mm
(1-3/8" to 1-1/2")
DIA. MOUNTING HOLE
(2")
400mm
(15-3/4
)
"
733mm
(28-3/4")
PRODUCT FEATURES:
Ceramic Disc Valve Cartridge: Assures smooth, precise valve
control and a lifetime of drip-free, maintenance free performance.
Brass Construction: Highest quality faucet materials for durability
& long life.
Memory Position Valving: Allows user to turn valve on and off at
preferred temperature setting without readjusting handle position
each time.
Lead Free: Faucet contains ≤ 0.25% total lead content by weighted
average
Pull-Down Spray: Adjustable spray pattern-stream to spray.
Integral Check Valves: Prevent back flow.
Choice of Finishes: Choice of Polished Chrome or
Stainless Steel (PVD).
SUGGESTED SPECIFICATION:
Single control kitchen faucet shall feature a forged brass body, brass swivel spout with pull-down spray and metal lever handle. Shall
also feature washerless ceramic disc valve cartridge, flexible supply hoses and two integral check valves. Fitting shall be American
Standard Model # 4332.310.____.____.
© 2014 AS America In c.
A7
Revised 3/14
Page 2
PEKOE
™
SINGLE CONTROL PULL-DOWN KITCHEN FAUCET
WITH HI-FLOW SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
NSF 61/Section 9 & Annex G
CSA B125
FLOW RATE*
3.0
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
GALLONS PER MINUTE
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
2.2 gpm/8.3 L/min. FLOW RATE
FLOW RATE*
2.0
1.5
1.0
0.5
0.0
INLET PRESSURE (PSI)
1.5 gpm/5.7 L/min. FLOW RATE
10080604020
10080604020
Product
Number
4332.310
4332.310.F15
Description
Pull-down Kitchen Faucet - 2.2 gpm/8.3 L/min. maximum flow rate
Pull-down Kitchen Faucet - 1.5 gpm/5.7 L/min. maximum flow rate
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2014 AS America In c.
A8
Finish Options
Polished
Chrome
002
Stainless
Revised 3/14
PVD
Steel
075
