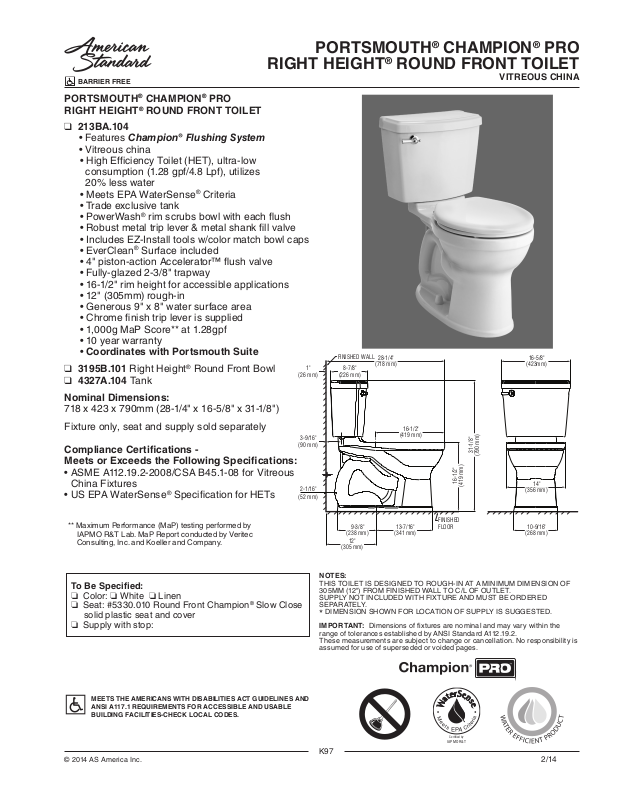

RIGHT HEIGHT® ROUND FRONT TOILET
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES AND
BARRIER FREE
PORTSMOUTH® CHAMPION® PRO
RIGHT HEIGHT® ROUND FRONT TOILET
❑ 213BA.10 4
• Features Champion® Flushing System
• Vitreous china
• High Efficiency Toilet (HET), ultra-low
consumption (1.28 gpf/4.8 Lpf), utilizes
20% less water
• Meets EPA WaterSense® Criteria
• Trade exclusive tank
• PowerWash® rim scrubs bowl with each ush
• Robust metal trip lever & metal shank ll valve
• Includes EZ-Install tools w/color match bowl caps
• EverClean® Surface included
• 4" piston-action Accelerator™ ush valve
• Fully-glazed 2-3/8" trapway
• 16-1/2" rim height for accessible applications
• 12" (305mm) rough-in
• Generous 9" x 8" water surface area
• Chrome nish trip lever is supplied
• 1,000g MaP Score** at 1.28gpf
• 10 year warranty
• Coordinates with Portsmouth Suite
❑ 3195B.10 1 Right Height® Round Front Bowl
❑ 4327A .104 Tan k
Nominal Dimensions:
718 x 423 x 790mm (28-1/4" x 16-5/8" x 31-1/8")
Fixture only, seat and supply sold separately
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008/CSA B45.1-08 for Vitreous
China Fixtures
• US EPA WaterSense® Specication for HETs
PORTSMOUTH® CHAMPION® PRO
VITREOUS CHINA
1"
(26 mm)
3-9/16"
(90 mm)
2-1/16"
(52 mm)
FINISHED WALL
8-7/8"
(226 mm)
28-1/4"
(718 mm)
16-1/2"
(419 mm)
16-1/2"
(419 mm)
31-1/8"
(790 mm)
16-5/8"
(423mm)
14"
(356 mm)
** Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Veritec
Consulting, Inc. and Koeller and Company.
To Be Specied:
❏ Color: ❏ White ❏ Linen
❏ Seat: #5330.010 Round Front Champion® Slow Close
solid plastic seat and cover
❏ Supply with stop:
ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES-CHECK LOCAL CODES.
© 2014 AS America Inc.
FINISHED
9-3/8"
(238 mm)
12"
(305 mm)
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARAT ELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibilit y is
assumed for use of superseded or voided pages.
K97
13-7/16"
(341 mm)
FLOOR
Certified by
IAPMO R&T
10-9/16"
(268 mm)
2/14
