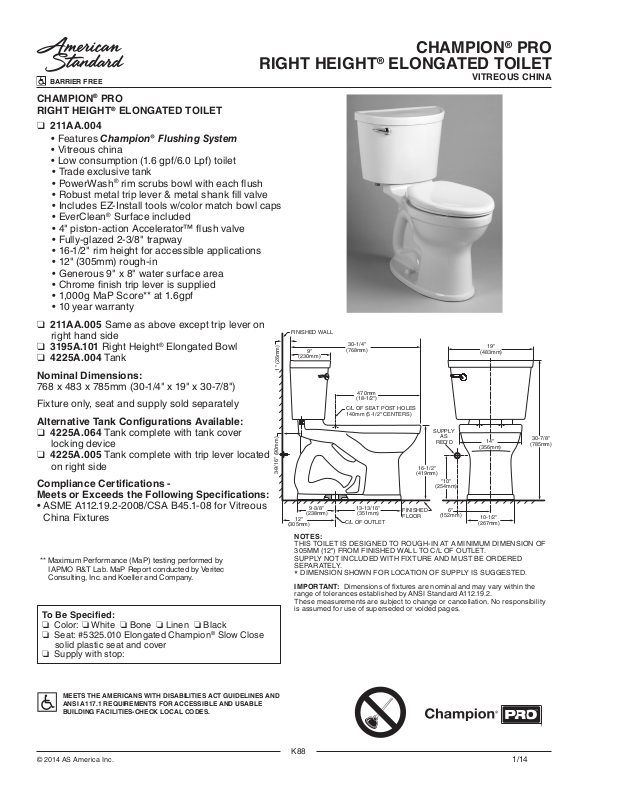

RIGHT HEIGHT® ELONGATED TOILET
(305mm)
BARRIER FREE
CHAMPION® PRO
RIGHT HEIGHT® ELONGATED TOILET
❑ 211AA .00 4
• Features Champion® Flushing System
• Vitreous china
• Low consumption (1.6 gpf/6.0 Lpf) toilet
• Trade exclusive tank
• PowerWash® rim scrubs bowl with each ush
• Robust metal trip lever & metal shank ll valve
• Includes EZ-Install tools w/color match bowl caps
• EverClean® Surface included
• 4" piston-action Accelerator™ ush valve
• Fully-glazed 2-3/8" trapway
• 16-1/2" rim height for accessible applications
• 12" (305mm) rough-in
• Generous 9" x 8" water surface area
• Chrome nish trip lever is supplied
• 1,000g MaP Score** at 1.6gpf
• 10 year warranty
❑ 211AA .00 5 Same as above except trip lever on
right hand side
❑ 3195A.101 Right Height® Elongated Bowl
❑ 4225A.004 Tan k
Nominal Dimensions:
768 x 483 x 785mm (30-1/4" x 19" x 30-7/8")
Fixture only, seat and supply sold separately
Alternative Tank Congurations Available:
❑ 4225A.064 Tank complete with tank cover
locking device
❑ 4225A.005 Tank complete with trip lever located
on right side
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008/CSA B45.1-08 for Vitreous
China Fixtures
** Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Veritec
Consulting, Inc. and Koeller and Company.
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Black
❏ Seat: #5325.010 Elongated Champion® Slow Close
solid plastic seat and cover
❏ Supply with stop:
CHAMPION® PRO
VITREOUS CHINA
FINISHED WALL
30-1/4"
9"
(230mm)
1" (26mm)
3-9/16" (90mm)
9-3/8"
(238mm)
12"
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARAT ELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibilit y
is assumed for use of superseded or voided pages.
(768mm)
470mm
(18-1/2")
C/L OF SEAT POST HOLES
140mm (5-1/2" CENTERS)
13-13/16"
(351mm)
C/L OF OUTLET
FINISHED
FLOOR
16-1/2"
(419mm)
SUPPLY
AS
REQ'D
*10"
(254mm)
(152mm)
6"
19"
(483mm)
14"
(356mm)
10-1/2"
(267mm)
30-7/8"
(785mm)
© 2014 AS America Inc.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES AND
ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES-CHECK LOCAL CODES.
K88
1/14
