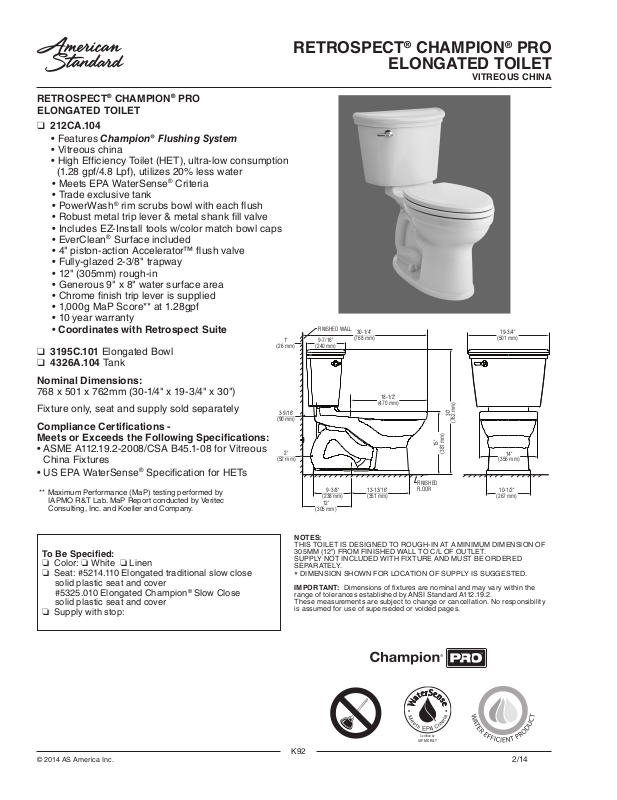

Page 1
RETROSPECT® CHAMPION® PRO
ELONGATED TOILET
VITREOUS CHINA
RETROSPECT® CHAMPION® PRO
ELONGATED TOILET
❑ 212CA.10 4
• Features Champion® Flushing System
• Vitreous china
• High Efficiency Toilet (HET), ultra-low consumption
(1.28 gpf/4.8 Lpf), utilizes 20% less water
• Meets EPA WaterSense® Criteria
• Trade exclusive tank
• PowerWash® rim scrubs bowl with each ush
• Robust metal trip lever & metal shank ll valve
• Includes EZ-Install tools w/color match bowl caps
• EverClean® Surface included
• 4" piston-action Accelerator™ ush valve
• Fully-glazed 2-3/8" trapway
• 12" (305mm) rough-in
• Generous 9" x 8" water surface area
• Chrome nish trip lever is supplied
• 1,000g MaP Score** at 1.28gpf
• 10 year warranty
• Coordinates with Retrospect Suite
❑ 3195C.101 Elongated Bowl
❑ 4326A.104 Tank
Nominal Dimensions:
768 x 501 x 762mm (30-1/4" x 19-3/4" x 30")
Fixture only, seat and supply sold separately
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008/CSA B45.1-08 for Vitreous
China Fixtures
• US EPA WaterSense® Specication for HETs
** Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Veritec
Consulting, Inc. and Koeller and Company.
1"
(26 mm)
3-9/16"
(90 mm)
2"
(52 mm)
FINISHED WALL
9-7/16"
(240 mm)
9-3/8"
(238 mm)
12"
(305 mm)
30-1/4"
(768 mm)
13-13/16"
(351 mm)
18-1/2"
(470 mm)
FINISHED
FLOOR
15"
(381 mm)
30"
(762 mm)
19-3/4"
(501 mm)
14"
(356 mm)
10-1/2"
(267 mm)
To Be Specied:
❏ Color: ❏ White ❏ Linen
❏ Seat: #5214.110 Elongated traditional slow close
solid plastic seat and cover
#5325.010 Elongated Champion® Slow Close
solid plastic seat and cover
❏ Supply with stop:
© 2014 AS America Inc.
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARAT ELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibilit y
is assumed for use of superseded or voided pages.
Certified by
IAPMO R&T
K92
2/14
