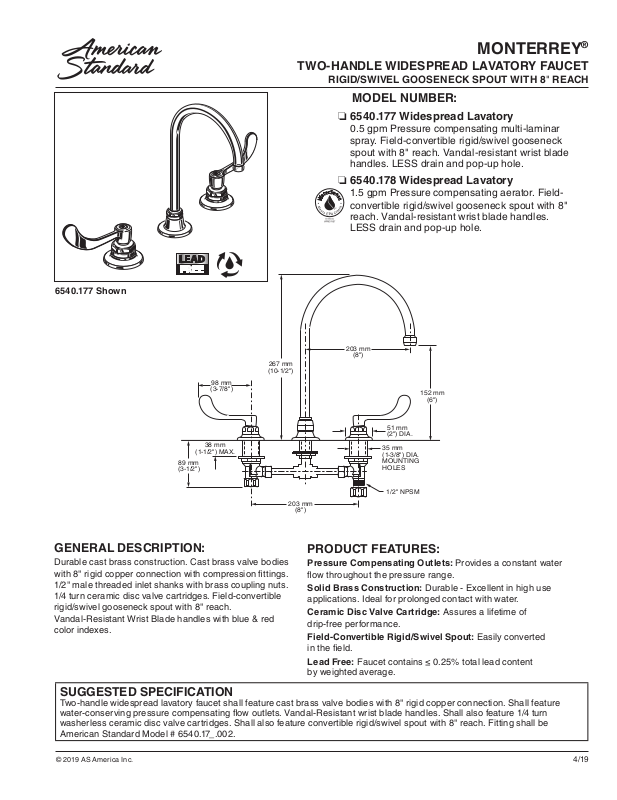

Page 1
6540.177 Shown
MONTERREY
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
RIGID/SWIVEL GOOSENECK SPOUT WITH 8" REACH
MODEL NUMBER:
❏ 6540.177 Widespread Lavatory
0.5 gpm Pressure compensating multi-laminar
sp ray.Field-convertible rigid/swivel gooseneck
spout with 8" reach. Vandal-resistant wrist blade
handles.LESS drain and pop-up hole.
❏ 6540.178 Widespread Lavatory
1.5 gpm Pressure compensating aerator.Fieldconvertible rigid/swivel gooseneck spout with 8"
reach.Vandal-resistant wrist blade handles.
LESS drain and pop-up hole.
®
267 mm
(10-1/2")
98 mm
(3-7/8")
38 mm
(1-1/2") MAX.
89 mm
(3-1/2")
GENERAL DESCRIPTION:
Durable cast brass construction. Cast brass valve bodies
with 8" rigid copper connection with compression ttings.
1/2" male threaded inlet shanks with brass coupling nuts.
1/4 turn ceramic disc valve cartridges. Field-convertible
rigid/swivel gooseneck spout with 8" reach.
Vandal-Resistant Wrist Blade handles with blue & red
color indexes.
203 mm
(8")
152 mm
(6")
51 mm
(2") DIA.
35 mm
(1-3/8") DIA.
MOUNTING
HOLES
1/2" NPSM
203 mm
(8")
PRODUCT FEATURES:
Pressure Compensating Outlets: Provides a constant water
ow throughout the pressure range.
Solid Brass Construction: Durable - Excellent in high use
applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Field-Convertible Rigid/Swivel Spout: Easily converted
in the eld.
Lead Free: Faucet contains ≤ 0.25% total lead content
by weighted average.
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with 8" rigid copper connection. Shall feature
water-conserving pressure compensating ow outlets. Vandal-Resistant wrist blade handles. Shall also feature 1/4 turn
washerless ceramic disc valve cartridges. Shall also feature convertible rigid/swivel spout with 8" reach. Fitting shall be
American Standard Model # 6540.17_.002.
© 2019 AS America Inc.
4/19
Page 2
MONTERREY
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
RIGID/SWIVEL GOOSENECK SPOUT WITH 8" REACH
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112 .18 .1
CSA B125.1
NSF 61/Section 9 and Annex G
Product
Number Description
Widespread lavatory faucet with eld-convertible gooseneck spout with 8" reach. 0.5
6540.177
65 4 0.17 8
gpm/1.9 L/min pressure compensating multi-laminar spray. Vandal-resistant wrist blade
handles.LESS drain & pop-up hole.
Widespread lavatory faucet with eld-convertible gooseneck spout with 8" reach.
1.5 gpm/5.7 L/min pressure compensating aerator.Vandal-resistant wrist blade handles.
LESS drain and pop-up hole.
FLOW RATE*
2.0
6540.178
1.5
1.0
6540.177
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish
Polished
Chrome
002
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for accessible and
usable building facilities - check local codes
Other Aerators Available:
Part Suffix Description
LV15 1.5 gpm (5.7 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
V15 1.5 gpm (5.7 Lpm) Vandal-Resistant PCA Aerator
LV10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
V10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Aerator
V035* 0.35 gpm (1.3 Lpm) Vandal-Resistant PCA Non-Aerated Spray
PCA - Pressure Compensating
*Meets Cal Green Code
© 2019 AS America Inc.
4/19
