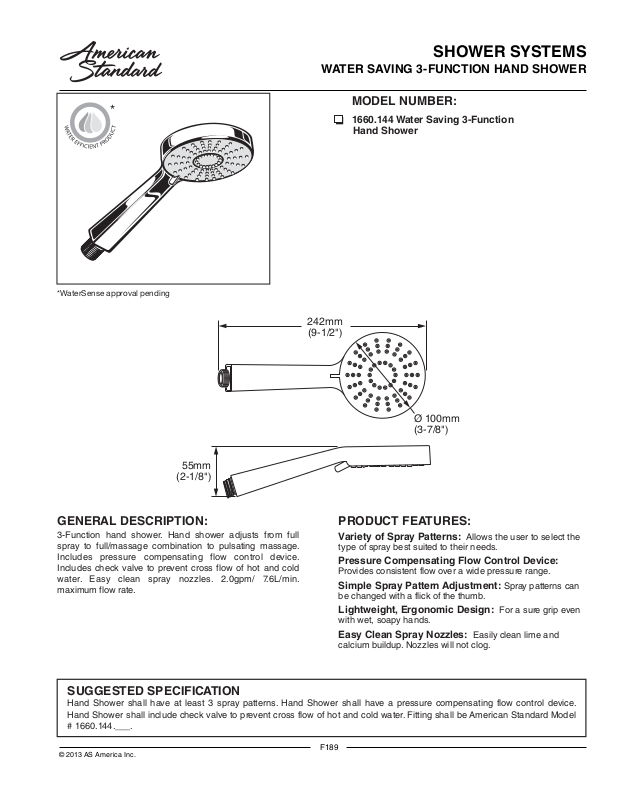

Page 1
SHOWER SYSTEMS
WATER SAVING 3-FUNCTION HAND SHOWER
*
*WaterSense approval pending
242mm
(9-1/2
MODEL NUMBER:
1660.144 Water Saving 3-Function
Hand Shower
")
Ø 100mm
(3-7/8
")
55mm
(2-1/8
")
GENERAL DESCRIPTION:
3-Function hand shower. Hand shower adjusts from full
spray to full/massage combination to pulsating massage.
Includes pressure compensating flow control device.
Includes check valve to prevent cross flow of hot and cold
water. Easy clean spray nozzles. 2.0gpm/ 7.6L/min.
maximum flow rate.
PRODUCT FEATURES:
Variety of Spray Patterns: Allows the user to select the
type of spray best suited to their needs.
Pressure Compensating Flow Control Device:
Provides consistent flow over a wide pressure range.
Simple Spray Pattern Adjustment: Spray patterns can
be changed with a flick of the thumb.
Lightweight, Ergonomic Design: For a sure grip even
with wet, soapy hands.
Easy Clean Spray Nozzles: Easily clean lime and
calcium buildup. Nozzles will not clog.
SUGGESTED SPECIFICATION
Hand Shower shall have at least 3 spray patterns. Hand Shower shall have a pressure compensating flow control device.
Hand Shower shall include check valve to prevent cross flow of hot and cold water. Fitting shall be American Standard Model
# 1660.144.___.
© 2013 AS America Inc.
F189
Page 2
SHOWER SYSTEMS
WATER SAVING 3-FUNCTION HAND SHOWER
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA 125.1
Product
Number
1660.144
Description
Water Saving 3-Function Hand Shower.
3.0
2.5
2.0
1. 5
1. 0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
FLOW RATE*
* Flow rate
uniform for all
spray patterns
10080604020
Finish Options
Polished
Chrome
002
Hand Shower Accessories
Product
Number
8888.035
8888.053
1660.400
1660.410
8888.096
Description
59" Metal Shower Hose
79" Metal Shower Hose
(Chrome Only)
Vacuum Breaker
Shower Arm Diverter
Shower Arm Bracket
Hand Shower Accessories
Product
Number
8888.036
8888.037
8888.068
8888.069
8888.038
Description
Fixed Wall Bracket
Wall Supply
Round Wall Supply
Square Wall Supply
Wall Supply Bracket
© 2013 AS America Inc.
F190
