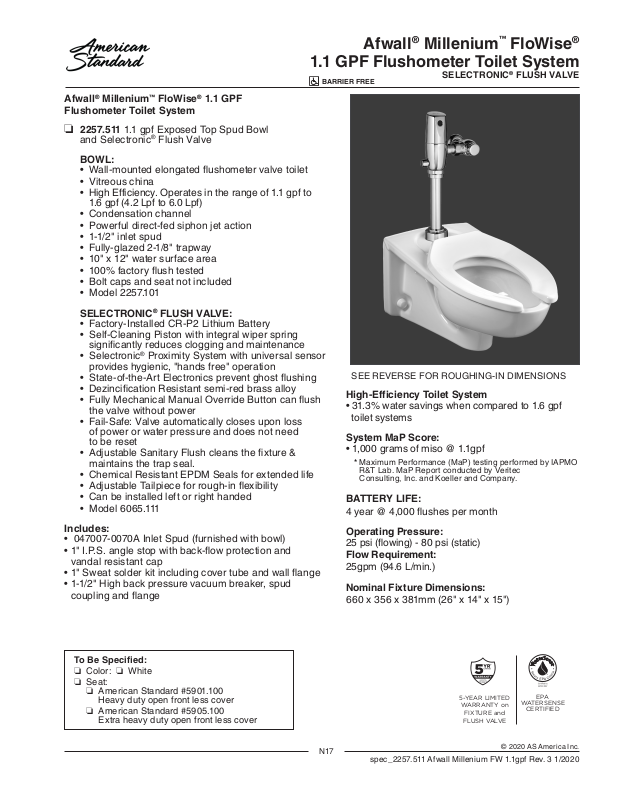

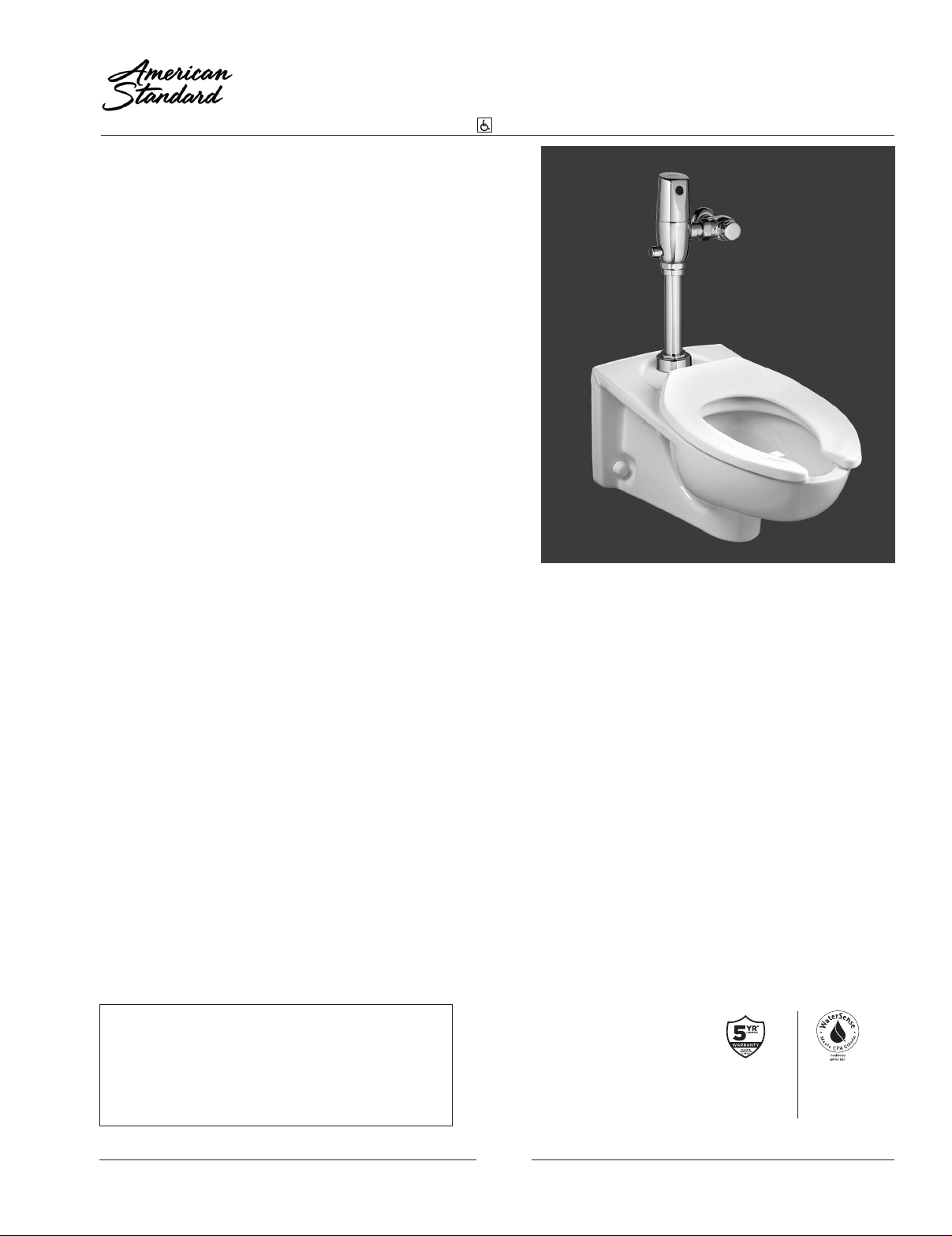

1.1 GPF Flushometer Toilet System
Afwall® Millenium™ FloWise
Flushometer Toilet System
❏ 22 5 7.511 1.1 gpf Exposed Top Spud Bowl
and Selectronic® Flush Valve
BOWL:
• Wall-mounted elongated ushometer valve toilet
• Vitreous china
• High Efficiency. Operates in the range of 1.1 gpf to
1.6 gpf (4.2 Lpf to 6.0 Lpf)
• Condensation channel
• Powerful direct-fed siphon jet action
• 1-1/2" inlet spud
• Fully-glazed 2-1/8" trapway
• 10" x 12" water surface area
• 100% factory ush tested
• Bolt caps and seat not included
• Model 2257.101
SELECTRONIC® FLU S H VALVE:
• Factory-Installed CR-P2 Lithium Battery
• Self-Cleaning Piston with integral wiper spring
signicantly reduces clogging and maintenance
• Selectronic® Proximity System with universal sensor
provides hygienic, "hands free" operation
• State-of-the-Art Electronics prevent ghost ushing
• Dezincication Resistant semi-red brass alloy
• Fully Mechanical Manual Override Button can ush
the valve without power
• Fail-Safe: Valve automatically closes upon loss
of power or water pressure and does not need
to be reset
• Adjustable Sanitary Flush cleans the xture &
maintains the trap seal.
• Chemical Resistant EPDM Seals for extended life
• Adjustable Tailpiece for rough-in exibility
• Can be installed left or right handed
• Mo d e l 6 0 6 5 .111
®
1.1 GPF
Afwall
BARRIER FREE
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
®
Millenium™ FloWise®
SELECTRONIC® FLUSH VALVE
High-Efficiency Toilet System
• 31.3% water savings when compared to 1.6 gpf
toilet systems
System MaP Score:
• 1,000 grams of miso @ 1.1gpf
* Maximum Performance (MaP) testing performed by IAPMO
R&T Lab. MaP Report conducted by Veritec
Consulting, Inc. and Koeller and Company.
BATTERY LIFE:
4 year @ 4,000 ushes per month
Includes:
• 047007-0070A Inlet Spud (furnished with bowl)
• 1" I.P.S. angle stop with back-ow protection and
vandal resistant cap
• 1" Sweat solder kit including cover tube and wall ange
• 1-1/2" High back pressure vacuum breaker, spud
coupling and ange
To Be Specied:
❏ Color: ❏ White
❏ Seat:
❏ American Standard #5901.100
Heavy duty open front less cover
❏ American Standard #5905.100
Extra heavy duty open front less cover
Operating Pressure:
25 psi (owing) - 80 psi (static)
Flow Requirement:
25gpm (94.6 L/min.)
Nominal Fixture Dimensions:
660 x 356 x 381mm (26" x 14" x 15")
N17
spec_ 2257.511 Afwall Millenium FW 1.1gpf Rev. 3 1/2020
5-YEAR LIMITED
WARRANTY on
FIXTURE and
FLUSH VALVE
© 2020 AS America Inc.
EPA
WATERSENSE
CERTIFIED
Page 2

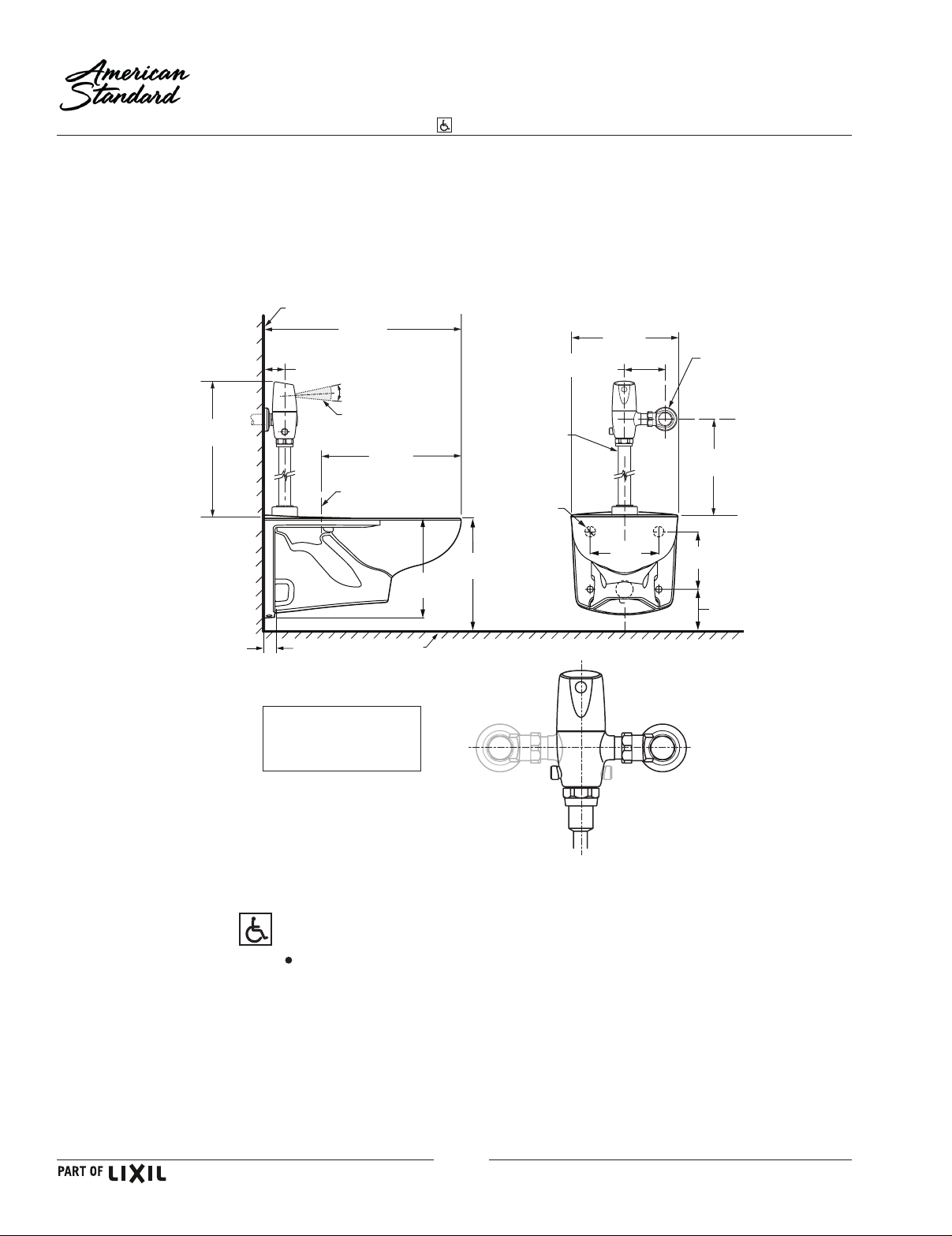

Afwall
2257.660
3351.511
3351.576
3351.660
3351.528
2257.528
®
Millenium™ FloWise®
1.1 GPF Flushometer Toilet System
BARRIER FREE
SELECTRONIC® FLUSH VALVE
Fixture Compliance Certications Meets or Exceeds the Following
Specications:
• ASME A112.19.2-2008 / CSA B45.1-08
for Vitreous China Fixtures
FINISHED WALL
73mm
(2-7/8" MIN.)
419mm
(16-1/2")
660mm
(26")
15˚
DETECTION ZONE
400mm-800mm
(15-3/4" TO 31-1/2")
470mm
(18-1/2")
C/L OF SEAT POST
HOLES 140 mm
(5-1/2") CENTER
333mm
(13-1/8")
Valve Listings:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
108 - 134mm
(4-1/4 to 5-1/4")
*CRITICAL
LEVEL
(4) Ø 22mm
(7/8") HOLES
381mm
•
(15")
356mm
(14")
-C-L-
229mm
(9")
SUPPLY
DN 25mm
(1" I.P.S.)
293mm
(11-1/2")
191mm
(7-1/2")
133mm
(5-1/4")
41mm
(1-5/8")
*Note: The Critical Line (-C-L-)
on Vacuum Breaker must
typically be a minimum of
6" (152mm) above fixture.
Consult Codes for details.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE BUILDINGS AND
FACILITIES - CHECK LOCAL CODES.
When installed so that top of seat is 432 to 483mm (17" to 19") from the finished floor.
NOTES:
WASTE OUTLET SEAL RING MUST BE NEOPRENE OR GRAPHITE-FELT (WAX R ING
NOT RECOMMENDED).
SUGGESTED 2mm (1/16) CLEARANCE BETWEEN FACE OF WALL AND BACK OF BOWL.
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM BREAKER ON
THE FLUSHOMETER VALVE, THE PLUMBER MUST VERIFY DIMENSIONS SHOWN FOR
SUPPLY ROUGHING.
CARRIER FITTING AS REQUIRED TO BE FURNISHED BY OTHERS.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORT.
IMPORTANT: Dimensions of x tures are nominal and may vary within the range of
tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for
use of superseded or voided pages
FINISHED
FLOOR
VALVE LEFT or RIGHT HAND INSTALLATION
N18
spec_ 2257.511 Afwall Millenium FW 1.1gpf Rev. 3 1/2020
© 2020 AS America Inc.
