7500.188 Shown
in
S
C
S
S
SCG
S
MONTERREY
®

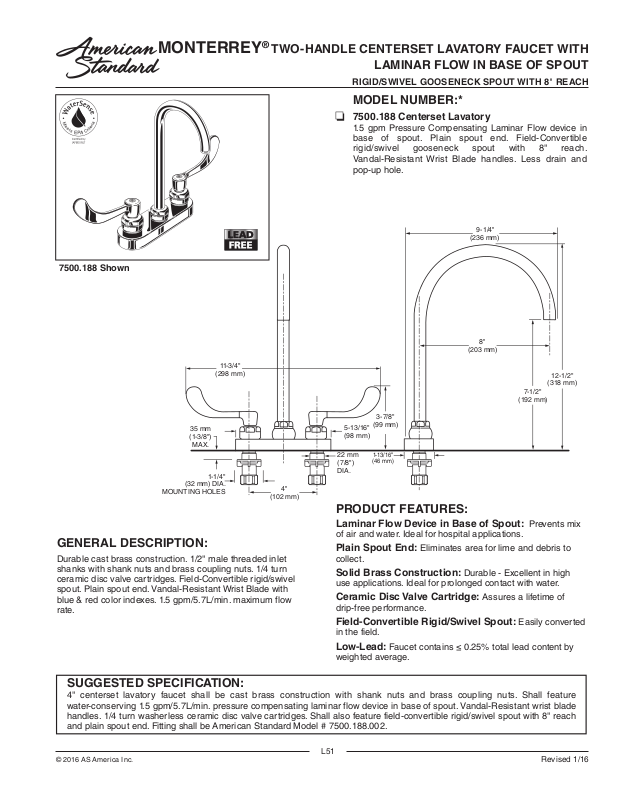

TWO -HANDLE CENTERSET LAVATORY FAUCET WITH
LAMINAR FLOW IN BASE OF SPOUT
RIGID/SWIVEL GOOSENECK SPOUT WITH 8" RE ACH
MODEL NUMBER:*
7500.188 Centerset Lavatory
1.5 gpm Pressure Compensating Laminar Flow device
base of spout. Plain spout end. Field-Convertible
rigid/swivel gooseneck spout with 8" reach.
Vandal-Resistant Wrist Blade handles. Less drain and
pop-up hole.

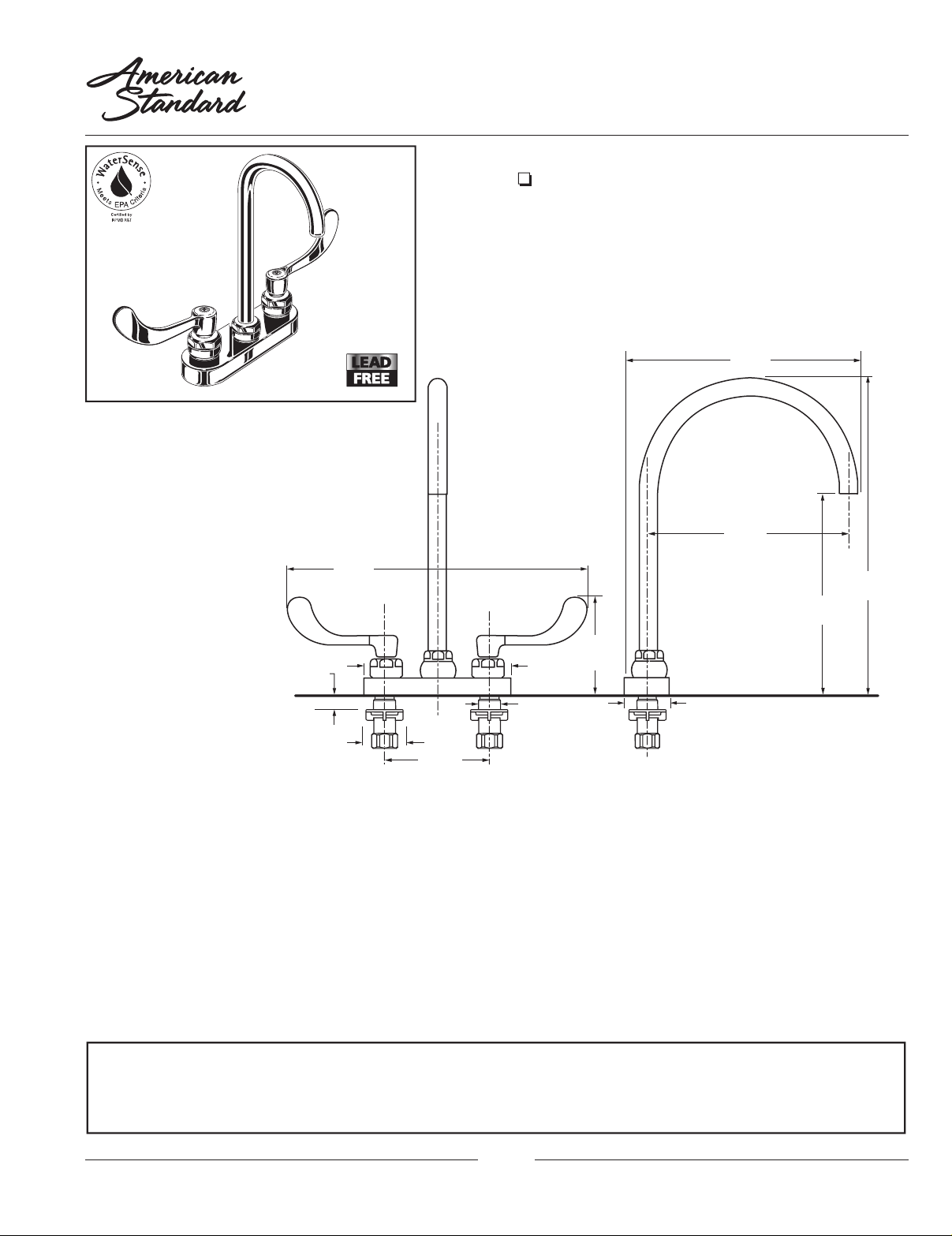

9-1/4"
(236 mm)
"
11-3/4
(298 mm)
35 mm
"
)
(1-3/8
MAX.
1-1/4
(32 mm) DIA.
MOUNTING HOLES
"
4"
(102 mm)
GENERAL DESCRIPTION:
Durable cast brass construction. 1/2" male threaded inlet
shanks with shank nuts and brass coupling nuts. 1/4 turn
ceramic disc valve cartridges. Field-Convertible rigid/swivel
spout. Plain spout end. Vandal-Resistant Wrist Blade with
blue & red color indexes. 1.5 gpm/5.7L/min. maximum flow
rate.
8"
(203 mm)
12-1/2
"
(318 mm)
7-1/2
"
(192 mm)
3-7/8
"
(99 mm)
5-13/16
"
(98 mm
)
22 mm
(7/8
DIA.
1-13/16
"
(46 mm)
"
)
PRODUCT FEATURES:
Laminar Flow Device in Base of Spout: Prevents mix
of air and water. Ideal for hospital applications.
Plain Spout End: Eliminates area for lime and debris to
collect.
Solid Brass Construction: Durable - Excellent in high
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Field-Convertible Rigid/Swivel Spout: Easily convert
in the field.
Low-Lead: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION:
4" centerset lavatory faucet shall be cast brass construction with shank nuts and brass coupling nuts. Shall feature
water-conserving 1.5 gpm/5.7L/min. pressure compensating laminar flow device in base of spout. Vandal-Resistant wrist blade
handles. 1/4 turn washerless ceramic disc valve cartridges. Shall also feature field-convertible rigid/swivel spout with 8" reach
and plain spout end. Fitting shall be American Standard Model # 7500.188.002.
© 2016 AS America Inc.
L51
Revised 1/16
Page 2
MONTERREY
CODES AND STANDARDS
S
These products meet or exceed the following
codes and standards:
ANSI 117. 1
ASME A112.18.1
CSA B 125
NSF 372
Product
Number
7500.188
Description
Centerset Lavatory with field-convertible rigid/swivel gooseneck spout with 8" reach. 1.5 gpm/5.7L/min
pressure compensating laminar flow device in base of spout. Plain spout end.
Vandal-Resistant Wrist Blade Handles. Less drain and pop-up hole.
®
TWO -HANDLE CENTERSET LAVATORY FAUCET WITH
LAMINAR FLOW IN BASE OF SPOUT
RIGID/SWIVEL GOOSENECK SPOUT WITH 8" RE ACH

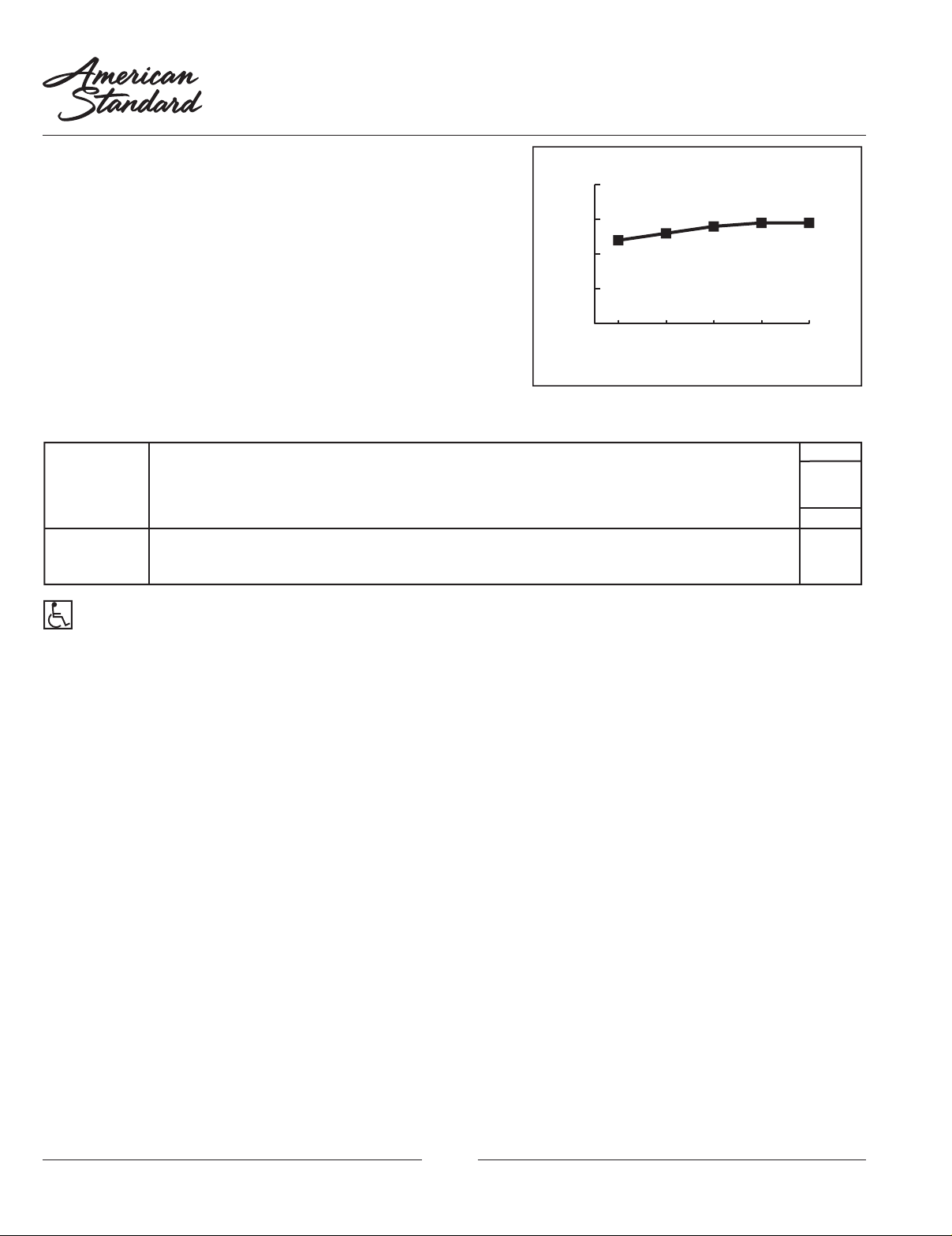

FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish
Polished
Chrome
002
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINE
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
© 2016 AS America Inc.
L52
Revised 1/16
