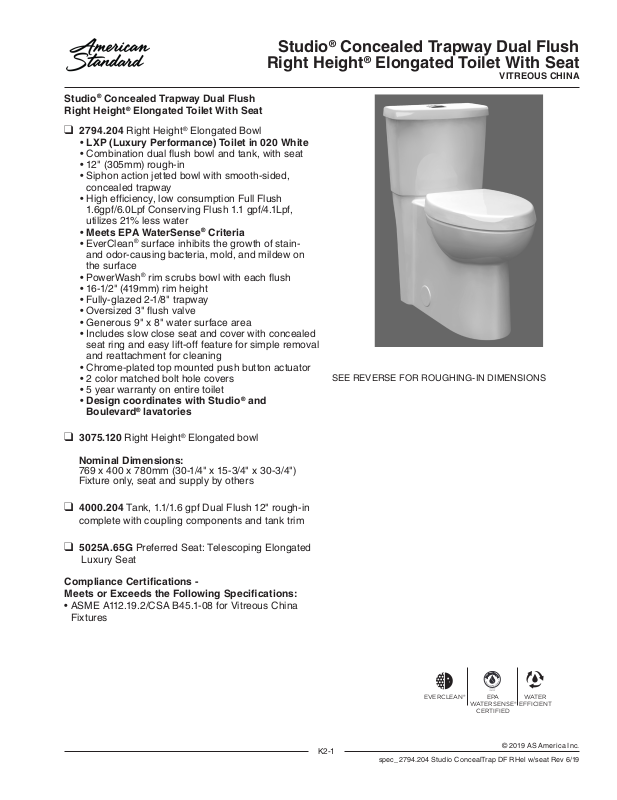

Page 1
Studio® Concealed Trapway Dual Flush
Right Height® Elongated Toilet With Seat
Studio® Concealed Trapway Dual Flush
Right Height® Elongated Toilet With Seat
❑ 2794.204 Right Height
• LXP (Luxury Performance) Toilet in 020 White
• Combination dual ush bowl and tank, with seat
• 12" (305mm) rough-in
• Siphon action jetted bowl with smooth-sided,
concealed trapway
• High efficiency, low consumption Full Flush
1.6gpf/6.0Lpf Conserving Flush 1.1 gpf/4.1Lpf,
utilizes 21% less water
• Meets EPA WaterSense® Criteria
• EverClean® surface inhibits the growth of stain-
and odor-causing bacteria, mold, and mildew on
the surface
• PowerWash® rim scrubs bowl with each ush
• 16-1/2" (419mm) rim height
• Fully-glazed 2-1/8" trapway
• Oversized 3" ush valve
• Generous 9" x 8" water surface area
• Includes slow close seat and cover with concealed
seat ring and easy lift-off feature for simple removal
and reattachment for cleaning
• Chrome-plated top mounted push button actuator
• 2 color matched bolt hole covers
• 5 year warranty on entire toilet
• Design coordinates with Studio® and
Boulevard® lavatories
®
Elongated Bowl
VITREOUS CHINA
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
❑ 3075.120 Right Height
®
Elongated bowl
Nominal Dimensions:
769 x 400 x 780mm (30-1/4" x 15-3/4" x 30-3/4")
Fixture only, seat and supply by others
❑ 4000.204 Tank, 1.1/1.6 gpf Dual Flush 12" rough-in
complete with coupling components and tank trim
❑ 5025A.65G Preferred Seat: Telescoping Elongated
Luxury Seat
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2/CSA B45.1-08 for Vitreous China
Fixtures
EVERCLEAN® EPA
WATERSENSE®
CERTIFIED
WATER
EFFICIENT
K2-1
© 2019 AS America Inc.
spec_2794. 204 Studio ConcealTrap DF RHel w/seat Rev 6/19
Page 2

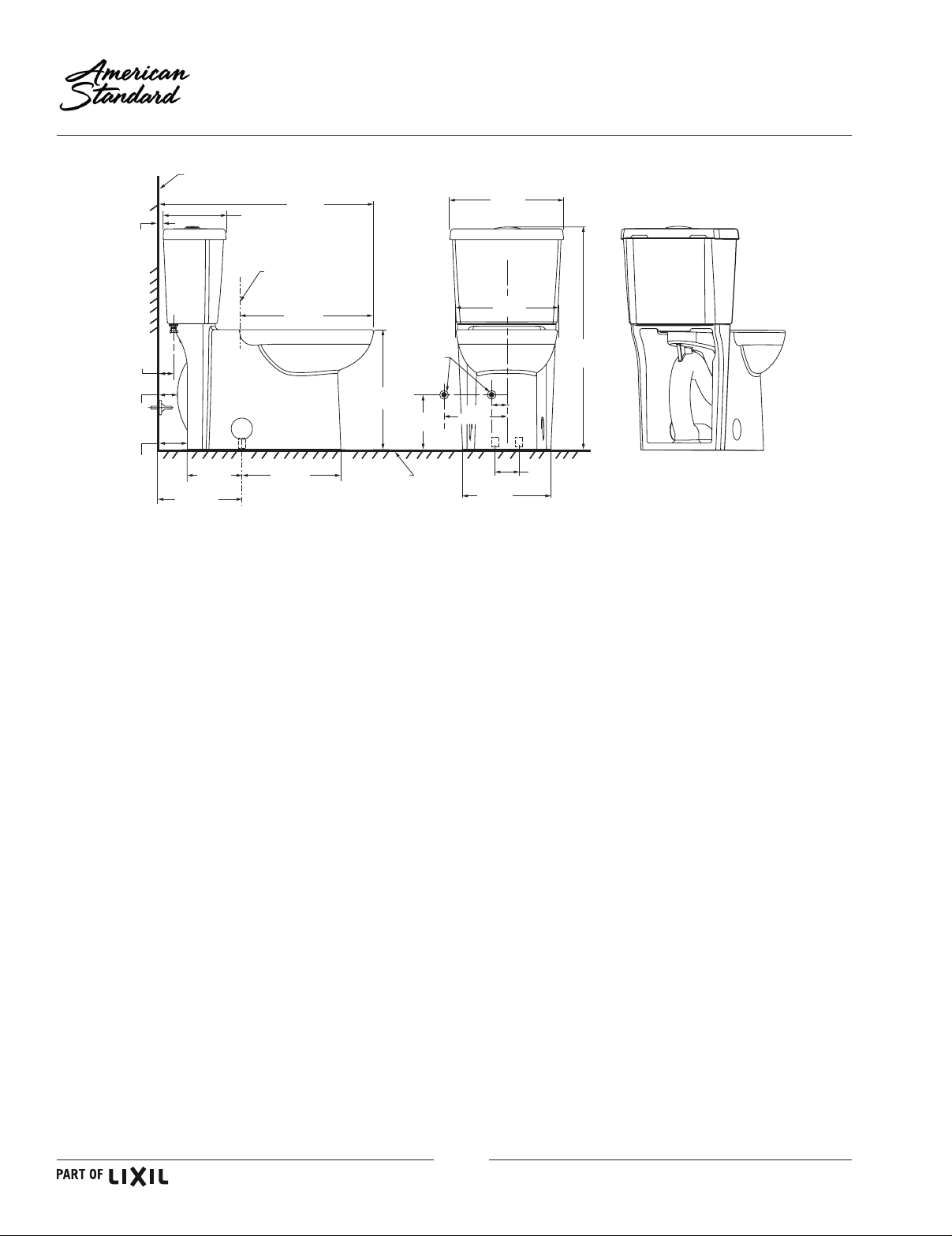

1-1/8"
FINISHED
2-5/8"
3-1/8"
(81mm)
(29mm)
(67mm)
WALL
8-3/4"
(221mm)
C/L OF SEAT POST
HOLES 5-1/2"
(140mm) CENTERS
30-1/4"
(768mm)
18-1/2"
(470mm)
Studio® Concealed Trapway Dual Flush
Right Height® Elongated Toilet With Seat
VITREOUS CHINA
15-3/4"
(399mm)
14"
(356mm)
16-1/2"
(419mm)
SUPPLY
AS
REQUIRED
(position 1 or
position 2)
5-1/2"
(140mm)
8"
(204mm)
2-1/4"
(57mm)
30-7/8"
(784mm)
4-1/2"
(114mm)
IMPORTANT: Water supply on the wall is required at 2-1/4" or 8" from centerline of the toilet (see rough-in).
First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation.
The second suggested position is next to the toilet. Between these two positions, the space for the supply
between wall and toilet is limited to 4-1/2". In this case, check your supply and hose dimensions.
(191mm)
12"
(305mm)
7-1/2"
13-11/16"
(347mm)
FINISHED
FLOOR
12-3/16"
(309mm)
6"
(152mm)
BACK VIEW
(for reference)
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
K2-2
© 2019 AS America Inc.
spec_2794. 204 Studio ConcealTrap DF RHel w/seat Rev 6/19
