BARRIER FREE
BUILDING FACILITIES - CHECK LOCAL CODES.

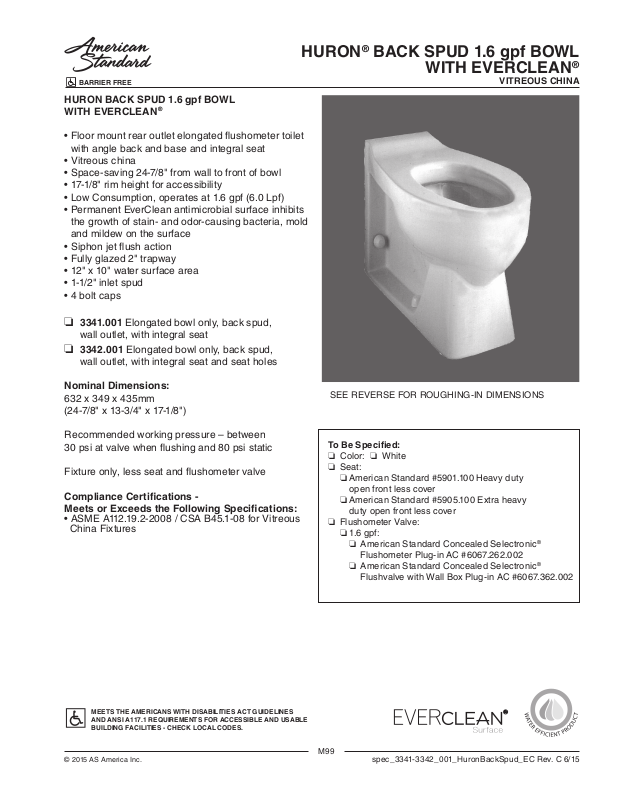

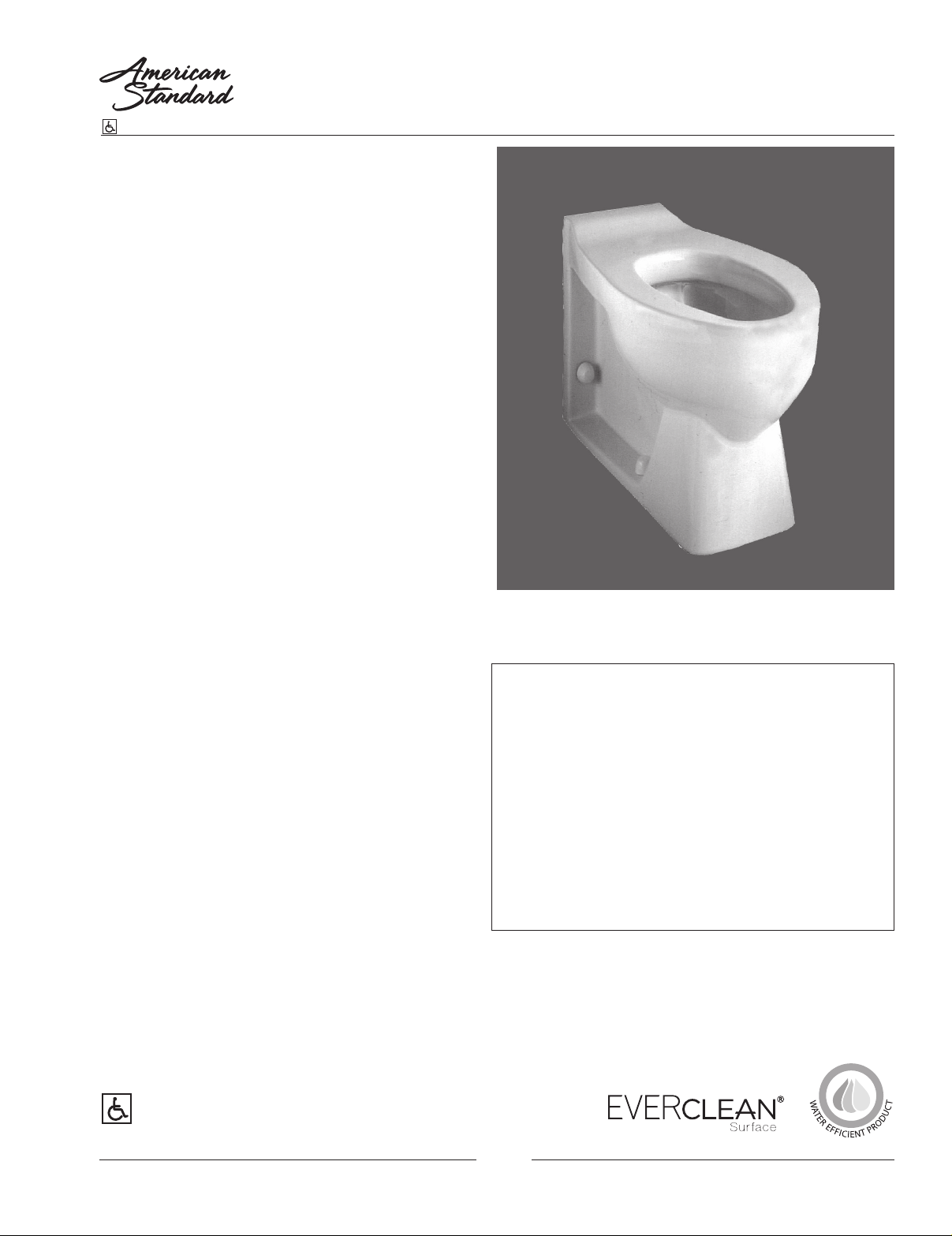

HURON® BACK SPUD 1.6 gpf BOWL
WITH EVERCLEAN®
VITREOUS CHINA
HURON BACK SPUD 1.6 gpf BOWL
WITH EVERCLEAN
®
• Floor mount rear outlet elongated ushometer toilet
with angle back and base and integral seat
• Vitreous china
• Space-saving 24-7/8" from wall to front of bowl
• 17-1/8" rim height for accessibility
• Low Consumption, operates at 1.6 gpf (6.0 Lpf)
• Permanent EverClean antimicrobial surface inhibits
the growth of stain- and odor-causing bacteria, mold
and mildew on the surface
• Siphon jet ush action
• Fully glazed 2" trapway
• 12" x 10" water surface area
• 1-1/2" inlet spud
• 4 bolt caps
❏ 3341.001 Elongated bowl only, back spud,
wall outlet, with integral seat
❏ 3342.001 Elongated bowl only, back spud,
wall outlet, with integral seat and seat holes
Nominal Dimensions:
632 x 349 x 435mm
(24-7/8" x 13-3/4" x 17-1/8")
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
Recommended working pressure – between
30 psi at valve when ushing and 80 psi static
Fixture only, less seat and ushometer valve
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008 / CSA B45.1-08 for Vitreous
China Fixtures
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
To Be Specied:
❏ Color: ❏ White
❏ Seat:
❏ American Standard #5901.100 Heavy duty
open front less cover
❏ American Standard #5905.100 Extra heavy
duty open front less cover
❏ Flushometer Valve:
❏ 1.6 gpf:
❏ American Standard Concealed Selectronic
❏ American Standard Concealed Selectronic
Flushometer Plug-in AC #6067.262.002
Flushvalve with Wall Box Plug-in AC #6067.362.002
®
®
© 2015 AS America Inc.
M99
spec_ 3341-3342_001_HuronBackSpud_EC Rev. C 6/15
Page 2

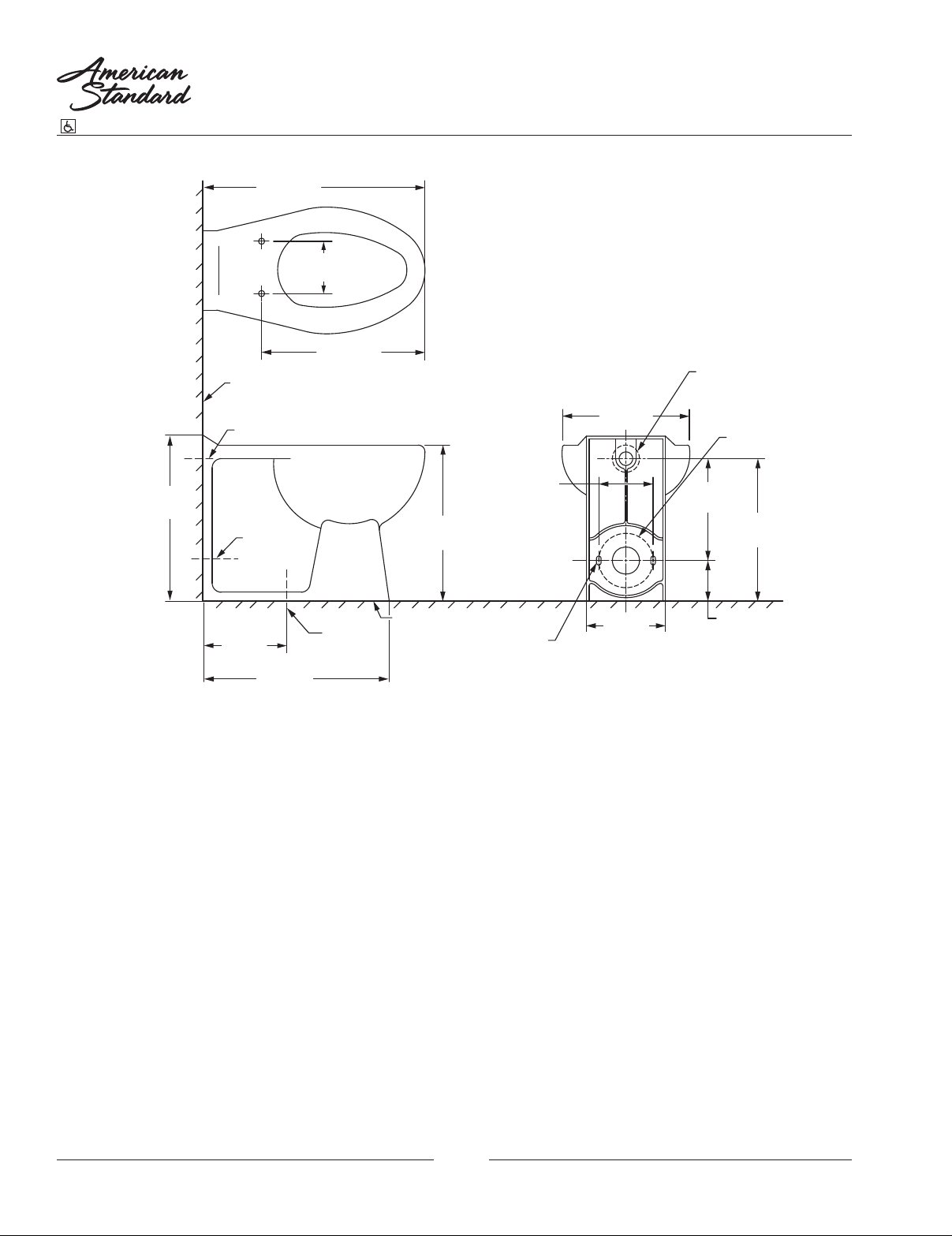

BARRIER FREE
24-7/8"
(632mm)
(140mm)
FINISHED
WALL
C/L OF SUPPLY
5-1/2"
18-7/8"
(479mm)
HURON® BACK SPUD 1.6 gpf BOWL
WITH EVERCLEAN®
VITREOUS CHINA
3" (76mm)
DIA. HOLE
13-3/4"
(349mm)
IN WALL
6" (152mm)
DIA. HOLE
IN WALL
18-3/4"
(476mm)
6"
(152mm)
C/L OUTLET
4-1/4"
(108mm)
10-3/4"
(273mm)
21"
(533mm)
NOTES:
* VARIABLE — CHECK WITH MANUFACTURER OF FLUSHVALVE FOR PROPER ROUGH-IN DIMENSIONS.
WASTE OUTLET SEAL RING MUST BE NEOPRENE OR GRAPHITE-FELT (WAX RING NOT RECO MMENDED).
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM BREAKER ON FLUSH VALVE, THE
PLUMBER MUST VERIFY DIMENSIONS SHOWN FOR SUPPLY ROUGHING.
FLUSH VALVE NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI
Standard A112.19.2. These measurements are subject to change or cancellation. No responsibility is assumed for
use of superseded or voided pages.
C/L of
1/2"(13mm)
DIA. HOLES
17-1/8"
(435mm)
FINISHED
FLOOR
(2) SLOTS
1" x 1/2"
(25 x 13mm)
8-3/8"
(213mm)
11"
(279mm)
4-1/4"
(108mm)
15-1/4"
(387mm)
© 2015 AS America Inc.
M100
spec_ 3341-3342_001_HuronBackSpud_EC Rev. C 6/15
