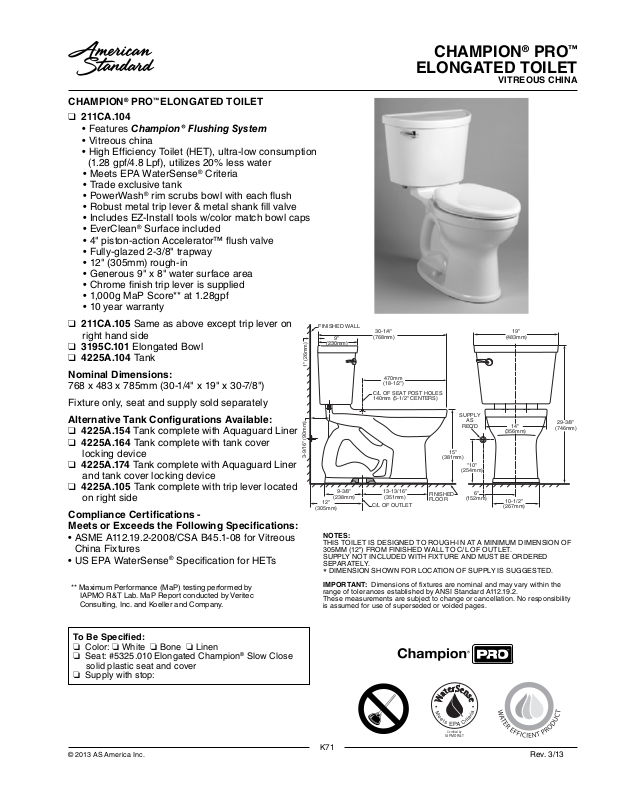

CHAMPION® PRO™ ELONGATED TOILET
❑ 211CA.104
• Features Champion® Flushing System
• Vitreous china
• High Efficiency Toilet (HET), ultra-low consumption
(1.28 gpf/4.8 Lpf), utilizes 20% less water
• Meets EPA WaterSense
®
Criteria
• Trade exclusive tank
• PowerWash® rim scrubs bowl with each ush
• Robust metal trip lever & metal shank ll valve
• Includes EZ-Install tools w/color match bowl caps
• EverClean® Surface included
• 4" piston-action Accelerator™ ush valve
• Fully-glazed 2-3/8" trapway
• 12" (305mm) rough-in
• Generous 9" x 8" water surface area
• Chrome nish trip lever is supplied
• 1,000g MaP Score** at 1.28gpf
• 10 year warranty
❑ 211CA.105 Same as above except trip lever on
right hand side
❑ 3195C.101 Elongated Bowl
❑ 4225A.104 Tan k
1" (26mm)
Nominal Dimensions:
768 x 483 x 785mm (30-1/4" x 19" x 30-7/8")
Fixture only, seat and supply sold separately
Alternative Tank Con gurations Available:
❑ 4225A.154 Tank complete with Aquaguard Liner
❑ 4225A.164 Tank complete with tank cover
locking device
3-9/16" (90mm)
❑ 4225A.174 Tank complete with Aquaguard Liner
and tank cover locking device
❑ 4225A.105 Tank com plete with trip lever locate d
on right side
(305mm)
Compliance Certi cations Meets or Exceeds the Following Speci cations:
• ASME A112.19.2-2008/CSA B45.1-08 for Vitreous
China Fixtures
• US EPA WaterSense® Speci cation for HETs
** Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Veritec
Consulting, Inc. and Koeller and Company.
CHAMPION® PRO
ELONGATED TOILET
VITREOUS CHINA
FINISHED WALL
9"
(230mm)
9-3/8"
(238mm)
12"
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
30-1/4"
(768mm)
470mm
(18-1/2")
C/L OF SEAT POST HOLES
140mm (5-1/2" CENTERS)
13-13/16"
(351mm)
C/L OF OUTLET
FINISHED
FLOOR
15"
(381mm)
SUPPLY
AS
REQ'D
*10"
(254mm)
(152mm)
19"
(483mm)
14"
(356mm)
6"
10-1/2"
(267mm)
(746mm)
™
29-3/8"
To Be Speci ed:
❏ Color: ❏ White ❏ Bone ❏ Linen
❏ Seat: #5325.010 Elongated Champion
solid plastic seat and cover
❏ Supply with stop:
© 2013 AS America Inc.
®
Slow Close
K71
Certified by
IAPMO R&T
Rev. 3/13
