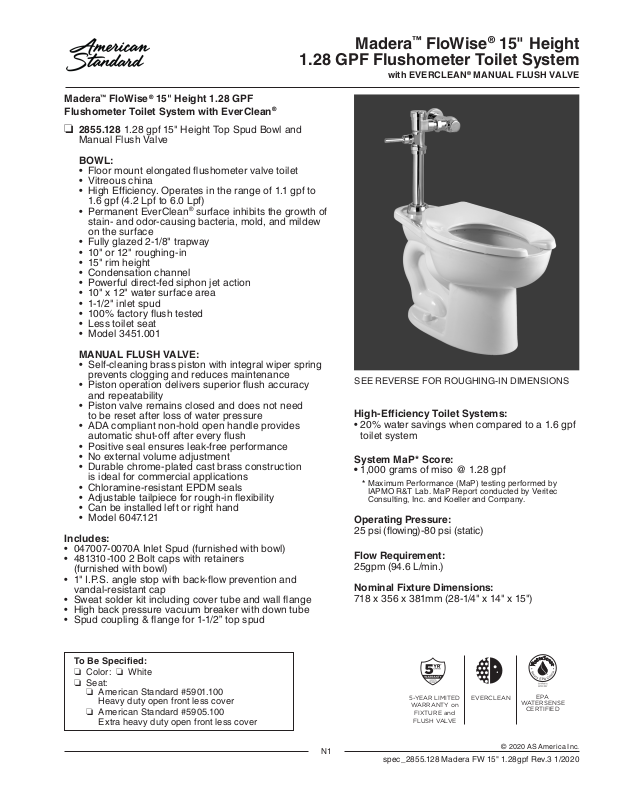

Page 1
Madera™ FloWise® 15" Height
1.28 GPF Flushometer Toilet System
with EVERCLEAN® MANUAL FLUSH VALVE
Madera™ FloWise® 15" Height 1.28 GPF
Flushometer Toilet System with EverClean
®
❏ 2855.128 1.28 gpf 15" Height Top Spud Bowl and
Manual Flush Valve
BOWL:
• Floor mount elongated ushometer valve toilet
• Vitreous china
• High Efficiency. Operates in the range of 1.1 gpf to
1.6 gpf (4.2 Lpf to 6.0 Lpf)
• Permanent EverClean® surface inhibits the growth of
stain- and odor-causing bacteria, mold, and mildew
on the surface
• Fully glazed 2-1/8" trapway
• 10" or 12" roughing-in
• 15" rim height
• Condensation channel
• Powerful direct-fed siphon jet action
• 10" x 12" water surface area
• 1-1/2" inlet spud
• 100% factory ush tested
• Less toilet seat
• Model 3451.001
MANUAL FLUSH VALVE:
• Self-cleaning brass piston with integral wiper spring
prevents clogging and reduces maintenance
• Piston operation delivers superior ush accuracy
and repeatability
• Piston valve remains closed and does not need
to be reset after loss of water pressure
• ADA compliant non-hold open handle provides
automatic shut-off after every ush
• Positive seal ensures leak-free performance
• No external volume adjustment
• Durable chrome-plated cast brass construction
is ideal for commercial applications
• Chloramine-resistant EPDM seals
• Adjustable tailpiece for rough-in exibility
• Can be installed left or right hand
• Model 6047.121
Includes:
• 047007-0070A Inlet Spud (furnished with bowl)
• 481310-100 2 Bolt caps with retainers
(furnished with bowl)
• 1" I.P.S. angle stop with back-ow prevention and
vandal-resistant cap
• Sweat solder kit including cover tube and wall ange
• High back pressure vacuum breaker with down tube
• Spud coupling & ange for 1-1/2” top spud
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
High-Efficiency Toilet Systems:
• 20% water savings when compared to a 1.6 gpf
toilet system
System MaP* Score:
• 1,000 grams of miso @ 1.28 gpf
* Maximum Performance (MaP) testing performed by
IAPMO R&T Lab. MaP Report conducted by Veritec
Consulting, Inc. and Koeller and Company.
Operating Pressure:
25 psi (owing)-80 psi (static)
Flow Requirement:
25gpm (94.6 L/min.)
Nominal Fixture Dimensions:
718 x 356 x 381mm (28-1/4" x 14" x 15")
To Be Specied:
❏ Color: ❏ White
❏ Seat:
❏ American Standard #5901.100
Heavy duty open front less cover
❏ American Standard #5905.100
Extra heavy duty open front less cover
N1
WARRANTY on
FIXTURE and
FLUSH VALVE
spec_ 2855.128 Madera FW 15" 1.28gpf Rev.3 1/2020
EVERCLEAN5-YEAR LIMITED
© 2020 AS America Inc.
EPA
WATERSENSE
CERTIFIED
Page 2
Madera™ FloWise® 15" Height
1.28 GPF Flushometer Toilet System
with EVERCLEAN® MANUAL FLUSH VALVE
Fixture Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008 / CSA B45.1-08 for
Vitreous China Fixtures

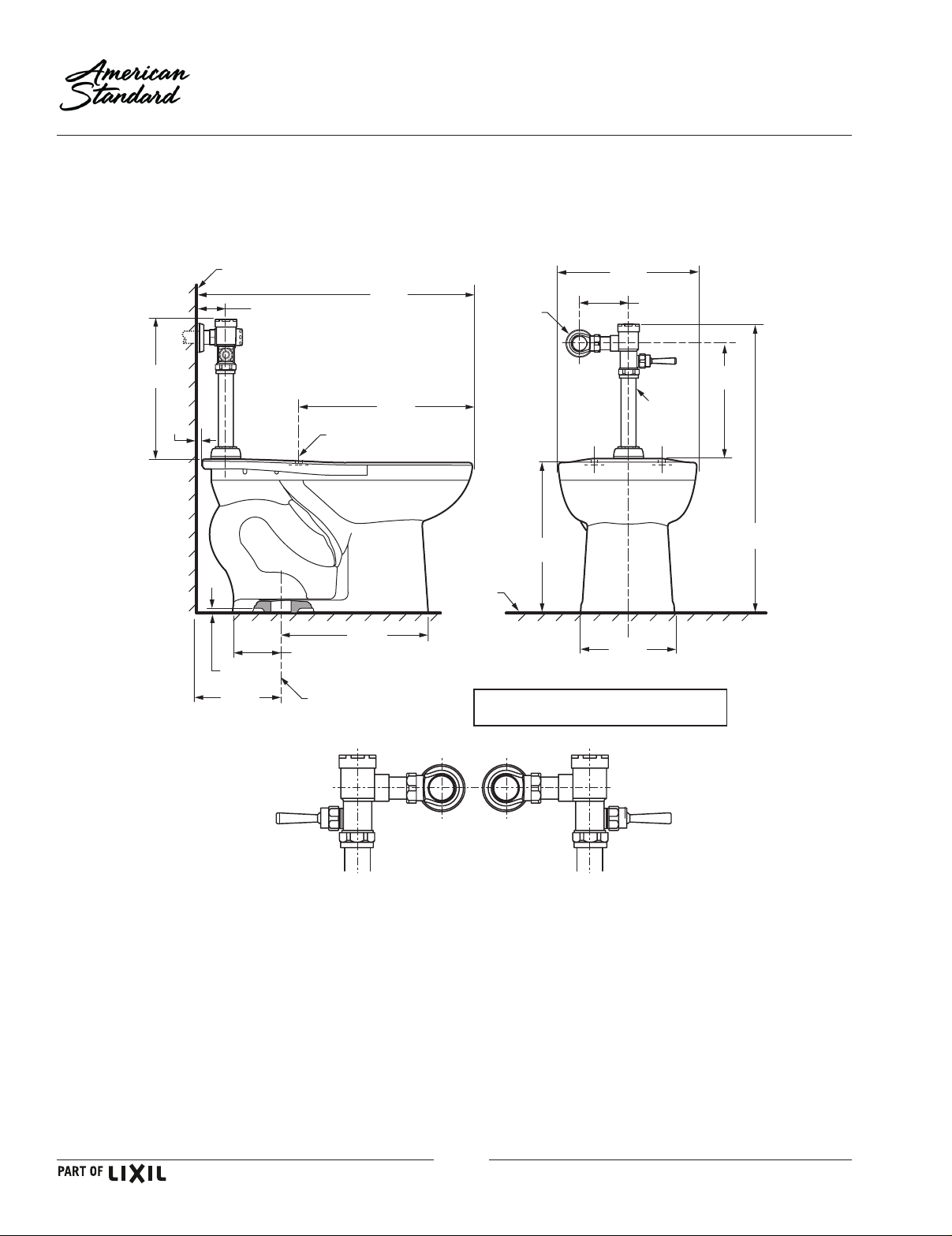

FINISHED WALL
718mm
(28-1/4
470mm
(18-1/2
C/L OF SEAT POST HOLES
140mm (5-1/2
") CENTERS
343mm
(13-1/2")
25mm
(1")
102mm
(4")
Valve Listings:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
356mm
")
(14
")
")
FINISHED
FLOOR
SUPPLY
DN 25mm
(1" I.P.S.)
381mm
(15
")
108 -133mm
(4-1/4" to 5-1/4")
-C-L-
*CRITICAL
LEVEL
292mm
(11-1/2")
724mm
(28-1/2
")
13mm
"
(1/2
254mm
(10
338mm
")
150mm
(5-7/8")
)
")
(13-5/16
C/L OF OUTLET
*Note: The Critical Line (-C-L-) on Vacuum Breaker
must typically be a minimum of 6" (152mm) above
fixture. Consult Codes for details.
Valve Left or Right Hand Installation
NOTES:
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM
BREAKER ON THE FLUSHOMETER VALVE, THE PLUMBER MUST
VERIFY DIMENSIONS SHOWN FOR SUPPLY ROUGHING.
THIS TOILET DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION
OF 254MM (10") AND A MAXIMUM DIMENSION OF 305MM (12") FROM
FINISHED WALL TO C/L OF OUTLET.
IMPORTANT: Dimensions of xtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
238mm
(9-3/8
")
N2
© 2020 AS America Inc.
spec_ 2855.128 Madera FW 15" 1.28gpf Rev. 2 12/19
